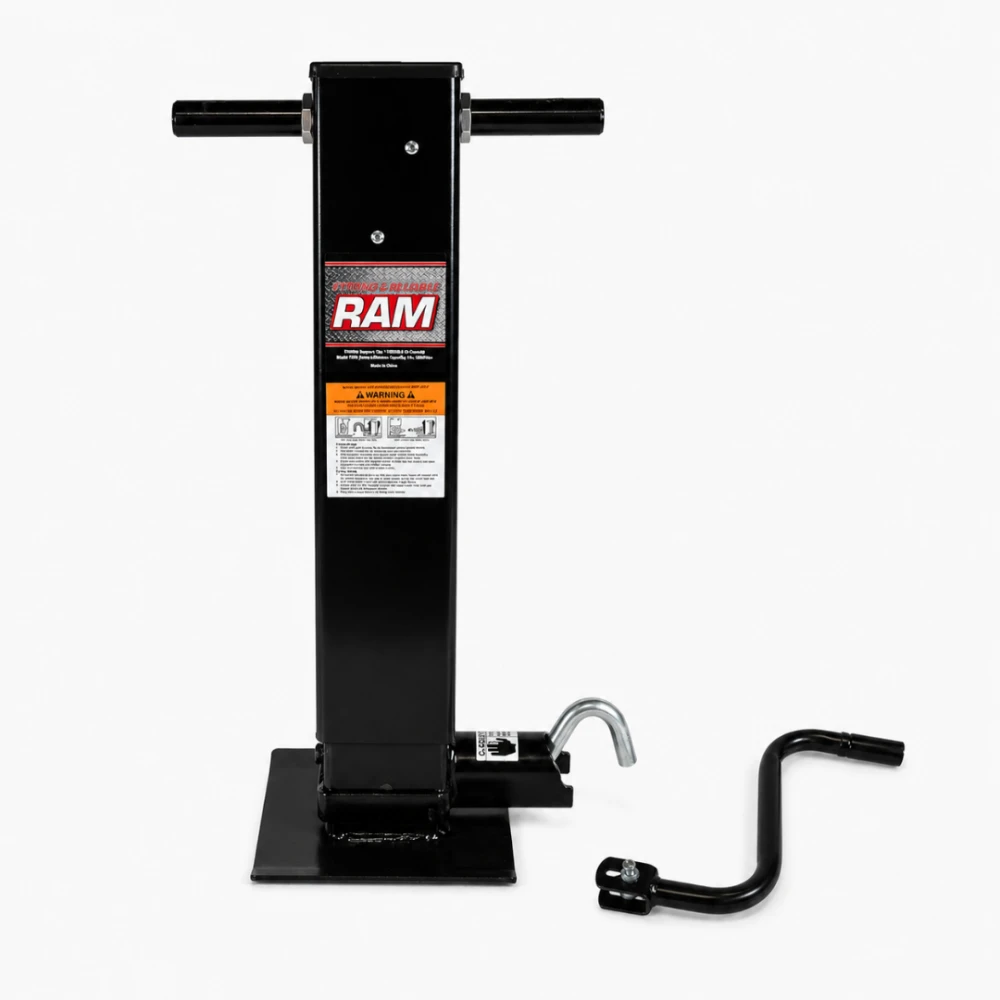

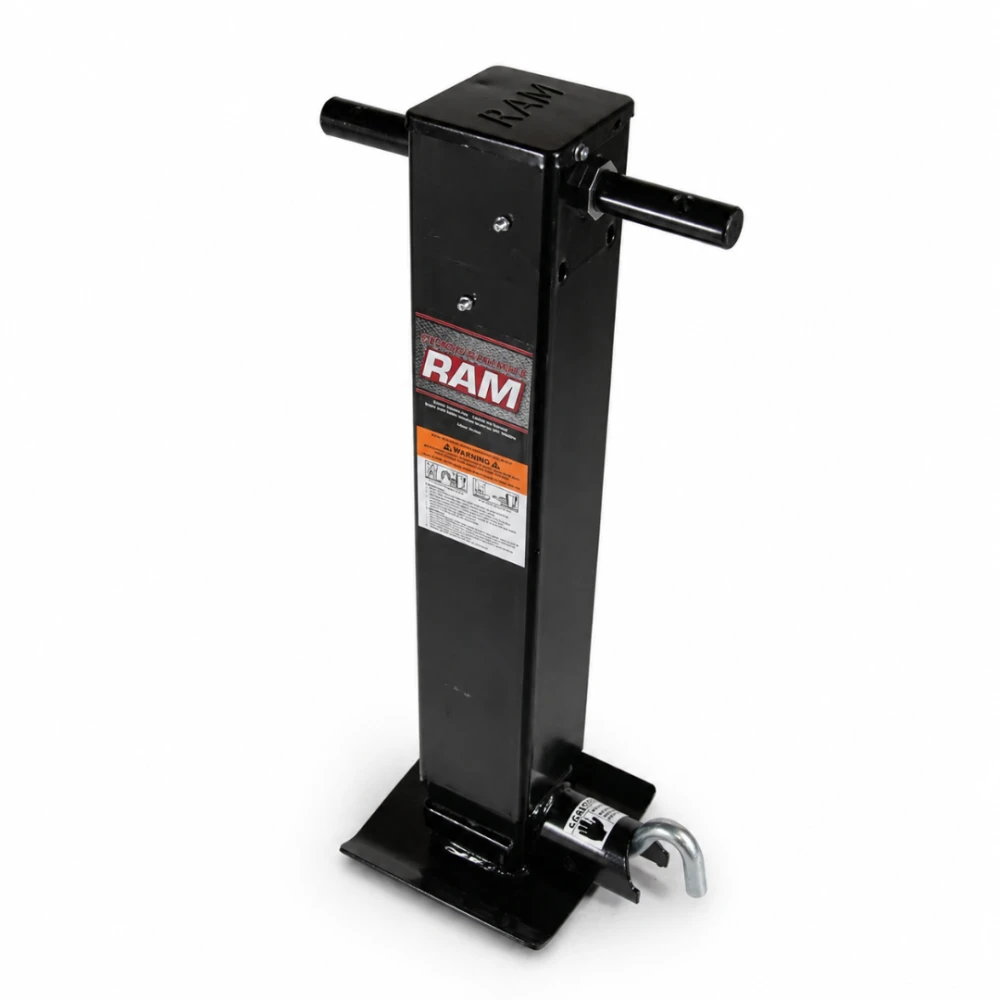

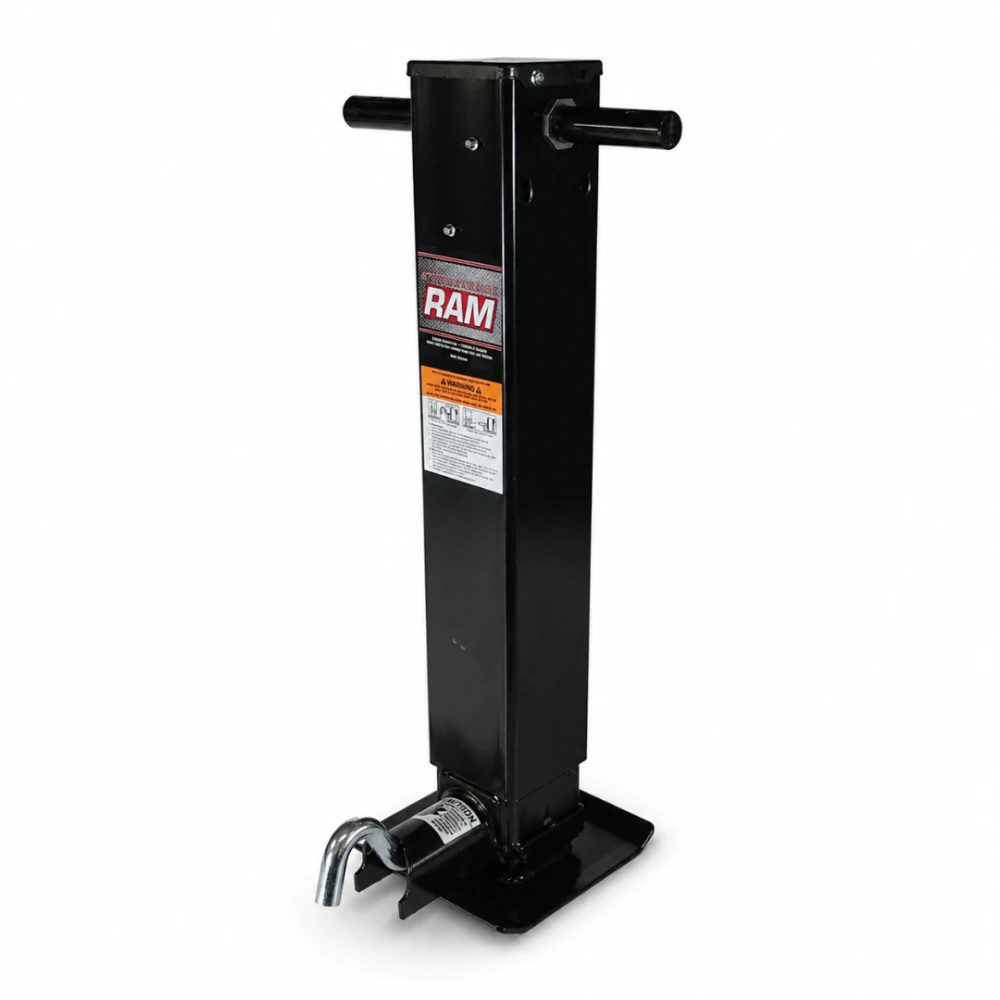

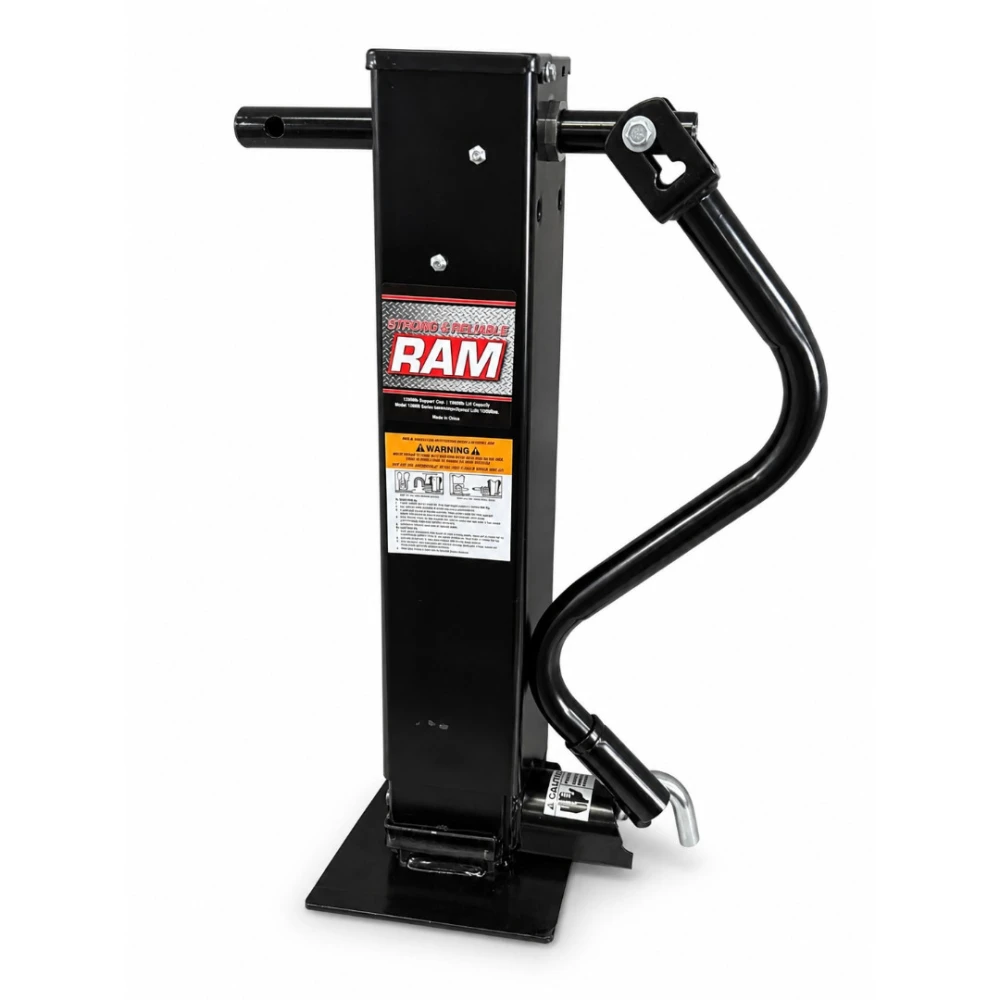

RAM 12K Direct Weld Heavy Duty Sidewind Trailer Jack, Spring Return Drop Leg
Model: RM12WSHPBRAM 12,000 lb Direct Weld Heavy Duty Sidewind Trailer Jack
Built for demanding trailer applications, this RAM direct weld heavy duty square trailer jack provides a 12,000 lb support capacity and 10,000 lb lift capacity. The sidewind handle crank offers controlled manual operation, while the spring return drop leg adds quick height adjustment before using the jack’s 12.5 inches of travel for final positioning.
Product Contents
- QTY 1 RAM TJD-12000SP-R2 direct weld heavy duty square trailer jack

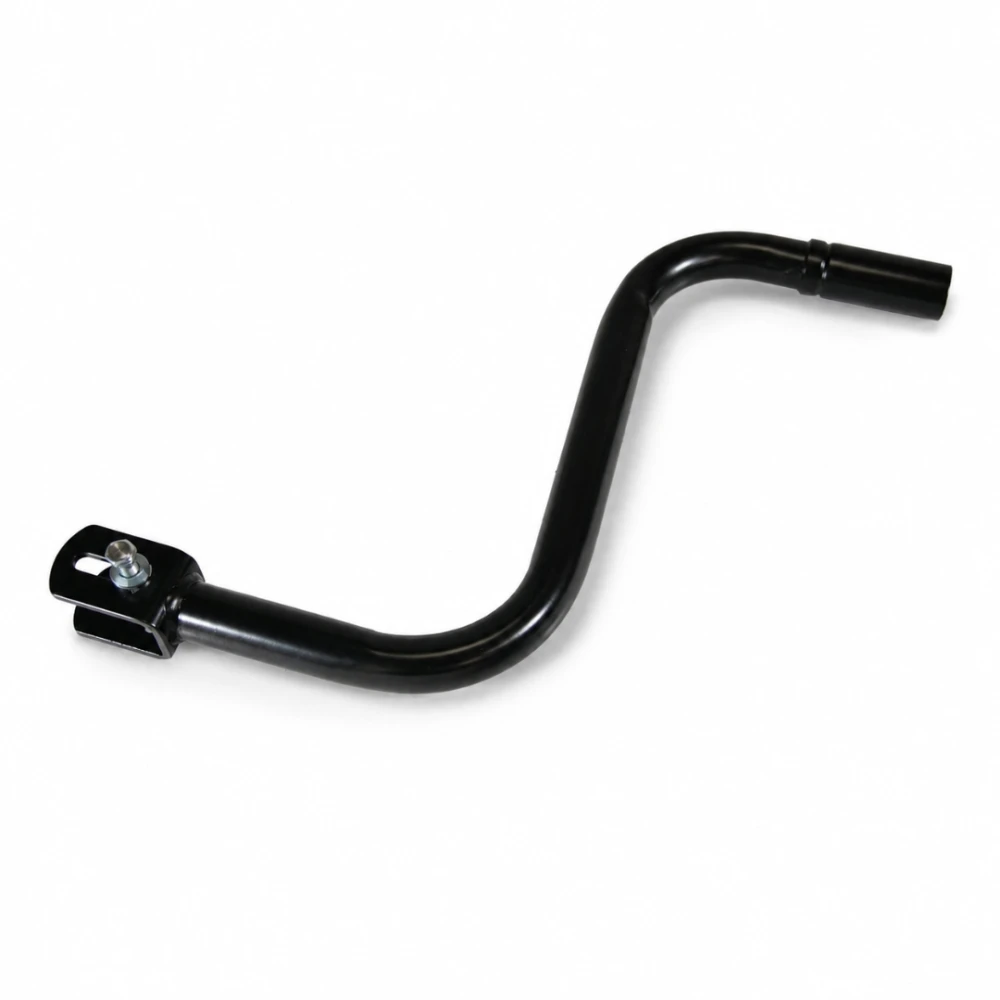

- Sidewind handle
- Handle clip
- Handle mounting hardware

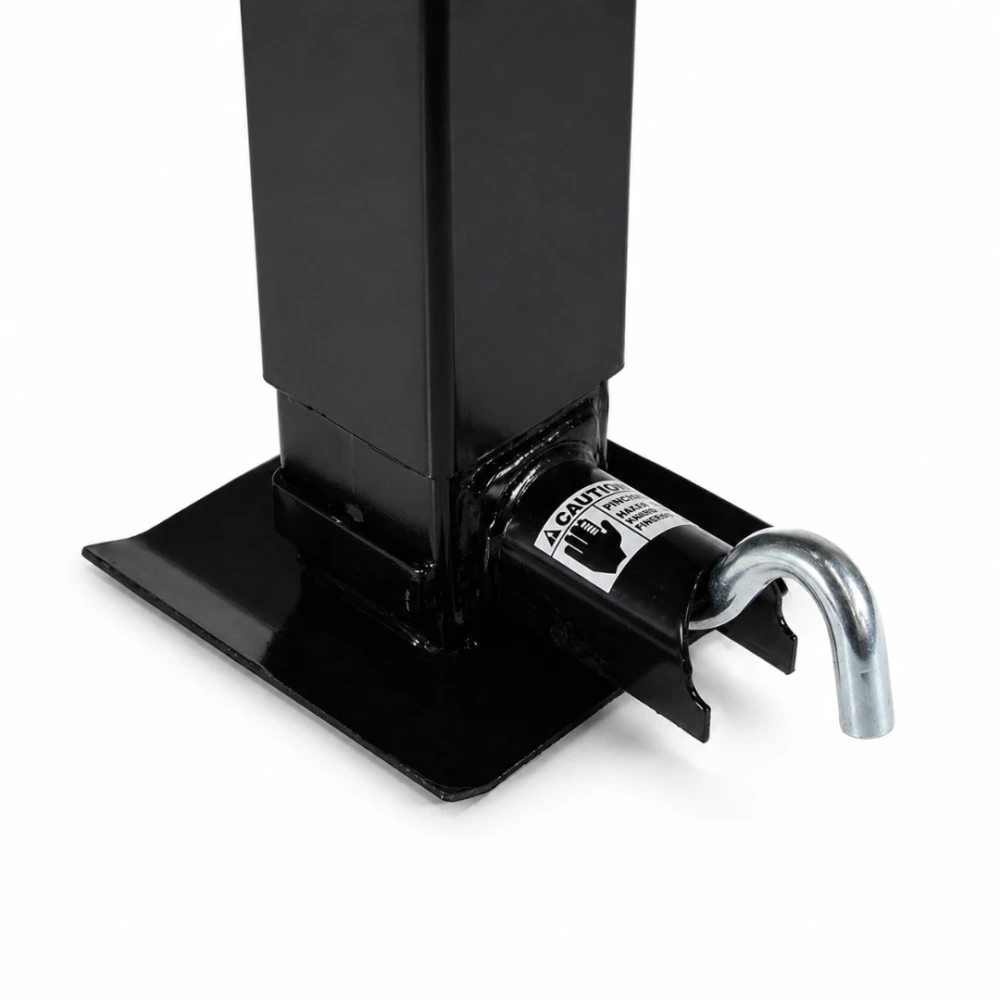

- Spring return drop leg with welded 8" x 8" sand foot
This jack is recommended for heavy duty trailers that need a strong direct weld jack with a wide footplate, manual sidewind operation, and a spring return drop leg for faster setup. The 4-inch square outer tube, grease zerks, and large octagon bushings help support dependable operation under heavy use.
| Brand | RAM |
|---|---|
| Part Number | TJD-12000SP-R2 |
| Support Capacity | 12,000 lb |
| Lift Capacity | 10,000 lb |
| Mounting Style | Direct Weld |
| Lift Mechanism | Manual Sidewind Handle Crank |
| Travel | 12.5 inches |
| Drop Leg Adjustment | 13.75 inches |
| Retracted Height | 28 inches |
| Outer Tube | 4-inch Square |
| Foot Type | 8" x 8" Welded Drop Leg Sand Foot |
| Leg Style | Spring Return Drop Leg |
| Finish | Black Powdercoat |
| Swivel Type | Non-Swivel |
| Pin / Handle Orientation | Pin to Right |
Need help confirming this jack for your trailer? Call us at 877-869-6690 and our team will be happy to help.
