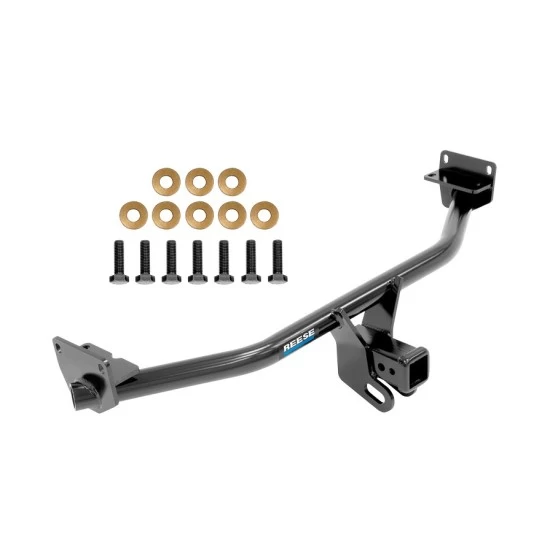

Reese Trailer Tow Hitch For 16‑21 Hyundai Tucson Class 3 2" Towing Receiver
Model: 447802016 - 2021 Hyundai, Tucson, All Styles
Trailer Hitch Specs:
| Part Number | 44780 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 2016 2017 2018 2019 2020 2021
$205 39 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $205 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44780
- UPC: 016118135077
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2016 - 2021 Hyundai, Tucson, All Styles
Trailer Hitch Specs:
| Part Number | 44780 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 2016 2017 2018 2019 2020 2021
Get Expert Help
Reese Trailer Tow Hitch For 16-21 Hyundai Tucson Class 3 2" Towing Receiver Install Notes
Installation Instructions for Hyundai Tucson (2016–Current)
Part Numbers:
- 75836
- 44780
- CQT75836
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 16mm Socket
- Flathead Screwdriver
Step-by-Step Instructions:
-
Remove Underbody Panels:
- If equipped, remove two (2) plastic underbody panels located under the rear bumper and behind the rear wheels.
- Use a flathead screwdriver to remove three (3) plastic expansion fasteners from each panel and pull down to remove. Set aside for reinstallation later.
-
Install Hitch:
- Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
- Rotate the hitch into position and align with the frame.
- Attach with four (4) M10 x 1.25 x 30mm bolts and conical toothed washers (teeth side against the hitch) on the passenger side.
- On the driver side, attach with three (3) M10 x 1.25 x 30mm bolts and conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
-
Reinstall Panels:
- Reinstall the two (2) plastic panels removed earlier.
Hardware List:
- Qty (7): Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (7): Conical Tooth Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N*m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Installation time: 30 minutes for professional installers.
Installation Instructions
Part Numbers:
- 75836
- 44780
- CQT75836
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- 16mm Socket
- Flathead Screwdriver
Step-by-Step Instructions:
-
Remove Underbody Panels:
- If equipped, remove two (2) plastic underbody panels located under the rear bumper and behind the rear wheels.
- Use a flathead screwdriver to remove three (3) plastic expansion fasteners from each panel and pull down to remove. Set aside for reinstallation later.
-
Install Hitch:
- Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
- Rotate the hitch into position and align with the frame.
- Attach with four (4) M10 x 1.25 x 30mm bolts and conical toothed washers (teeth side against the hitch) on the passenger side.
- On the driver side, attach with three (3) M10 x 1.25 x 30mm bolts and conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
-
Reinstall Panels:
- Reinstall the two (2) plastic panels removed earlier.
Hardware List:
- Qty (7): Bolt – M10 x 1.25 x 30mm CL10.9
- Qty (7): Conical Tooth Washer – 3/8”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,587 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Tighten all M10 CL10.9 fasteners to 42 lb-ft (57 N·m).
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Installation time: 30 minutes for professional installers.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
