Reese 15 Ton Regular Pintle Hook Trailer Tow Hitch Receiver 30,000 lbs Grade 8 Hardware Heavy Duty

Model: 74119

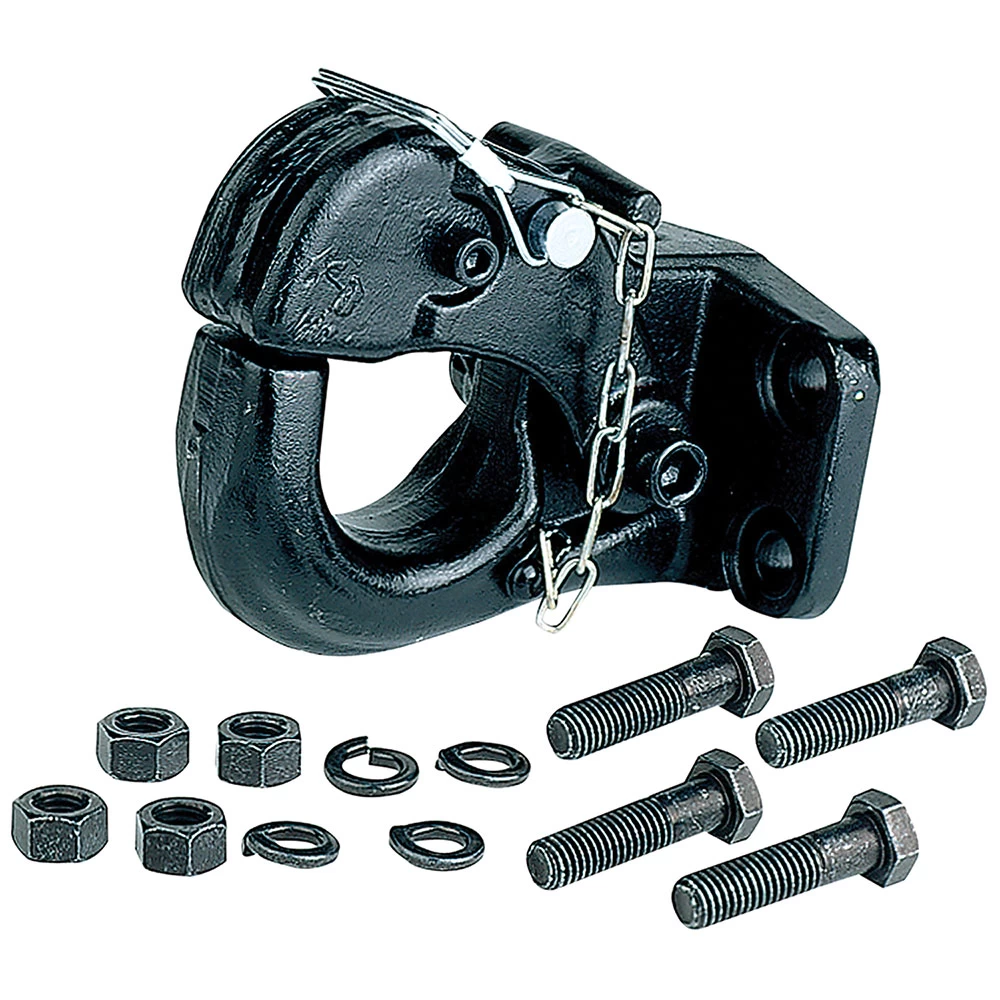

REESE Towpower heavy duty, 10 ton pintle hook is designed with strength, durability and ease of use in mind. Simply bolt-on to a pintle hook mounting plate (Sold separately), and it is easy to adjust. Perfect for hauling heavy loads.

Pintle Hook Specs:

Part Number	74119
Brand	Reese Towpower
Finish	Black Powder Coat
Capacity	30,000 lbs
Tongue Weight	6000 lbs
Lunette Eye Diameter	2-1/2"
Install Instructions

Questions or Comments? Call 702-374-8999

Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.

See Full Description

$75 ¹⁹ $117.50 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Add to Wish List

$117.50 $75 ¹⁹

Pay in 4 interest-free installments of $18.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $18.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese Towpower
Model: 74119
UPC: 016118741193
Includes: Pintle Hook

Description

Part Number	74119
Brand	Reese Towpower
Finish	Black Powder Coat
Capacity	30,000 lbs
Tongue Weight	6000 lbs
Lunette Eye Diameter	2-1/2"
Install Instructions

Questions or Comments? Call 702-374-8999

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 74119 , Reese , Towpower , Pintle , Hook , Bolt-On , 30000 , lbs. , Capacity

Get Expert Help

Reese 15 Ton Regular Pintle Hook Trailer Tow Hitch Receiver 30,000 lbs Grade 8 Hardware Heavy Duty Install Notes

Installation Instructions for Ball/Pintle Hook Models

Part Numbers:

74115
74116
74117
74118
74119

Specifications:

Part Number	Description	Max Tongue Weight (lbs)	Max Gross Trailer Weight (lbs)
74115	1-7/8" Combination Ball & Pintle	3,000	16,000
74116	2" Combination Ball & Pintle	3,000	16,000
74117	2-5/16" Combination Ball & Pintle	3,000	16,000
74118	10 Ton Regular Pintle	4,000	20,000
74119	15 Ton Regular Pintle	6,000	30,000

Tools Required:

1/2" diameter grade 8 bolts
Torque wrench

Step-by-Step Installation Instructions:

Preparation:
- Confirm there is no interference with the tow vehicle or any mounted accessories.
- Re-check for interference after installation is complete.
Mounting:
- Ensure the mounting structure supports the rated capacity of the pintle hook (SAE J849b compliant).
- Use four 1/2" diameter grade 8 bolts and torque them to 100 ft-lbs.
Combination Pintle Hooks:
- Torque the ball locknut to 350 ft-lbs.

Operating Instructions:

For Pintle Hook:

Open the pintle by removing the safety pin and lifting the latch.
Position the lunette eye over the horn of the pintle and lower it into place.
Close the pintle and insert the safety pin.

For Hitch Ball/Pintle:

Open the pintle by removing the safety pin and lifting the latch.
Insert the safety pin into the hole to retain the latch in the open position.
Position the coupler over the ball and lock it into place, following the coupler manufacturer's instructions.

Maintenance:

Clean and inspect for proper operation every 30,000 miles or every 3 months, whichever comes first.
Regularly lubricate the latch and lock pivots with a light oil lubricant.
Check all mounting bolts and the ball locknut for proper torque.
Replace the ball locknut if its torque falls below 70 ft-lbs.

Safety Notes:

DO NOT lubricate threads; bolt failure may occur due to over-tightening.
DO NOT drill or weld to the hitch.
DO NOT exceed the vehicle or mounting rating.
Maintain a vertical (tongue) load of approximately 10% of the trailer weight, without exceeding rated capacities.
For off-road applications, reduce rated capacities by 25%.

California Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

Manufacturer Notes:

Use only approved bolts, locknuts, and washers for installation.
Consult applicable regulations for complete coupling and uncoupling procedures.

Warranty:

One-Year Limited Warranty

Covers defects in material or workmanship.
Excludes wear and tear, labor charges, and misuse or improper installation.

For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
