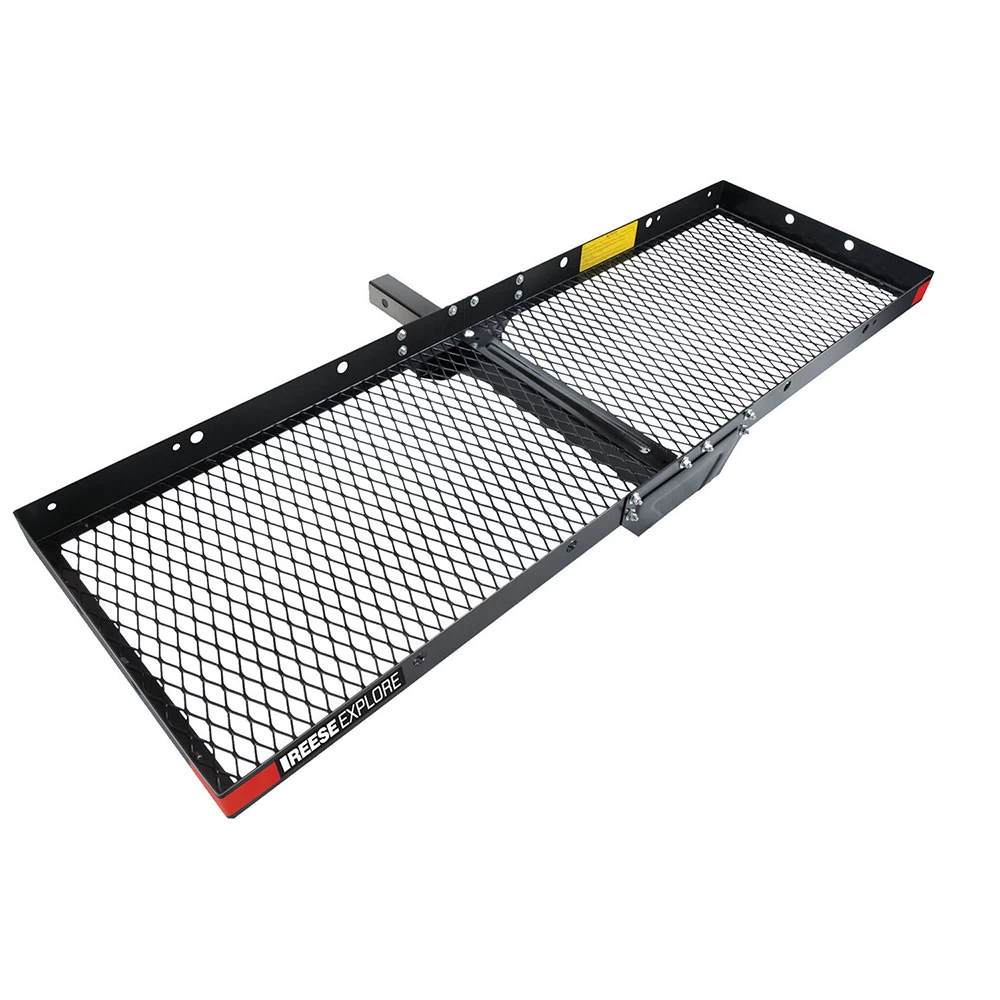

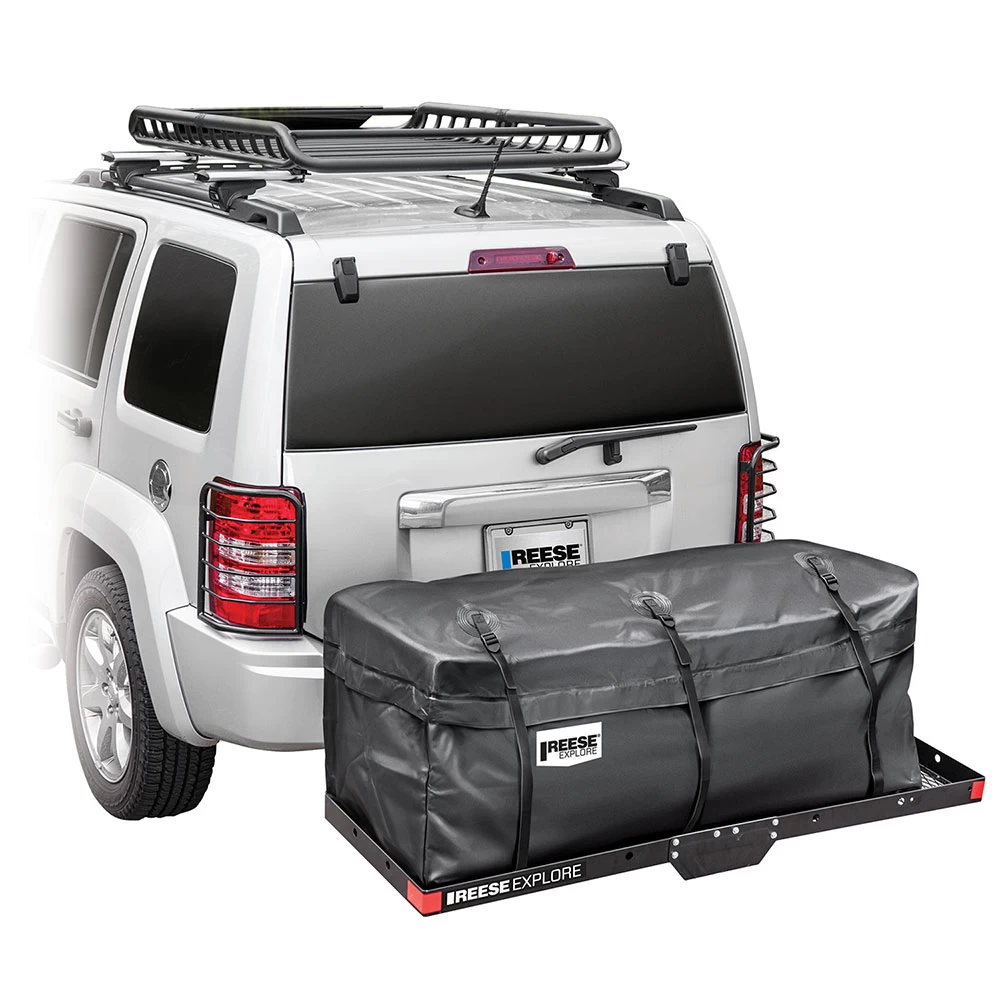

Reese 20"x60" 500 lbs Cargo Carrier Basket Rack Fits 2" Trailer Tow Hitch Receiver Storage Luggage Tray Box Shelf
Model: 1394500Cargo Tray Specs:
| Part Number | 1394500 |
| Brand |
Reese Explore
|
| Dimensions | 60" x 20" |
| Fits |
2" Receiver |
| Capacity | 500 lbs |
| Install Intructions |  |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
$143 48 $193.75 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$193.75 $143 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $35.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 1394500
- UPC: 042899139454
- Includes: Cargo Basket
Cargo Tray Specs:
| Part Number | 1394500 |
| Brand |
Reese Explore
|
| Dimensions | 60" x 20" |
| Fits |
2" Receiver |
| Capacity | 500 lbs |
| Install Intructions | |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Get Expert Help
Reese 20"x60" 500 lbs Cargo Carrier Basket Rack Fits 2" Trailer Tow Hitch Receiver Storage Luggage Tray Box Shelf Install Notes
Installation Instructions for Cargo Tray
Part Number:
- 1394500
Tools Required:
- 7/16” Wrench
- 7/16” Socket
- 9/16” Wrench
Parts List:
- Hex Bolt, 1/4” x 3/4” (12)
- Carriage Bolt, 3/8” x 3” (2)
- Hex Lock Nut, 1/4” (12)
- Hex Nut, 3/8” (2)
- Flat Washer, 1/4” (24)
- Flat Washer, 3/8” (2)
- Hitch Pin, 5/8” (1)
- Clip (2)
- End Plate (1)
- End Plate with Shank Hole (1)
- Center Plate (1)
- Shank (1)
- Basket Frame (2)
- Reflective Tape (Not Shown) (2)
Assembly Instructions:
-
Remove and Inspect Parts
Remove all parts from the box and ensure there is no damage. -
Assemble the Cargo Tray
a. Align both halves of the basket on the ground.
b. Attach each end plate to the outside of the basket using:- (12) 1/4” Hex Bolts
- (24) 1/4” Flat Washers
- (12) 1/4” Hex Nuts
- Tighten loosely.
c. Slide the 2” shank through the shank hole and align the holes in the end plates.
d. Align the center plate inside the basket with the holes in the shank and attach using: - (2) 3/8” Carriage Bolts
- (2) 3/8” Flat Washers
- (2) 3/8” Hex Nuts
- Tighten loosely.
e. Tighten all hardware: - 1/4” Hex Bolts to 6 ft-lb
- 3/8” Carriage Bolts to 24 ft-lb
-
Install the Cargo Tray to the Hitch
For 2” hitches:- Slide the Cargo Tray shank into the hitch so that the hitch and shank holes are aligned.
- Insert the 5/8” hitch pin and secure with a clip.
Safety Notes:
- Inspect the Cargo Tray for wear, corrosion, and fatigue before each use. Do not use if bent or deformed.
- Ensure the Cargo Tray is secure before every trip and recheck at each stop.
- Do not exceed the lower of the Cargo Tray's 500 lb (227 kg) weight capacity or your hitch tongue weight rating.
- Position cargo so the center of gravity is in the middle third of the Cargo Tray.
- Do not use the Cargo Tray for transporting people, animals, or flammable liquids.
- Remove the Cargo Tray when not in use and before entering automatic car washes.
Specifications:
- Maximum Load Capacity: 500 lb (227 kg) with a 2” shank.
- Tightening Torques:
- 1/4” Hex Bolts to 6 ft-lb
- 3/8” Carriage Bolts to 24 ft-lb
Warranty:
- Warranty Information:
- This product is covered by a limited warranty for repair or replacement of defective parts.
- Excludes damage caused by improper installation, overloading, or misuse.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help.
Visit www.trailerjacks.com or call 877-869-6690.
California Proposition 65 Warning: This product contains chemicals known to cause cancer and reproductive harm.
