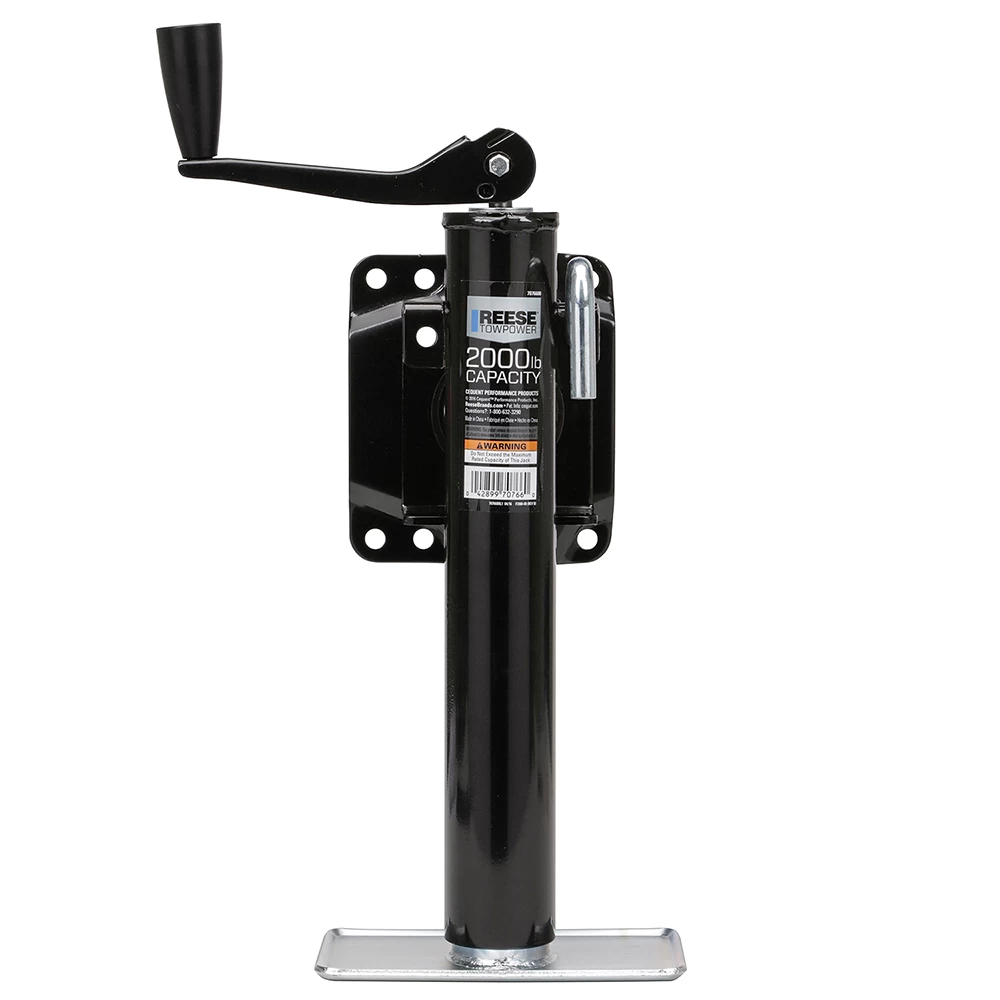

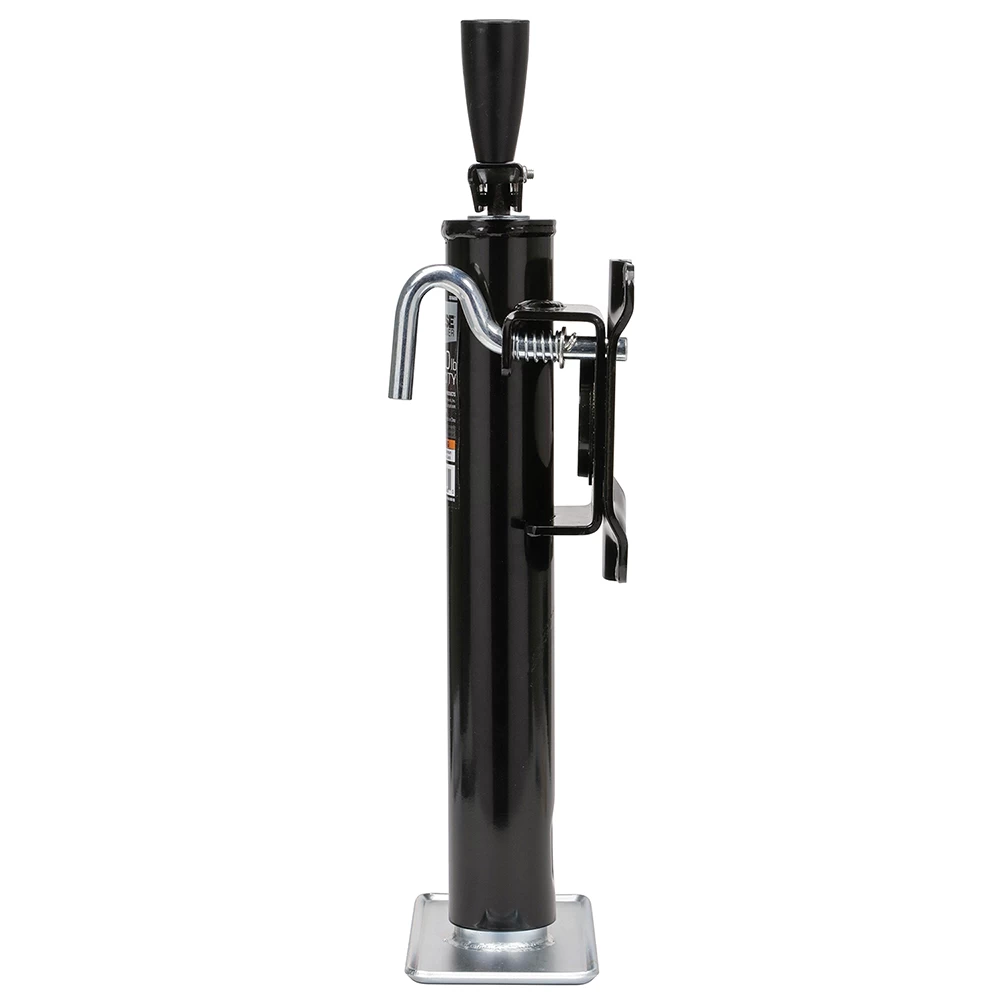

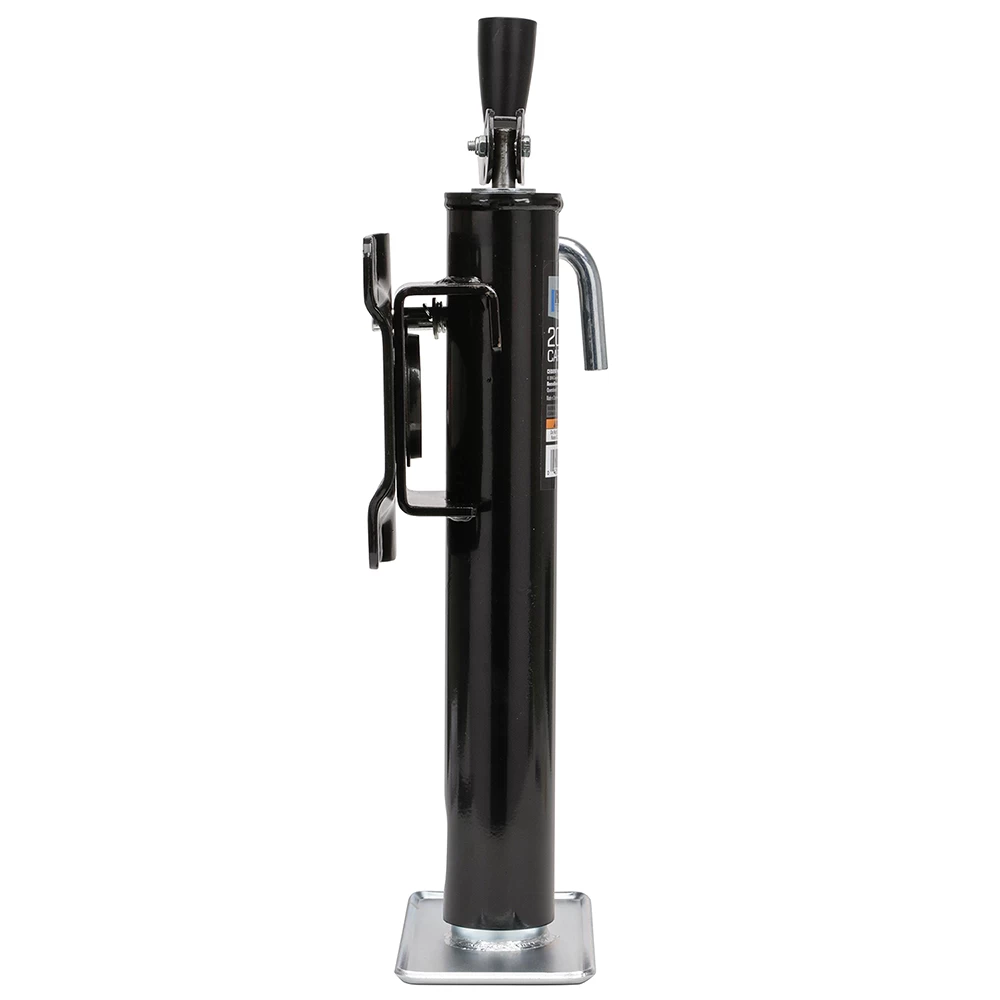

Reese 2K Snap Ring Swivel Trailer Jack 10" Lift Black Inner and Outer Tube Topwind Bolt‑On Hardware Included Round Jack Corrosion Resistant 5 Year Warranty
Model: 7076600Reese Towpower Trailer Jack
Reese Towpower trailer jacks embody toughness and reliability, crafted with superior strength and materials to withstand challenging conditions. Recognized for setting industry benchmarks, Reese Towpower round jacks feature a smooth, ergonomic design, making them a preferred choice across agricultural, commercial, horse and livestock trailer, and various other trailer markets.
Features:

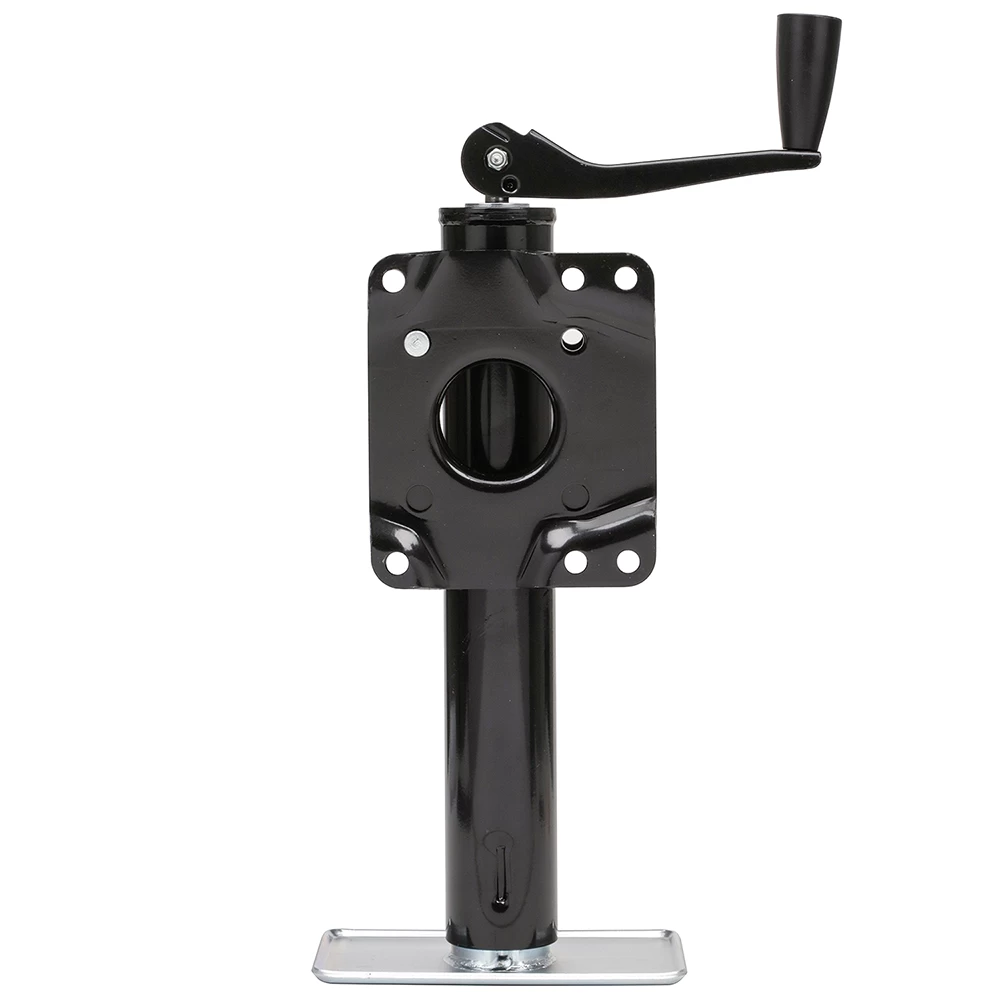

- Equipped with a bolt-on swivel bracket for easy maneuverability and storage.
- 10 in. travel for versatile lifting capabilities.
- 2,000 lbs. capacity, suitable for trailers with weight capacities between 1001-2000 lbs.

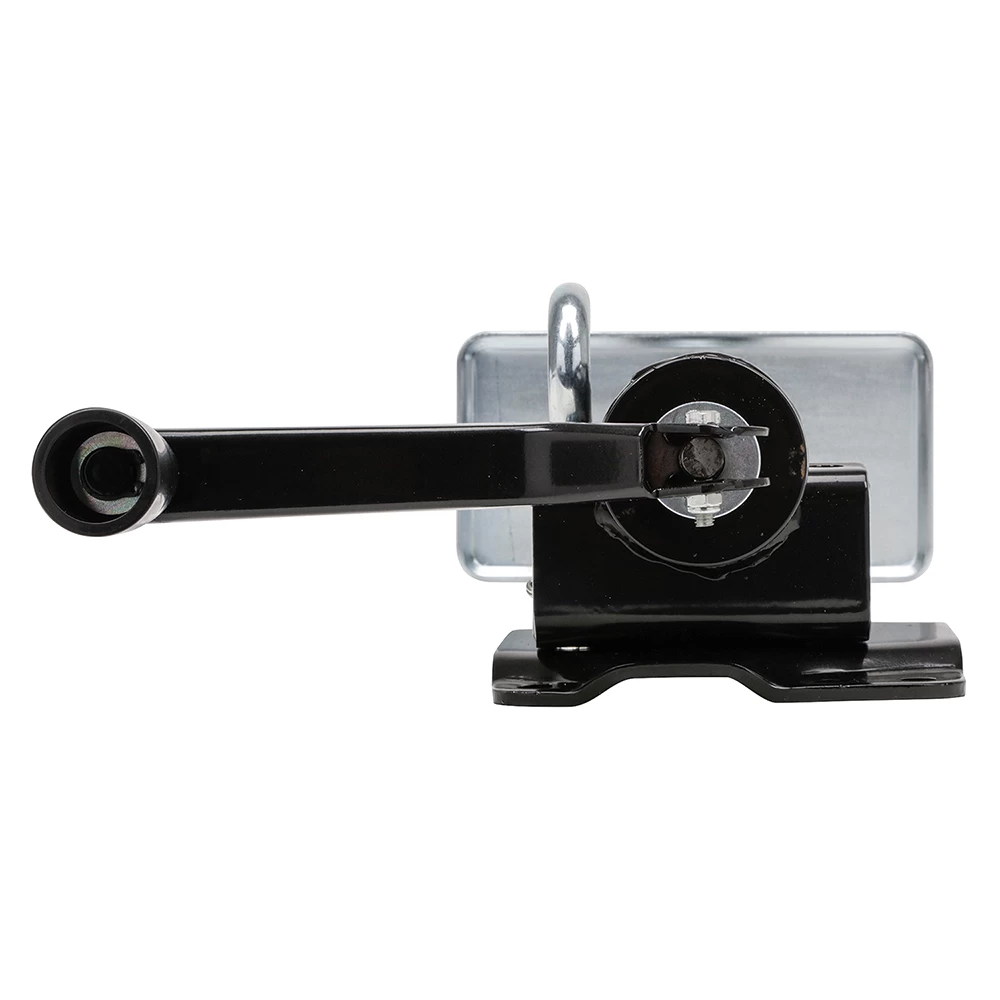

- Topwind action for effortless operation.
- Backed by a 1-year limited warranty, ensuring peace of mind and reliability.
Specifications:
- Jack Style: Bolt-On, adaptable for a wide range of trailer types including boat, utility, and landscape trailers.
- Static and Lift Capacity: 2,000 lbs
- Lift Style: Topwind
- Travel: 10" with a retracted height of 11" and an extended height of 21", providing a clearance of 4".
- Finish: Black, offering a sleek look and additional protection against the elements.
- Fixed leg design for sturdy support.

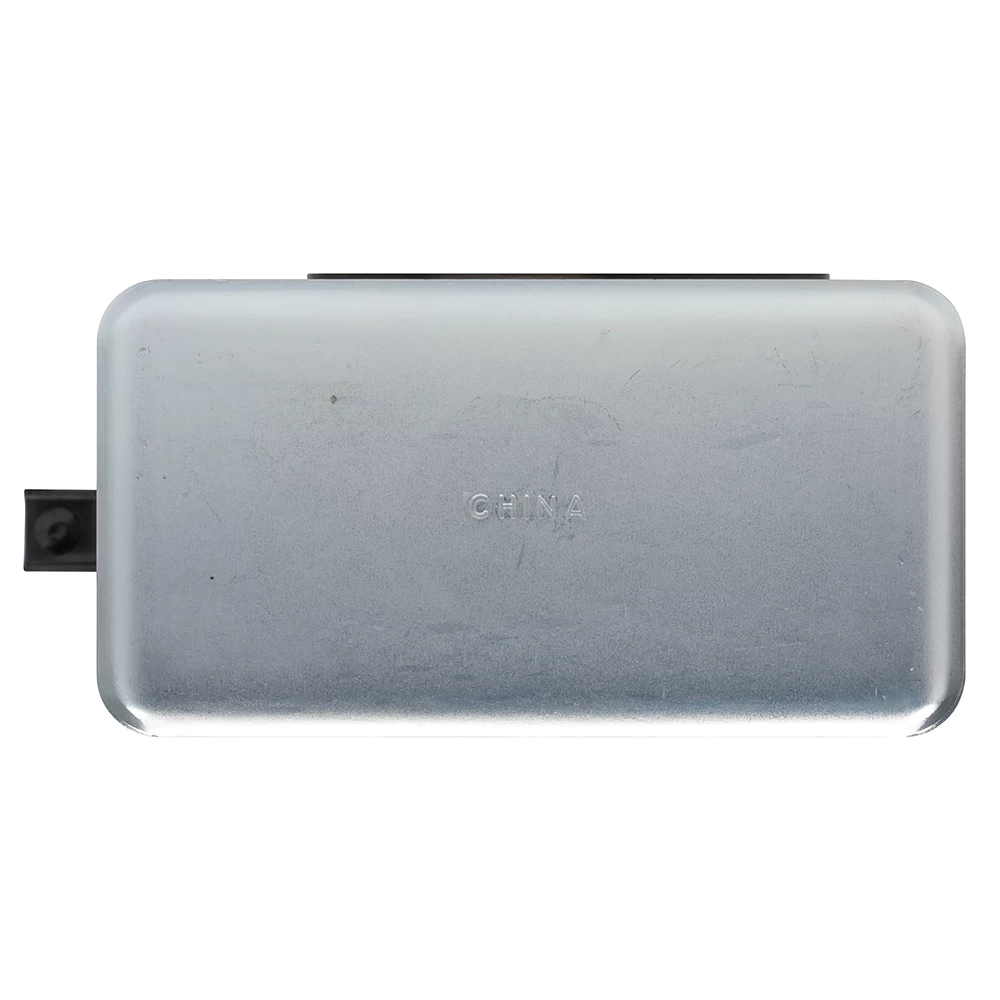

- Foot: Footplate included for added stability during use.
For inquiries or to place an order, please call us at 877-869-6690.
$66 49 $75.00 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$75.00 $66 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $16.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 7076600

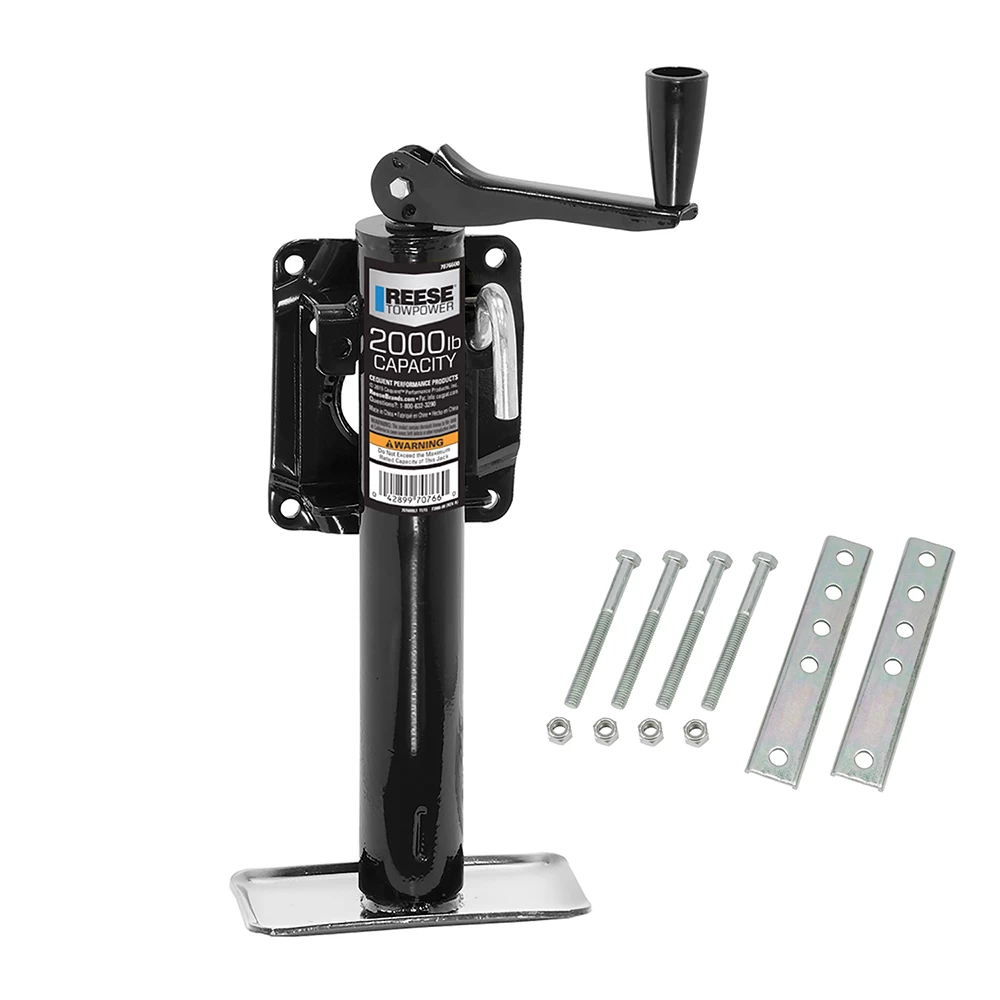

- Includes: Snap Ring Swivel Jack
Description
Get Expert Help
Reese 2K Snap Ring Swivel Trailer Jack 10" Lift Black Inner and Outer Tube Topwind Bolt-On Hardware Included Round Jack Corrosion Resistant 5 Year Warranty Install Notes
Installation Instructions for Tongue Jacks
Tools Required:
- Ratchet
- Socket set
- Torque wrench
Step-by-Step Instructions:
General Installation Notes:
- Confirm no interference from the tow vehicle, tongue, ground, or mounted accessories while stationary or in motion.
- Check for interference in all positions, including handle swing and swivel positions, before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Ensure the correct mounting hole pattern for your tongue size.
- Place the jack against the tongue and position the mounting straps on the opposite side.
- Insert four bolts through the mounting bracket and straps.
- Upper bolts should rest on the tongue top.
- Lower bolts should be less than 1/16” from the bottom.
- Secure with locknuts and torque to 25 ft-lbs.
- Check for clearance of handle, trailer light cables, and coupler.
Snap Ring/Bolt-Through Instructions:
Snap Ring Models:
- Place the jack bracket over the mount and fully seat the snap ring into the groove.
Bolt-Through Models:
- Insert the jack bracket into the recessed opening on the mount.
- Place the small end of the bushing into the jack bracket and onto the bolt.
- Tighten the locknut until there is minimal movement in the bushing.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- Welding must be performed by an AWS-certified welder.
- Align the jack and foot (if equipped) with the coupler before welding using a 3/16” fillet weld.
- For Bolt-On Applications:
- Use three 3/8"-16 grade-5 bolts and washers.
- Torque bolts to 15-20 ft-lbs.
- Weld the recommended support plate to the trailer frame bottom using a 3/16” fillet weld.
Direct-Mount Instructions:
- Place the jack at the desired location and weld 1” at two points on each side using a 3/16” fillet weld.
Maintenance:
Side-Wind Models:
- Lubricate internal gearing and bushings with automotive grease.
- Apply light oil to the handle unit on both sides of the tube.
Top-Wind Models:
- Apply light oil to the screw stem.
Marine Environment Usage:
- Flush the jack assembly with fresh water and reapply lubricant.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Never exceed the rated capacity of the jack, footplate, or caster wheel.
- Avoid applying side forces as they may cause jack failure.
- Ensure locking mechanisms are properly engaged.
- Replace worn or damaged parts before use.
- Do not attempt to adjust the drop foot or leg under load.
Warranty Information:
- Coverage:
- 5 years for Bulldog® and Fulton® products.
- 1 year for Pro-Series® and Reese Towpower® products.
- Exclusions:
- Normal wear, misuse, overloading, improper installation, and unauthorized modifications.
Warranty Claims:
For claims, contact:
- Phone: 1-800-632-3290
- Website: www.trailerjacks.com
Attention:
This is a summary of the installation procedure. For complete instructions, including diagrams and detailed guidance, please download the full installation PDF.
Disclaimer:
Proper attachment and operation of this product are critical for safety. Liability for this product is limited to its purchase price if defects are found.
California Proposition 65 Warning:
Contains chemicals known to cause cancer and reproductive harm.
