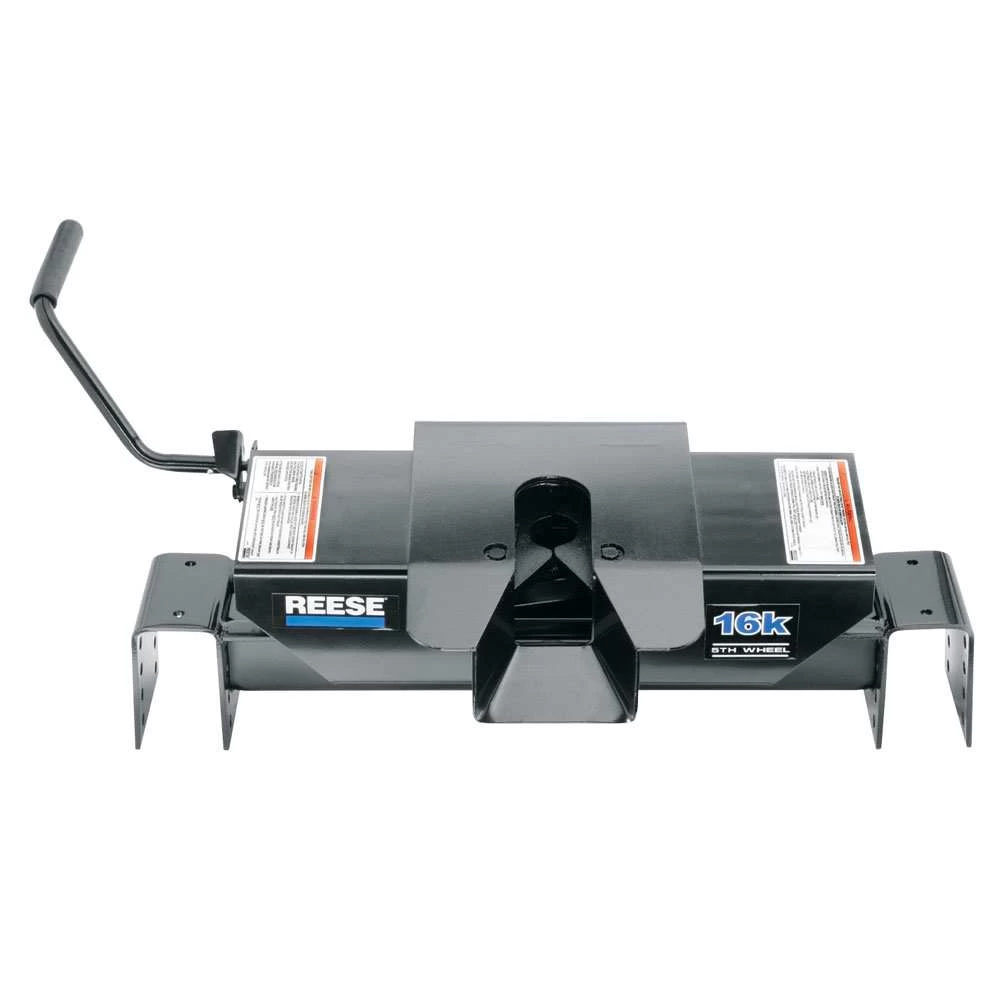

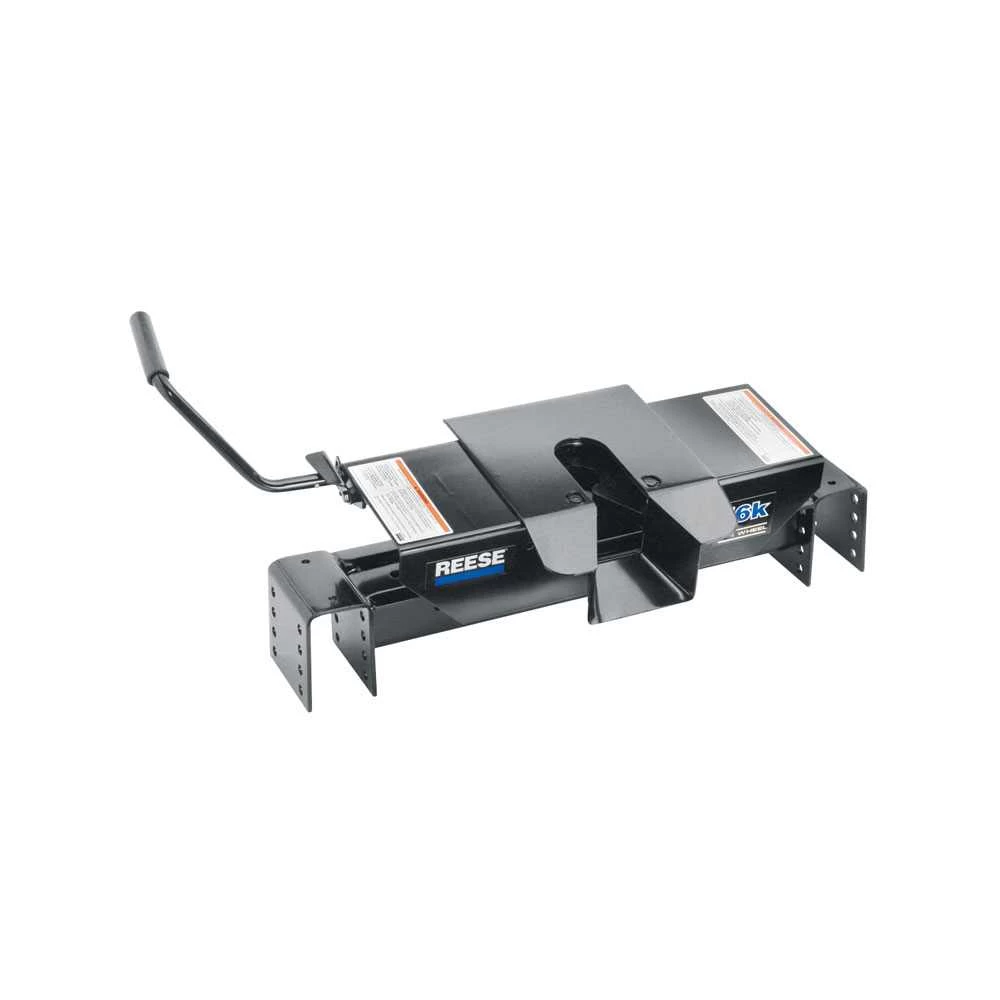

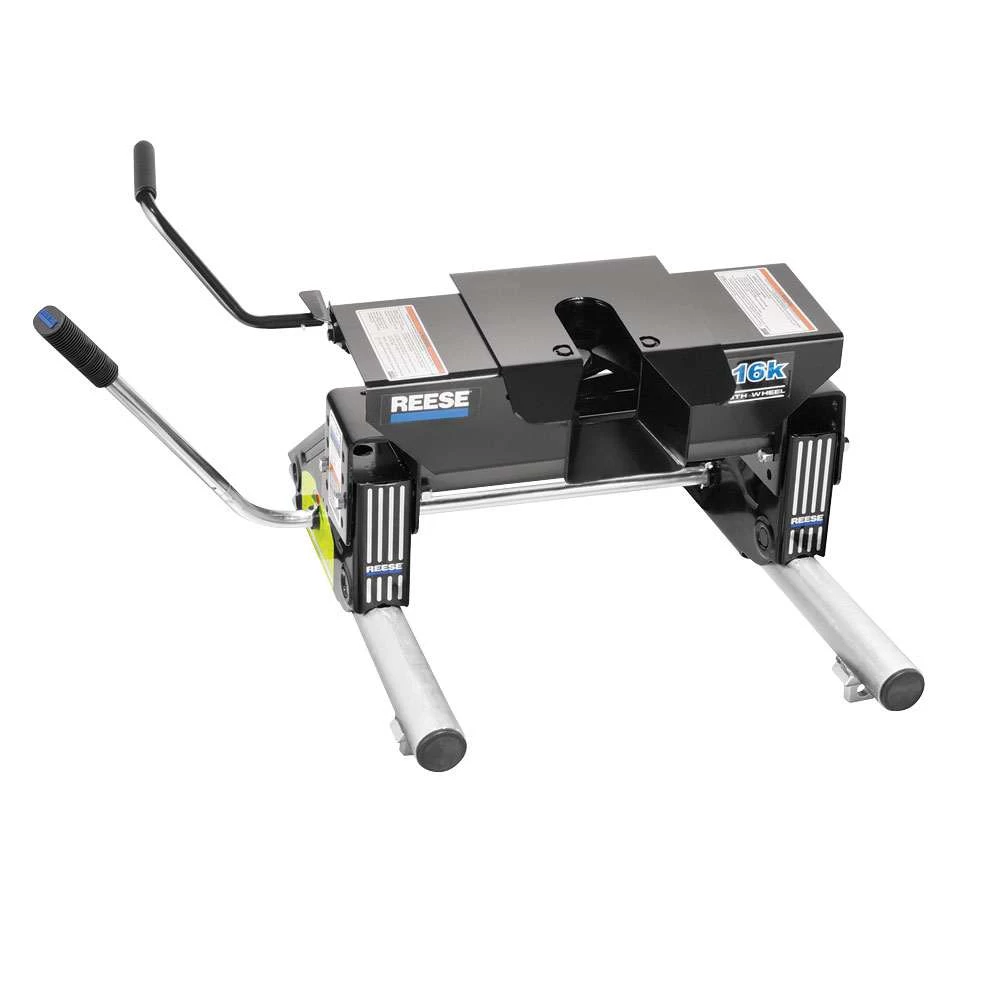

Reese Dual Jaw 16K Fifth Wheel Trailer Hitch w/ Round Tube Slider 5th Wheel Trailer Hitch Fits Industry Standard Above Bed Rail Kit by Reese Pro Series Husky Curt Valley
Model: 30075Reese Dual Jaw 16K 5th Wheel Hitch
4 Pins and 4 Clips

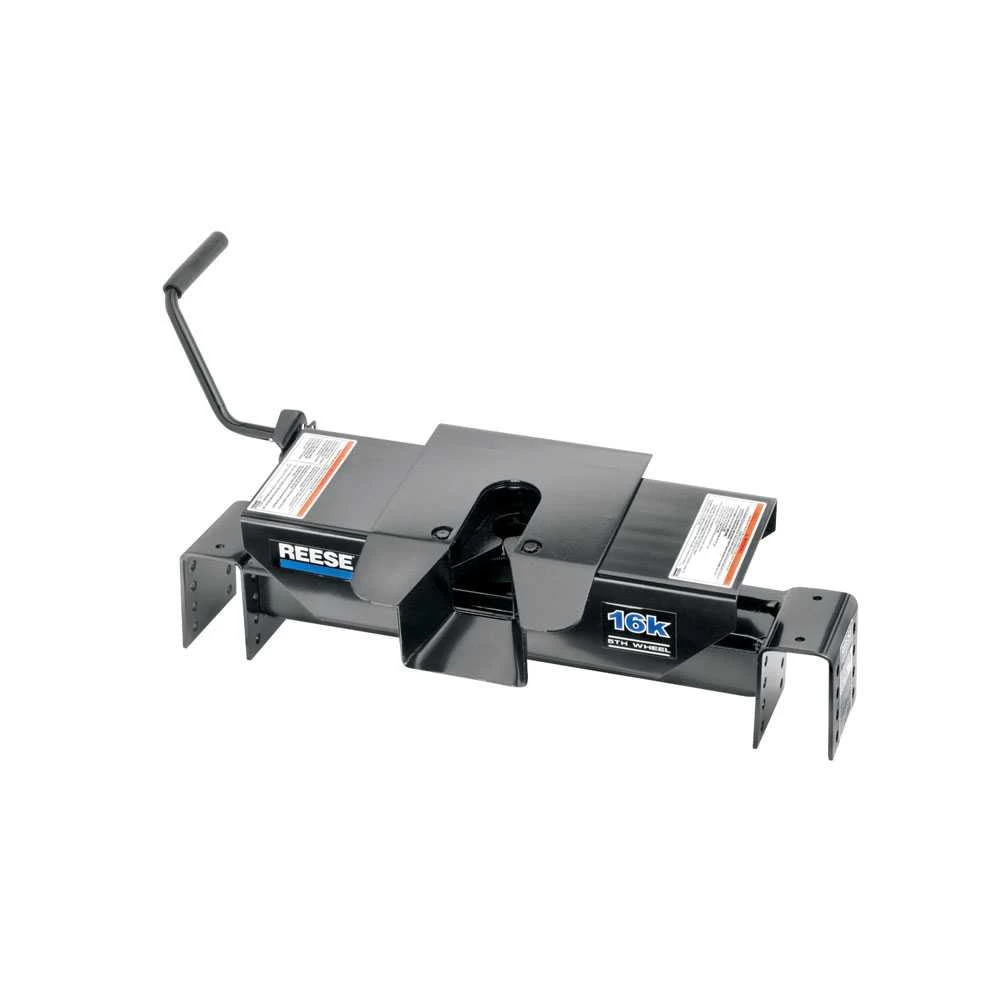

Fifth Wheel Features:
Whether you’re a novice at fifth wheel towing or you’ve been doing it for years, REESE® has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESE’s 16K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When you’re done towing, REESE’s fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- Rated up to 16,000 lbs. towing capacity and up to 4,000 lbs. pin weight capacity
- Fore and aft 44 degree pivot; side-to side 5 degree pivot
- Vertically adjust from 13-1/2 inches to 17 inches
- Mounts to in-bed (industry Standard) rails
- Wide stance, one-piece legs
- Dual jaw locking system completely surrounds the king pin for significantly reduced wear
- Rugged appearance
- Black powder coat over E-coat finish
Fifth Wheel Specs:
| Part Number | 30047A |
| Brand | Reese |
|
Capacity:
|
16,000 lbs. |
| Pin Weight Capacity: | 4,000 lbs. |
| Hitch Height: | 13-1/2" - 18" |
| Warranty: | Lifetime |
| Installation Instructions |  |

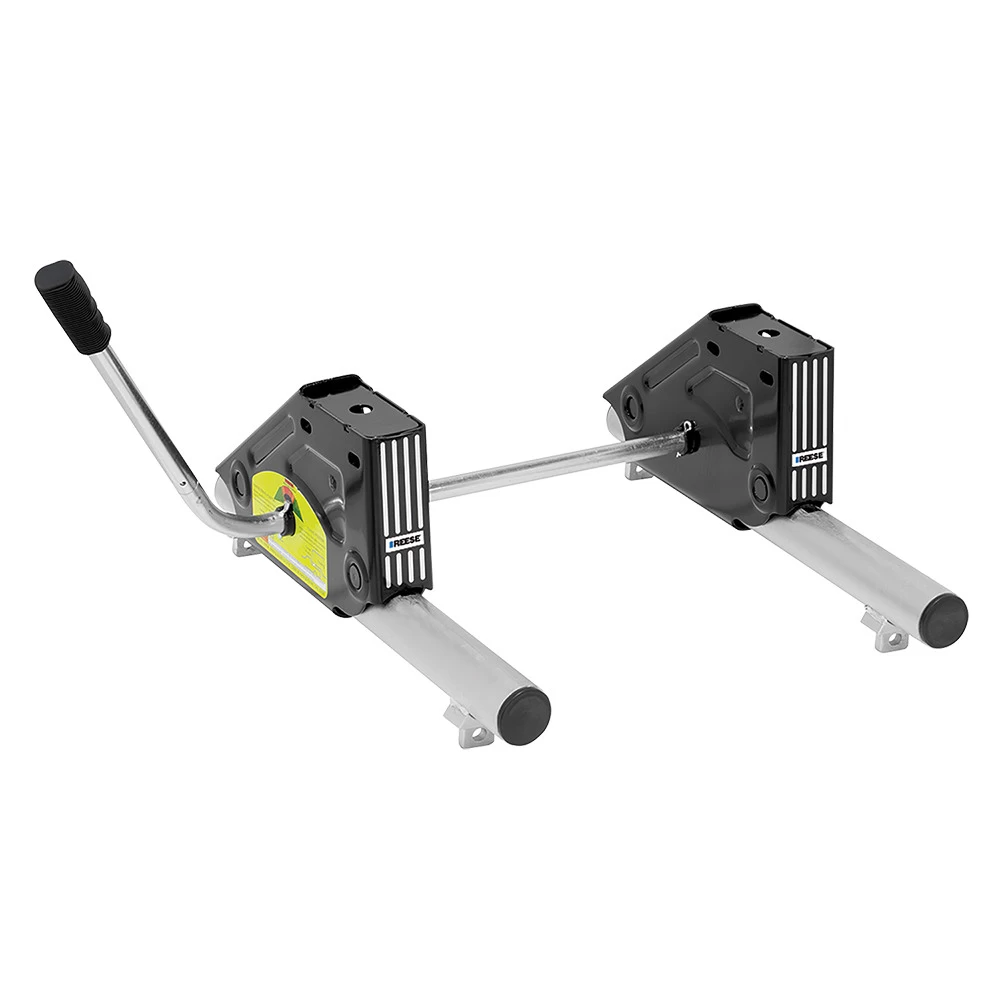

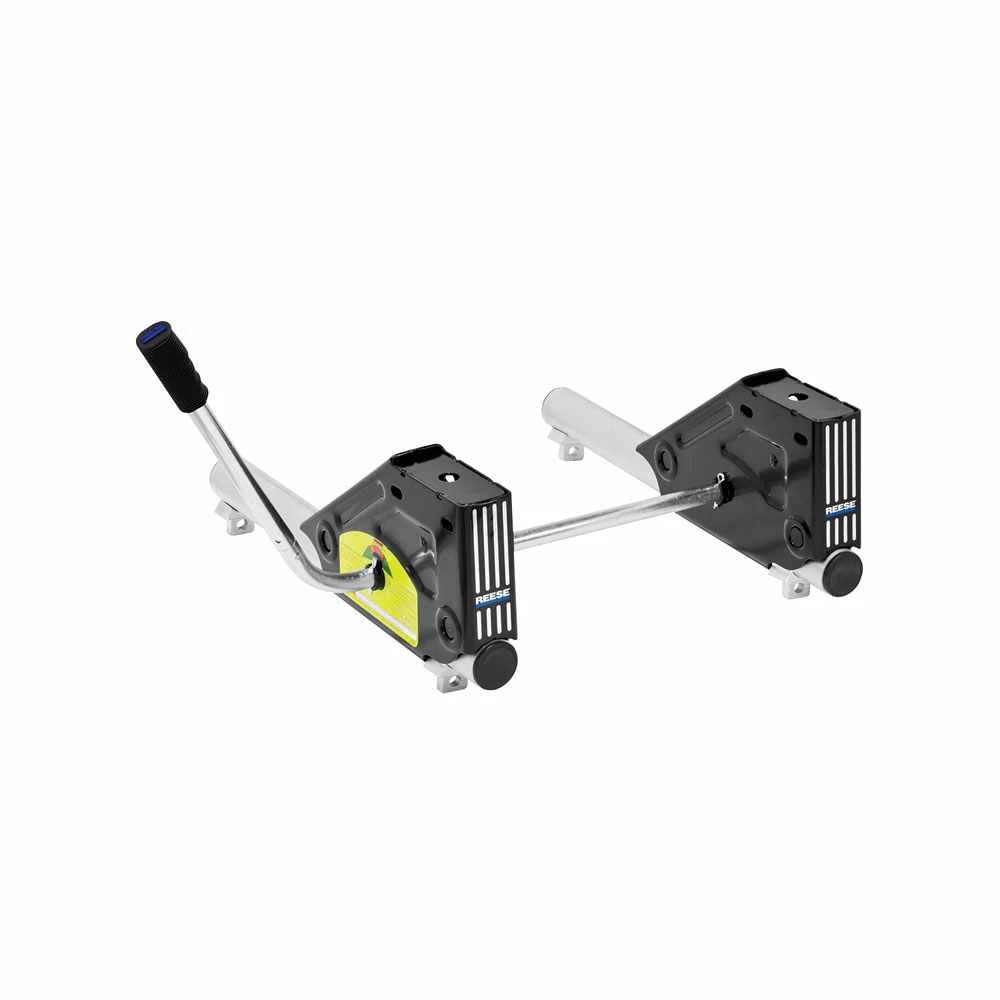

While it is true that you can tow with any pickup truck, you may need some extra equipment to pull a fifth wheel trailer with it. Why you ask? Well, aside from the size and pulling capacity of each truck, pickups also come with varying bed sizes, which can make turning and maneuvering a bit of a challenge for those with a shorter bed. REESE® sliders works by moving – or sliding - your fifth wheel hitch toward the rear of your truck, so the pin position is moved temporarily behind the rear axle, to provide more room for tighter maneuvering at low speeds. Without a slider, the front – or nose – of your trailer could hit and potentially damage your truck cab when you’re trying to turn. Therefore, a slider is recommended for any short-bed pickup, so you can enjoy the journey as much as the destination.
- Contoured rollers float from side to side to accommodate mounting systems that may not be fully square
- Fully adjustable with trailer attached
- Works with full size and compact trucks
- Embossed roller supports for low friction and longer wear
- Forged mounting feet for wide consistent attachment to rails
- Plated rails hold up longer for extended wear
| Part Number | 50024 |
| Brand | Reese |
| Finish | Black Powdercoat & Silver |
| Category | Fifth Wheel |
| Warranty | 10 Year |
| Travel | 10” |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
About Reese
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation. The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line. The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
$949 41 $1,242.36 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$1,242.36 $949 41
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $237.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 30075
- UPC: 016118050134
- Includes: Fifth Wheel Hitch 16K
Compatibility Chart
Description
Reese Dual Jaw 16K 5th Wheel Hitch
4 Pins and 4 Clips
Fifth Wheel Features:
Whether you’re a novice at fifth wheel towing or you’ve been doing it for years, REESE® has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESE’s 16K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When you’re done towing, REESE’s fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.
- Rated up to 16,000 lbs. towing capacity and up to 4,000 lbs. pin weight capacity
- Fore and aft 44 degree pivot; side-to side 5 degree pivot
- Vertically adjust from 13-1/2 inches to 17 inches
- Mounts to in-bed (industry Standard) rails
- Wide stance, one-piece legs
- Dual jaw locking system completely surrounds the king pin for significantly reduced wear
- Rugged appearance
- Black powder coat over E-coat finish
Fifth Wheel Specs:
| Part Number | 30047A |
| Brand | Reese |
|
Capacity:
|
16,000 lbs. |
| Pin Weight Capacity: | 4,000 lbs. |
| Hitch Height: | 13-1/2" - 18" |
| Warranty: | Lifetime |
| Installation Instructions | |
While it is true that you can tow with any pickup truck, you may need some extra equipment to pull a fifth wheel trailer with it. Why you ask? Well, aside from the size and pulling capacity of each truck, pickups also come with varying bed sizes, which can make turning and maneuvering a bit of a challenge for those with a shorter bed. REESE® sliders works by moving – or sliding - your fifth wheel hitch toward the rear of your truck, so the pin position is moved temporarily behind the rear axle, to provide more room for tighter maneuvering at low speeds. Without a slider, the front – or nose – of your trailer could hit and potentially damage your truck cab when you’re trying to turn. Therefore, a slider is recommended for any short-bed pickup, so you can enjoy the journey as much as the destination.
- Contoured rollers float from side to side to accommodate mounting systems that may not be fully square
- Fully adjustable with trailer attached
- Works with full size and compact trucks
- Embossed roller supports for low friction and longer wear
- Forged mounting feet for wide consistent attachment to rails
- Plated rails hold up longer for extended wear
| Part Number | 50024 |
| Brand | Reese |
| Finish | Black Powdercoat & Silver |
| Category | Fifth Wheel |
| Warranty | 10 Year |
| Travel | 10” |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
About Reese
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation. The core product line of Reese is the heavy duty fifth wheels which provide safe towing for the weekend warriors and the seasoned campers. Coupled with the Reese weight distribution systems to control sway, peace of mind is easy to achieve with this product line. The best known Reese products include the Titan Fifth Wheel series, the Sidewinder, and the Goosebox. These products, among others, have helped Reese achieve the Trailer Life Readers’ Choice Gold winner in the '5th Wheel Hitch' category and the Silver winner in the 'Travel Trailer' category status in 2013.
Get Expert Help

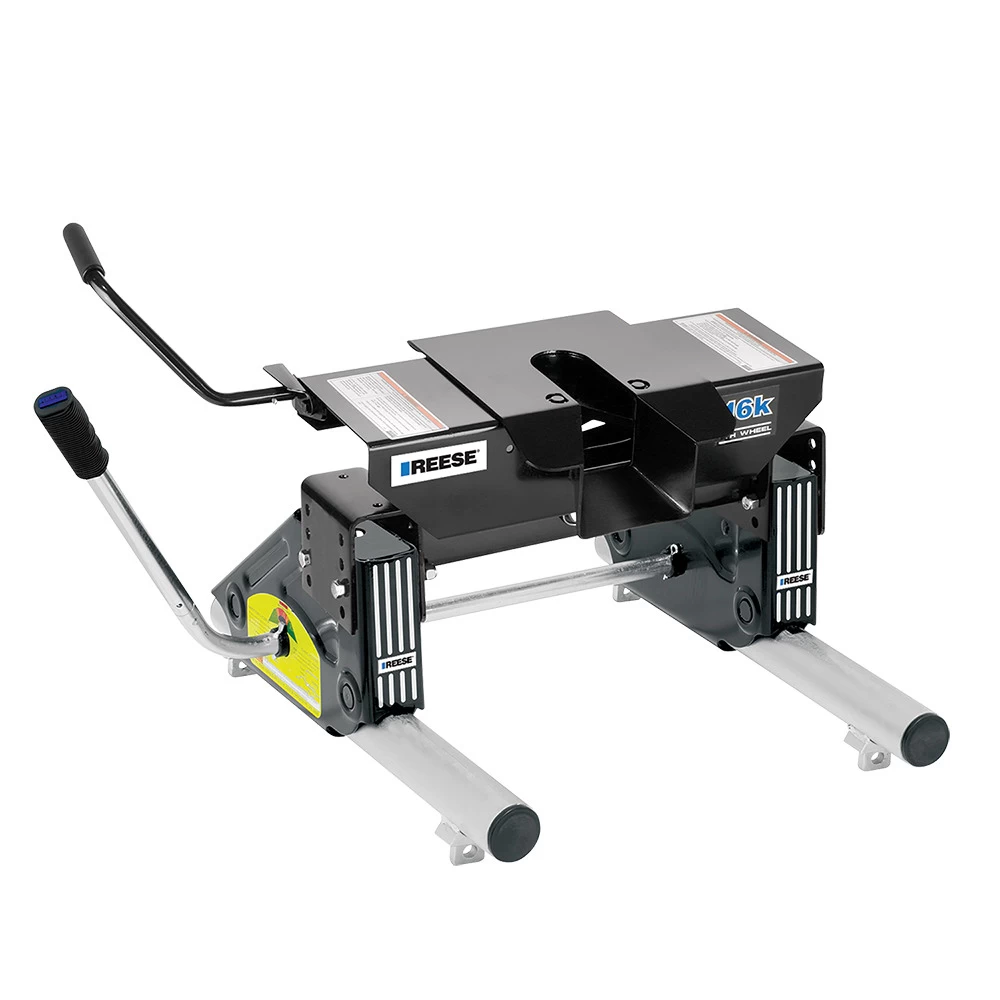

Reese Dual Jaw 16K Fifth Wheel Trailer Hitch w/ Round Tube Slider 5th Wheel Trailer Hitch Fits Industry Standard Above Bed Rail Kit by Reese Pro Series Husky Curt Valley Install Notes
Installation Instructions for 16K Fifth Wheel Hitch with Kwik-Slide Mounting Rails
Part Numbers:
- 30075 (Combines 30047 and 50024)
Tools Required:
- Torque Wrench
- 1/2" Socket and Wrench
- 3/8" Socket and Wrench
- White Lithium Grease
- Tape Measure
- Marking Pencil
Step-by-Step Instructions:
Step 1: Guidelines for Matching Tow Vehicle and Trailer
- Ensure the gross trailer weight does not exceed 16,000 lbs and the kingpin weight is between 15-25% of the trailer weight, with a maximum of 4,000 lbs.
- Use a SAE 2-inch kingpin for compatibility.
- For short-bed trucks (6-8 ft.), ensure there is an extended pin box, and use the Kwik-Slide (50024) for additional turning clearance.
- Maintain a minimum of 6 inches of clearance between the truck bed rails and the trailer overhang.
Step 2: Install Base Rails and Mounting Brackets
- Place the base rails across the truck bed as instructed in the 50024 Kwik-Slide Mounting Rail Kit.
- Ensure the base rails are parallel and spaced 21-15/16 inches apart center-to-center. Check diagonal measurements to confirm alignment (difference should not exceed 1/8 inch).
- Insert the spacers beneath the truck bed to fill corrugations, ensuring proper rail placement.
- Attach the mounting brackets to the truck frame using the provided hardware.
- Torque all bolts to the specifications provided in the rail kit manual.

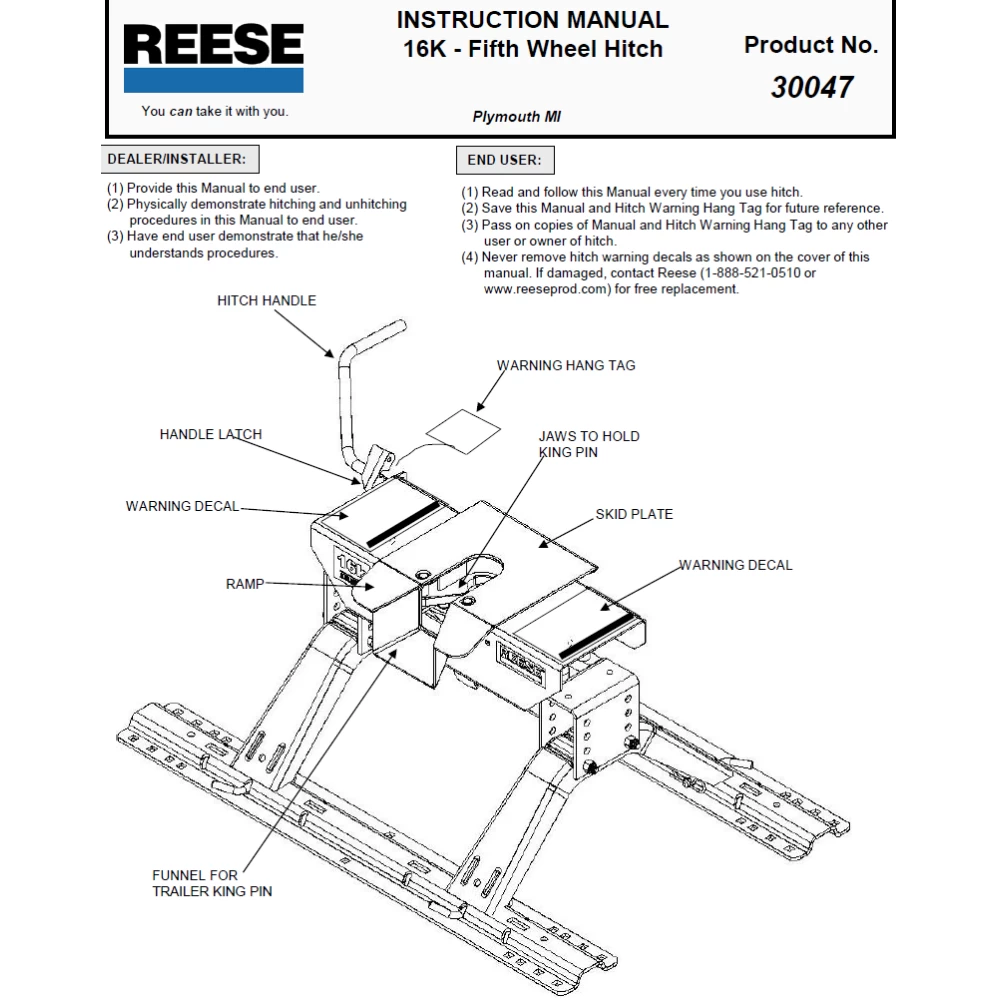

Step 3: Assemble the Fifth Wheel Hitch
- Attach the legs to the base rails using pull pins and spring retaining clips.
- Install the hitch head support onto the legs, setting the height between 13 and 17 inches using 1/2-13 x 4.5-inch bolts and lock nuts.
- Torque all bolts to 75 lb.-ft. using a torque wrench.
- Lubricate the skid plate with white lithium grease, or install a 10-inch plastic lube plate (not exceeding 3/16 inches thick).

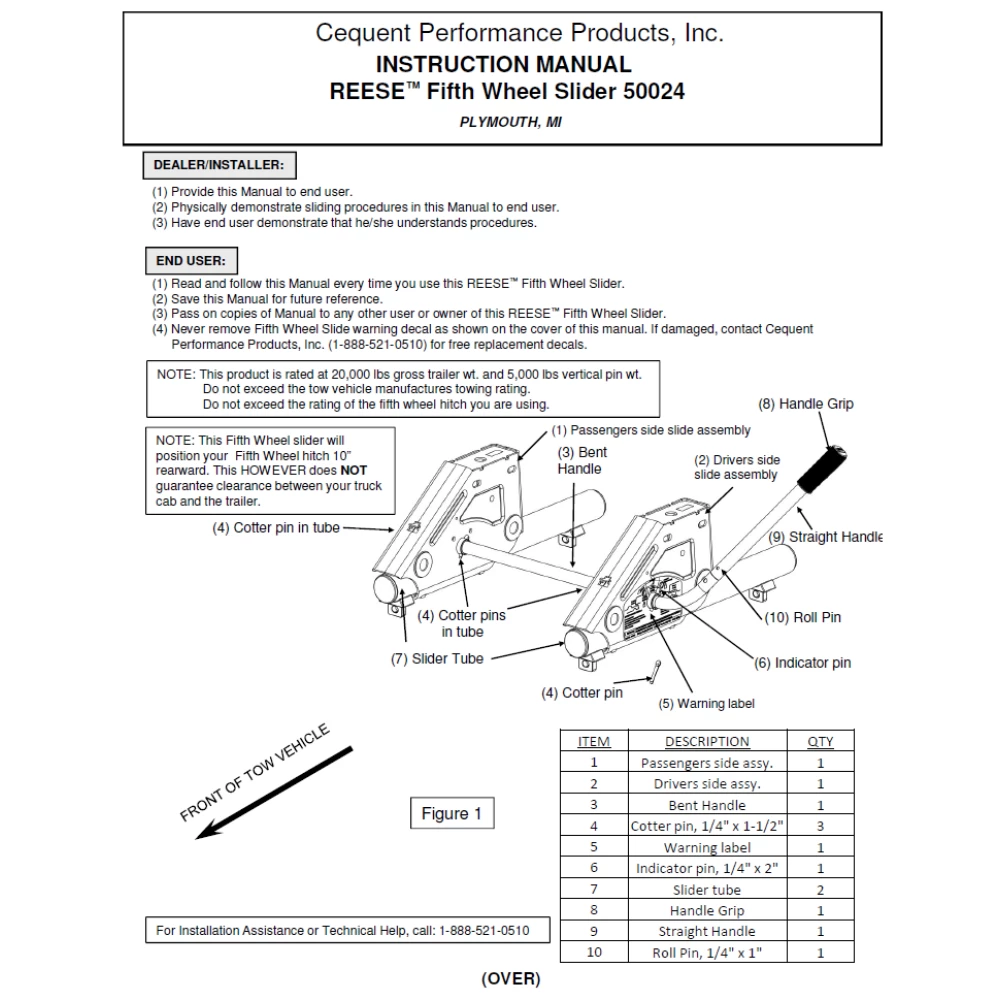

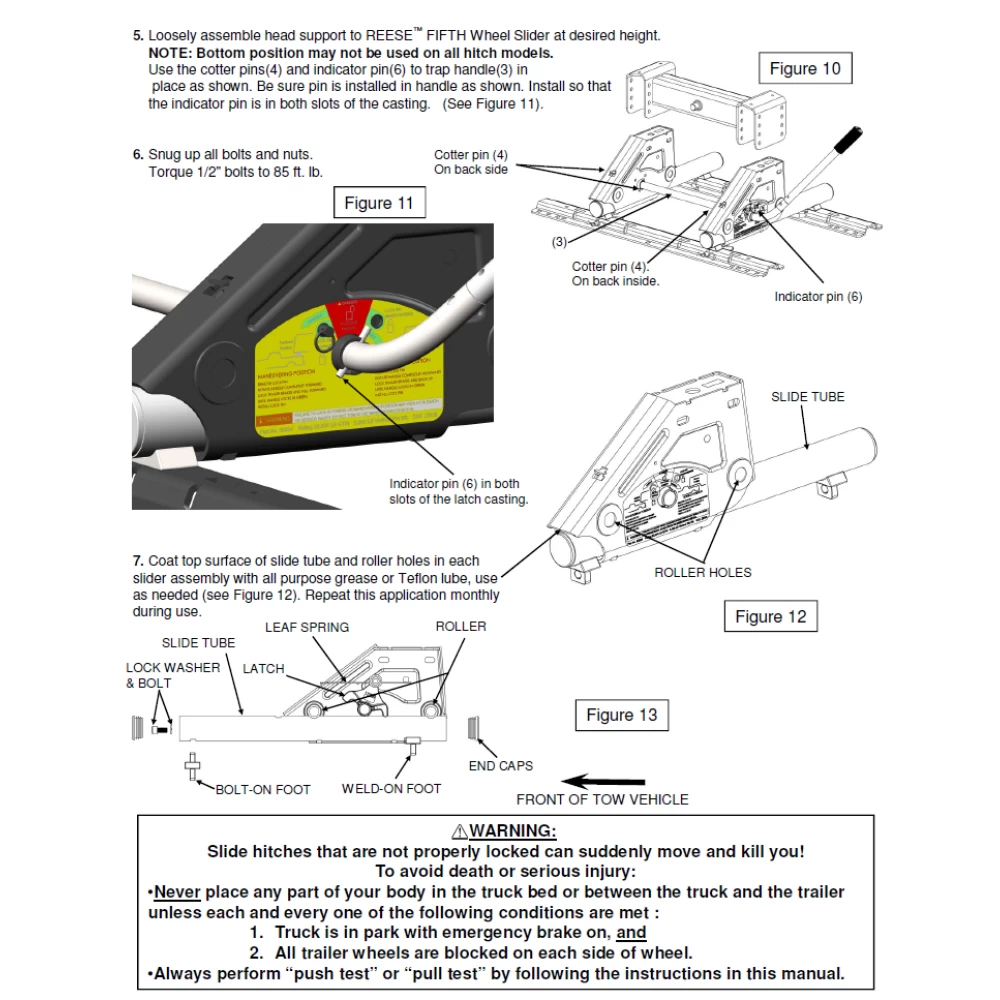

Step 4: Install the Kwik-Slide Mechanism
- Position the Kwik-Slide (50024) in the base rails, ensuring proper alignment with the mounting slots.
- Grease the leaf springs and roller mechanisms on the Kwik-Slide with white lithium grease.
- Attach the hitch head support to the Kwik-Slide. Loosely fasten the bolts, ensuring they align with the height adjustment settings.
- Secure the handle assembly and indicator pin for proper operation monitoring.
- Tighten all Kwik-Slide hardware to the specified torque values.
Step 5: Hitching Procedure
- Block the trailer wheels securely on both sides.
- Adjust the trailer height using the landing gear so the kingpin is positioned 1/2 to 1 inch below the hitch skid plate.
- Open the hitch jaws by pulling the handle fully, ensuring the latch is rotated away from the groove.
- Slowly back the truck so the kingpin slides into the hitch. The jaws will close automatically around the kingpin, and the handle will lock into place.
- Ensure there is no gap between the kingpin and the hitch skid plate.
Step 6: Maneuvering with the Kwik-Slide
- Move the handle forward to unlock the Kwik-Slide mechanism.
- Use the truck to slide the hitch 10 inches rearward to the maneuvering position for low-speed operations, such as backing into tight spaces.
- Perform a pull test to ensure the Kwik-Slide is securely locked in the maneuvering position before proceeding.
- Once maneuvering is complete, return the hitch to the towing position by sliding it forward and locking it into place. Repeat the pull test.
Step 7: Unhitching Procedure
- Block the trailer wheels and ensure the truck is in park with the emergency brake engaged.
- Lower the trailer landing gear to support the trailer’s weight.
- Disconnect the power cable and breakaway switch cable.
- Rotate the latch to open the jaws and pull the handle fully to release the kingpin.
- Slowly drive the truck forward to separate from the trailer.
Hardware List:
Base Hitch Components:
- (4x) Long Pull Pins
- (4x) Retaining Clips
- (2x) Legs
- (1x) Hitch Head Support
- (4x) 1/2-13 x 4.5" Bolts
- (4x) 1/2" Lock Nuts
- (1x) SAE 2-Inch Kingpin
Kwik-Slide Components:
- (1x) Kwik-Slide Assembly
- (1x) Handle Assembly with Indicator Pin
- (1x) Leaf Spring
- (1x) Roller Mechanism
- (2x) Pivot Pins
- (2x) Rubber Stoppers
- Additional mounting hardware as per the rail kit instructions.
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching, unhitching, or using the Kwik-Slide.
- Never tow at high speeds with the Kwik-Slide in the maneuvering position.
- Regularly inspect all bolts and components, re-torquing as necessary to ensure safety and functionality.
- Avoid placing your body between the truck and trailer unless the wheels are blocked, the landing gear is down, and the truck is stationary.
Specifications:
- Gross Trailer Weight (GTW): 16,000 lbs
- Maximum Kingpin Weight: 4,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- Kwik-Slide Bolts: 85 lb.-ft.
- Compliance: Designed for recreational fifth-wheel trailers only.
Installation Instructions for 16K Fifth Wheel Hitch with Kwik-Slide Mounting Rails
Part Numbers:
- 30075 (Combines 30047 and 50024)
Tools Required:
- Torque Wrench
- 1/2" Socket and Wrench
- 3/8" Socket and Wrench
- White Lithium Grease
- Tape Measure
- Marking Pencil
Step-by-Step Instructions:
Step 1: Guidelines for Matching Tow Vehicle and Trailer
- Ensure the gross trailer weight does not exceed 16,000 lbs and the kingpin weight is between 15-25% of the trailer weight, with a maximum of 4,000 lbs.
- Use a SAE 2-inch kingpin for compatibility.
- For short-bed trucks (6-8 ft.), ensure there is an extended pin box, and use the Kwik-Slide (50024) for additional turning clearance.
- Maintain a minimum of 6 inches of clearance between the truck bed rails and the trailer overhang.
Step 2: Install Base Rails and Mounting Brackets
- Place the base rails across the truck bed as instructed in the 50024 Kwik-Slide Mounting Rail Kit.
- Ensure the base rails are parallel and spaced 21-15/16 inches apart center-to-center. Check diagonal measurements to confirm alignment (difference should not exceed 1/8 inch).
- Insert the spacers beneath the truck bed to fill corrugations, ensuring proper rail placement.
- Attach the mounting brackets to the truck frame using the provided hardware.
- Torque all bolts to the specifications provided in the rail kit manual.
Step 3: Assemble the Fifth Wheel Hitch
- Attach the legs to the base rails using pull pins and spring retaining clips.
- Install the hitch head support onto the legs, setting the height between 13 and 17 inches using 1/2-13 x 4.5-inch bolts and lock nuts.
- Torque all bolts to 75 lb.-ft. using a torque wrench.
- Lubricate the skid plate with white lithium grease, or install a 10-inch plastic lube plate (not exceeding 3/16 inches thick).
Step 4: Install the Kwik-Slide Mechanism
- Position the Kwik-Slide (50024) in the base rails, ensuring proper alignment with the mounting slots.
- Grease the leaf springs and roller mechanisms on the Kwik-Slide with white lithium grease.
- Attach the hitch head support to the Kwik-Slide. Loosely fasten the bolts, ensuring they align with the height adjustment settings.
- Secure the handle assembly and indicator pin for proper operation monitoring.
- Tighten all Kwik-Slide hardware to the specified torque values.
Step 5: Hitching Procedure
- Block the trailer wheels securely on both sides.
- Adjust the trailer height using the landing gear so the kingpin is positioned 1/2 to 1 inch below the hitch skid plate.
- Open the hitch jaws by pulling the handle fully, ensuring the latch is rotated away from the groove.
- Slowly back the truck so the kingpin slides into the hitch. The jaws will close automatically around the kingpin, and the handle will lock into place.
- Ensure there is no gap between the kingpin and the hitch skid plate.
Step 6: Maneuvering with the Kwik-Slide
- Move the handle forward to unlock the Kwik-Slide mechanism.
- Use the truck to slide the hitch 10 inches rearward to the maneuvering position for low-speed operations, such as backing into tight spaces.
- Perform a pull test to ensure the Kwik-Slide is securely locked in the maneuvering position before proceeding.
- Once maneuvering is complete, return the hitch to the towing position by sliding it forward and locking it into place. Repeat the pull test.
Step 7: Unhitching Procedure
- Block the trailer wheels and ensure the truck is in park with the emergency brake engaged.
- Lower the trailer landing gear to support the trailer’s weight.
- Disconnect the power cable and breakaway switch cable.
- Rotate the latch to open the jaws and pull the handle fully to release the kingpin.
- Slowly drive the truck forward to separate from the trailer.
Hardware List:
Base Hitch Components:
- (4x) Long Pull Pins
- (4x) Retaining Clips
- (2x) Legs
- (1x) Hitch Head Support
- (4x) 1/2-13 x 4.5" Bolts
- (4x) 1/2" Lock Nuts
- (1x) SAE 2-Inch Kingpin
Kwik-Slide Components:
- (1x) Kwik-Slide Assembly
- (1x) Handle Assembly with Indicator Pin
- (1x) Leaf Spring
- (1x) Roller Mechanism
- (2x) Pivot Pins
- (2x) Rubber Stoppers
- Additional mounting hardware as per the rail kit instructions.
Safety Notes:
- WARNING: Always block trailer wheels and ensure the landing gear is on firm ground before hitching, unhitching, or using the Kwik-Slide.
- Never tow at high speeds with the Kwik-Slide in the maneuvering position.
- Regularly inspect all bolts and components, re-torquing as necessary to ensure safety and functionality.
- Avoid placing your body between the truck and trailer unless the wheels are blocked, the landing gear is down, and the truck is stationary.
Specifications:
- Gross Trailer Weight (GTW): 16,000 lbs
- Maximum Kingpin Weight: 4,000 lbs
- Recommended Torque:
- 1/2" Bolts: 75 lb.-ft.
- Kwik-Slide Bolts: 85 lb.-ft.
- Compliance: Designed for recreational fifth-wheel trailers only.
Additional Information:
-
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
-
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty duration and coverage details are provided in the full installation PDF. For complete warranty instructions, please download the full installation PDF.
