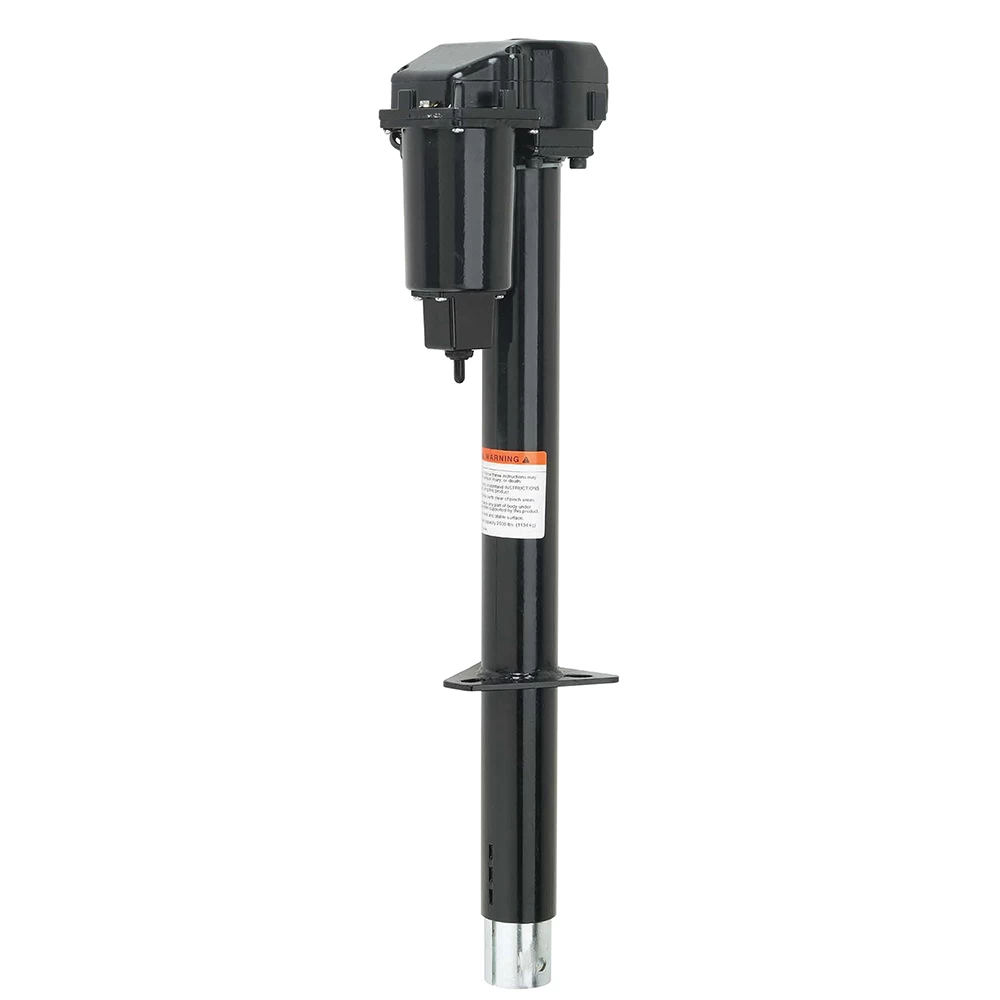

Reese Electric Trailer Jack 2500 lbs 18" Travel Powered Bolt‑On A‑Frame Center Mount
Model: 7036400REESE Towpower Powered A-Frame Trailer Jack
The REESE Towpower powered A-Frame Trailer Jack is engineered for durability and convenience, offering an effortless solution with a 2500 lbs. capacity for various trailers such as travel trailers, car haulers, enclosed trailers, utility trailers, landscape trailers, teardrop trailers, and dump trailers. Its direct connection to the trailer battery ensures reliable power, while the one-touch extend and retract toggle switch provides ease of use.
- 2500 lbs. capacity, suitable for trailers with a weight capacity of 2001-3000 lbs.
- 18 in. screw travel with a retracted height of 8.5" and an extended height of 26.5", offering versatile lift and clearance options.
- Built-in circuit breaker for safety and protection.
- High-strength tubing and a black finish for long-lasting durability and resistance against the elements.
- Includes manual override and all necessary mounting hardware for easy installation.
Specifications:
- Jack Style: A-Frame
- Electric Lift Capacity: 2500 lbs.
- Travel: 18"
- Retracted Height: 8.5"
- Extended Height: 26.5"
- Clearance: 18.25"
- Finish: Black
- Inner Tubing Diameter: 2"
- Outer Tubing Diameter: 2.25"
- Leg: Fixed Leg
- Foot: Footplate
- Jack Shape: Round
For inquiries or to order, enhance your towing experience with this robust and reliable trailer jack by calling us now at 877-869-6690.
$284 99 $403.78 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$403.78 $284 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 7036400
- Includes: Electric A-Frame Jack
Description
Get Expert Help
Reese Electric Trailer Jack 2500 lbs 18" Travel Powered Bolt-On A-Frame Center Mount Install Notes
Installation Instructions for Powered A-Frame Jack
Tools Required:
- Ratchet
- Socket set
- Torque wrench
Step-by-Step Instructions:
General Installation Notes:
- Block the trailer wheels and support the trailer tongue.
- Ensure the powered A-frame jack is mounted on the top surface of the A-frame coupler.
- Disconnect the trailer battery ground cable.
Installation Instructions:

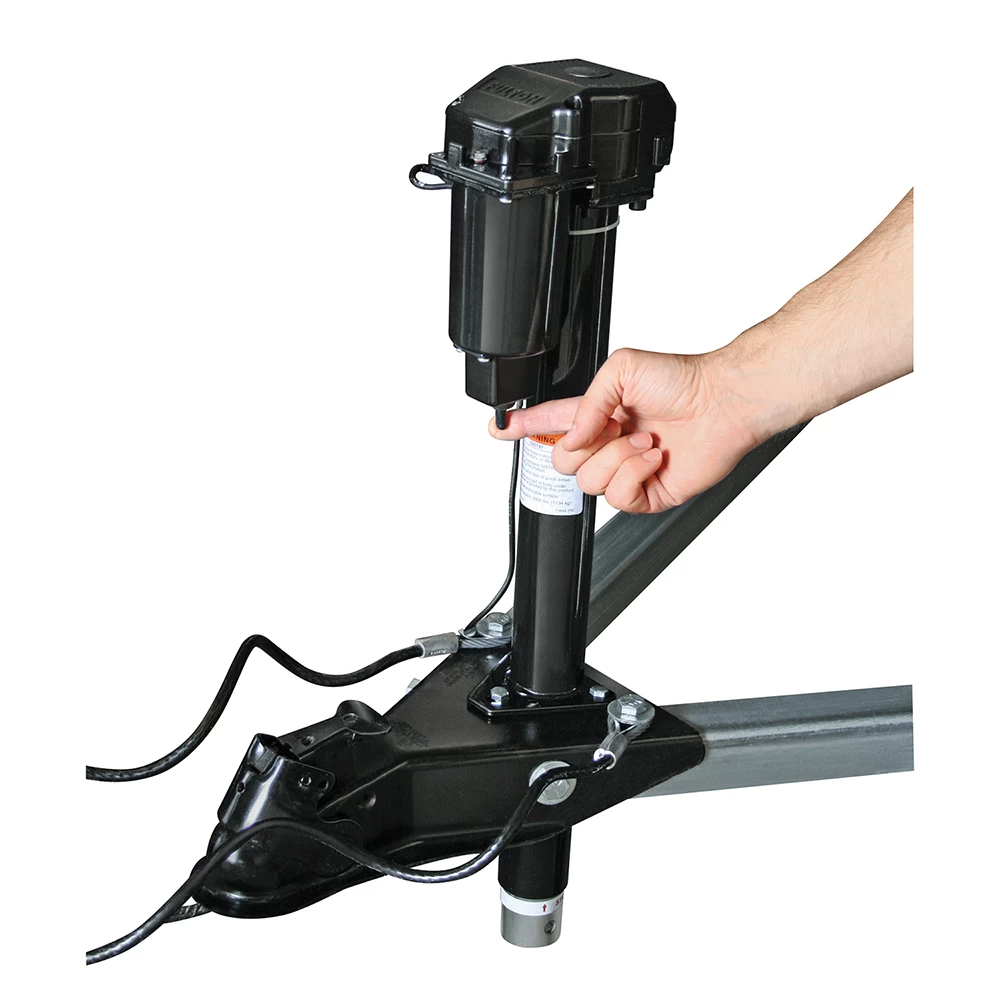

- Place the jack outer tube through the A-frame coupler hole.
- Secure the jack using three (3) 3/8" diameter, 1" long grade 5 bolts, nuts, and lock washers. For proper grounding, use lock/star washers to ensure metal-to-metal contact between the jack and coupler. Torque bolts to 15-20 ft-lbs.
- Route the black wire lead from the jack along the trailer to the battery. Use cable ties or equivalent to secure the wire lead.
- Connect the wire lead directly to the positive (+) terminal of the battery. Reconnect the battery ground cable.
- Test the installation by activating the motor switch to ensure the jack extends and retracts properly.
Operation Instructions:
- Chock the trailer wheels securely.
- To raise the trailer:
- Open the coupler and toggle the motor switch to extend the jack.
- To lower the trailer:
- Toggle the motor switch in the opposite direction to retract the jack. Fully retract the jack until the "STOP" decal is visible on the inner tube. Ensure the coupler is fully engaged and closed.

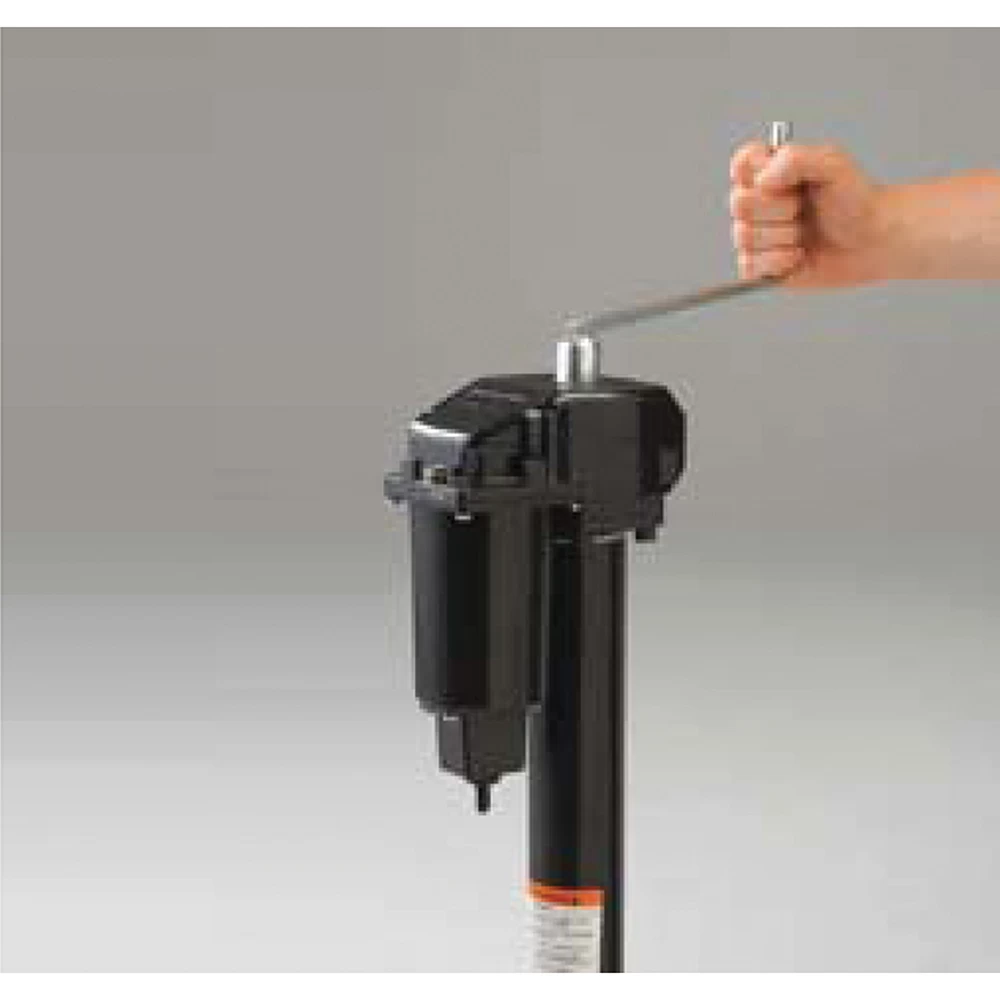

- In case of power loss:
- Remove the round plastic cap on the top of the jack.
- Insert the included manual crank and rotate in the desired direction.
Maintenance:
- The motor is sealed and maintenance-free.
- Maintain the electrical system, including the battery and charger (not included).
- Ensure all connections are tight and free of corrosion. Verify proper grounding between the jack and coupler (metal-to-metal contact).
- Keep the battery fully charged before use.
- If necessary, clean the jack with mild soap and water. Avoid using high-pressure water sprays.
Safety Notes:
- Do not allow children to play near the jack or the supported load.
- Never exceed the rated capacity of the jack. Refer to product markings or decals for the rated capacity.
- Regularly check mounting hardware for proper torque and tighten if necessary.
- Always replace bent, broken, or worn parts before use.
- Avoid applying side forces as they may cause jack failure.
- Ensure the supplied pin is fully inserted when using the drop foot or drop leg.
- Block the trailer wheels to prevent rolling during operation.
Warranty Information:
- Coverage: 1-year limited warranty.
- Exclusions: Normal wear, misuse, overloading, improper installation, and unauthorized modifications.
Attention:
This is a summary of the installation procedure. For complete instructions, including diagrams and detailed information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Disclaimer:
Proper attachment and operation of this product are critical for safety. Liability for this product is limited to its purchase price if defects are found.
California Proposition 65 Warning:
Contains chemicals known to cause cancer and reproductive harm.
