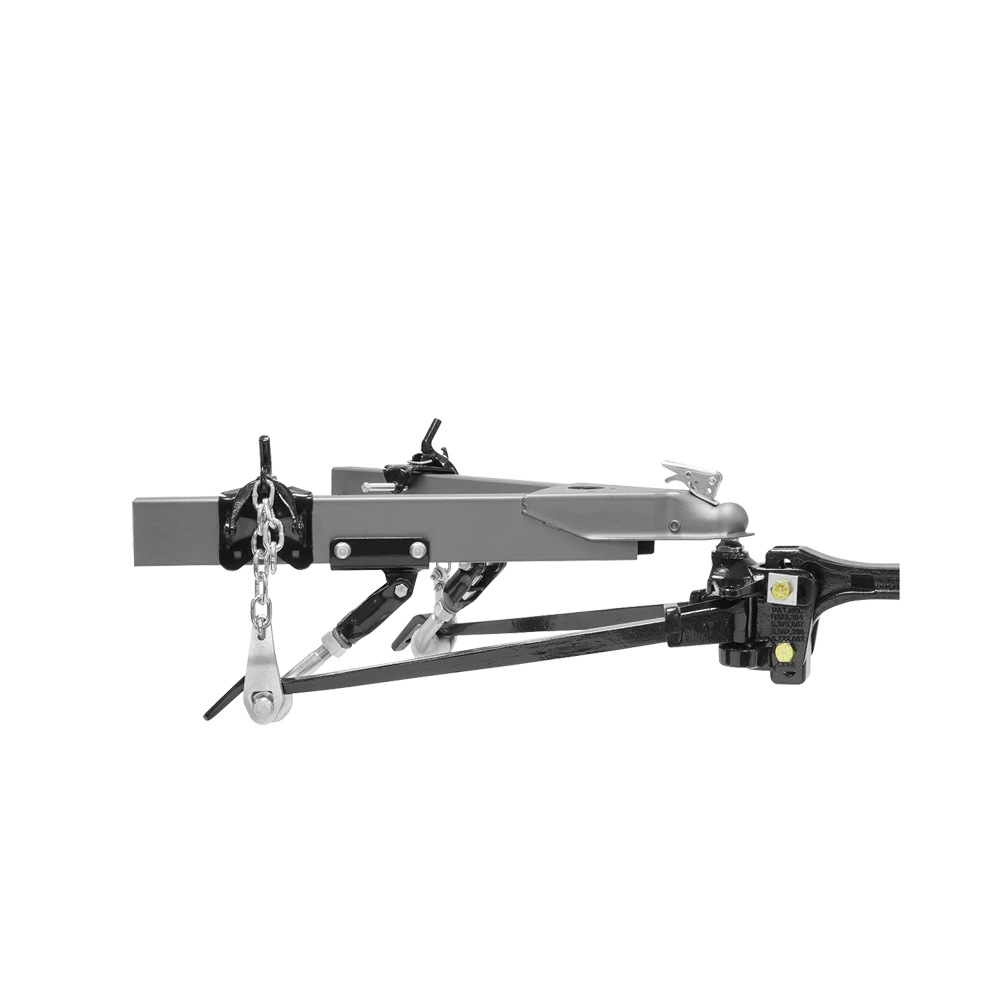

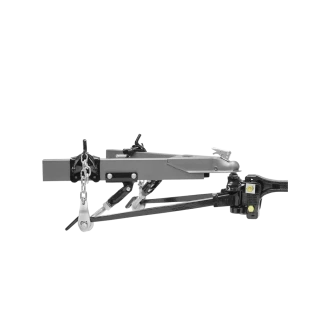

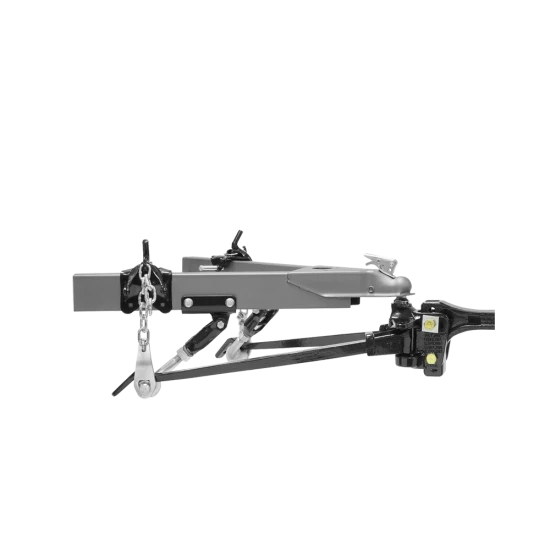

Reese Strait‑Line Active Sway Control Weight Distribution Kit 12000 lbs Capacity Without Shank 66074
Model: 66074Strait-Line Hitch: Unmatched Control and Performance
Discover the ultimate hitch in detail and design with the Strait-Line Hitch. This innovative product offers unparalleled control at an affordable price, making it an ideal choice for those seeking safety and stability while towing.
Superior Sway Control
The Strait-Line Hitch features our patented Dual Cam High-Performance Sway Control system, which is designed to keep your trailer in a straight line behind your tow vehicle. This proactive system works harder the stronger the sway force, providing unmatched stability and confidence on the road.
Advanced Weight Distribution
Incorporating our High Performance Weight Distributing System, this hitch ensures that weight is evenly distributed, enhancing the handling and braking of your tow vehicle. The result is a smoother, safer, and more controlled towing experience.
Easy Installation
The newly-designed Strait-Line Hitch is packaged for easy installation, allowing you to get on the road faster. This hitch system combines the best-proven technologies in sway control and weight distribution into one convenient, efficient package.
Why Choose Strait-Line?
- Patented Dual Cam High-Performance Sway Control
- Enhanced weight distribution for superior towing stability
- Easy-to-install design
- Affordable without compromising on quality
Choose the Strait-Line Hitch for peace of mind and an unrivaled towing experience. Invest in a hitch that truly works with you to provide the safest and most efficient towing possible.
| Specifications: | |
|---|---|
| Tongue Weight | 1200 lbs TW |
| Receiver Compatibility | Fits 2 Inch Hitch Receiver |
| Weight Distribution Component | WD With Sway Control |
| Weight Distribution Accessories | Shank Not Included |
$953 63 $1,138.88 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,138.88 $953 63
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $238.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 66074
- UPC: 16118041699
- Includes: Active Sway Control Weight Distribution Kit
Get Expert Help
Reese Strait-Line Active Sway Control Weight Distribution Kit 12000 lbs Capacity Without Shank 66074 Install Notes
Installation Instructions for Trunnion Style Weight Distributing Kits
Part Numbers:
- 66006 (Kit Number)
Tools Required:
- Torque Wrench (capable of 450 ft-lbs)
- 15/16” Socket and Wrench
- 1-1/8” Socket and Wrench
- Tape Measure
- Pencil
- Flat Head Screwdriver
- Hammer
Step-by-Step Instructions:
Pre-Installation Setup:
-
Prepare the Tow Vehicle and Trailer:
- Park the tow vehicle and trailer on level ground in a straight-ahead position.
- Level the trailer and measure the height from the ground to the top of the ball socket. Record this measurement as "X."
-
Select a Hitch Ball:
- Use a hitch ball that matches the trailer coupler size (1-7/8", 2", or 2-5/16") and ensure it is V-5 rated equal to or greater than the trailer GVWR.
- Torque the ball nut to 450 ft-lbs for 1-1/4” nuts or 250 ft-lbs for 1” nuts.
-
Adjust Ball Height:
- Insert the hitch bar into the receiver and secure it with a pin and clip.
- Adjust the ball height to 3/4" to 1" above the trailer coupler to compensate for vehicle squat.
Installation Steps:
Step 1: Install the Ball Mount:
- Attach the ball mount to the hitch bar using bolts, washers, and nuts. Align the washers and torque to 300 ft-lbs.
- Adjust the ball mount angle to achieve the correct spring bar height ("Y").
Step 2: Attach Spring Bars:
- Insert the spring bars into the ball mount trunnion sockets and swing them outward to the same angle they will have when connected to the trailer.
- Use a chain to attach the spring bars to the trailer frame via snap-up brackets.
Step 3: Set Up Snap-Up Brackets:
- Install the snap-up brackets on the trailer frame so that the spring bar chains hang vertically.
- Raise the yoke of the snap-up bracket until it locks into place. Repeat on both sides.
Step 4: Final Adjustments:
- Measure the front wheel well height before and after hitching. Adjust spring bar chains or ball mount angle to maintain the original measurement.
- Ensure the trailer is level and all connections are secure.
Maintenance:
- Lubricate ball mount sockets and spring bar trunnions daily during towing.
- Clean and grease the hitch ball and coupler socket before each use.
- Inspect bolts, chains, and components for wear and replace as needed.
Safety Notes:
- Loaded ball height should never exceed uncoupled ball height to avoid instability.
- Do not tow multiple trailers simultaneously.
- Ensure there is adequate clearance for spring bar chains when turning.
Warranty:
- Limited Lifetime Warranty: Covers material defects under normal use.
- For warranty service or technical support, contact Cequent Performance Products:
- Phone: 1-888-521-0510
- Address: 47912 Halyard Dr., Suite 100, Plymouth, MI 48170
Installation Instructions for Trunnion Style Weight Distributing Kits
Part Numbers:
- 66006 (Kit Number)
Tools Required:
- Torque Wrench (capable of 450 ft-lbs)
- 15/16” Socket and Wrench
- 1-1/8” Socket and Wrench
- Tape Measure
- Pencil
- Flat Head Screwdriver
- Hammer
Step-by-Step Instructions:
Pre-Installation Setup:
-
Prepare the Tow Vehicle and Trailer:
- Park the tow vehicle and trailer on level ground in a straight-ahead position.
- Level the trailer and measure the height from the ground to the top of the ball socket. Record this measurement as "X."
-
Select a Hitch Ball:
- Use a hitch ball that matches the trailer coupler size (1-7/8", 2", or 2-5/16") and ensure it is V-5 rated equal to or greater than the trailer GVWR.
- Torque the ball nut to 450 ft-lbs for 1-1/4” nuts or 250 ft-lbs for 1” nuts.
-
Adjust Ball Height:
- Insert the hitch bar into the receiver and secure it with a pin and clip.
- Adjust the ball height to 3/4" to 1" above the trailer coupler to compensate for vehicle squat.
Installation Steps:
Step 1: Install the Ball Mount:
- Attach the ball mount to the hitch bar using bolts, washers, and nuts. Align the washers and torque to 300 ft-lbs.
- Adjust the ball mount angle to achieve the correct spring bar height ("Y").
Step 2: Attach Spring Bars:
- Insert the spring bars into the ball mount trunnion sockets and swing them outward to the same angle they will have when connected to the trailer.
- Use a chain to attach the spring bars to the trailer frame via snap-up brackets.
Step 3: Set Up Snap-Up Brackets:
- Install the snap-up brackets on the trailer frame so that the spring bar chains hang vertically.
- Raise the yoke of the snap-up bracket until it locks into place. Repeat on both sides.
Step 4: Final Adjustments:
- Measure the front wheel well height before and after hitching. Adjust spring bar chains or ball mount angle to maintain the original measurement.
- Ensure the trailer is level and all connections are secure.
Maintenance:
- Lubricate ball mount sockets and spring bar trunnions daily during towing.
- Clean and grease the hitch ball and coupler socket before each use.
- Inspect bolts, chains, and components for wear and replace as needed.
Safety Notes:
- Loaded ball height should never exceed uncoupled ball height to avoid instability.
- Do not tow multiple trailers simultaneously.
- Ensure there is adequate clearance for spring bar chains when turning.
Warranty:
- Limited Lifetime Warranty: Covers material defects under normal use.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
