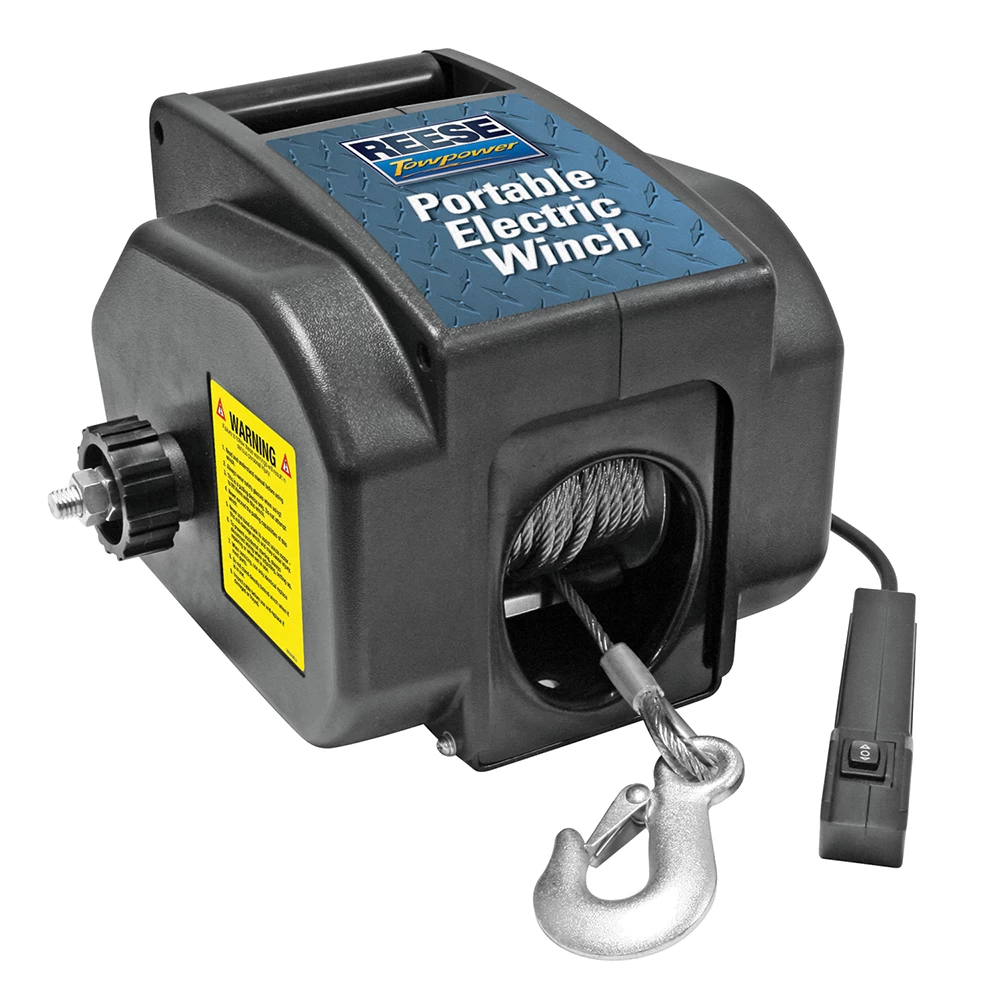

Reese Towpower Powered Utility Electric Winch 2,000 lbs Capacity 29 ft Cable Black Finish 1 Year Warranty - 7033600
Model: 7033600Reese® Portable Electric Winch - Part Number: 7033600
You shouldn’t have to struggle to get your boat or jet ski on or off the water. Your days should be easy, relaxed, thrilling, fun, whatever you want them to be. With Reese®, you can spend less time working to launch your watercraft or pull it back onto your trailer with our complete line of winches. From one and two-speed manual winches to brake winches and electric winches, Reese® offers styles and capacities to meet virtually every need. Created by some of the most innovative engineers in the industry today, Reese’s extensive line of marine winches uses superior materials and rugged manufacturing, offering attractive designs and sleek, contemporary exteriors to work hard while complementing even high-end boat and trailer combinations.
Key Features
- Perfect for vehicle recovery or mounting boats to trailers with a wired remote control for ease of use.
- Includes a steel mounting plate for secure installation.
- Manual hand crank and knob provide additional control and versatility.
- Pulling Capacity: 2000 lbs for heavy-duty applications.
- Marine Capacity: 5000 lbs and Rolling Capacity: 6000 lbs, demonstrating significant strength for various situations.
- Steel Cable Length: 29 ft, offering ample reach for most needs.
- Power Cable Length: 10 ft, ensuring convenient connection to power sources.
- Cable Included: Yes, for immediate use straight out of the box.
- 1-Year Warranty, guaranteeing reliability and satisfaction.
- Packaging: Litho Box, providing protection during shipping.
How to Select the Right Winch
Selecting the right winch capacity is crucial for ensuring safety and efficiency:
- Consider the maximum weight of your boat, including motor, fuel, and gear, to determine the appropriate winch capacity.
- For vehicle recovery or boat launching, assess the winch's pulling, marine, and rolling capacities to choose the best fit for your needs.
- Example: If your boat and equipment weigh 10,000 lbs, the Reese® Portable Electric Winch 7033600, with its marine capacity of 5000 lbs, offers more than enough power to handle the task efficiently and safely.
Note: Always select a winch with a capacity that matches or exceeds your specific requirements to ensure optimal performance and to accommodate potential future needs.
$151 99 $214.16 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$214.16 $151 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $37.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 7033600
- Includes: Powered Utility Electric Winch
Description
Get Expert Help
Reese Towpower Powered Utility Electric Winch 2,000 lbs Capacity 29 ft Cable Black Finish 1 Year Warranty - 7033600 Install Notes
Installation Instructions for Portable Electric Winch
Part Numbers:
- 70336
Tools Required:
- Wrenches (for mounting bolts)
- ANSI-approved eye protection and gloves
Step-by-Step Instructions:
Wiring the Winch:
- Remove the cover on the right side of the winch and plug the power cable into the designated socket.
- Route the power cord from the winch to the battery to avoid tangling or tripping hazards.
- Connect the BLACK clamp to the vehicle frame for grounding.
- Connect the RED clamp to the positive terminal on the vehicle’s battery.
- Set the remote control aside safely until ready for use. Plug it in only before operation and disconnect immediately afterward.
Mounting the Winch:
Permanent Mounting:
- Choose a location capable of sustaining the 2000 lbs pulling force.
- Mark and drill four holes using a drill bit slightly larger than the diameter of the bolts.
- Secure the winch using hardened steel bolts (minimum 3/8" diameter), flat washers, lock washers, and nuts.
- For boat trailers, ensure the winch is mounted slightly higher than the bow stop and far enough back to avoid pulling the cable hook into the housing.
Temporary Mounting on Hitch Ball:
- Slide the hitch ball mounting plate into the keyhole slots at the bottom of the winch.
- Place the mounting plate over the hitch ball and slide it onto the neck of the hitch ball.
- Support the winch until tension is applied to the cable.
Operating the Winch:
- For vehicle-mounted winches, apply the parking brake, block wheels, and put the vehicle in neutral.
- Turn the clutch knob clockwise to disengage the clutch.
- Pull out the required cable, ensuring a minimum of 3 wraps remain on the drum.
- Attach the hook to a secure pulling point (do not wrap the cable around the object).
- Engage the clutch by turning the knob counterclockwise.
- Ensure all bystanders are clear. Plug in the remote and slowly wind the cable by pressing the remote button.
- After pulling, release the cable tension and disconnect the remote.
Using the Manual Crank:
- Disconnect the power from the winch.
- Remove one lock nut from the clutch knob shaft and attach the handle.
- Reinstall the lock nut and tighten the cable by rotating the handle counterclockwise.
- Remove the manual crank when not in use.
Maintenance:
- Periodically lubricate the cable with light oil and grease the gears every six months.
- Inspect the entire system for damage before each use. Replace worn or damaged parts immediately.
- Store the cable on the drum when not in use.
Safety Notes:
- Do not exceed rated pulling capacities:
- 2000 lbs for straight pulling
- 5000 lbs for marine use
- 6000 lbs for rolling loads
- Always maintain three cable wraps on the drum.
- Wear gloves and safety gear when operating the winch.
- Stay out of the direct line of the cable in case of failure.
- Never use the winch for lifting people or as a hoist.
- Avoid using the manual crank simultaneously with the motorized operation.
Specifications:
- Power Supply: 12V DC
- Cable Length: 29 ft.
- Remote Switch: 10 ft.
- Power Cord: 20 ft.
- Pulling Speed: 6 ft/min at 2000 lbs
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Limited 1-Year Warranty:
- Covers defects in materials and workmanship under normal use.
- Exclusions: Normal wear, misuse, improper installation, and unauthorized modifications.
Disclaimer:
Proper attachment and operation of this product are critical for safety. Liability for this product is limited to its purchase price if defects are found.
California Proposition 65 Warning:
Contains chemicals known to cause cancer and reproductive harm.
