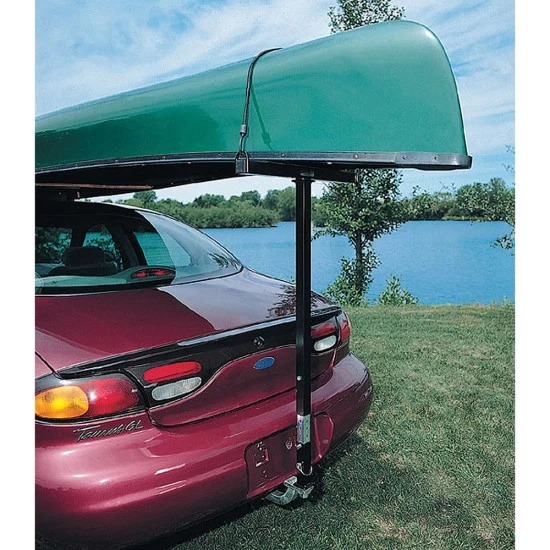

Reese Towpower Trailer Hitch Mount Canoe Loader One Person Marine Tow While In Use Adjustable Hardware
Model: 7018100- Allows one person to quickly load and unload a canoe or kayak
- Simply and quickly mounts to trailer hitch
- Common hand tools
- Includes adapter mount that allows towing while using this canoe loader
- Features adjustable hardware
- Fits most cars, trucks and suvs
| Part Number | 7018100 |
| Brand |
Reese Towpower
|
| Warranty | 1 Year |
| Install Instructions |  |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
$80 30 $118.19 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$118.19 $80 30
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $20.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 7018100
- UPC: 042899701811
- Includes: Towpower Canoe Loader
Description
- Allows one person to quickly load and unload a canoe or kayak
- Simply and quickly mounts to trailer hitch
- Common hand tools
- Includes adapter mount that allows towing while using this canoe loader
- Features adjustable hardware
- Fits most cars, trucks and suvs
| Part Number | 7018100 |
| Brand |
Reese Towpower
|
| Warranty | 1 Year |
| Install Instructions | |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Get Expert Help
Reese Towpower Trailer Hitch Mount Canoe Loader One Person Marine Tow While In Use Adjustable Hardware Install Notes
Installation Instructions for Canoe Loader
Part Number:
- 7018100
Tools Required:
- No additional tools specified.

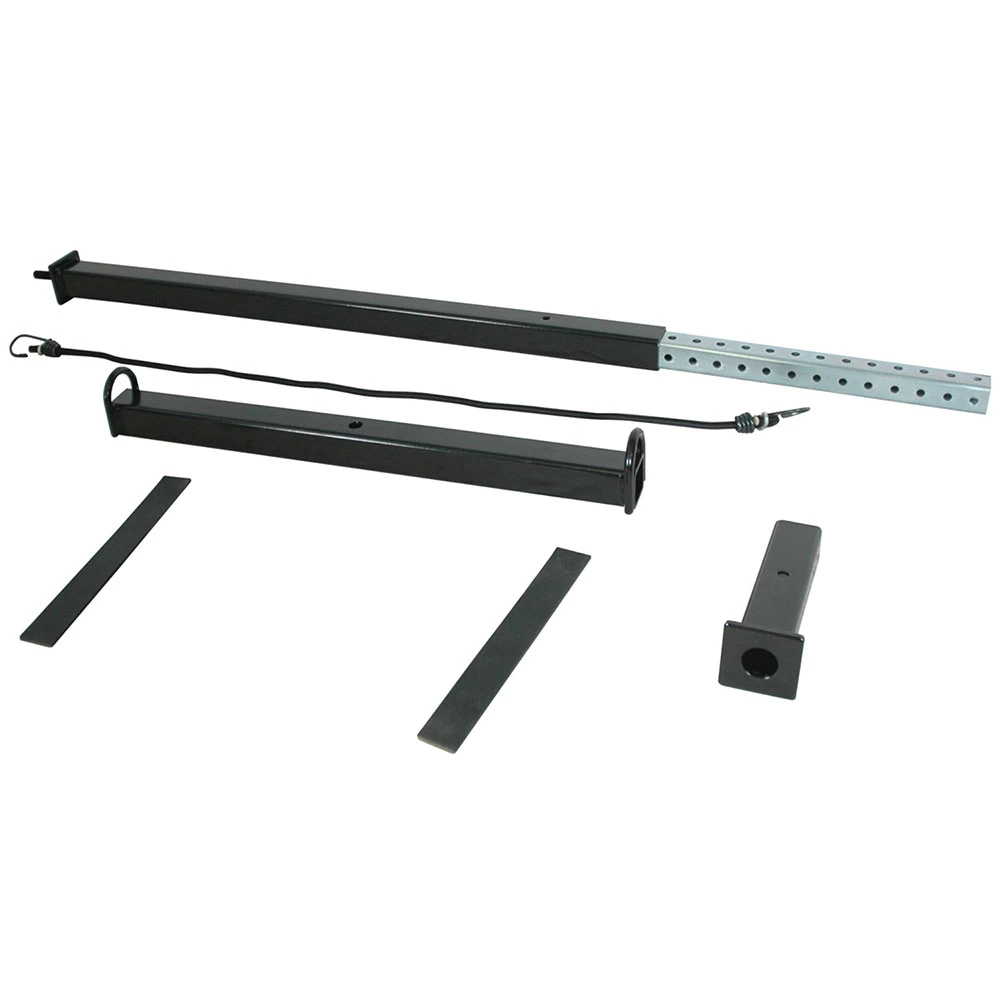

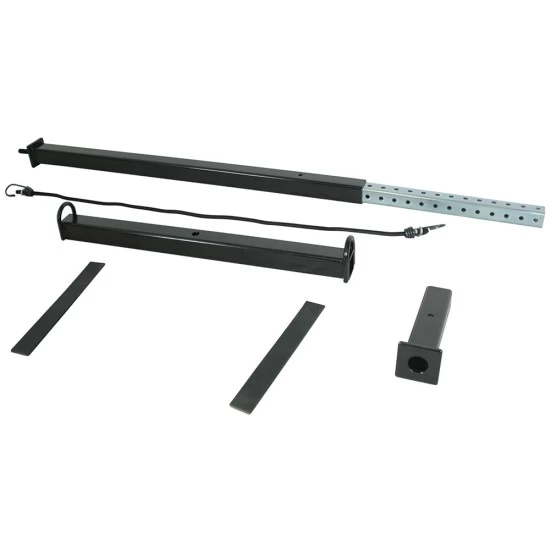

Parts List:
- Adapter Plate (1)
- Receiver Tube (1)
- 3/4”-10 x 2” Square Head Bolt (1)
- 3/4” Spring Lock Washer (1)
- 3/4”-10 Hex Nut (1)
- Adjustment Tube (1)
- Lynch Pin (1)
- Tube End Cap (2)
- Cross Support Tube (1)
- Rubber Strip (2)
- Plastic Friction Disk (1)
- Upright Tube (1)
- Flat Washer (1)
- 1/2”-13 Locknut (1)
- 5/16”-18 x 2.25” Hex Bolt (1)
- 5/16”-18 Locknut (1)
- Shock Cord (1)
Mounting Instructions:
For Hitch Ball Installation:
- Remove the hitch ball from the trailer hitch.
- Place the adapter plate under the hitch if the hitch ball is needed during Canoe Loader use.
- Reinstall the hitch ball, lock washer, and hex nut. Torque to:
- 150 ft-lbs for 3/4” threads.
- 200 ft-lbs for 1” threads.
Without Hitch Ball:
- Install the hitch receiver tube directly into the hitch bar.
Attach Receiver Tube:
- Place the square head bolt through the hitch receiver tube and adapter plate.
- Secure with the lock washer and hex nut. Torque to 150 ft-lbs.
Install Adjustment Tube:
- Slide the adjustment tube into the receiver tube and secure with the lynch pin.
Assemble Cross Support Tube:
- Insert tube end caps into the cross support tube.
- Apply rubber strips to the cross support tube after cleaning and drying the surface.
Install Cross Support Tube on Upright Tube:
- Place the plastic friction disk on the upright tube bolt.
- Install the cross support tube, flat washer, and locknut. Tighten the locknut until moderate force is required to rotate the support tube.
Determine Mounting Height:
- Align the adjustment tube with the nearest holes and secure with the hex bolt and locknut.
Operating Instructions:

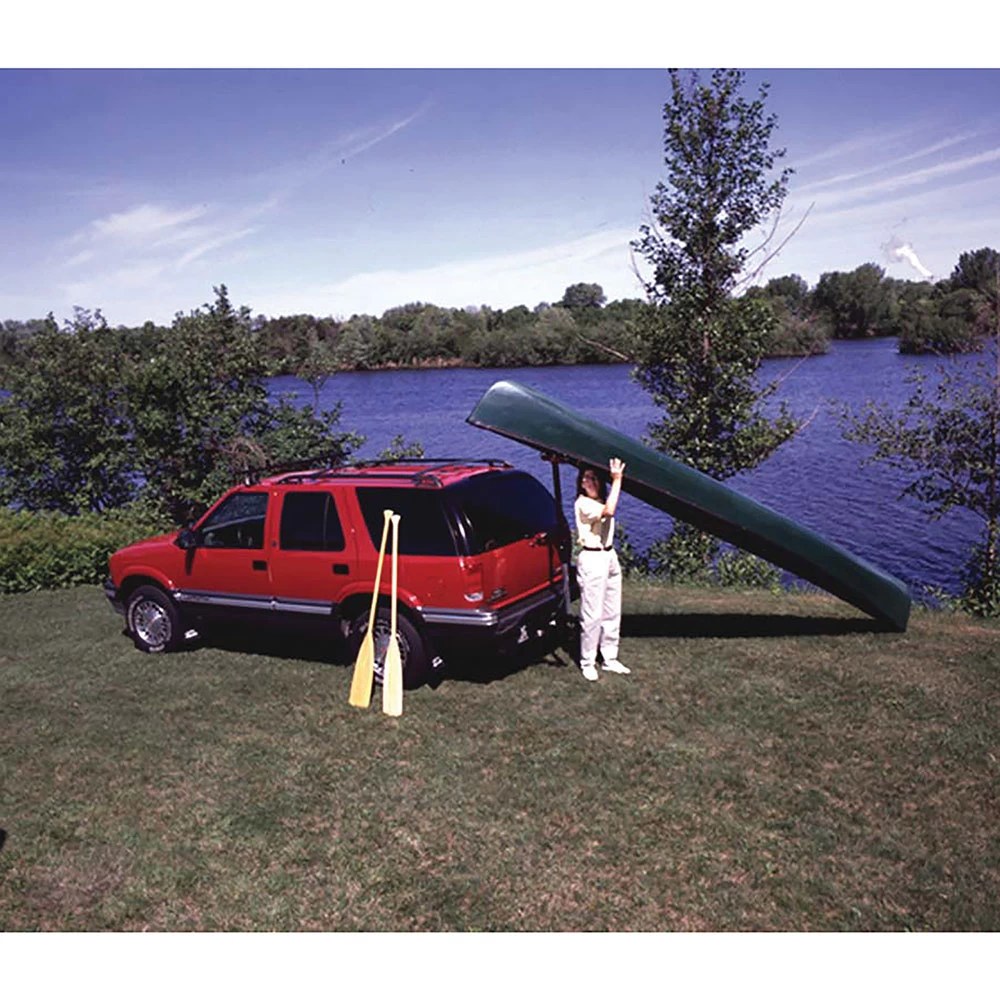

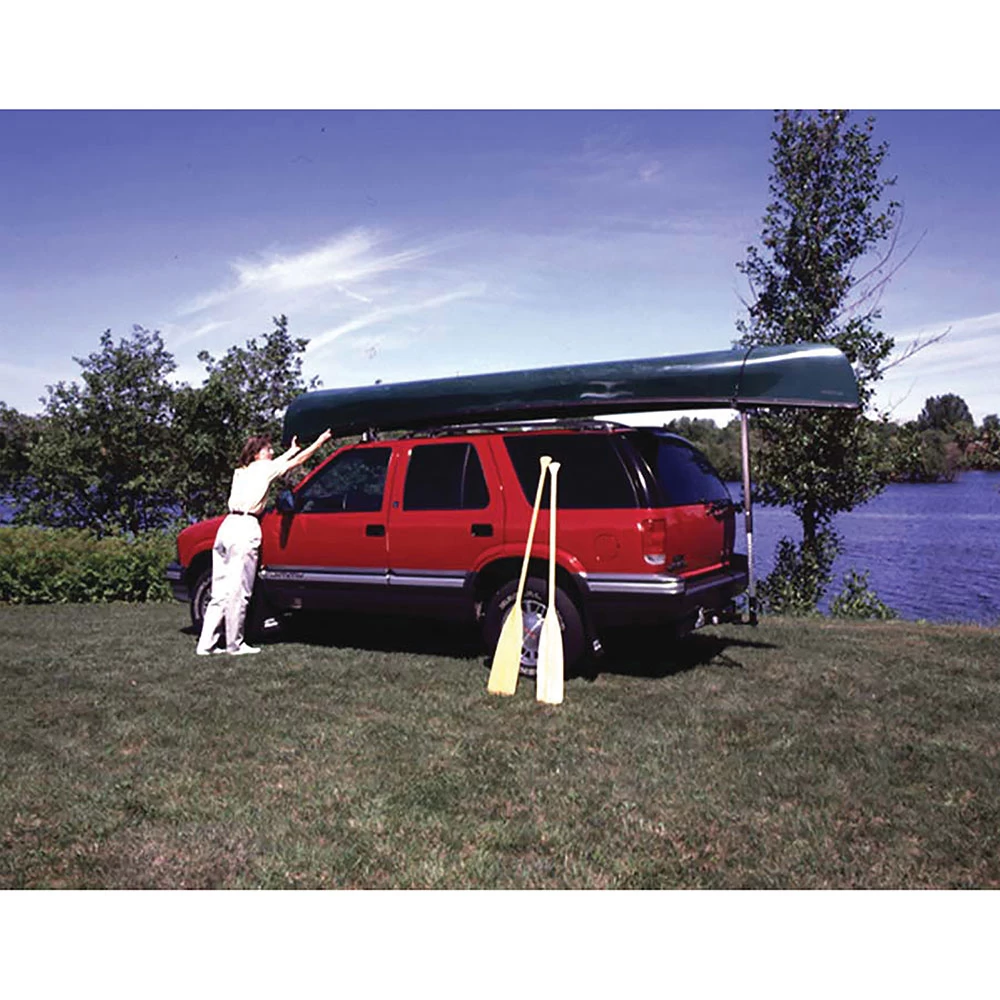

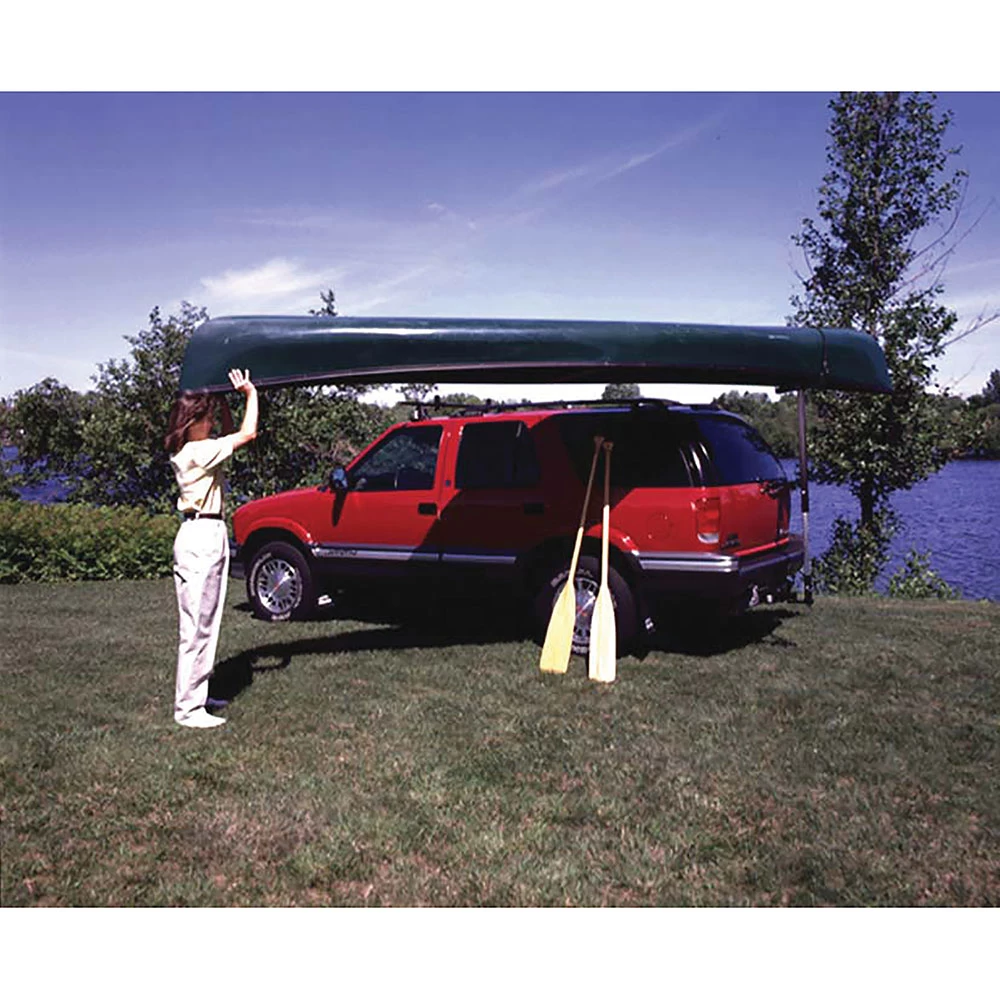

To Load a Canoe:
- Secure one end of the canoe onto the cross support tube and fasten with the shock cord.
- Ensure the path of travel is free from obstructions.
- Lift the canoe, rotate it towards the vehicle, and rest it on the roof support.
- Secure the front and rear of the canoe to the vehicle using ropes or straps.
- Optionally, use a ratchet strap around the canoe's center and attach a red flag to the far end.
To Unload a Canoe:
- Free the front end and lower it to the ground.
- Rotate the canoe towards the rear of the vehicle and rest it on the ground.
- Free the rear from the support bar and remove the canoe.
Safety Notes:
- Maximum Capacity: 100 lbs evenly distributed.
- Do not exceed the rated capacity of the Canoe Loader or the hitch it is installed on.
- Avoid excessive side forces and ensure the path is free of obstructions.
- Secure the canoe tightly to the vehicle. Securing only to the Canoe Loader is not sufficient for transport.
- Inspect all hardware before each use and tighten as needed.
Warranty Information:
- One-Year Limited Warranty:
- Covers defects in materials and workmanship under normal use.
- Exclusions:
- Normal wear and tear.
- Damage caused by misuse, overloading, or improper installation.
- Alterations or modifications not specified in the instructions.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning:
Failure to follow these instructions may result in property damage, serious injury, or death.
California Proposition 65 Warning:
Contains chemicals known to cause cancer and reproductive harm.
