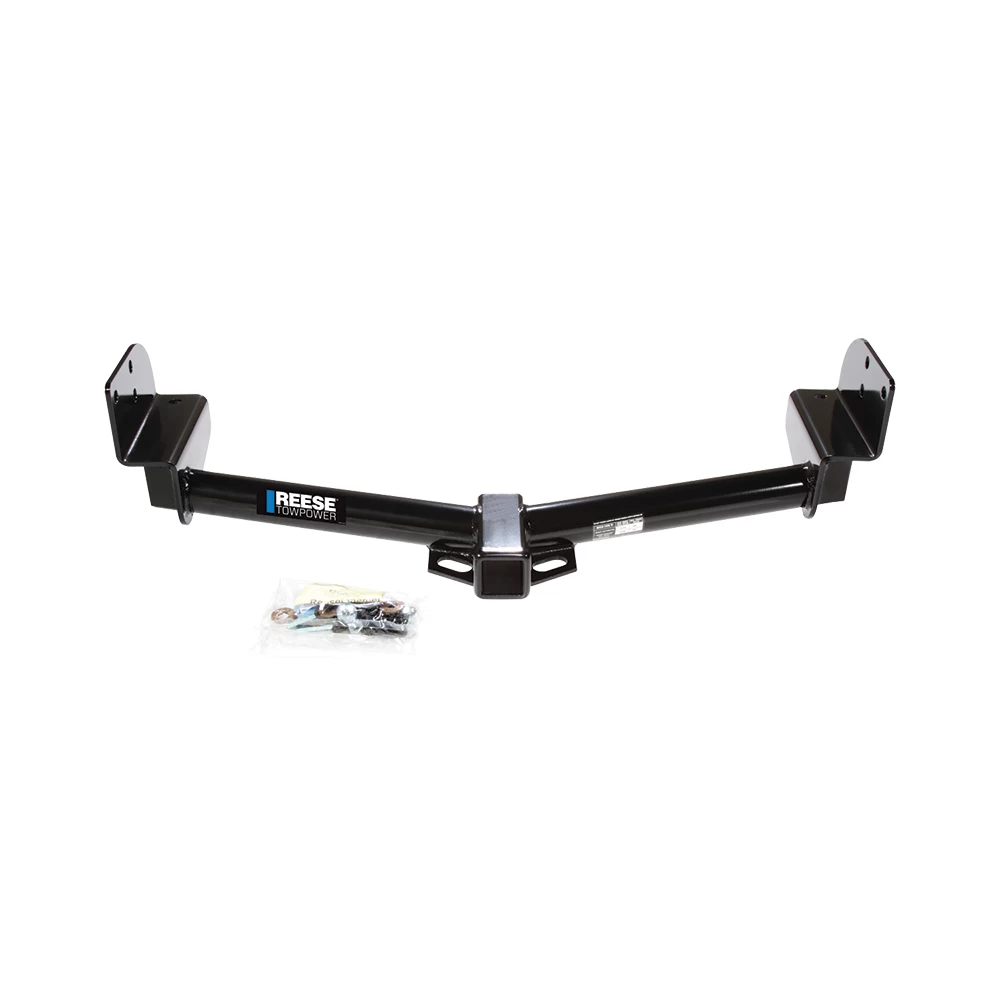

Reese Trailer Tow Hitch For 02‑05 Ford Explorer Mountaineer Aviator 2" Receiver Class 3
Model: 330312002 - 2005 Ford, Explorer, 4 Dr.
2002 - 2005 Mercury, Mountaineer, All Styles
2003 - 2005 Lincoln, Aviator, All Styles
Trailer Hitch Specs:
| Part Number | 33031 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 2002 2003 2004 2005
$286 31 $429.90 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$429.90 $286 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33031
- UPC: 016118040449
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2002 - 2005 Ford, Explorer, 4 Dr.
2002 - 2005 Mercury, Mountaineer, All Styles
2003 - 2005 Lincoln, Aviator, All Styles
Trailer Hitch Specs:
| Part Number | 33031 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 500/800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 2002 2003 2004 2005
Get Expert Help
Reese Trailer Tow Hitch For 02-05 Ford Explorer Mountaineer Aviator 2" Receiver Class 3 Install Notes
Installation Instructions for Ford Explorer, Mercury Mountaineer, and Lincoln Aviator
Part Numbers:
- 44722
- 75132
- 87417
Tools Required:
- Wrenches: 7/8”, 15mm, 18mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 8,000 lb. (3,632 kg)
- Weight Carrying: 5,000 lb. (2,272 kg)
- Max Tongue Weight:
- Weight Distributing: 800 lb. (363 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove three (3) existing bumper bracket nuts (if present).
- Remove three (3) M12 or M14 bolts from each side of the frame.
-
Install Fasteners:
- Fishwire carriage bolts and blocks through the end of the frame.
-
Position Hitch:
- Raise the hitch into position and loosely install conical washers and nuts.
-
Factory Fastener Reinstallation:
- Vehicles with 14mm factory fasteners: Reinstall the M14 fasteners.
- Vehicles with 12mm factory fasteners: Install and torque supplied M12 fasteners and reinstall factory M12 nuts.
-
Tighten Fasteners:
- Tighten all M12 fasteners to 92 Lb.-Ft. (125 N*M).
- Tighten all M14 fasteners to 148 Lb.-Ft. (201 N*M).
- Tighten all 1/2” fasteners to 75 Lb.-Ft. (102 N*M).

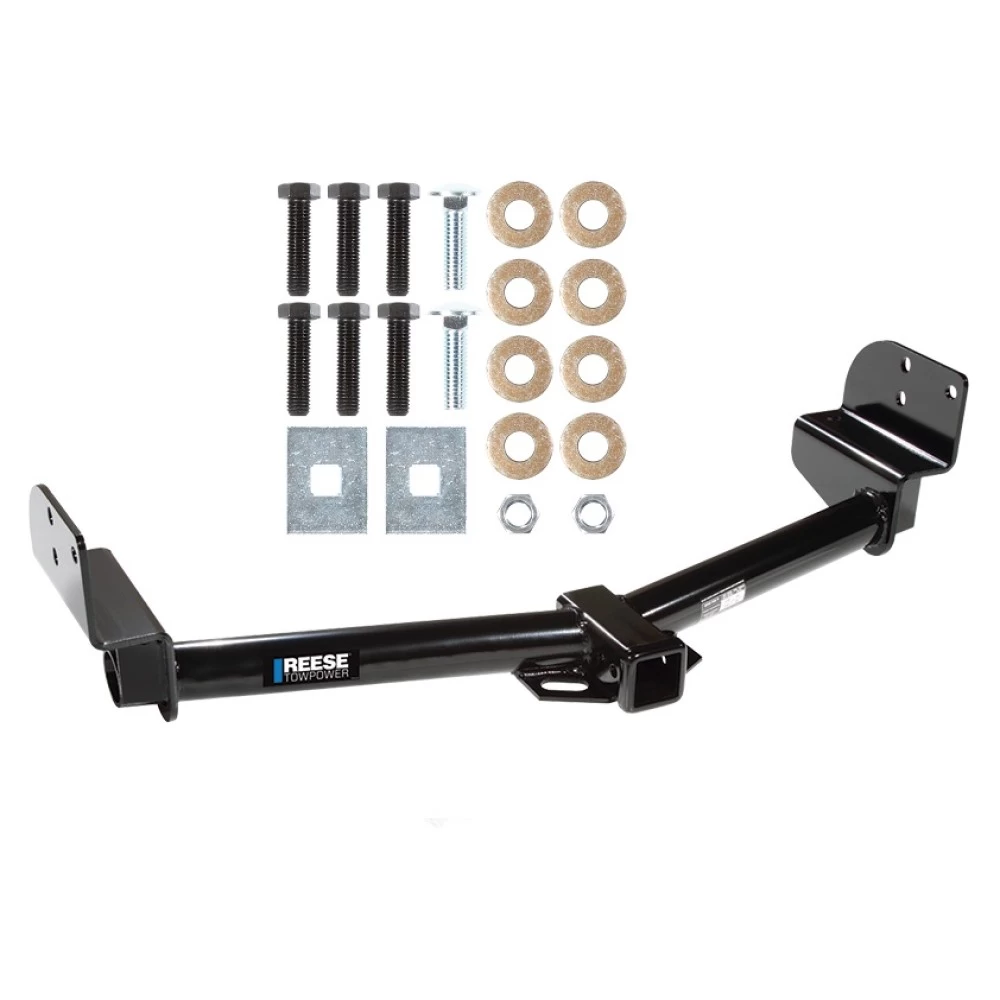

Hardware List:
- (6) Hex Bolts: M12 X 1.75 X 45mm CL10.9
- (2) Blocks: 1/4” x 1.5” x 2”
- (8) Conical Washers: 1/2”
- (2) Hex Nuts: 1/2” – 13
- (2) Carriage Bolts: 1/2” – 13 x 1.75 GR5
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Do not use both hitches at the same time, as this may overload and cause damage to the vehicle.
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Ford Explorer, Mercury Mountaineer, and Lincoln Aviator
Part Numbers:
- 44722
- 75132
- 87417
Tools Required:
- Wrenches: 7/8", 15mm, 18mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 8,000 lb (3,632 kg)
- Weight Carrying: 5,000 lb (2,272 kg)
- Max Tongue Weight:
- Weight Distributing: 800 lb (363 kg)
- Weight Carrying: 500 lb (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Remove Existing Fasteners
- Remove three (3) existing bumper bracket nuts, if present.
- Remove three (3) M12 or M14 bolts from each side of the frame.
-
Install Fasteners
- Fishwire carriage bolts and blocks through the end of the frame as shown in the installation diagram.
-
Position Hitch
- Raise the hitch into position and loosely install conical washers and nuts.
-
Factory Fastener Reinstallation
- For vehicles with M14 factory fasteners: Reinstall the M14 fasteners.
- For vehicles with M12 factory fasteners: Install and torque supplied M12 fasteners and reinstall factory M12 nuts.
-
Tighten Fasteners
- Torque all M12 fasteners to 92 lb-ft (125 N·m).
- Torque all M14 fasteners to 148 lb-ft (201 N·m).
- Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (6) Hex Bolts: M12 x 1.75 x 45mm CL10.9
- (2) Blocks: 1/4" x 1.5" x 2"
- (8) Conical Washers: 1/2"
- (2) Hex Nuts: 1/2"-13
- (2) Carriage Bolts: 1/2"-13 x 1.75 GR5
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Do not use both hitches simultaneously, as this may overload and cause damage to the vehicle.
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
