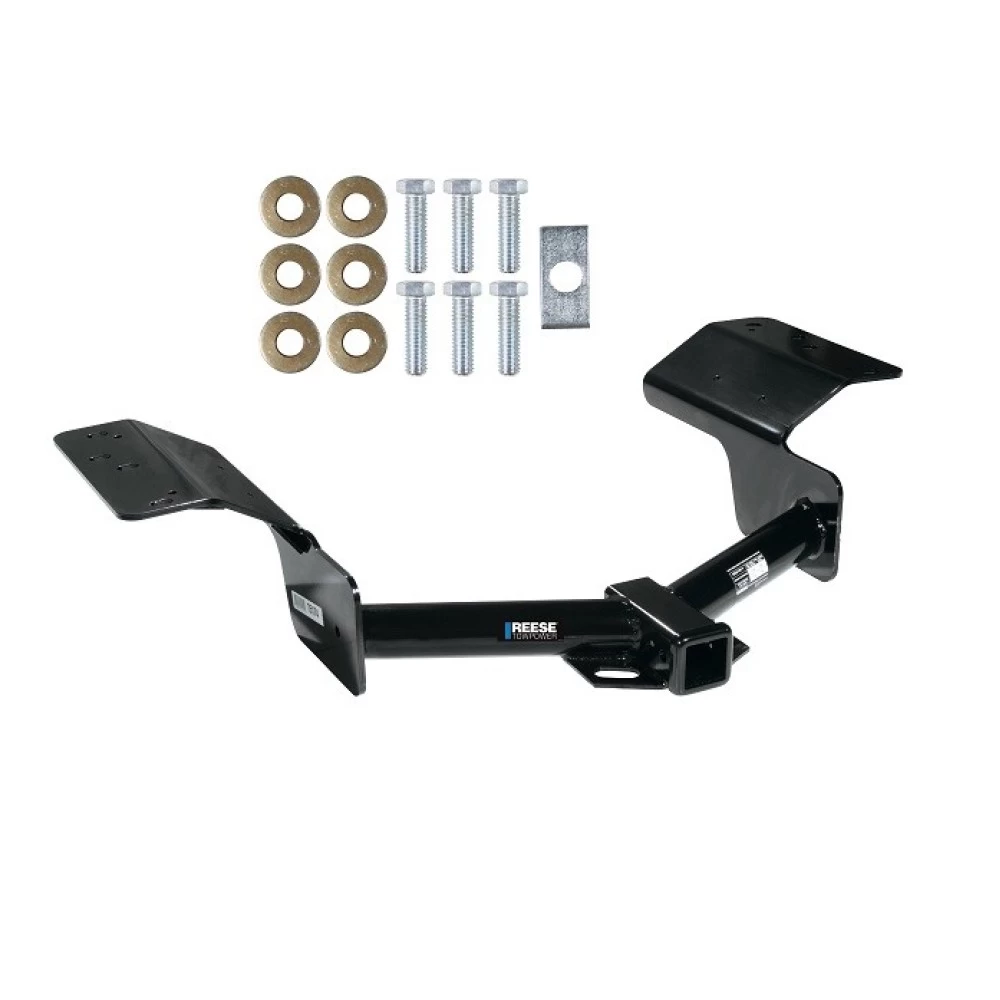

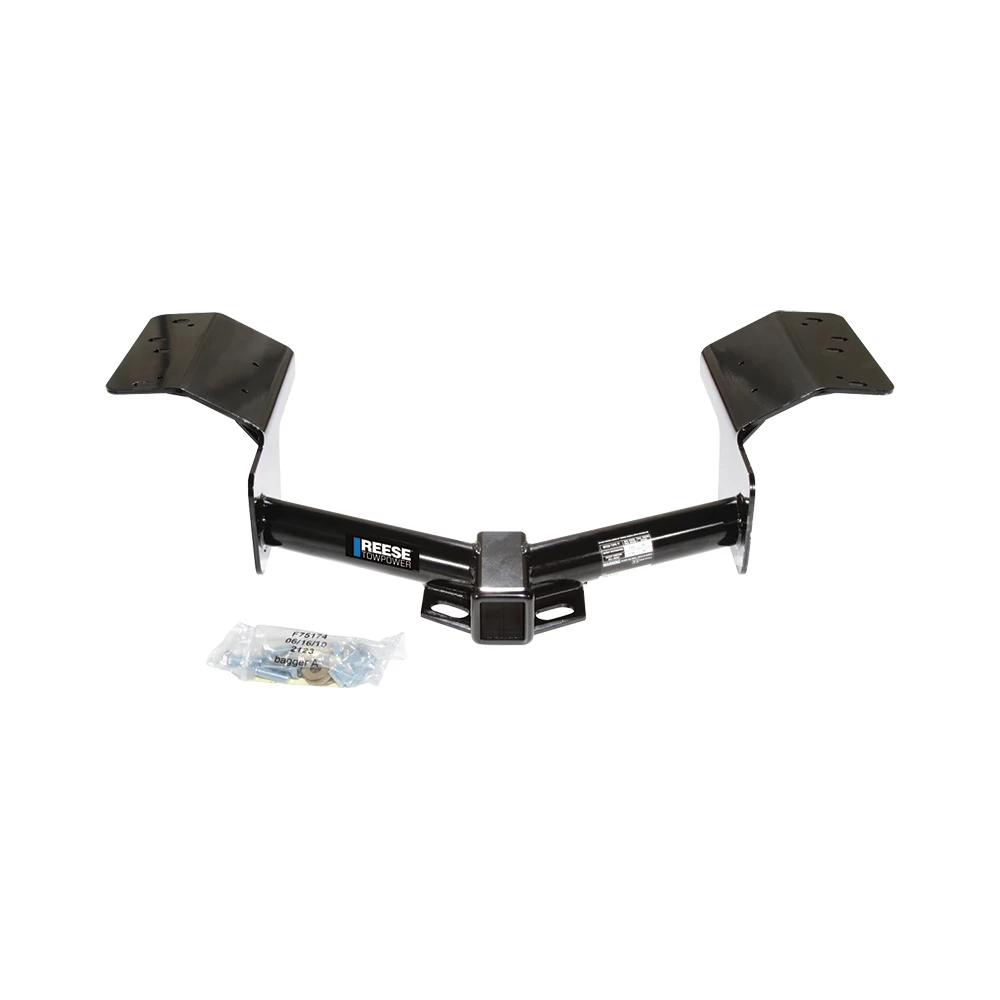

Reese Trailer Tow Hitch For 04‑09 Cadillac SRX without Sport Package Fascia
Model: 330862004 - 2009 Cadillac, SRX, without Sport Package Fascia
Trailer Hitch Specs:
| Part Number | 33086 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
$345 34 $518.51 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$518.51 $345 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33086
- UPC: 016118051100
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2004 - 2009 Cadillac, SRX, without Sport Package Fascia
Trailer Hitch Specs:
| Part Number | 33086 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009
Get Expert Help
Reese Trailer Tow Hitch For 04-09 Cadillac SRX without Sport Package Fascia Install Notes
Installation Instructions for Cadillac SRX
Part Numbers:
- N87661
- N75174
- 44744N
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Cut-off wheel or hacksaw, tin snips
- Wrenches: 13mm, 19mm (tighten all fasteners with torque wrench)
Drill Bits:
- None
Notes:
- Hitch requires 5/8" pin and clip if stabilizing pin is not installed.
Step-by-Step Instructions:
- Lower the spare tire.
- Disconnect rubber exhaust hangers from exhaust hanger brackets, three on each side (one forward and two rearward per muffler).
- Remove existing exhaust hanger brackets, one on each side, by removing three nuts securing hanger brackets to studs in the vehicle bulkhead and unfastening retaining clips.
- Note: Exhaust hanger brackets will be reinstalled in step 6.
- Cut off two studs in the bulkhead as close as possible (see Figure 2). Do not cut off more than two studs.
- Modify heat shields as shown in Figure 3:
- Step 1: Cut heat shields as necessary to avoid interference with the hitch.
- Step 2: Bend/fold heat shields out of the way. Ensure the heat shields do not interfere with the spare tire when raised back into position.
- Re-install exhaust hanger brackets using (2) of the (3) nuts removed in step 3 on upper studs. Align square holes in brackets with retaining clips in the bulkhead.
- Raise the hitch into position and loosely secure with M12 bolts and 1/2” conical toothed washers.
- On vehicles equipped with an air pump on the passenger side frame rail, temporarily remove the pump. Use (1) 1/4" block between the pump and frame rail for proper alignment during reinstallation.
- Install M12 bolts and 1/2” conical toothed washers as shown in Figure 1.
- Tighten all M12 CL8.8 fasteners to 66 lb-ft.
- Re-connect rubber exhaust hangers (three on each side).
- Raise the spare tire back into position.

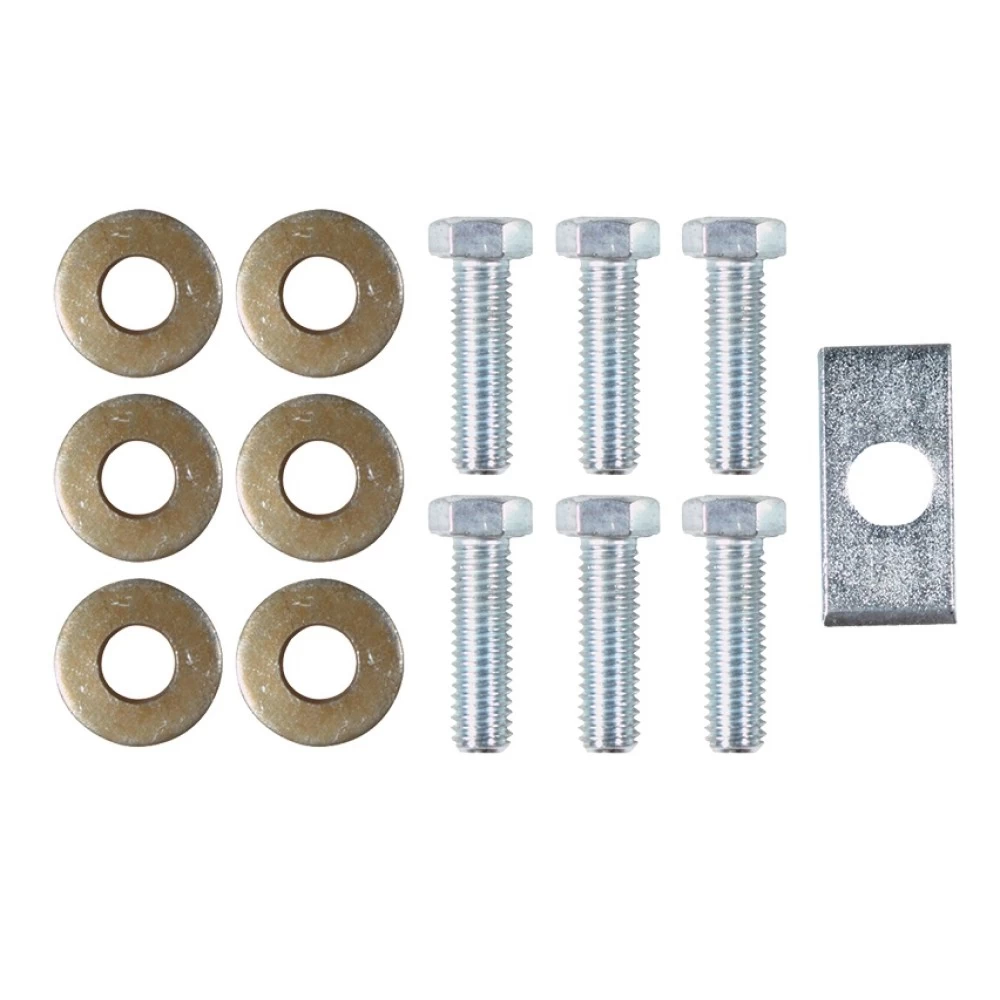

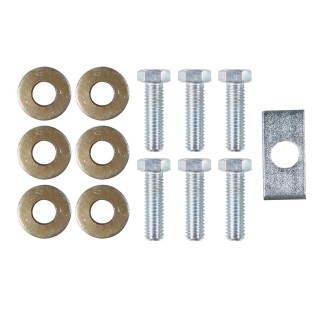

Hardware List:
- M12 x 1.75 x 40mm CL8.8 Bolts
- 1/2” Conical Toothed Washers
- 1/4” Block (for vehicles with air pump only)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs, Max Tongue Weight 350 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Cadillac SRX
Part Numbers:
- N87661
- N75174
- 44744N
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Cut-off wheel or hacksaw, tin snips
- Wrenches: 13mm, 19mm (tighten all fasteners with torque wrench)
Drill Bits:
- None
Notes:
- Hitch requires 5/8" pin and clip if stabilizing pin is not installed.
Step-by-Step Instructions:
- Lower the spare tire.
- Disconnect rubber exhaust hangers from exhaust hanger brackets, three on each side (one forward and two rearward per muffler).
- Remove existing exhaust hanger brackets, one on each side, by removing three nuts securing hanger brackets to studs in the vehicle bulkhead and unfastening retaining clips.
- Note: Exhaust hanger brackets will be reinstalled in step 6.
- Cut off two studs in the bulkhead as close as possible (see Figure 2). Do not cut off more than two studs.
- Modify heat shields as shown in Figure 3:
- Step 1: Cut heat shields as necessary to avoid interference with the hitch.
- Step 2: Bend/fold heat shields out of the way. Ensure the heat shields do not interfere with the spare tire when raised back into position.
- Re-install exhaust hanger brackets using (2) of the (3) nuts removed in step 3 on upper studs. Align square holes in brackets with retaining clips in the bulkhead.
- Raise the hitch into position and loosely secure with M12 bolts and 1/2” conical toothed washers.
- On vehicles equipped with an air pump on the passenger side frame rail, temporarily remove the pump. Use (1) 1/4" block between the pump and frame rail for proper alignment during reinstallation.
- Install M12 bolts and 1/2” conical toothed washers as shown in Figure 1.
- Tighten all M12 CL8.8 fasteners to 66 lb-ft.
- Re-connect rubber exhaust hangers (three on each side).
- Raise the spare tire back into position.
Hardware List:
- M12 x 1.75 x 40mm CL8.8 Bolts
- 1/2” Conical Toothed Washers
- 1/4” Block (for vehicles with air pump only)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs, Max Tongue Weight 350 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
