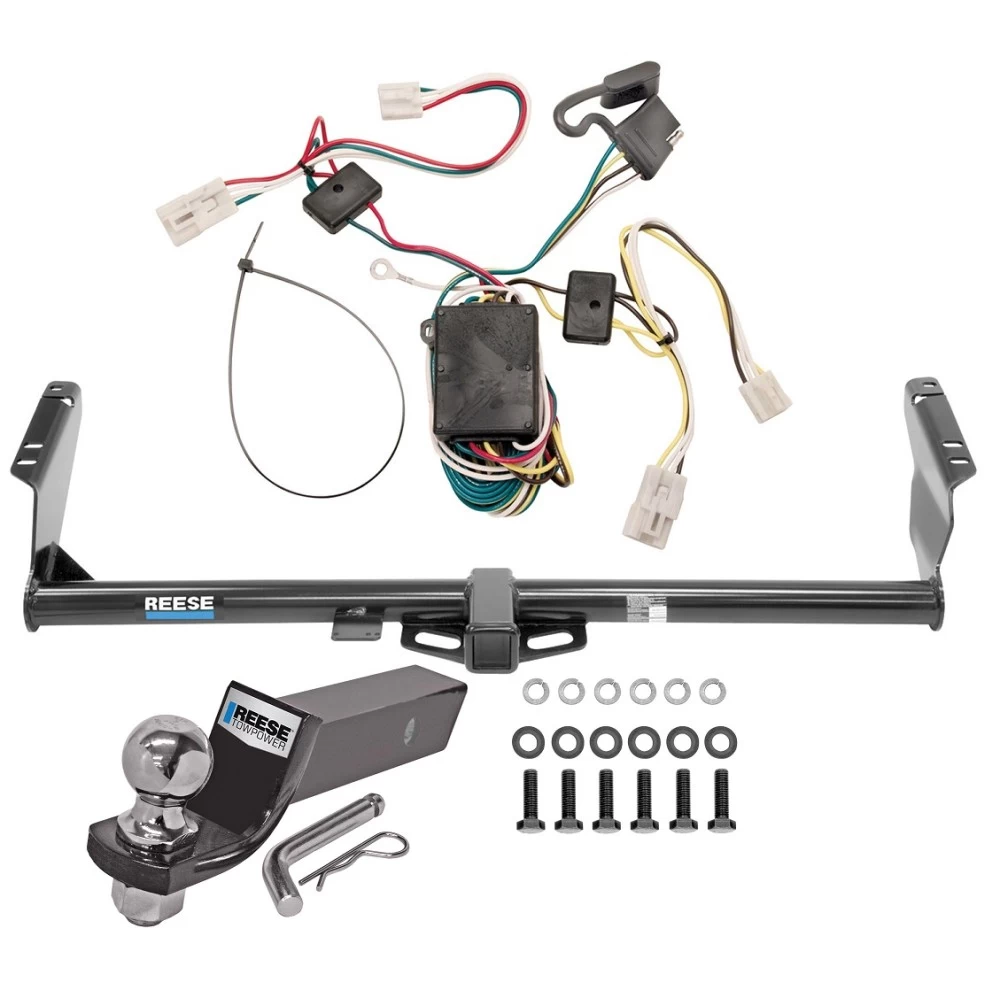

Reese Trailer Tow Hitch For 04‑10 Toyota Sienna Complete Package w/ Wiring and 2" Ball
Model: 44786 118304 21536Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2010 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 44786 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118304 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 04 05 06 07 08 09 10 2004 2005 2006 2007 2008 2009 2010
$284 88 $422.89 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$422.89 $284 88
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44786 118304 21536
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2010 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 44786 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 675/675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118304 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 04 05 06 07 08 09 10 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Reese Trailer Tow Hitch For 04-10 Toyota Sienna Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Toyota Sienna
(2011 and Newer Models)
Part Numbers:
- 75237
- 87698
- 44786
- 78270 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Appearance Panel Removal:
- If the vehicle is equipped with an appearance panel covering the trunk pan, remove it.
- Decide with the vehicle owner whether the panel will be trimmed or left off entirely after installation. (Refer to Figure 2 for the area to be trimmed.)
-
Lower the Exhaust:
- Detach the exhaust from the rubber isolator to lower it.
-
Raise Hitch Into Position:
- Lift the hitch into place and install M12 hex bolts, lock washers, and flat washers into the existing weldnuts in the frame as shown in Figure 1.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
-
Reinstall or Return Appearance Panel:
- If trimmed, reinstall the appearance panel. If untrimmed, return it to the vehicle owner.
Hardware List:
- (6) M12 x 1.25 x 40mm Hex Bolts
- (6) 1/2" Lock Washers
- (6) 1/2" Flat Washers
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Toyota Sienna
(2011 and Newer Models)
Part Numbers:
- 75237
- 87698
- 44786
- 78270 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Appearance Panel Removal:
- If the vehicle is equipped with an appearance panel covering the trunk pan, remove it.
- Decide with the vehicle owner whether the panel will be trimmed or left off entirely after installation. (Refer to Figure 2 for the area to be trimmed.)
-
Lower the Exhaust:
- Detach the exhaust from the rubber isolator to lower it.
-
Raise Hitch Into Position:
- Lift the hitch into place and install M12 hex bolts, lock washers, and flat washers into the existing weldnuts in the frame as shown in Figure 1.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
-
Reinstall or Return Appearance Panel:
- If trimmed, reinstall the appearance panel. If untrimmed, return it to the vehicle owner.
Hardware List:
- (6) M12 x 1.25 x 40mm Hex Bolts
- (6) 1/2" Lock Washers
- (6) 1/2" Flat Washers
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Toyota Sienna
Part Numbers:
- 118304
Vehicle Compatibility:
- Toyota Sienna
Tools Required:
- 10mm Socket & Ratchet or Wrench
- Drill with a 3/32” Drill Bit
- Test Probe
Step-by-Step Instructions:
-
Remove Rear Taillight Housings:
- Remove both of the vehicle’s rear taillight housings by unscrewing the two bolts holding each taillight in place.
-
Remove Rear Threshold:
- Unscrew the three cargo bolts and carefully pry the threshold away from the vehicle.
-
Access Driver’s Side Wiring:
- Carefully pull back the driver’s side trim panel, ensuring not to break any clips or tabs. If equipped with a rear speaker cover, remove screws or clips that may come off during panel removal.
-
Access Passenger’s Side Wiring:
- Open the vehicle’s jack storage compartment to expose the opening to the taillight assemblies.
-
Route Passenger Side Harness:
- From the passenger’s side, route the T-Connector’s harness ends containing the green wire out through the taillight opening.
-
Connect T-Connector:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly. Carefully plug the T-Connector’s harness between the separated halves.
-
Route Driver Side Harness:
- Route the T-Connector harness containing the yellow wire across the vehicle under the threshold cover and out through the driver’s side taillight opening.
- Repeat step 6 using the harness containing the yellow wire.
-
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Clean dirt and rustproofing from the area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Converter Box:
- Mount the T-Connector black converter box in an out-of-the-way location on the passenger side using the provided screw or cable tie. Secure all loose wires with cable ties.
-
Reassembly:
- Tuck the yellow wire under the threshold panel and secure it. Reinstall the plastic trim panels, jack storage panel, and taillights.
-
Test the Installation:
- Test and verify the installation using a test light or trailer to ensure proper functionality.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (4.2 amps)
Hardware List:
- T-Connector adapter
- Eyelet and screw
- Cable ties
Safety Notes:
- Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test thoroughly after installation to ensure all connections are complete.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Store the 4-flat connector in the rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Toyota Sienna
Part Numbers:
- 118304
Vehicle Compatibility:
- Toyota Sienna
Tools Required:
- 10mm Socket & Ratchet or Wrench
- Drill with a 3/32” Drill Bit
- Test Probe
Step-by-Step Instructions:
-
Remove Rear Taillight Housings:
- Remove both of the vehicle’s rear taillight housings by unscrewing the two bolts holding each taillight in place.
-
Remove Rear Threshold:
- Unscrew the three cargo bolts and carefully pry the threshold away from the vehicle.
-
Access Driver’s Side Wiring:
- Carefully pull back the driver’s side trim panel, ensuring not to break any clips or tabs. If equipped with a rear speaker cover, remove screws or clips that may come off during panel removal.
-
Access Passenger’s Side Wiring:
- Open the vehicle’s jack storage compartment to expose the opening to the taillight assemblies.
-
Route Passenger Side Harness:
- From the passenger’s side, route the T-Connector’s harness ends containing the green wire out through the taillight opening.
-
Connect T-Connector:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly. Carefully plug the T-Connector’s harness between the separated halves.
-
Route Driver Side Harness:
- Route the T-Connector harness containing the yellow wire across the vehicle under the threshold cover and out through the driver’s side taillight opening.
- Repeat step 6 using the harness containing the yellow wire.
-
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Clean dirt and rustproofing from the area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid vehicle damage or personal injury. Do not drill into exposed surfaces.
-
Mount the Converter Box:
- Mount the T-Connector black converter box in an out-of-the-way location on the passenger side using the provided screw or cable tie. Secure all loose wires with cable ties.
-
Reassembly:
- Tuck the yellow wire under the threshold panel and secure it. Reinstall the plastic trim panels, jack storage panel, and taillights.
-
Test the Installation:
- Test and verify the installation using a test light or trailer to ensure proper functionality.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: (4.2 amps)
Hardware List:
- T-Connector adapter
- Eyelet and screw
- Cable ties
Safety Notes:
- Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test thoroughly after installation to ensure all connections are complete.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store the 4-flat connector in the rear cargo area when not in use to prevent damage.
