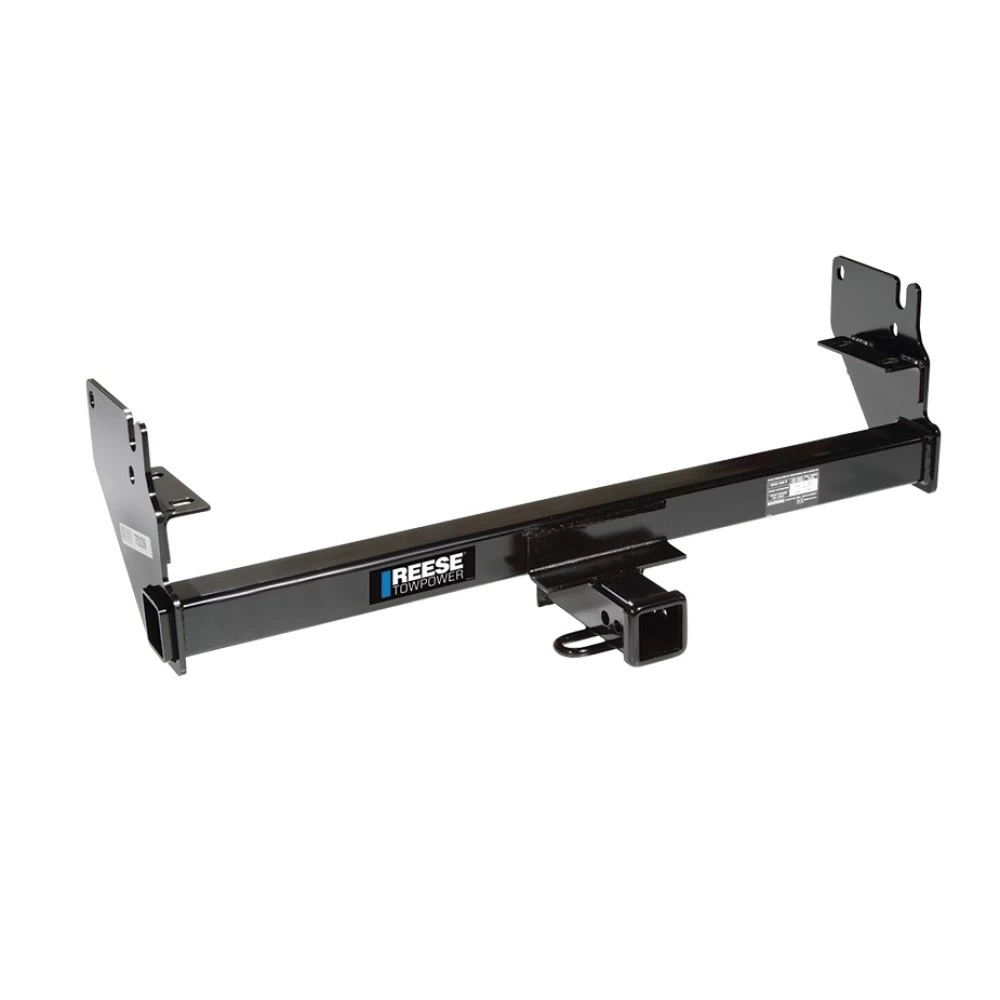

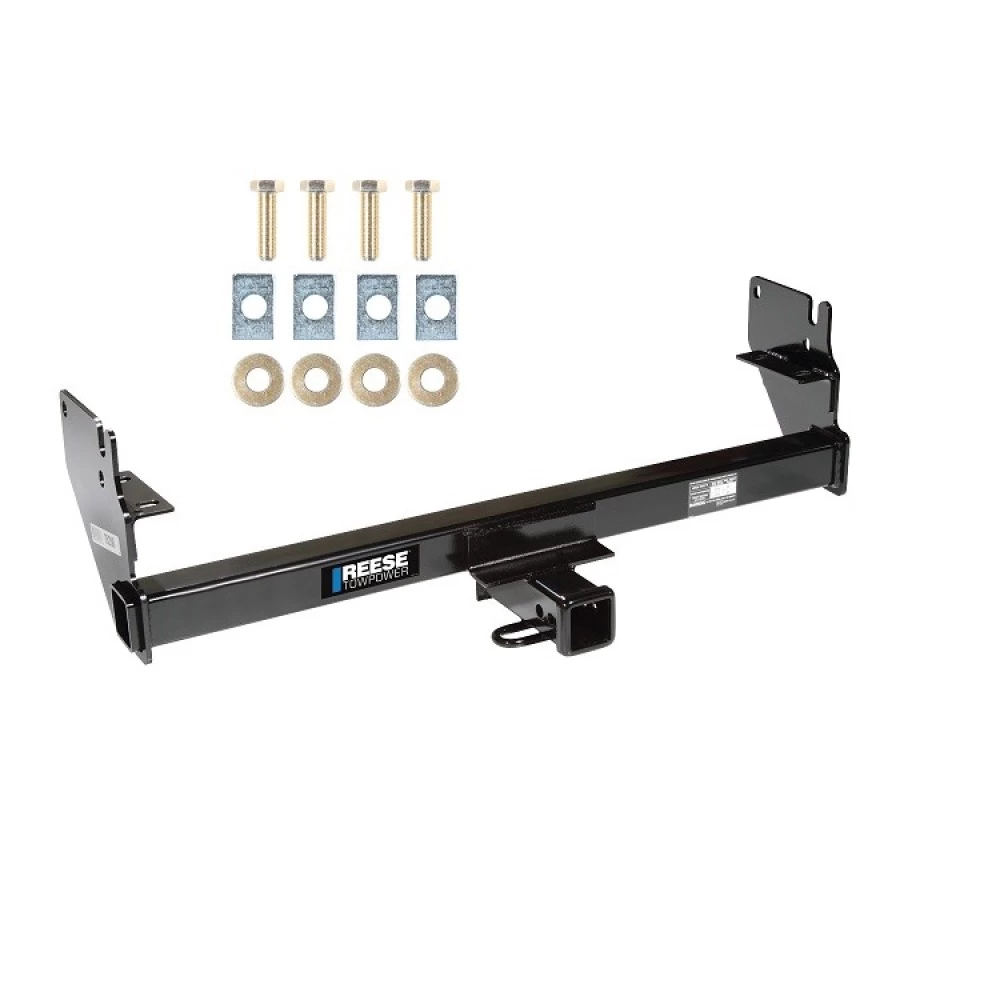

Reese Trailer Tow Hitch For 05‑15 Toyota Tacoma Class 3 2" Towing Receiver
Model: 447462005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
| Part Number | 44746 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
$171 70 $257.80 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$257.80 $171 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $42.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44746
- UPC: 016118129861
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2005 - 2015 Toyota, Tacoma, Except X-Runner
Trailer Hitch Specs:
| Part Number | 44746 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 13 14 15 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Get Expert Help
Reese Trailer Tow Hitch For 05-15 Toyota Tacoma Class 3 2" Towing Receiver Install Notes
Installation Instructions for Toyota Tacoma
(Does Not Fit Toyota X-Runner)
Part Numbers:
- 44746
- 75236
- 87581
Applications:
- Toyota Tacoma (Specific exclusions: Toyota X-Runner)
Tools Required:
- Torque Wrench
- Wrenches: 10mm, 17mm, 19mm
- Drill Bits: None
Wiring Access Location:
- PU3, PU4
Step-by-Step Instructions:
-
Support the Bumper:
- Use a support to keep the bumper structure from swinging out of position during installation.
-
Remove and Loosen Fasteners:
- Referring to Figure 2, remove (2) M12 hex washer bolts from the bumper bracket as shown and loosen the other (3) bolts. Repeat this process on both sides of the vehicle.
-
Raise Hitch Into Position:
- Raise the hitch so the side brackets are sandwiched between the bumper brackets and frame rails. Install (4) M12 x 1.25 x 40 bolts with washers and finger tighten (see Figure 3).
-
Reinstall Hex Washer Bolts:
- Loosely reinstall the (4) hex washer bolts removed in Step 2.
-
Insert Spacers:
- Remove (2) hex washer bolts from one side of the bumper bracket and bumper structure as shown in Figure 4.
- Insert (2) spacers between the bumper bracket and the side of the bumper structure. Reinsert the bolts through the bracket, spacers, and holes in the bumper structure. Finger tighten.
-
Repeat for Opposite Side:
- Repeat Steps 5 and 6 for the other side of the bumper.
-
Tighten Fasteners:
- Tighten all M12 fasteners to 105 lb-ft (142 N·m) using a torque wrench.

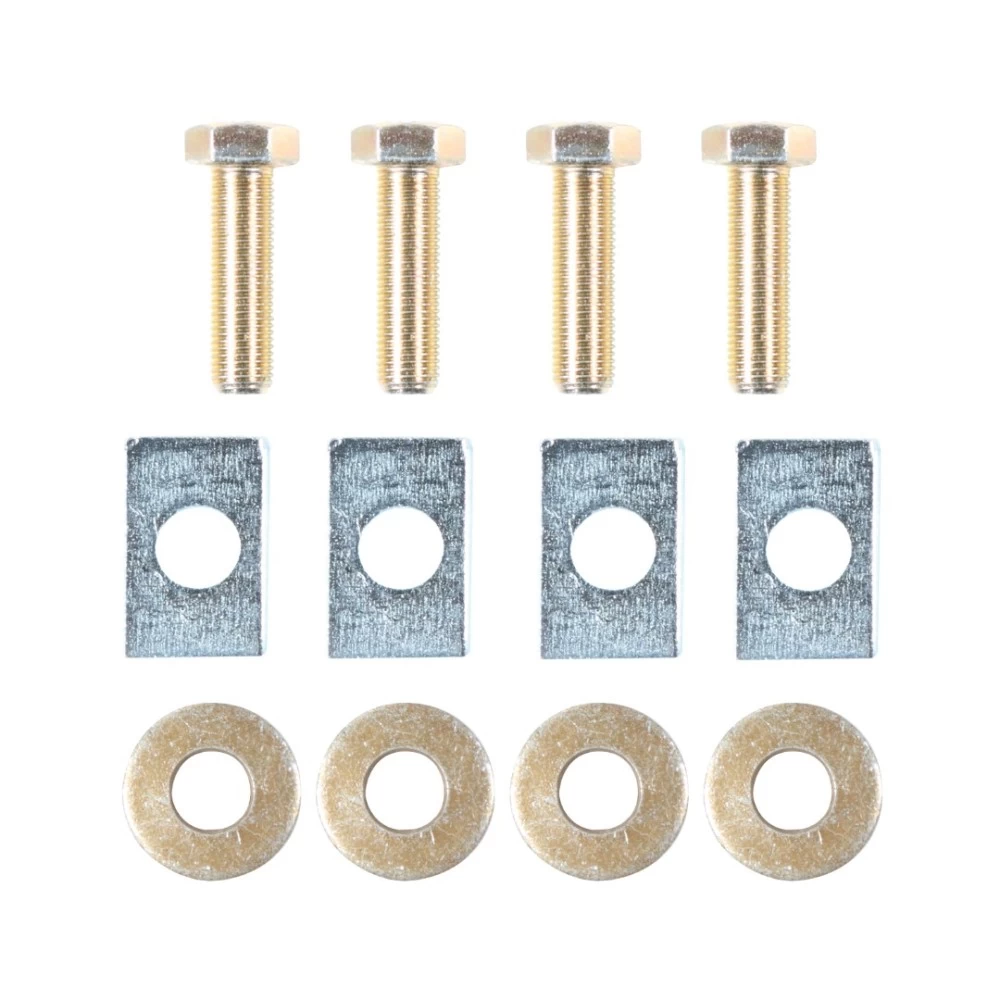

Hardware List:
- (4) M12 x 1.25 x 40mm Hex Bolts
- (4) 1/2" Conical Washers
- (4) Spacers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 5,500 lbs (2,497 kg), Max Tongue Weight 550 lbs (250 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Toyota Tacoma
(Does Not Fit Toyota X-Runner)
Part Numbers:
- 44746
- 75236
- 87581
Applications:
- Toyota Tacoma (Specific exclusions: Toyota X-Runner)
Tools Required:
- Torque Wrench
- Wrenches: 10mm, 17mm, 19mm
- Drill Bits: None
Wiring Access Location:
- PU3, PU4
Step-by-Step Instructions:
-
Support the Bumper:
- Use a support to keep the bumper structure from swinging out of position during installation.
-
Remove and Loosen Fasteners:
- Referring to Figure 2, remove (2) M12 hex washer bolts from the bumper bracket as shown and loosen the other (3) bolts. Repeat this process on both sides of the vehicle.
-
Raise Hitch Into Position:
- Raise the hitch so the side brackets are sandwiched between the bumper brackets and frame rails. Install (4) M12 x 1.25 x 40 bolts with washers and finger tighten (see Figure 3).
-
Reinstall Hex Washer Bolts:
- Loosely reinstall the (4) hex washer bolts removed in Step 2.
-
Insert Spacers:
- Remove (2) hex washer bolts from one side of the bumper bracket and bumper structure as shown in Figure 4.
- Insert (2) spacers between the bumper bracket and the side of the bumper structure. Reinsert the bolts through the bracket, spacers, and holes in the bumper structure. Finger tighten.
-
Repeat for Opposite Side:
- Repeat Steps 5 and 6 for the other side of the bumper.
-
Tighten Fasteners:
- Tighten all M12 fasteners to 105 lb-ft (142 N·m) using a torque wrench.
Hardware List:
- (4) M12 x 1.25 x 40mm Hex Bolts
- (4) 1/2" Conical Washers
- (4) Spacers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Distributing: Max Trailer Weight 5,500 lbs (2,497 kg), Max Tongue Weight 550 lbs (250 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
