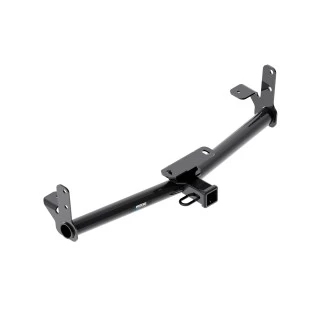

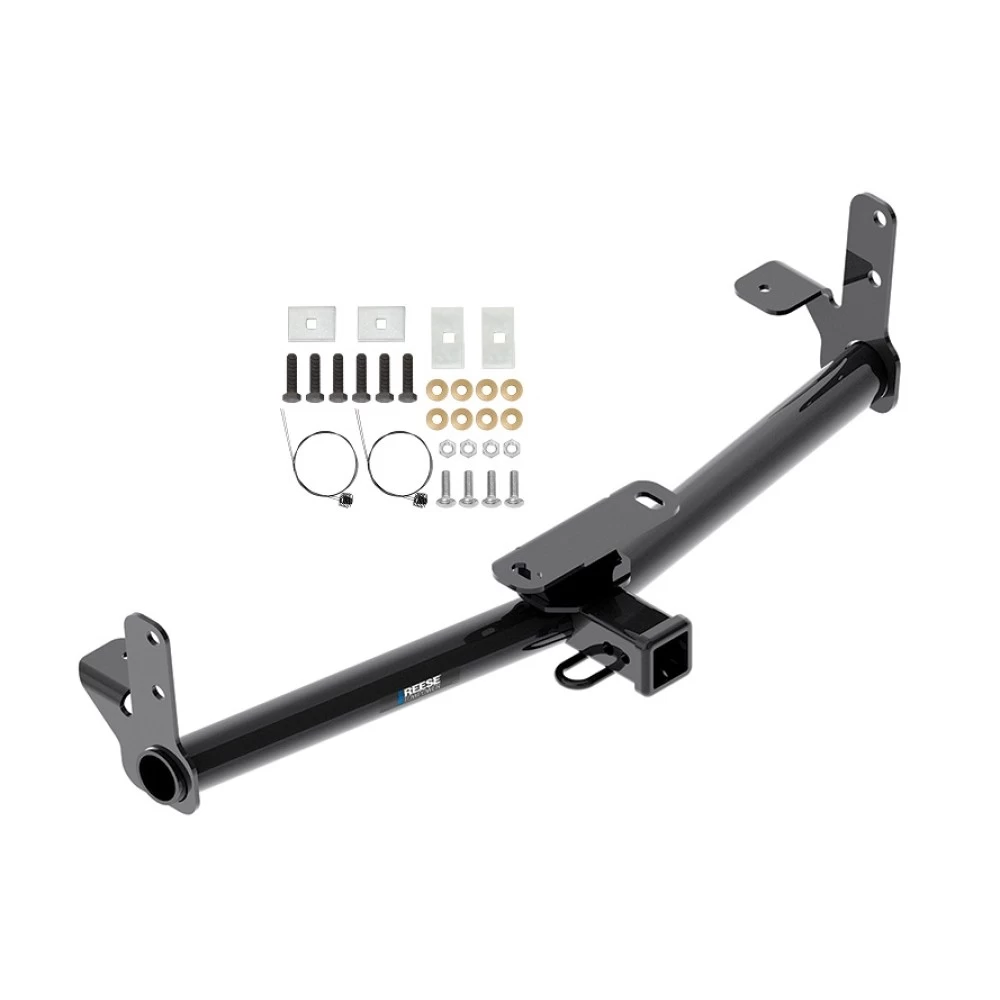

Reese Trailer Tow Hitch For 05‑17 Chevy Equinox 10‑17 GMC Terrain Class 3 2" Receiver
Model: 840282002 - 2007 Saturn, Vue, Except Redline
2005 - 2017 Chevrolet, Equinox, All Styles
2006 - 2009 Pontiac, Torrent, All Styles
2010 - 2017 GMC, Terrain, All Styles
Trailer Hitch Specs:
| Part Number | 84028 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4500 lbs |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
$165 08 $257.80 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$257.80 $165 08
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $41.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84028
- UPC: 016118144482
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2002 - 2007 Saturn, Vue, Except Redline
2005 - 2017 Chevrolet, Equinox, All Styles
2006 - 2009 Pontiac, Torrent, All Styles
2010 - 2017 GMC, Terrain, All Styles
Trailer Hitch Specs:
| Part Number | 84028 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | 4500 lbs |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
Get Expert Help
Reese Trailer Tow Hitch For 05-17 Chevy Equinox 10-17 GMC Terrain Class 3 2" Receiver Install Notes
Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028
Part Numbers:
- 76028
- 84028
- CQT76028
Applications:
- Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
- Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue
For the most up-to-date application years and trim levels, refer to the manufacturer's website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18 mm, 19 mm, 3/4"
- 6" Socket Extension
- Utility Knife
- Tape Measure
Step-by-Step Instructions:
1. Remove the Fascia Door:
- If present, remove the fascia door.
2. Install Carriage Bolts and Blocks:
- Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.
3. Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).
4. Install Hardware:
- Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
- Hand-tighten all bolts.
5. Secure to Bumper:
- For vehicles without weld nuts:
Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut. - For vehicles with weld nuts:
Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).
6. Tighten Fasteners:
- Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
7. Replace or Modify Fascia Door:
- Replace the fascia door for 2005-2015 Equinox models.
- For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
- Return fascia doors to the owner for other models.

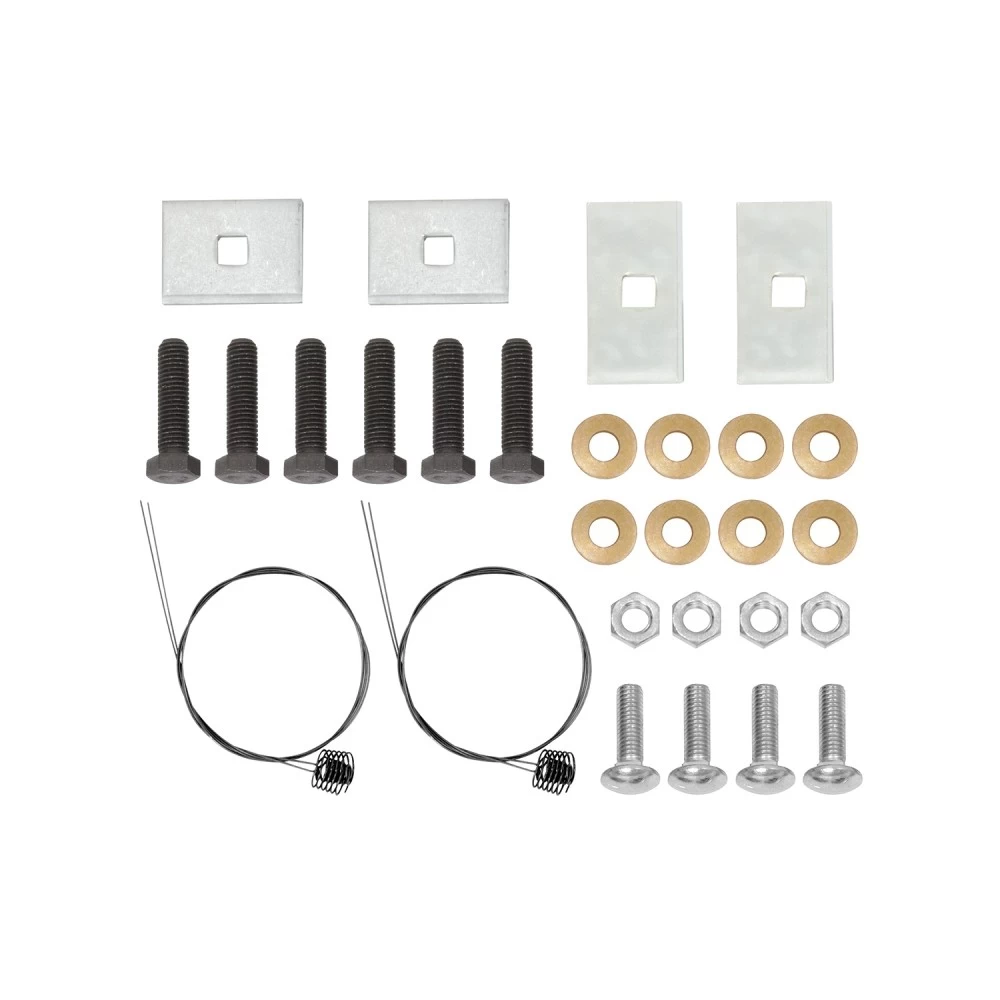

Hardware List:
- 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
- 2 × Spacer Block (.250 × 1.50 × 3.00)
- 8 × Conical Washer (1/2")
- 4 × Hex Nut (1/2-13 GR2)
- 6 × Bolt (M12 × 1.75 × 45 CL10.9)
- 2 × Small Spacer Block (.250 × 1.50 × 2.0)
- 4 × Pull Wire (1/2-13)
Safety Notes:
- Always wear safety glasses during installation.
- Ensure proper torque for all fasteners to keep the hitch secure while towing.
- Do not cut access or attachment holes with a torch.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
- Periodically check all fasteners for tightness.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
- Installation Time: Approximately 30 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.
