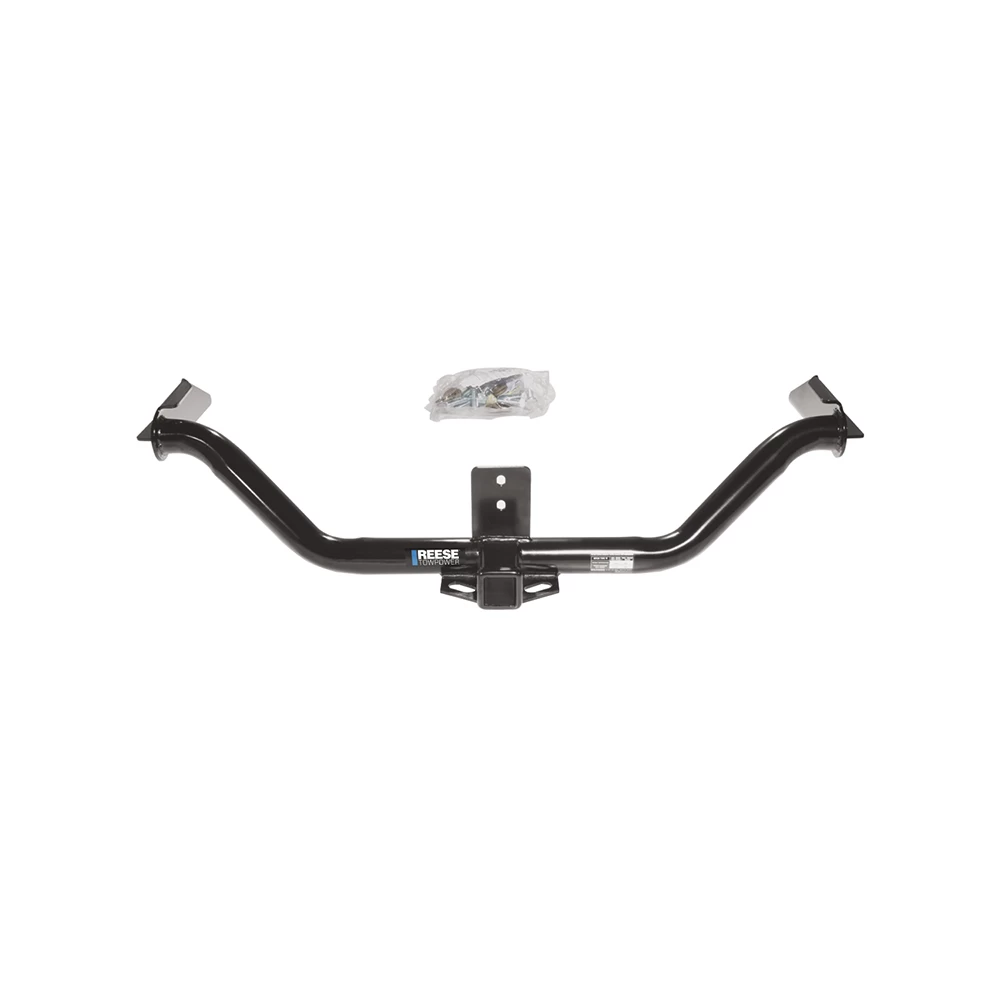

Reese Trailer Tow Hitch For 06‑14 Honda Ridgeline All Styles 2" Receiver
Model: 445282006 - 2014 Honda, Ridgeline, All Styles
Trailer Hitch Specs:
| Part Number | 44528 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2010 2011 2012 2013 2014
$271 60 $407.85 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$407.85 $271 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44528
- UPC: 016118053586
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2006 - 2014 Honda, Ridgeline, All Styles
Trailer Hitch Specs:
| Part Number | 44528 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 750/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Reese Trailer Tow Hitch For 06-14 Honda Ridgeline All Styles 2" Receiver Install Notes
Installation Instructions for Honda Ridgeline
Part Numbers:
- 75280
- 44528
- 70754
Applications:
- Honda Ridgeline
Tools Required:
- Wrenches: 10mm, 17mm, 19mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Lower the Exhaust and Remove Heat Shield:
- Detach the exhaust from the rubber isolators to lower it.
- Remove the muffler heat shield.
-
Raise Hitch into Position:
- Lift the hitch into place as shown in the diagram.
-
Install Fasteners:
- Insert and secure the six (6) M12 fasteners into the frame rails.
- Insert and secure the two (2) M10 fasteners into the bumper structure.
-
Reinstall Heat Shield and Exhaust:
- Reattach the muffler heat shield and raise the exhaust back into position.

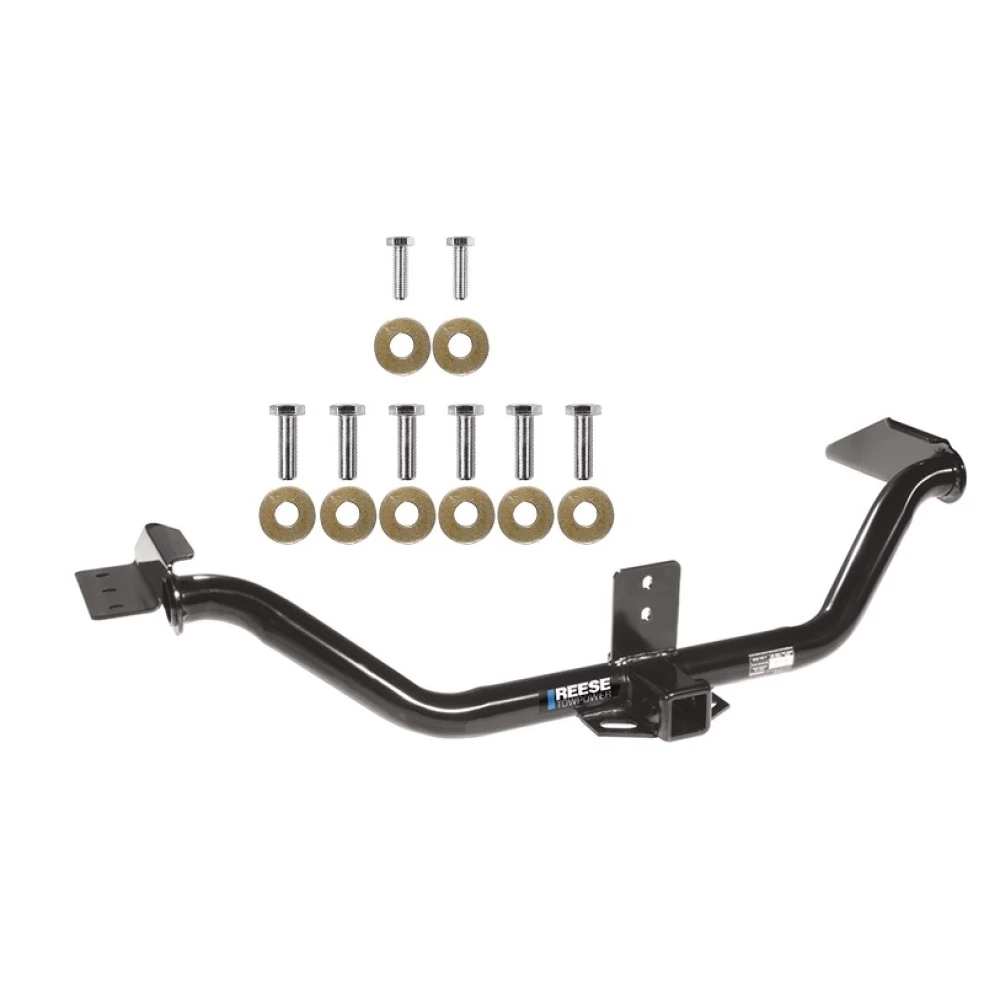

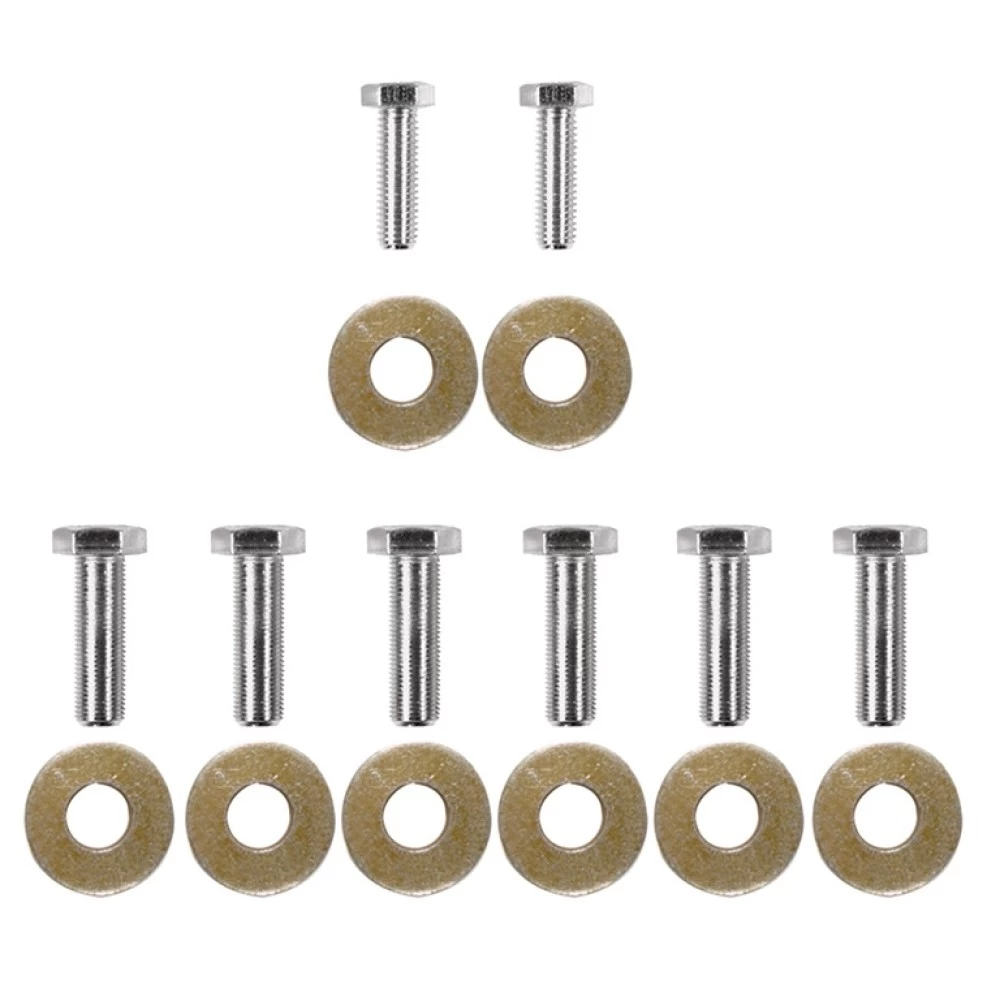

Hardware List:
- (6) M12 x 1.25 x 35mm CL8.8 Hex Bolts
- (2) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (6) 1/2" Conical Toothed Washers
- (2) 7/16" Conical Toothed Washers
Torque Specifications:
- Tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
- Tighten all M12 CL8.8 fasteners to 76 lb-ft (103 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Honda Ridgeline
Part Numbers:
- 75280
- 44528
- 70754
Applications:
- Honda Ridgeline
Tools Required:
- Wrenches: 10mm, 17mm, 19mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Lower the Exhaust and Remove Heat Shield:
- Detach the exhaust from the rubber isolators to lower it.
- Remove the muffler heat shield.
-
Raise Hitch into Position:
- Lift the hitch into place as shown in the diagram.
-
Install Fasteners:
- Insert and secure the six (6) M12 fasteners into the frame rails.
- Insert and secure the two (2) M10 fasteners into the bumper structure.
-
Reinstall Heat Shield and Exhaust:
- Reattach the muffler heat shield and raise the exhaust back into position.
Hardware List:
- (6) M12 x 1.25 x 35mm CL8.8 Hex Bolts
- (2) M10 x 1.25 x 30mm CL8.8 Hex Bolts
- (6) 1/2" Conical Toothed Washers
- (2) 7/16" Conical Toothed Washers
Torque Specifications:
- Tighten all M10 CL8.8 fasteners to 42 lb-ft (57 N·m).
- Tighten all M12 CL8.8 fasteners to 76 lb-ft (103 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
