Reese Trailer Tow Hitch For 08‑14 Land Rover LR2 All Styles 2" Towing Receiver
Model: 446402008 - 2014 Land Rover, LR2, All Styles
Trailer Hitch Specs:
| Part Number | 44640 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 13 14 2008 2009 2010 2011 2012 2013 2014
$183 37 $286.36 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $183 37
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44640
- UPC: 016118076431
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2008 - 2014 Land Rover, LR2, All Styles
Trailer Hitch Specs:
| Part Number | 44640 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 08 09 10 11 12 13 14 2008 2009 2010 2011 2012 2013 2014
Get Expert Help
Reese Trailer Tow Hitch For 08-14 Land Rover LR2 All Styles 2" Towing Receiver Install Notes
Installation Instructions for Land Rover LR2
Part Numbers:
- 75688
- 87575
- 44640
- 78180 (U-Haul)
Tools Required:
- Wrenches: 5/8”, 11/16”, 22mm
- 6” Ratchet Extension
- Ratchet Swivel
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Prepare Weldnuts:
- Thread M14 bolts into both weldnuts to clean out dirt and rust. Remove the bolts once the threads are clean.
-
Position the Hitch:
- Raise the hitch over the tailpipe on the driver’s side.
- Loosely install the rearward M14 bolt to support the hitch.
-
Install Passenger Side Bracket:
- Place the passenger’s side bracket against the existing tie-down bracket on the vehicle.
- Secure with 7/16” hardware as shown in the instructions.
-
Install Forward M14 Bolts:
- Push the tailpipe forward and rotate the forward M14 bolts to insert them into the weldnuts on the driver’s side frame rail.
-
Torque Fasteners:
- Tighten all M14 CL8.8 fasteners to 100 lb-ft (136 N·m).
- Tighten all 7/16”-14 GR5 fasteners to 50 lb-ft (68 N·m).

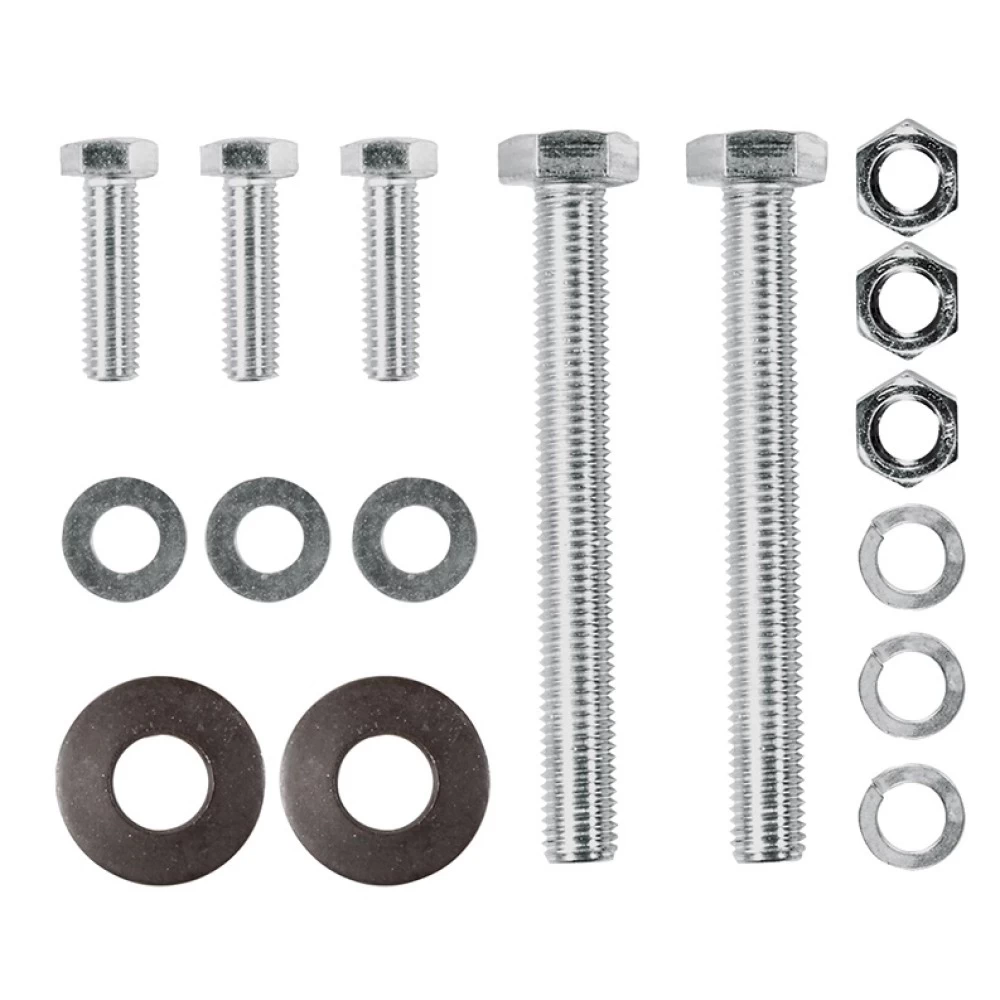

Hardware List:
- (2) Hex Bolts M14 x 2.00 x 120mm CL8.8
- (3) Hex Bolts 7/16”-14 x 1.50 GR5
- (3) Hex Nuts 7/16”-14
- (3) Flat Washers 7/16”
- (3) Lock Washers 7/16”
- (2) Conical Washers 5/8”
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Exercise caution when working near the exhaust system.
Installation Instructions
Part Numbers:
- 75688
- 87575
- 44640
- 78180 (U-Haul)
Tools Required:
- Wrenches: 5/8”, 11/16”, 22mm
- 6” Ratchet Extension
- Ratchet Swivel
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Prepare Weldnuts:
- Thread M14 bolts into both weldnuts to clean out dirt and rust. Remove the bolts once the threads are clean.
-
Position the Hitch:
- Raise the hitch over the tailpipe on the driver’s side.
- Loosely install the rearward M14 bolt to support the hitch.
-
Install Passenger Side Bracket:
- Place the passenger’s side bracket against the existing tie-down bracket on the vehicle.
- Secure with 7/16” hardware as shown in the instructions.
-
Install Forward M14 Bolts:
- Push the tailpipe forward and rotate the forward M14 bolts to insert them into the weldnuts on the driver’s side frame rail.
-
Torque Fasteners:
- Tighten all M14 CL8.8 fasteners to 100 lb-ft (136 N·m).
- Tighten all 7/16”-14 GR5 fasteners to 50 lb-ft (68 N·m).
Hardware List:
- (2) Hex Bolts M14 x 2.00 x 120mm CL8.8
- (3) Hex Bolts 7/16”-14 x 1.50 GR5
- (3) Hex Nuts 7/16”-14
- (3) Flat Washers 7/16”
- (3) Lock Washers 7/16”
- (2) Conical Washers 5/8”
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Exercise caution when working near the exhaust system.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
