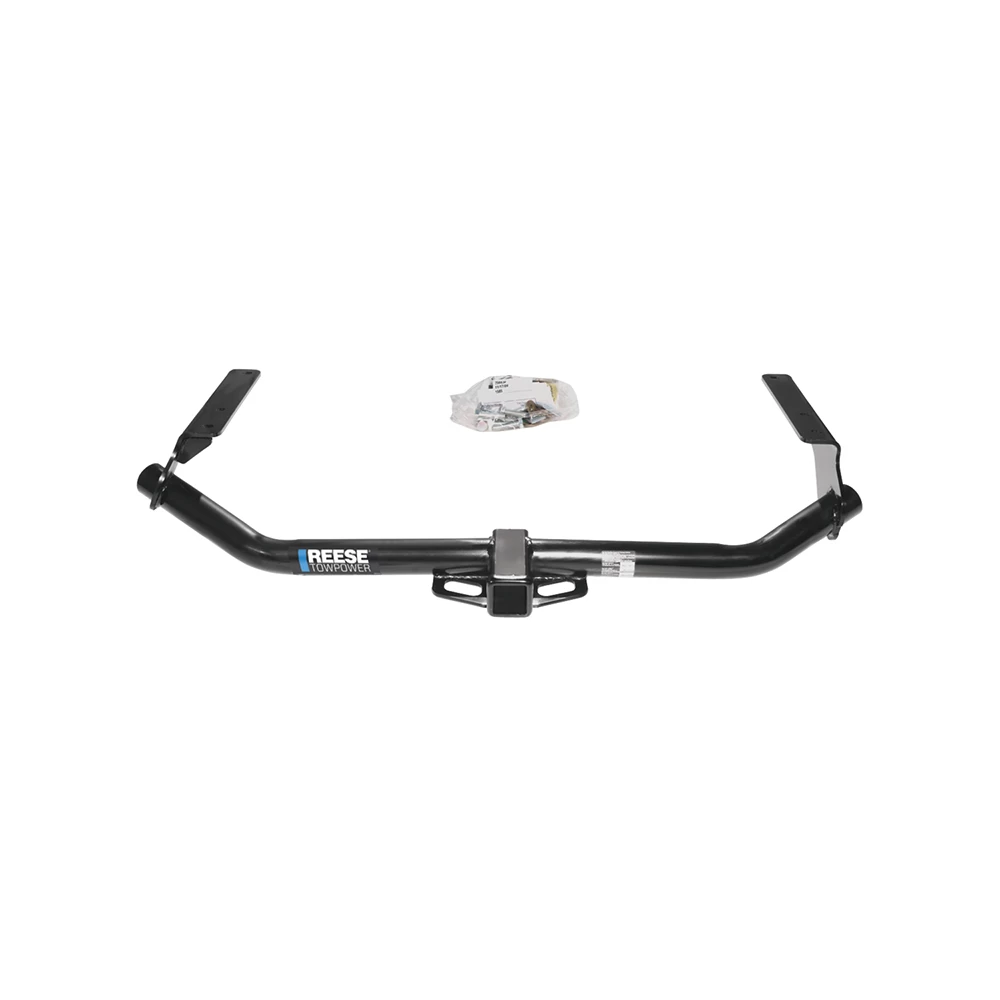

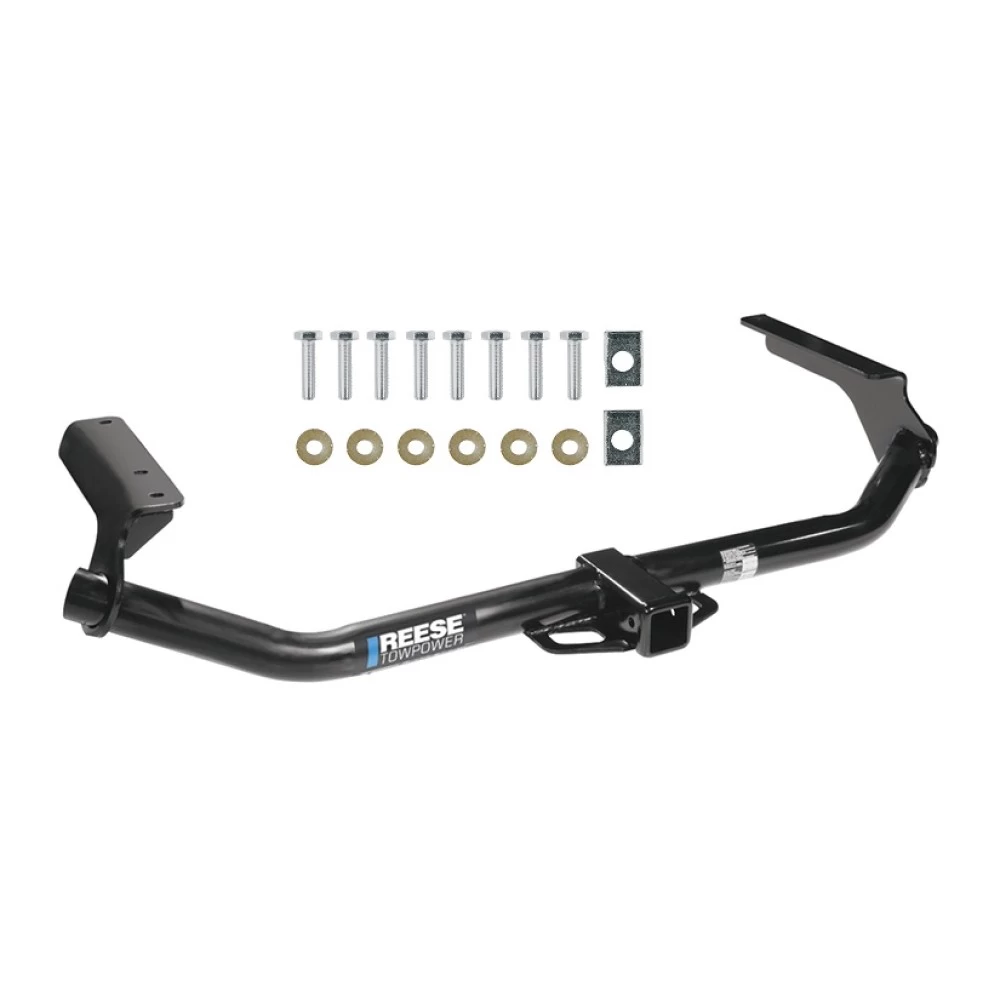

Reese Trailer Tow Hitch For 09‑16 Toyota Venza 2" Towing Receiver
Model: 446042009 - 2016 Toyota, Venza, All Styles
Trailer Hitch Specs:
| Part Number | 44604 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350 / 400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 15 16 2009 2010 2011 2012 2013 2014 2015 2016
$245 58 $383.51 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$383.51 $245 58
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44604
- UPC: 016118071061
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
2009 - 2016 Toyota, Venza, All Styles
Trailer Hitch Specs:
| Part Number | 44604 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350 / 400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 13 14 15 16 2009 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Reese Trailer Tow Hitch For 09-16 Toyota Venza 2" Towing Receiver Install Notes
Installation Instructions for Toyota Venza
Part Numbers:
- 75663
- 87521
- 44604
- 78235 (U-Haul)
Tools Required:
- Wrenches: 17mm
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Sway Bar Brackets (AWD Models Only):
- Remove the sway bar brackets on both sides and save the existing nuts.
-
Lower the Exhaust:
- Remove the four (4) rubber isolators supporting the muffler and tailpipe to lower the exhaust.
-
Position the Hitch:
- Raise the hitch into position and align with the vehicle frame weldnuts.
- For AWD models, reinstall the sway bar brackets with the supplied spacer blocks between the lower vehicle attachment and the sway bar brackets, using the existing nuts for the lower attachment.
-
Install Fasteners:
- Install three (3) M10-1.25 x 40mm bolts and 3/8” conical toothed washers per side into the vehicle frame weldnuts.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 42 lb-ft (57 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.

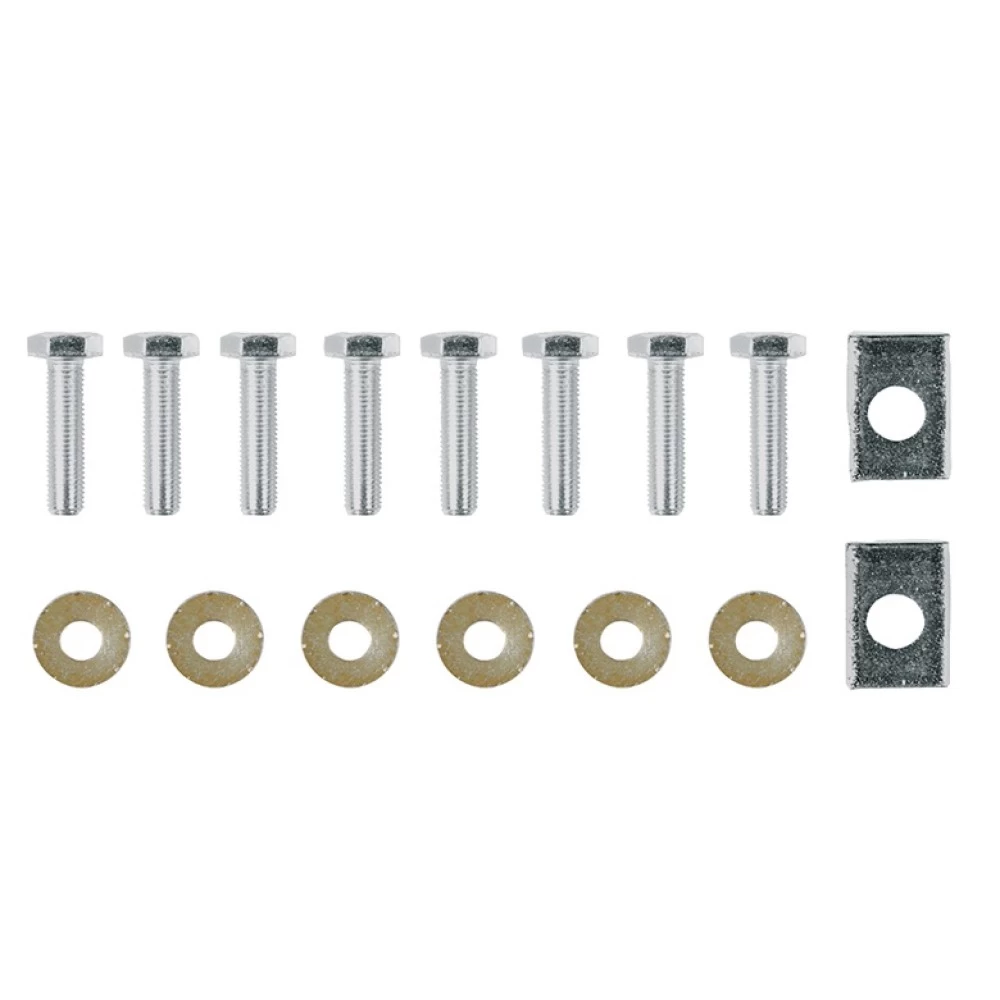

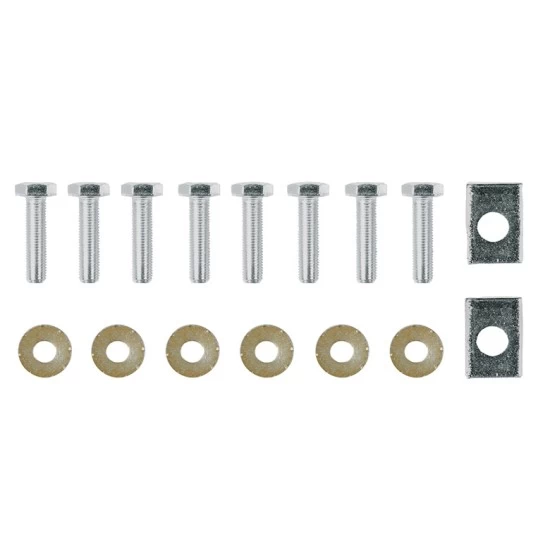

Hardware List:
- (6) M10-1.25 x 40mm CL10.9 Hex Bolts
- (6) 3/8” Conical Toothed Washers
- (2) Spacer Blocks (5/16” x 1” x 1-1/2”, for AWD vehicles only)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Proper installation of sway bar brackets is crucial for AWD models to ensure proper vehicle operation.
Installation Instructions for Toyota Venza
Part Numbers:
- 75663
- 87521
- 44604
- 78235 (U-Haul)
Tools Required:
- Wrenches: 17mm
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Sway Bar Brackets (AWD Models Only):
- Remove the sway bar brackets on both sides and save the existing nuts.
-
Lower the Exhaust:
- Remove the four (4) rubber isolators supporting the muffler and tailpipe to lower the exhaust.
-
Position the Hitch:
- Raise the hitch into position and align with the vehicle frame weldnuts.
- For AWD models, reinstall the sway bar brackets with the supplied spacer blocks between the lower vehicle attachment and the sway bar brackets, using the existing nuts for the lower attachment.
-
Install Fasteners:
- Install three (3) M10-1.25 x 40mm bolts and 3/8” conical toothed washers per side into the vehicle frame weldnuts.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M10 fasteners to 42 lb-ft (57 N·m).
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators.
Hardware List:
- (6) M10-1.25 x 40mm CL10.9 Hex Bolts
- (6) 3/8” Conical Toothed Washers
- (2) Spacer Blocks (5/16” x 1” x 1-1/2”, for AWD vehicles only)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Additional Notes:
- Proper installation of sway bar brackets is crucial for AWD models to ensure proper vehicle operation.
