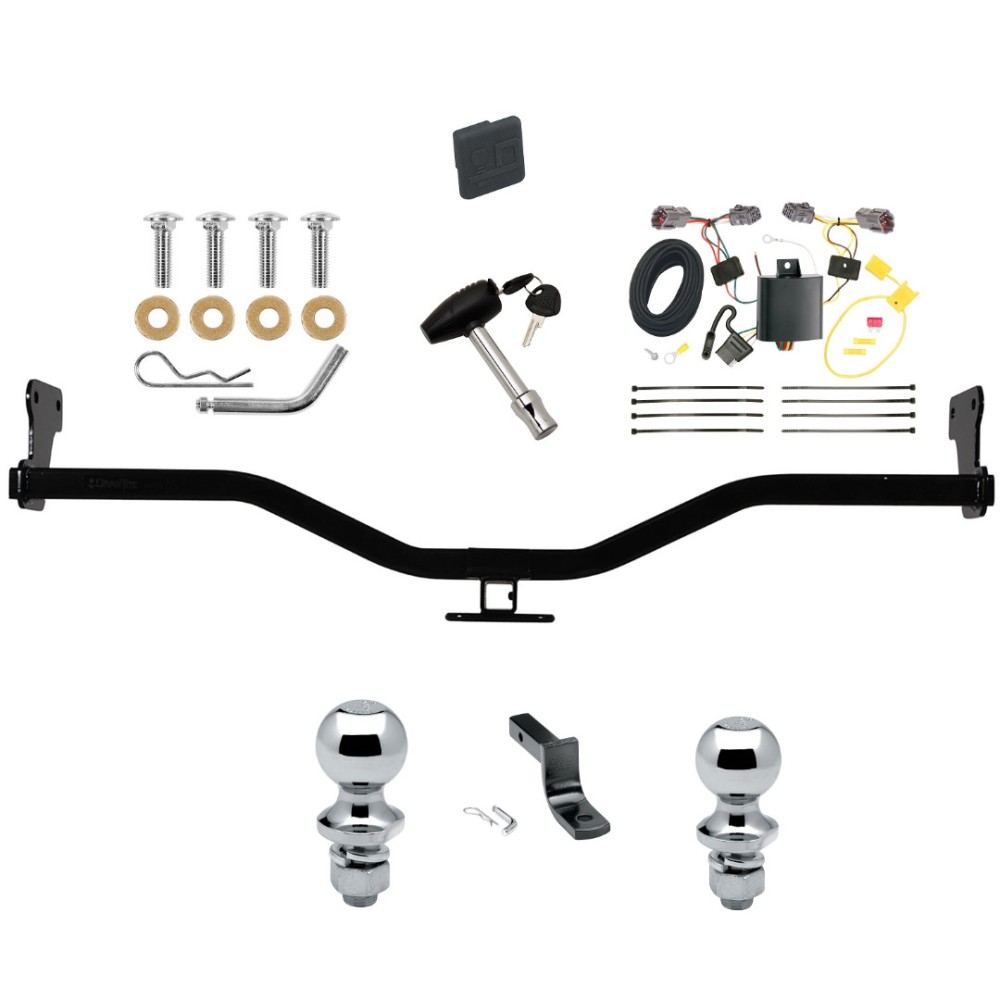

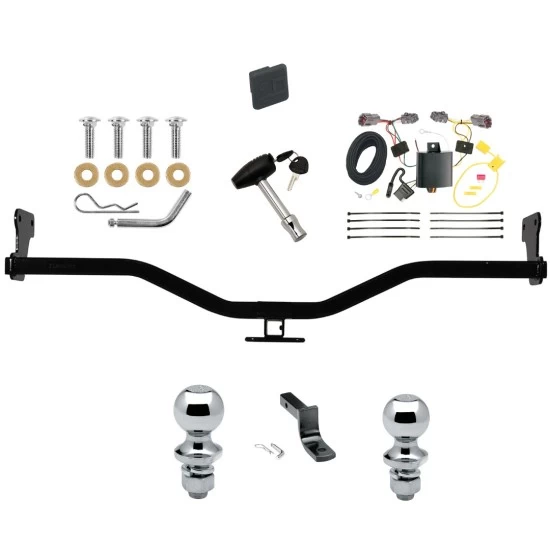

Reese Trailer Tow Hitch For 10-13 KIA Soul w/LED Taillights Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
Model: 77230 118637 3593 63810 63820 580407 2211Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2013 KIA, Soul, w/LED Taillights
Trailer Hitch Specs:
| Part Number | 77230 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118637 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Part Number | 3594011 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Towing Capacity | 2000 lb Gross Towing Weight 200 lb Tongue Weight |
| Drop | 2.75" From inside top of hitch opening |
| Rise | 4" from top of inside of hitch opening |
| Warranty | Lifetime |
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2" x 3/4" x 1-1/2" |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |

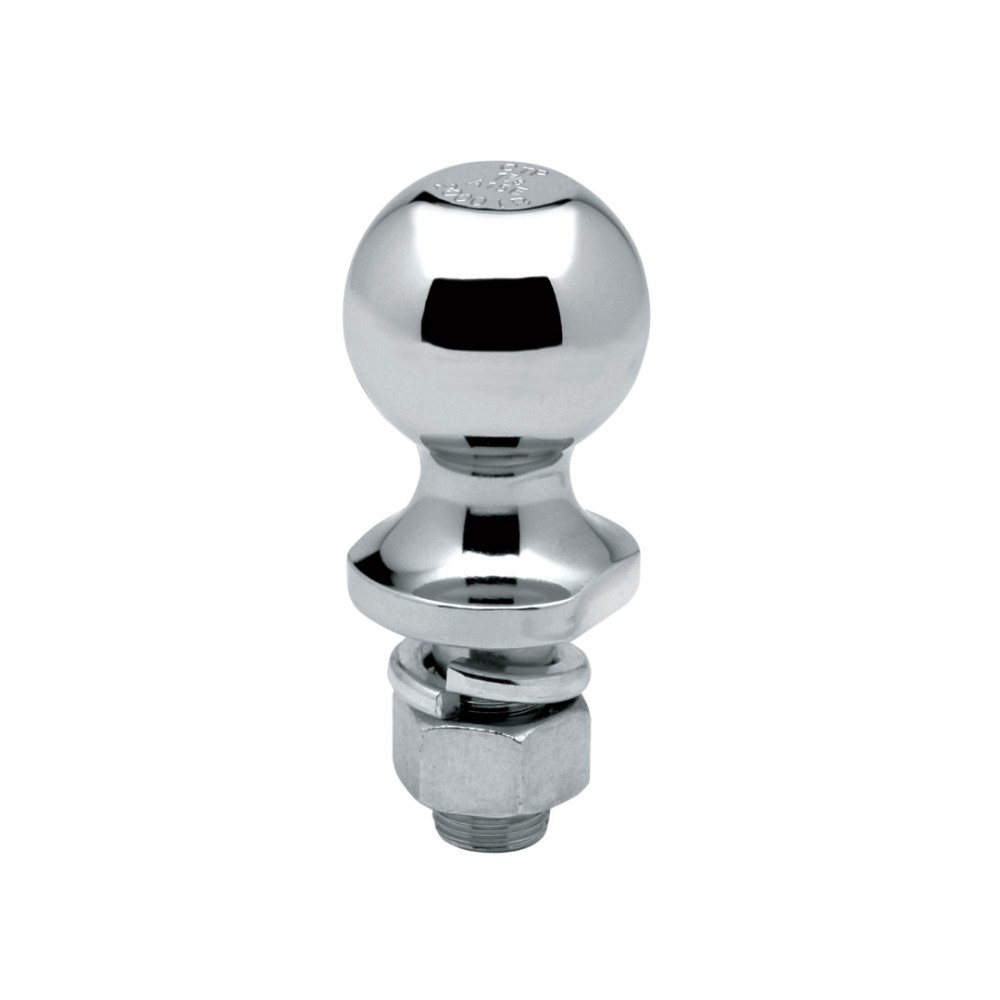

| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 3/4" x 1-1/2" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4" |
| Warranty | Lifetime |

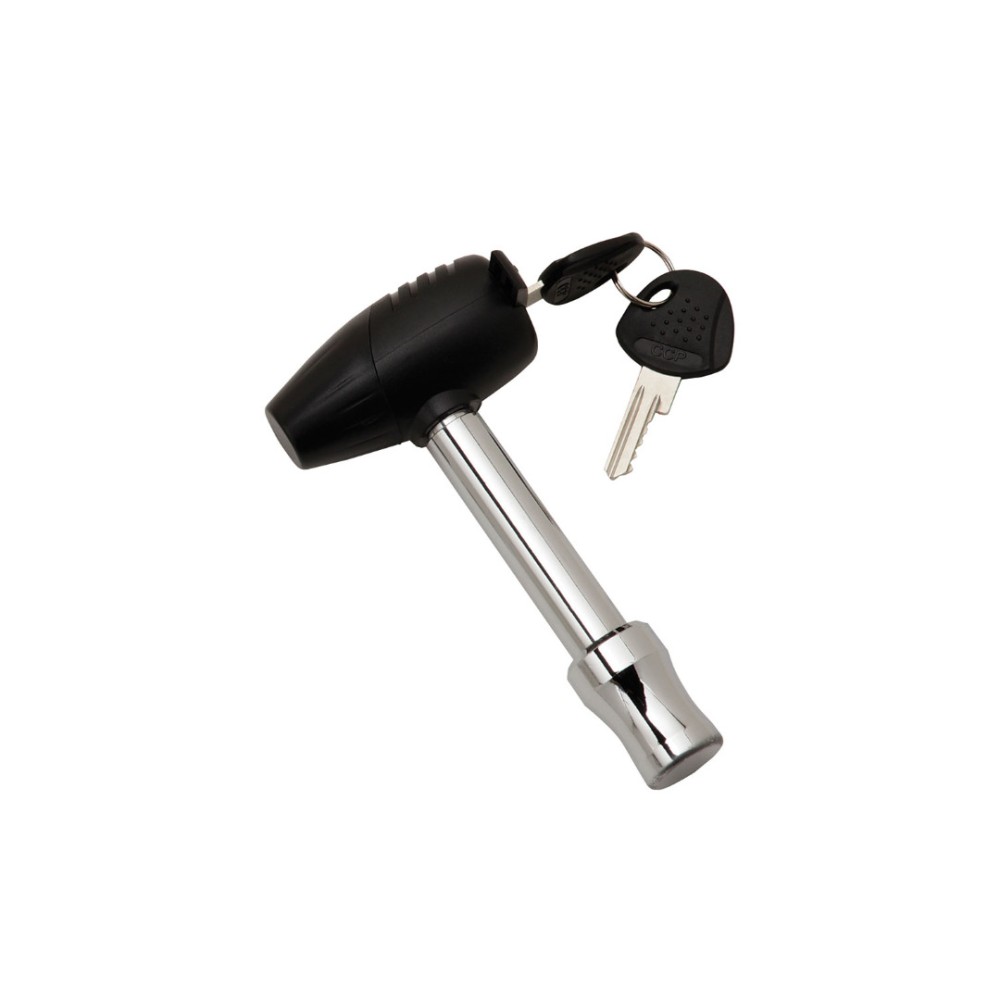

Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |

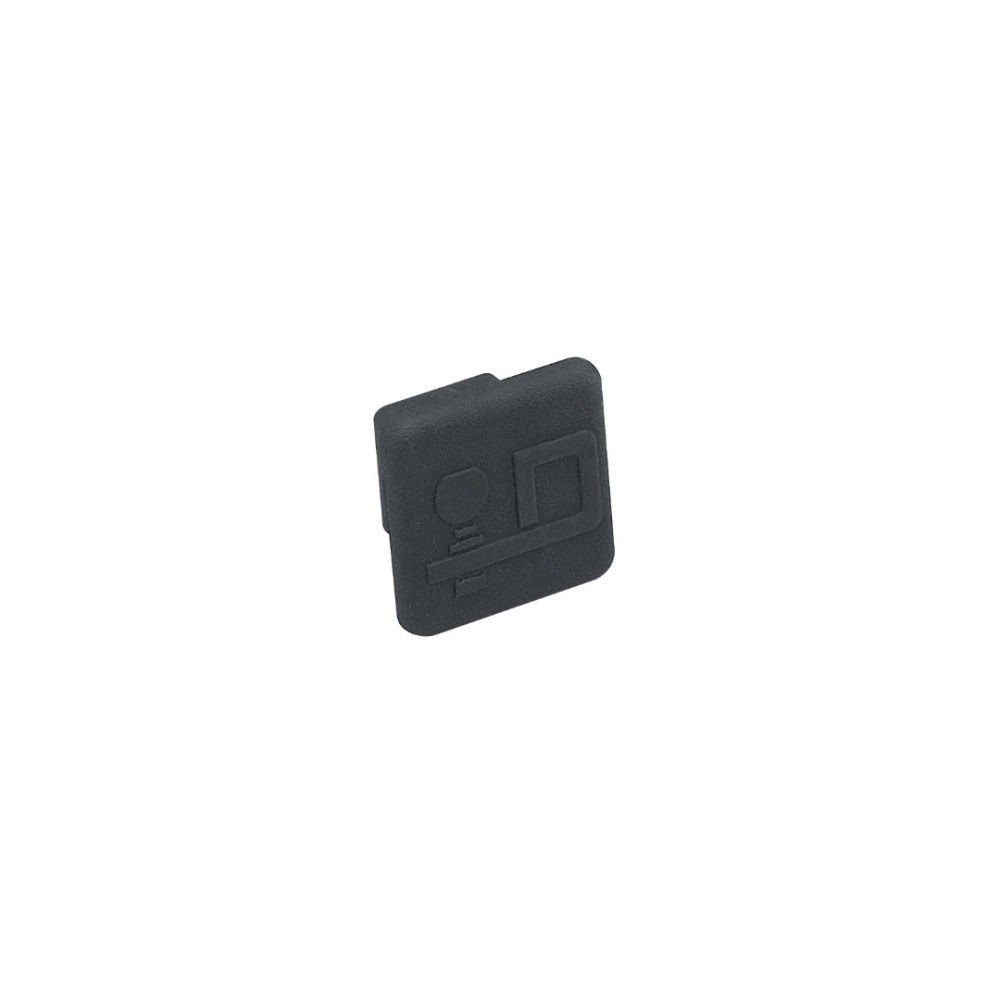

Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation.
Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.
Partial list of fitment years: 10 11 12 13 2010 2011 2012 2013
