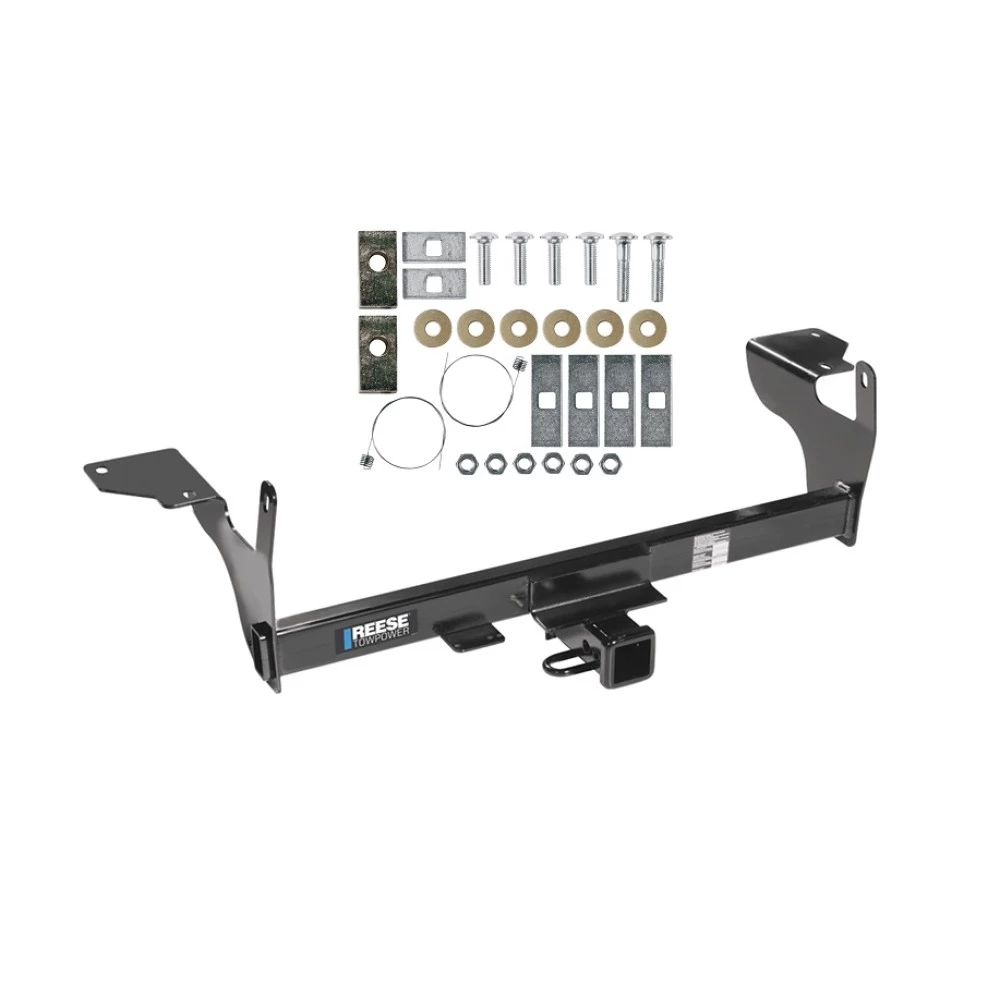

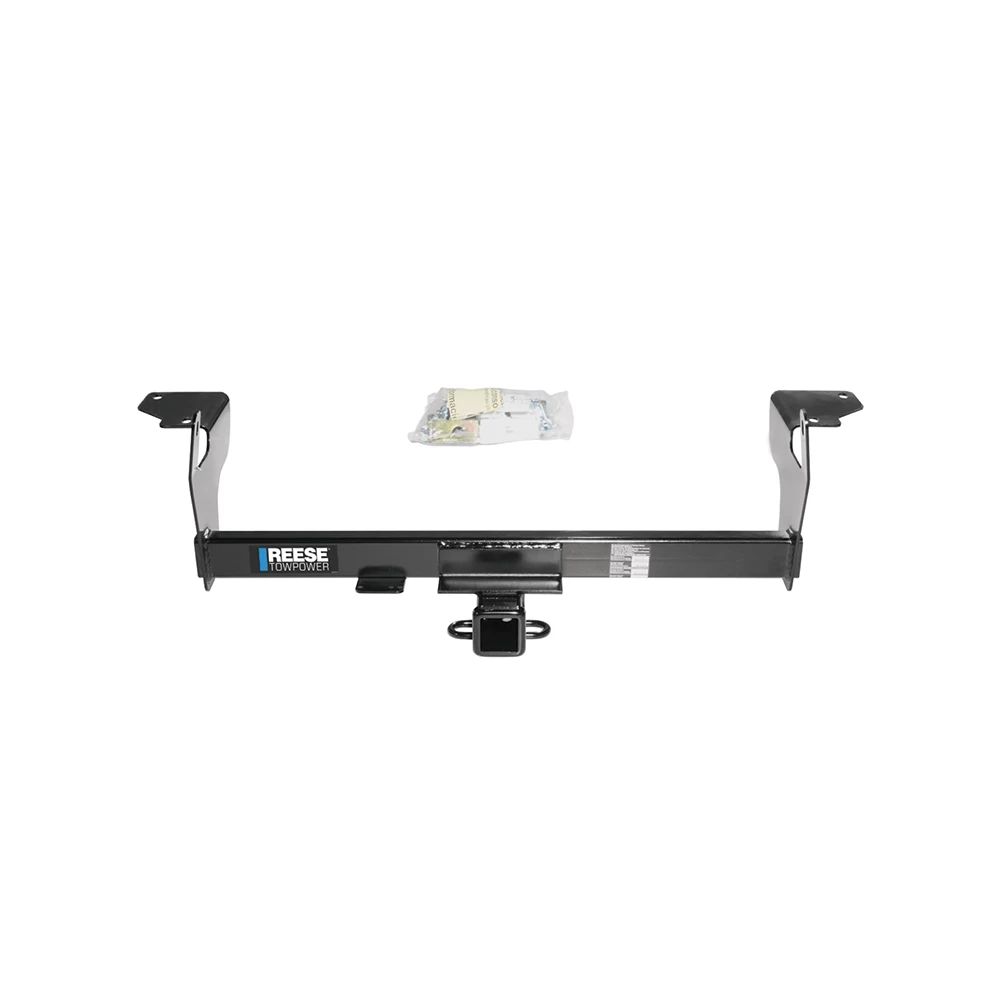

Reese Trailer Tow Hitch For 10‑17 Volvo XC60 All Styles 2" Towing Receiver Class 3
Model: 446292010 - 2017 Volvo, XC60, All Styles
Trailer Hitch Specs:
| Part Number | 44629 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 400 / 450 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 2010 2011 2012 2013 2014 2015 2016 2017
$214 26 $334.61 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$334.61 $214 26
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44629
- UPC: 016118028997
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2010 - 2017 Volvo, XC60, All Styles
Trailer Hitch Specs:
| Part Number | 44629 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,500 lbs |
| Max Tongue Weight | 400 / 450 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 10 11 12 13 14 15 16 17 2010 2011 2012 2013 2014 2015 2016 2017
Get Expert Help
Reese Trailer Tow Hitch For 10-17 Volvo XC60 All Styles 2" Towing Receiver Class 3 Install Notes
Installation Instructions for Volvo XC60
Part Numbers:
- 87566
- 75671
- 44629
Tools Required:
- Wrenches: 13mm, 11/16”
- Drill Bits: None
- Tin Snips
- Fishwire (provided)
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Raise the Vehicle:
- Lift the vehicle for easier access to the frame and exhaust.
-
Lower the Exhaust:
- Remove the rubber isolator from the muffler support to lower the exhaust.
- Temporarily remove the exhaust hanger for easier trimming of the heat shield and hitch installation.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield on both sides as shown in the instructions.
- Exercise caution as the edges may be sharp.
-
Remove Foam Tape:
- Remove the foam tape covering the holes at the bottom and inside the vehicle frame.
- Save the tape to cover unused holes after installation.
-
Fishwire Carriage Bolts:
- Use the provided fishwire to install carriage bolts and spacer blocks through the access holes in the frame and position them at the attachment points on both sides.
-
Position the Hitch:
- Gently lift the rear fascia and slide the hitch over the exhaust into position.
- Raise the hitch to the frame without pushing fasteners back into the frame.
- Loosely install conical washers and nuts.
-
Install Forward Attachment:
- Slide the provided spacer block between the hitch and frame at the forward attachment point.
- Use the fishwire to install carriage bolts and blocks through the forward attachment holes.
- Secure with conical washers and nuts.
-
Install First Attachment:
- Insert the fishwire through the first attachment hole in the hitch and into the frame.
- Guide it back to exit the end of the bumper.
- Install bolts and blocks through the first attachment hole and secure with conical washers and nuts.
-
Tighten Fasteners:
- Pull the hitch rearward as much as possible and tighten all fasteners.
- Torque all 7/16” fasteners to 50 lb-ft (68 N·m).
-
Reinstall the Exhaust:
- Reattach the muffler hanger and rubber isolators removed earlier.
- Cut the foam tape and use it to cover unused holes in the frame.

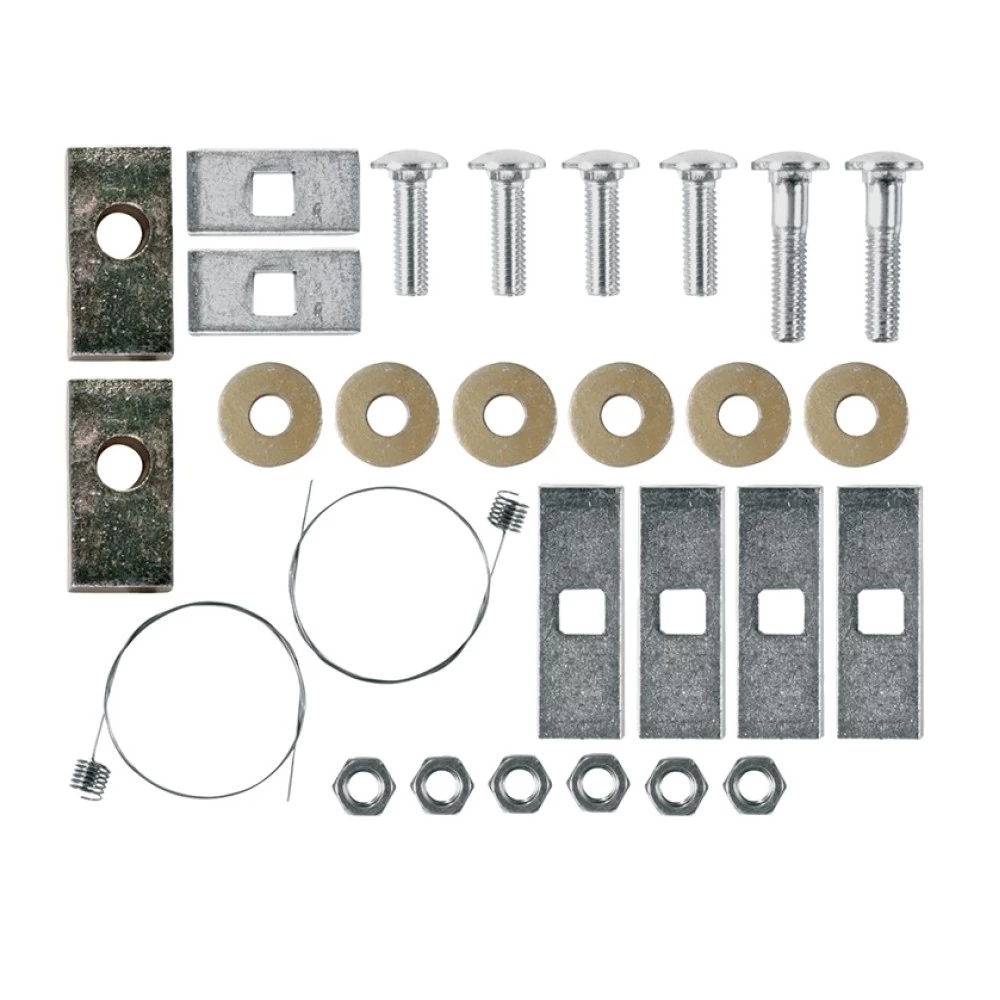

Hardware List:
- (4) 7/16"-14 x 1-1/2” Grade 5 Carriage Bolts
- (2) 7/16"-14 x 2” Grade 5 Carriage Bolts
- (6) 7/16" Conical Washers
- (6) 7/16"-14 Hex Nuts
- (4) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2” x 1-1/4” x 2-1/2” Spacer Blocks
- (2) 3/16” x 1” x 2” Spacer Blocks
- (2) 7/16” Fishwires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 450 lbs (204 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Only use an 8.5” long x 3/4” rise x 2” drop ball mount as specified.
Installation Instructions
Part Numbers:
- 87566
- 75671
- 44629
Tools Required:
- Wrenches: 13mm, 11/16”
- Drill Bits: None
- Tin Snips
- Fishwire (provided)
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Raise the Vehicle:
- Lift the vehicle for easier access to the frame and exhaust.
-
Lower the Exhaust:
- Remove the rubber isolator from the muffler support to lower the exhaust.
- Temporarily remove the exhaust hanger for easier trimming of the heat shield and hitch installation.
-
Trim Heat Shield:
- Use tin snips to trim the heat shield on both sides as shown in the instructions.
- Exercise caution as the edges may be sharp.
-
Remove Foam Tape:
- Remove the foam tape covering the holes at the bottom and inside the vehicle frame.
- Save the tape to cover unused holes after installation.
-
Fishwire Carriage Bolts:
- Use the provided fishwire to install carriage bolts and spacer blocks through the access holes in the frame and position them at the attachment points on both sides.
-
Position the Hitch:
- Gently lift the rear fascia and slide the hitch over the exhaust into position.
- Raise the hitch to the frame without pushing fasteners back into the frame.
- Loosely install conical washers and nuts.
-
Install Forward Attachment:
- Slide the provided spacer block between the hitch and frame at the forward attachment point.
- Use the fishwire to install carriage bolts and blocks through the forward attachment holes.
- Secure with conical washers and nuts.
-
Install First Attachment:
- Insert the fishwire through the first attachment hole in the hitch and into the frame.
- Guide it back to exit the end of the bumper.
- Install bolts and blocks through the first attachment hole and secure with conical washers and nuts.
-
Tighten Fasteners:
- Pull the hitch rearward as much as possible and tighten all fasteners.
- Torque all 7/16” fasteners to 50 lb-ft (68 N·m).
-
Reinstall the Exhaust:
- Reattach the muffler hanger and rubber isolators removed earlier.
- Cut the foam tape and use it to cover unused holes in the frame.
Hardware List:
- (4) 7/16"-14 x 1-1/2” Grade 5 Carriage Bolts
- (2) 7/16"-14 x 2” Grade 5 Carriage Bolts
- (6) 7/16" Conical Washers
- (6) 7/16"-14 Hex Nuts
- (4) 1/4” x 1” x 3” Spacer Blocks
- (2) 1/2” x 1-1/4” x 2-1/2” Spacer Blocks
- (2) 3/16” x 1” x 2” Spacer Blocks
- (2) 7/16” Fishwires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 450 lbs (204 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Only use an 8.5” long x 3/4” rise x 2” drop ball mount as specified.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
