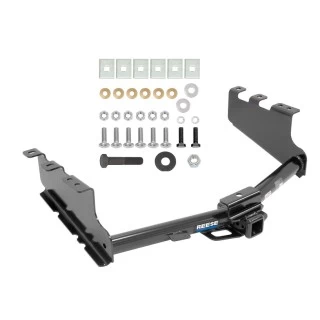

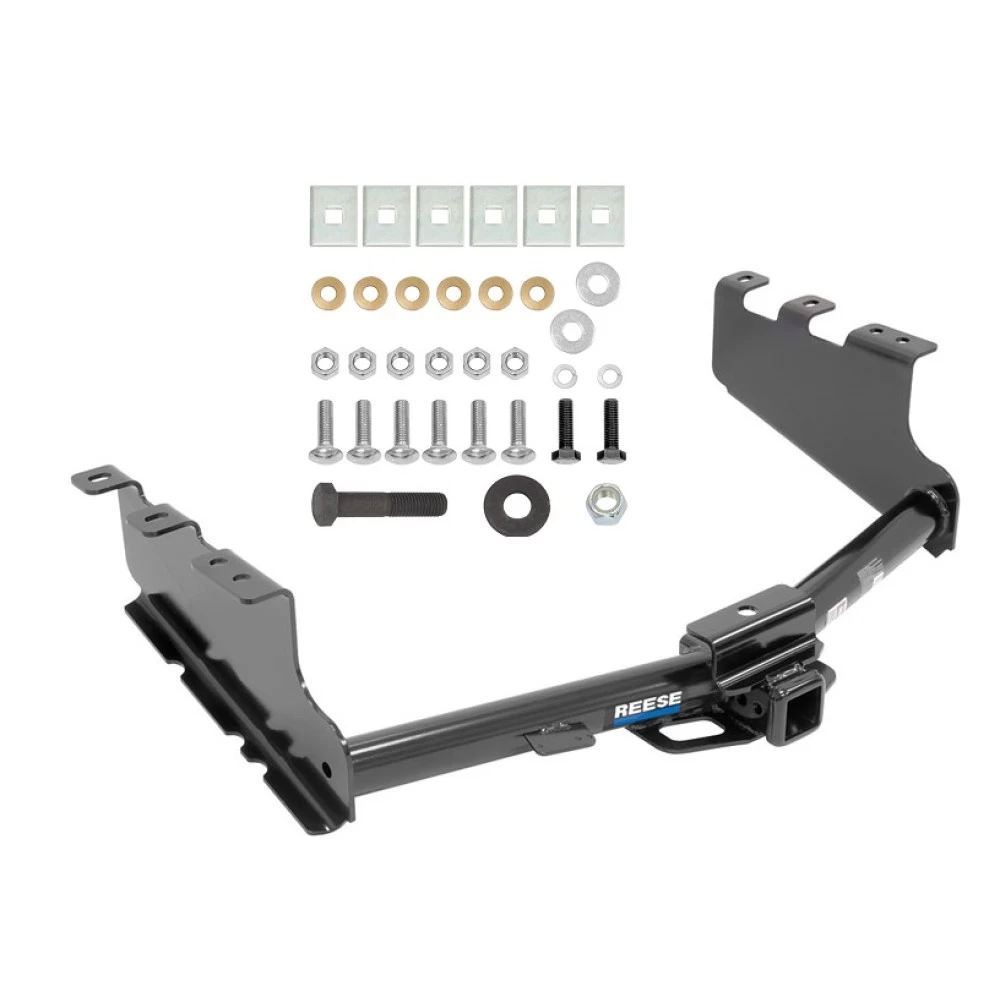

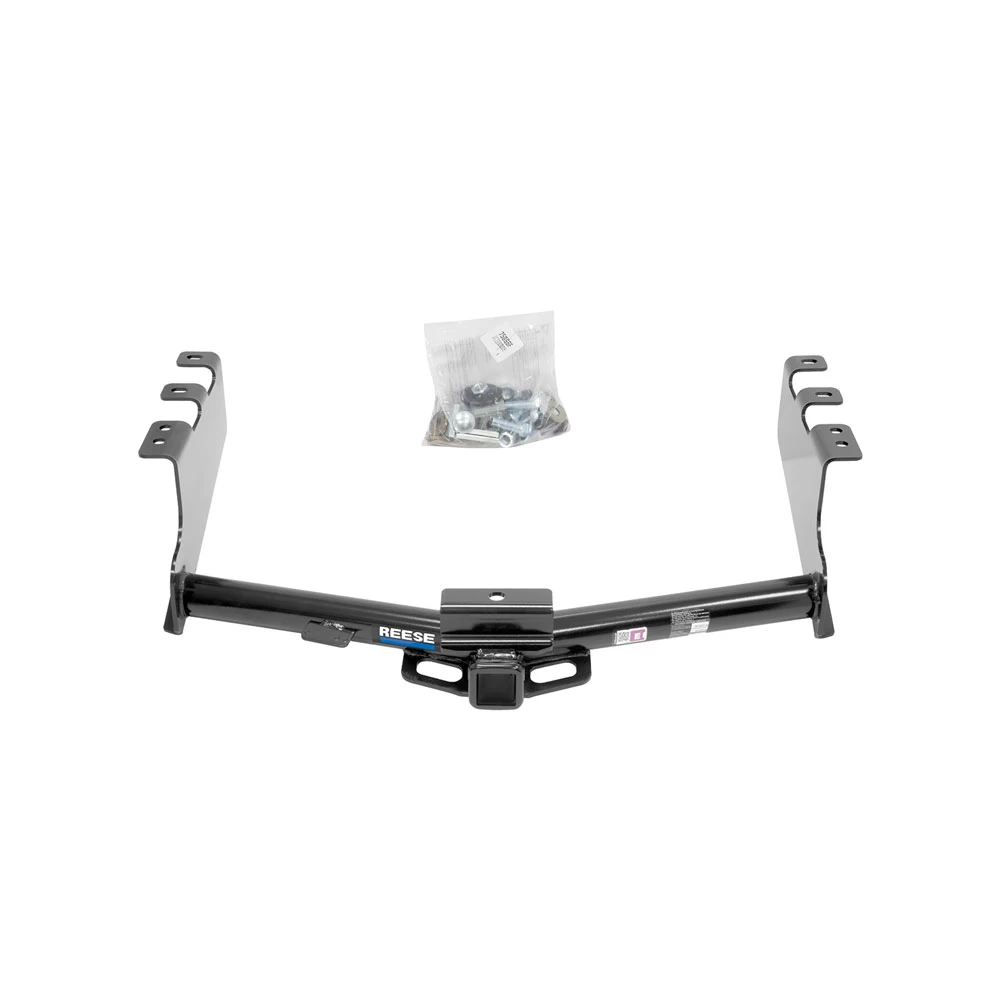

Reese Trailer Tow Hitch For 14‑19 Chevy Silerado GMC Sierra 1500 Class 3 2" Receiver
Model: 447032014 - 2018 Chevrolet, Silverado 1500, All Styles
2014 - 2018 GMC, Sierra 1500, All Styles
2019 Chevrolet, Silverado Legacy, 6-1/2 Foot Bed
2019 GMC, Sierra Limited, 6-1/2 Foot Bed
Trailer Hitch Specs:
| Part Number | 44703 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 900/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
$231 77 $361.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$361.95 $231 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44703
- UPC: 016118125603
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
2014 - 2018 Chevrolet, Silverado 1500, All Styles
2014 - 2018 GMC, Sierra 1500, All Styles
2019 Chevrolet, Silverado Legacy, 6-1/2 Foot Bed
2019 GMC, Sierra Limited, 6-1/2 Foot Bed
Trailer Hitch Specs:
| Part Number | 44703 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 900/1,200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
Get Expert Help
Reese Trailer Tow Hitch For 14-19 Chevy Silerado GMC Sierra 1500 Class 3 2" Receiver Install Notes
Installation Instructions for Chevrolet Silverado Pickup 1500 and GMC Sierra Pickup 1500 (Requires OEM Bumper)
Part Numbers:
- 75866
- 87652
- 44703
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 22mm, 21mm, 1-1/8” open-end wrench
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Step Bumper Cap:
- Remove or trim out the cap in the step bumper.
-
Remove Existing Bolts:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position Hitch:
- Lift the hitch into position, aligning the rear-most holes in the hitch with the existing weldnuts in the vehicle frame.
-
Install M14 Fasteners:
- Install the M14 bolts and conical washers into the weldnuts in the vehicle frame at the step bumper attachment points.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the installation diagram.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- M14 CL10.9 fasteners: 100 lb-ft (136 N*m)
- 3/4"-10 GR5 fasteners: 260 lb-ft (353 N*m)
- Tighten all fasteners to the specified torque values:
-
Re-tighten Spare Tire:
- Re-tighten the spare tire to its original position.

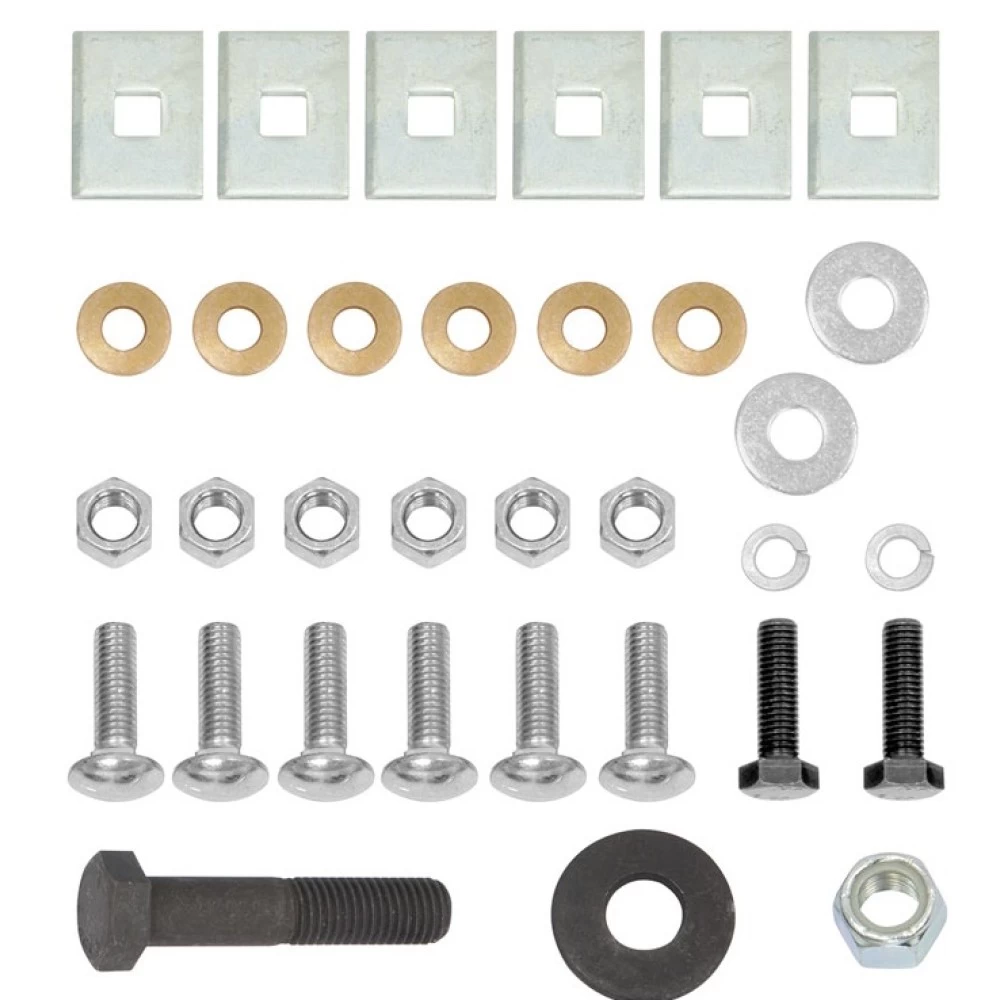

Hardware List:
- Qty (2): Hex Bolt – M14 x 2.0 x 40mm CL10.9
- Qty (6): Conical Washer – 1/2"
- Qty (2): Lock Washer – 9/16"
- Qty (2): Flat Washer – 9/16"
- Qty (6): Carriage Bolt – 1/2"-13 x 1.75" GR5
- Qty (6): Spacer
- Qty (6): Hex Nut – 1/2"-13
- Qty (1): Hex Bolt – 3/4"-10 x 3.50 GR5
- Qty (1): Conical Washer – 3/4"
- Qty (1): Hex Nut – 3/4"-10
- Qty (1): Cap Bolt (Black Rubber)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 12,000 lbs (5,448 kg)
- Max Tongue Weight: 1,200 lbs (545 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
Manufacturer Notes:
- Factory-installed steel step bumper and brackets must be used in conjunction with this hitch.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75866
- 87652
- 44703
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 3/4", 22mm, 21mm, 1-1/8” open-end wrench
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Step Bumper Cap:
- Remove or trim out the cap in the step bumper.
-
Remove Existing Bolts:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position Hitch:
- Lift the hitch into position, aligning the rear-most holes in the hitch with the existing weldnuts in the vehicle frame.
-
Install M14 Fasteners:
- Install the M14 bolts and conical washers into the weldnuts in the vehicle frame at the step bumper attachment points.
-
Install Remaining Fasteners:
- Secure the remaining fasteners as shown in the installation diagram.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque values:
- 1/2"-13 GR5 fasteners: 75 lb-ft (102 N*m)
- M14 CL10.9 fasteners: 100 lb-ft (136 N*m)
- 3/4"-10 GR5 fasteners: 260 lb-ft (353 N*m)
- Tighten all fasteners to the specified torque values:
-
Re-tighten Spare Tire:
- Re-tighten the spare tire to its original position.
Hardware List:
- Qty (2): Hex Bolt – M14 x 2.0 x 40mm CL10.9
- Qty (6): Conical Washer – 1/2"
- Qty (2): Lock Washer – 9/16"
- Qty (2): Flat Washer – 9/16"
- Qty (6): Carriage Bolt – 1/2"-13 x 1.75" GR5
- Qty (6): Spacer
- Qty (6): Hex Nut – 1/2"-13
- Qty (1): Hex Bolt – 3/4"-10 x 3.50 GR5
- Qty (1): Conical Washer – 3/4"
- Qty (1): Hex Nut – 3/4"-10
- Qty (1): Cap Bolt (Black Rubber)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 12,000 lbs (5,448 kg)
- Max Tongue Weight: 1,200 lbs (545 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 6,000 lbs (2,724 kg)
- Max Tongue Weight: 900 lbs (409 kg)
Manufacturer Notes:
- Factory-installed steel step bumper and brackets must be used in conjunction with this hitch.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
