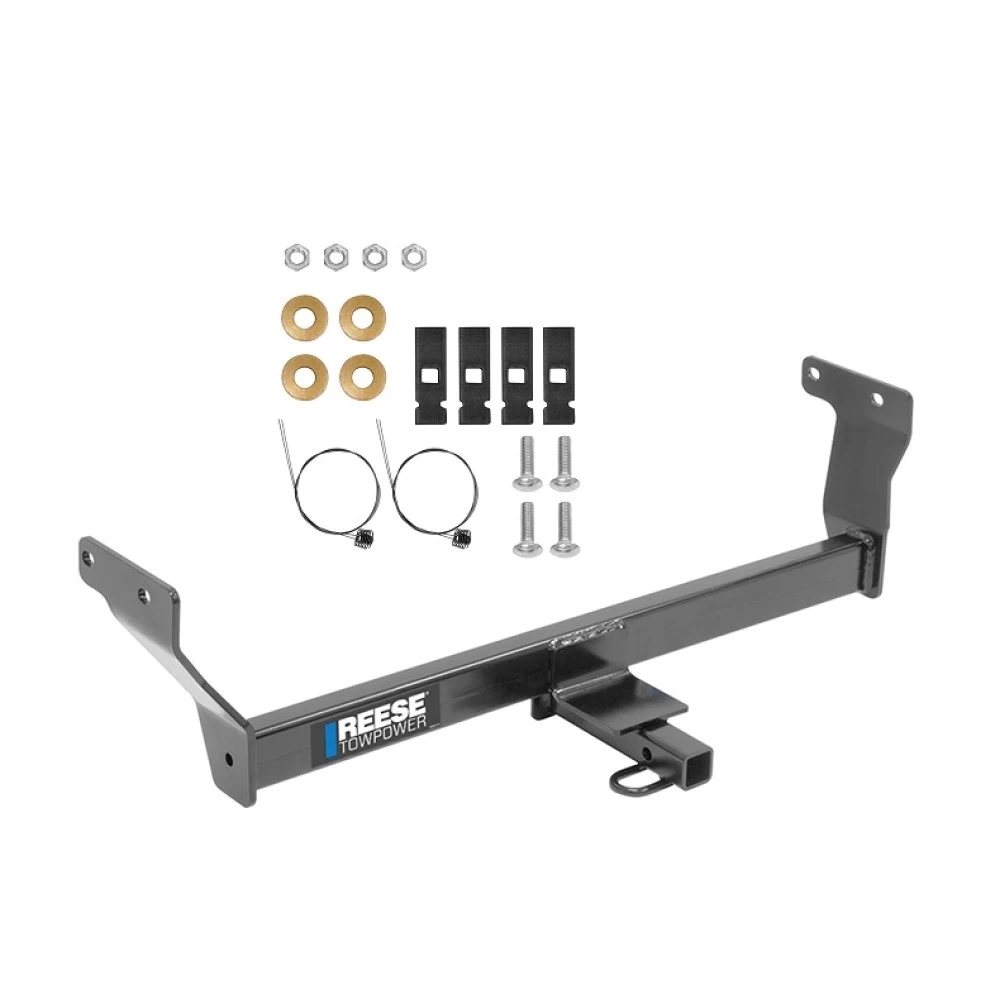

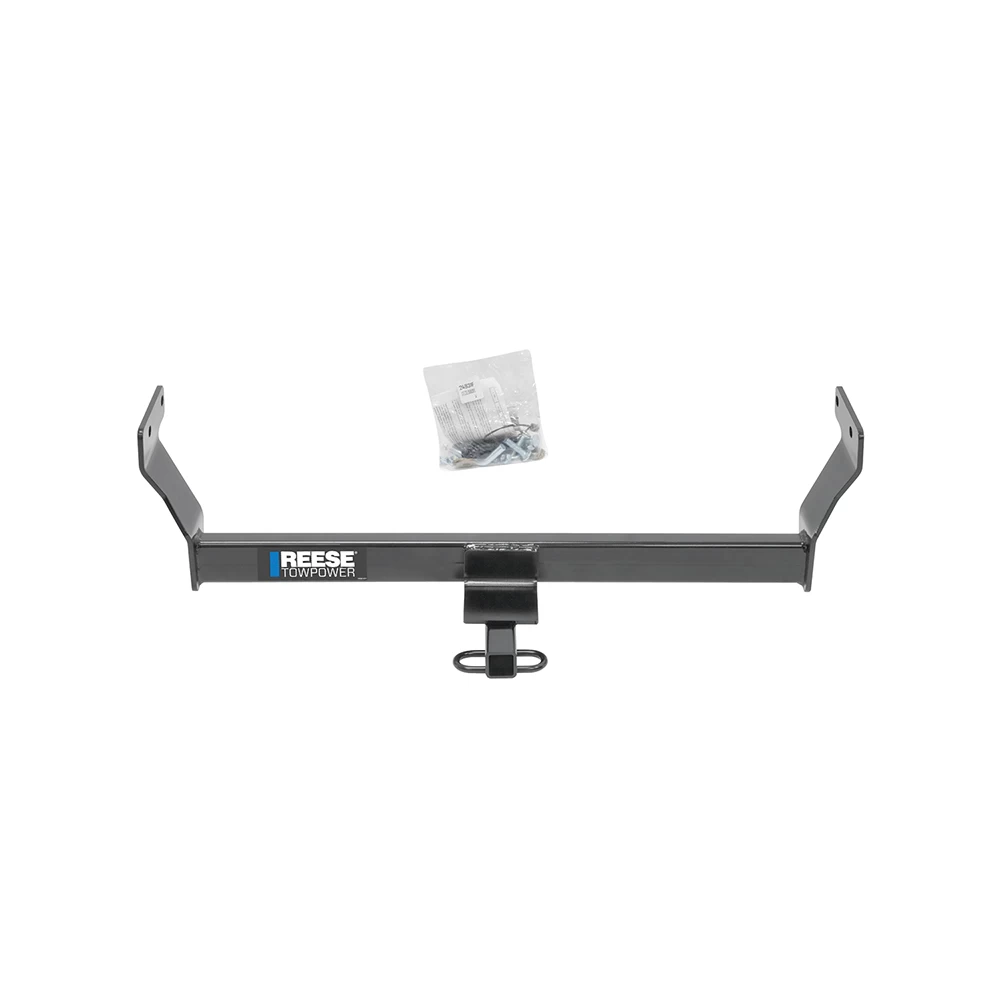

Reese Trailer Tow Hitch For 14‑24 Infiniti Q50 1‑1/4" Towing Receiver Class 1
Model: 773182014 - 2024 Infiniti, Q50, All Styles
Trailer Hitch Specs:
| Part Number | 77318 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 24 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$196 59 $307.00 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$307.00 $196 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77318
- UPC: 042899006978
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2014 - 2024 Infiniti, Q50, All Styles
Trailer Hitch Specs:
| Part Number | 77318 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 24 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 14-24 Infiniti Q50 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for 2014-Current Infiniti Q50
Part Numbers:
- 24931
- 60369
- 77318
Installation Time:
- Approximately 40 minutes for professional installers.
Wiring Access Location:
Not specified.
Tools Required:
- Ratchet Torque Wrench
- Safety Glasses
- Sockets: 12 mm, 16 mm, 11/16"
- Flat Head Screwdriver
- Socket Extension
- Die Grinder
- Lubricant or Soapy Water
- Paint or Primer
- Step Bit or Drill
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- If present on the passenger-side frame rail, remove the tie-down bracket to enlarge the access hole.
-
Lower Exhaust:
- Remove three (3) bolts from the rubber isolator hanger bracket on both sides.
- Support the exhaust to prevent damage.
- For additional access, remove the next forward isolators. Use lubricant or soapy water to ease removal.
-
Enlarge Access Hole:
- Use a 1-inch step bit or die grinder to enlarge the access hole on the bottom of the frame to allow the carriage bolt and spacer to pass through on both sides.
-
Install Fasteners:
- Feed the coiled end of the pull wire through the rearward hole and out the access hole.
- Attach the spacer and carriage bolt to the pull wire and insert them into the frame rails through the hole.
- Push the fasteners into position, leaving the pull wires attached. Repeat on both sides.
-
Position Hitch:
- Raise the hitch into position, feeding the pull wires through the holes in the hitch.
- Pull the fasteners back through the frame rails and hitch brackets.
-
Attach Washers and Nuts:
- Slide the conical washer over the pull wire, holding the bolt in place, then remove the pull wires.
- Attach the hex nuts and tighten to secure the hitch. Repeat for all fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Reinstall Exhaust:
- Raise the exhaust back into position. If necessary, use lubricant or soapy water to assist in reattaching the isolators.
-
Paint Exposed Metal:
- Paint or touch up any bare metal created while enlarging the access hole to prevent rust.
-
Reattach Tie-Down Bracket:
- If removed in Step 1, reattach the tie-down bracket.

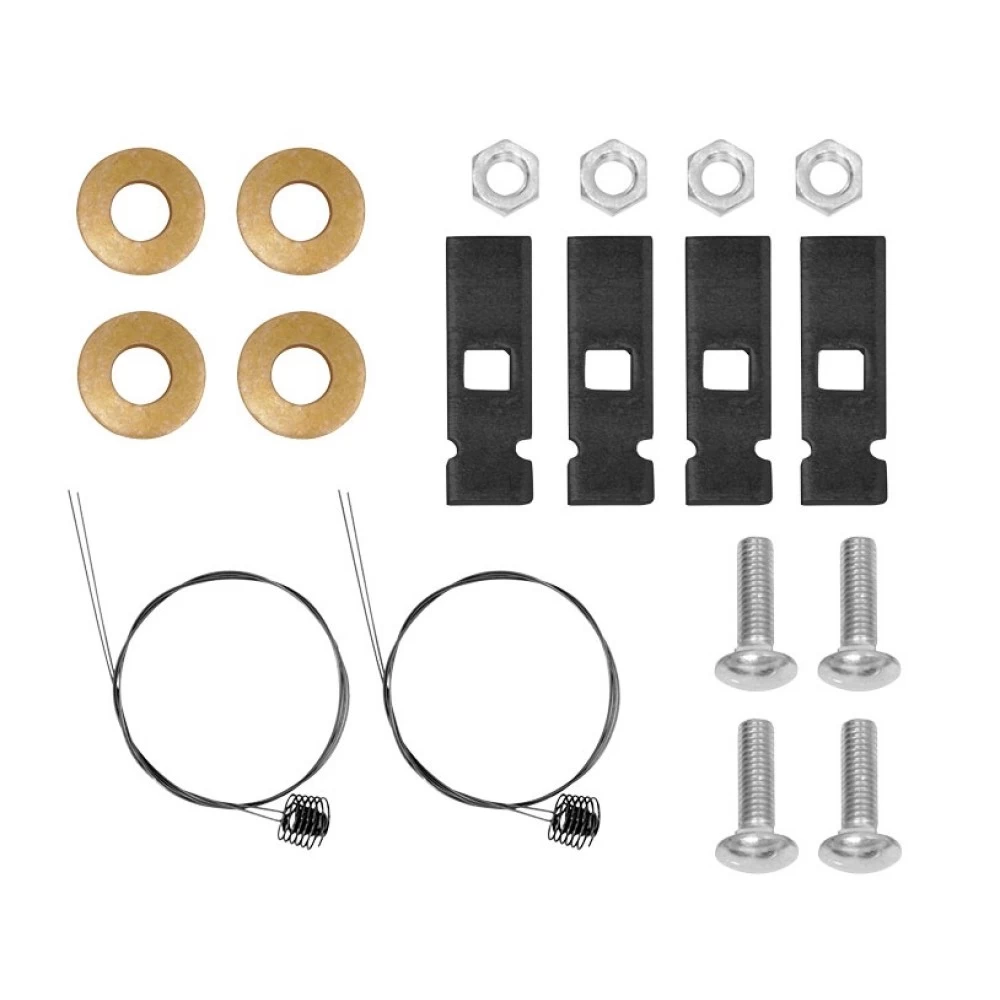

Hardware List:
- (4) Carriage Bolts: 7/16-14 x 1.75 GR5
- (4) Spacers: .250 x 7/8 x 3
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16-14 GR2
- (4) Pull Wires: 7/16
Safety Notes:
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
- Regularly check that fasteners and hitch components are securely tightened.
- Plug any holes in the vehicle's body to prevent water or exhaust fumes from entering if the hitch is removed.
Specifications:
- Hitch Type:
- Max Gross Trailer Weight: 2000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Weight Distributing: Not Applicable
- This product complies with SAE J684 and New York V.E.S.C. Regulation V-5 standards.
Installation Instructions for 2014-Current Infiniti Q50
Part Numbers:
- 24931
- 60369
- 77318
Installation Time:
- Approximately 40 minutes for professional installers.
Wiring Access Location:
Not specified.
Tools Required:
- Ratchet Torque Wrench
- Safety Glasses
- Sockets: 12 mm, 16 mm, 11/16"
- Flat Head Screwdriver
- Socket Extension
- Die Grinder
- Lubricant or Soapy Water
- Paint or Primer
- Step Bit or Drill
Step-by-Step Instructions:
-
Remove Tie-Down Bracket:
- If present on the passenger-side frame rail, remove the tie-down bracket to enlarge the access hole.
-
Lower Exhaust:
- Remove three (3) bolts from the rubber isolator hanger bracket on both sides.
- Support the exhaust to prevent damage.
- For additional access, remove the next forward isolators. Use lubricant or soapy water to ease removal.
-
Enlarge Access Hole:
- Use a 1-inch step bit or die grinder to enlarge the access hole on the bottom of the frame to allow the carriage bolt and spacer to pass through on both sides.
-
Install Fasteners:
- Feed the coiled end of the pull wire through the rearward hole and out the access hole.
- Attach the spacer and carriage bolt to the pull wire and insert them into the frame rails through the hole.
- Push the fasteners into position, leaving the pull wires attached. Repeat on both sides.
-
Position Hitch:
- Raise the hitch into position, feeding the pull wires through the holes in the hitch.
- Pull the fasteners back through the frame rails and hitch brackets.
-
Attach Washers and Nuts:
- Slide the conical washer over the pull wire, holding the bolt in place, then remove the pull wires.
- Attach the hex nuts and tighten to secure the hitch. Repeat for all fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Reinstall Exhaust:
- Raise the exhaust back into position. If necessary, use lubricant or soapy water to assist in reattaching the isolators.
-
Paint Exposed Metal:
- Paint or touch up any bare metal created while enlarging the access hole to prevent rust.
-
Reattach Tie-Down Bracket:
- If removed in Step 1, reattach the tie-down bracket.
Hardware List:
- (4) Carriage Bolts: 7/16-14 x 1.75 GR5
- (4) Spacers: .250 x 7/8 x 3
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16-14 GR2
- (4) Pull Wires: 7/16
Safety Notes:
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
- Regularly check that fasteners and hitch components are securely tightened.
- Plug any holes in the vehicle's body to prevent water or exhaust fumes from entering if the hitch is removed.
Specifications:
- Hitch Type:
- Max Gross Trailer Weight: 2000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Weight Distributing: Not Applicable
- This product complies with SAE J684 and New York V.E.S.C. Regulation V-5 standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
