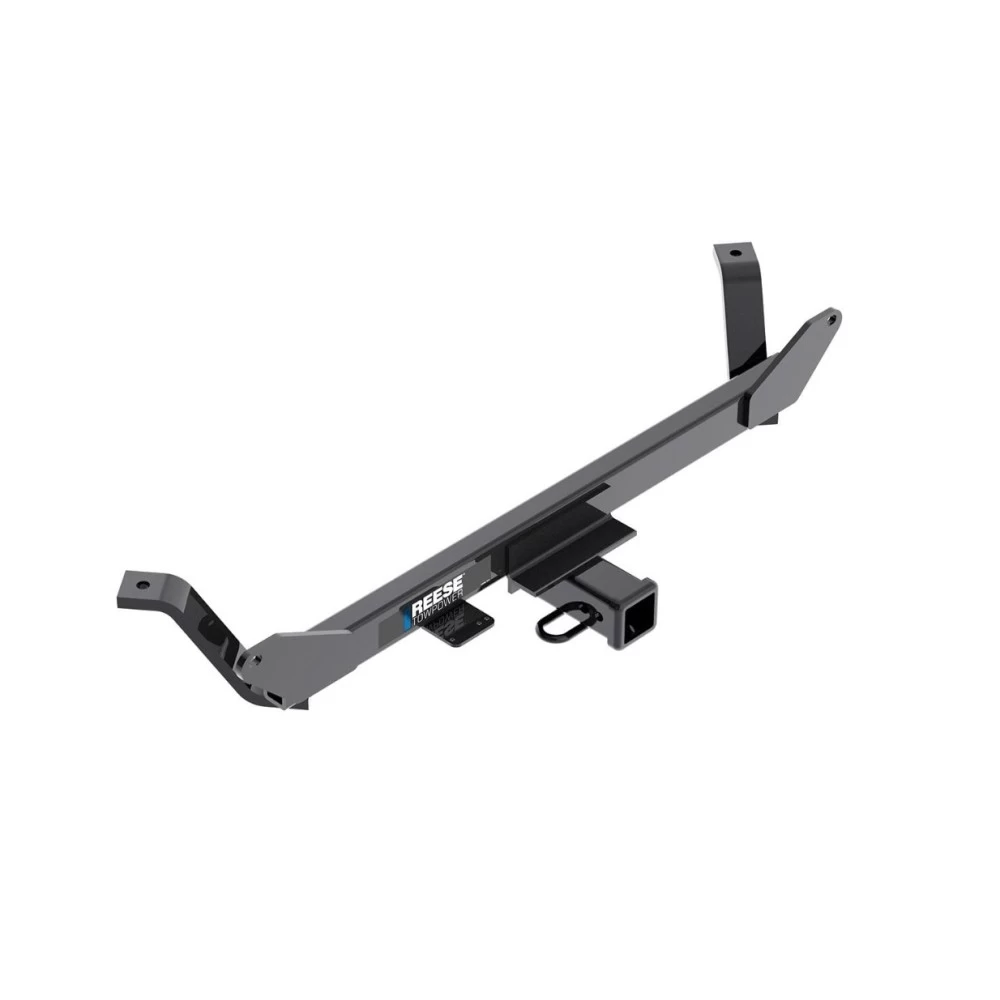

Installation Instructions for BMW X1 (2016-Current)

Part Numbers:

• 76018
• 84018
• CQT76018

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 8mm, 10mm, 18mm, 3/4”
• Flat Head Screwdriver
• Tin Snips
• Tape Measure
• Marker
• Drill with 1” Holesaw
• Exhaust Removal Pliers
• 6” Socket Extension

Wiring Access Location:

• Not Applicable

Step-by-Step Instructions:

1. Remove Lower Fascia:

   • Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
   • Gently unclip and pull the fascia off, then set it aside for reinstallation later.

2. Lower Exhaust:

   • Use a 10mm socket to remove the nuts from both rear exhaust hangers.
   • Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.

3. Remove Heat Shield:

   • Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.

4. Trim Heat Shield:

   • Measure and draw two lines on the heat shield:
     • From the lower portion, measure 1/2” inward from the outermost screw holes.
     • From the upper portion, draw a line 1/2” from the top.
   • Use tin snips to cut along the lines.

5. Remove Nuts from Lower Bumper Studs:

   • Use an 18mm socket to remove one nut from the lower bumper stud on each side.

6. Loosen Sensor Bar:

   • Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.

7. Drill Holes:

   • Raise the hitch into position and onto the lower bumper studs.
   • Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
   • Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.

8. Fishwire Bolts:

   • Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
   • Leave the pull wires attached.

9. Install Hitch:

   • Raise the hitch into position over the lower bumper studs.
   • Guide the pull wire ends through the forward attachment holes.
   • Install (2) nuts onto the lower bumper studs and remove the pull wires.
   • Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.

10. Tighten Fasteners:

    • Torque all hitch fasteners to 75 lb-ft (102 N·m).

11. Reinstall Components:

    • Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.

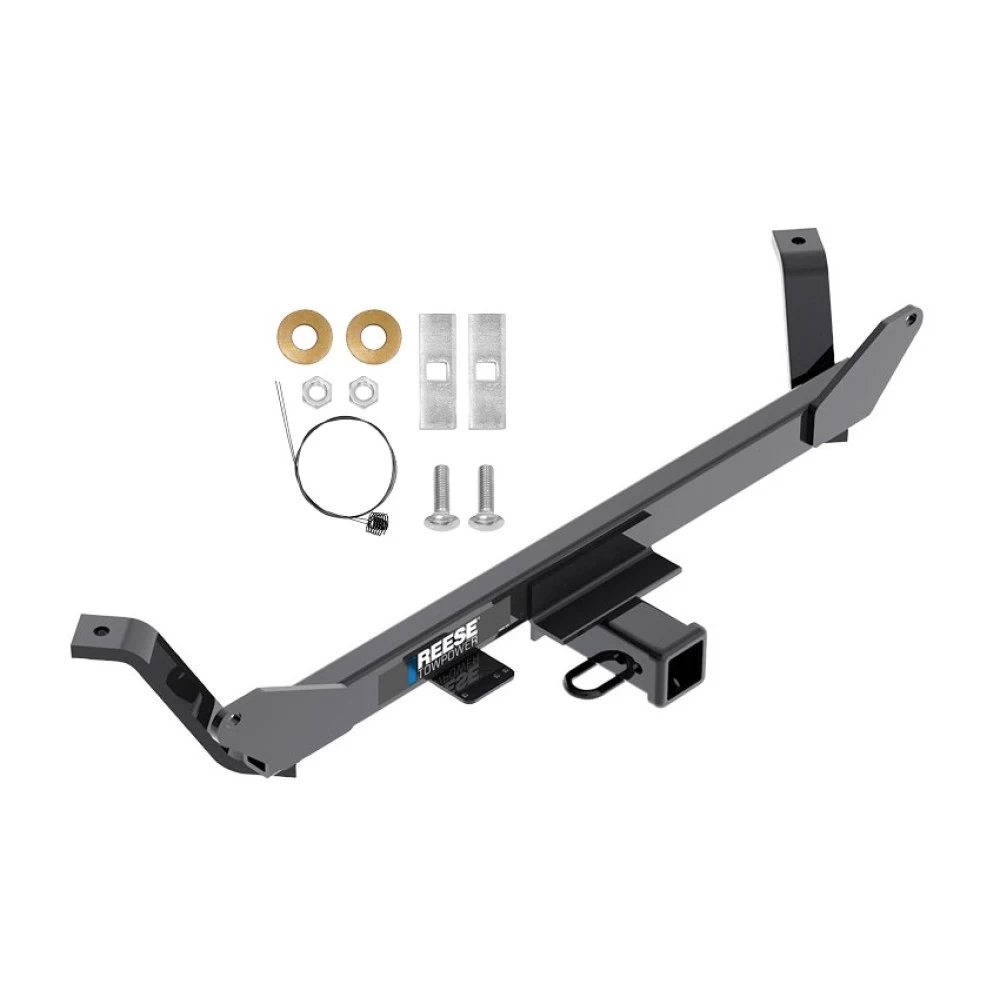

Hardware List:

• (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
• (2) 1/2” Conical Washers
• (2) 1/4” x 1” x 3” Spacer Blocks
• (2) 1/2”-13 Grade 5 Hex Nuts
• (2) 1/2” Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses during installation.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 40 minutes for a professional installer.
• Contact a professional installer if you are uncomfortable performing the installation on your own.

Installation Instructions for Vehicle (2016-Current)

Part Numbers:

• 76018
• 84018
• CQT76018

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 8mm, 10mm, 18mm, 3/4”
• Flat Head Screwdriver
• Tin Snips
• Tape Measure
• Marker
• Drill with 1” Holesaw
• Exhaust Removal Pliers
• 6” Socket Extension

Wiring Access Location:

• Not Applicable

Step-by-Step Instructions:

1. Remove Lower Fascia:

   • Use an 8mm socket to remove (8) screws and (4) plastic expanding fasteners.
   • Gently unclip and pull the fascia off, then set it aside for reinstallation later.

2. Lower Exhaust:

   • Use a 10mm socket to remove the nuts from both rear exhaust hangers.
   • Pry off one rubber exhaust hanger near the transaxle using exhaust removal pliers. Spray with soapy water for ease.

3. Remove Heat Shield:

   • Use a 10mm socket to remove the (4) nuts securing the heat shield on the upper portion.

4. Trim Heat Shield:

   • Measure and draw two lines on the heat shield:
     • From the lower portion, measure 1/2” inward from the outermost screw holes.
     • From the upper portion, draw a line 1/2” from the top.
   • Use tin snips to cut along the lines.

5. Remove Nuts from Lower Bumper Studs:

   • Use an 18mm socket to remove one nut from the lower bumper stud on each side.

6. Loosen Sensor Bar:

   • Use a 10mm socket to loosen (2) nuts holding the sensor bar to the vehicle. Do not fully remove the sensor bar; loosening it will ease hitch installation.

7. Drill Holes:

   • Raise the hitch into position and onto the lower bumper studs.
   • Tighten the nuts to hold the hitch in place, then mark the locations of forward attachment holes using the hitch as a template.
   • Lower the hitch and drill a 1” hole for each forward attachment point using a holesaw.

8. Fishwire Bolts:

   • Using the reverse fishwire method, insert the carriage bolts and spacer blocks into the drilled holes.
   • Leave the pull wires attached.

9. Install Hitch:

   • Raise the hitch into position over the lower bumper studs.
   • Guide the pull wire ends through the forward attachment holes.
   • Install (2) nuts onto the lower bumper studs and remove the pull wires.
   • Secure the carriage bolts with conical washers (teeth side toward hitch) and 1/2” hex nuts.

10. Tighten Fasteners:

    • Torque all hitch fasteners to 75 lb-ft (102 N·m).

11. Reinstall Components:

    • Reinstall all exhaust hangers, tighten the sensor bar, reinstall the trimmed heat shield, and reattach the lower fascia.

Hardware List:

• (2) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
• (2) 1/2” Conical Washers
• (2) 1/4” x 1” x 3” Spacer Blocks
• (2) 1/2”-13 Grade 5 Hex Nuts
• (2) 1/2” Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses during installation.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 40 minutes for a professional installer.
• Contact a professional installer if you are uncomfortable performing the installation on your own.
