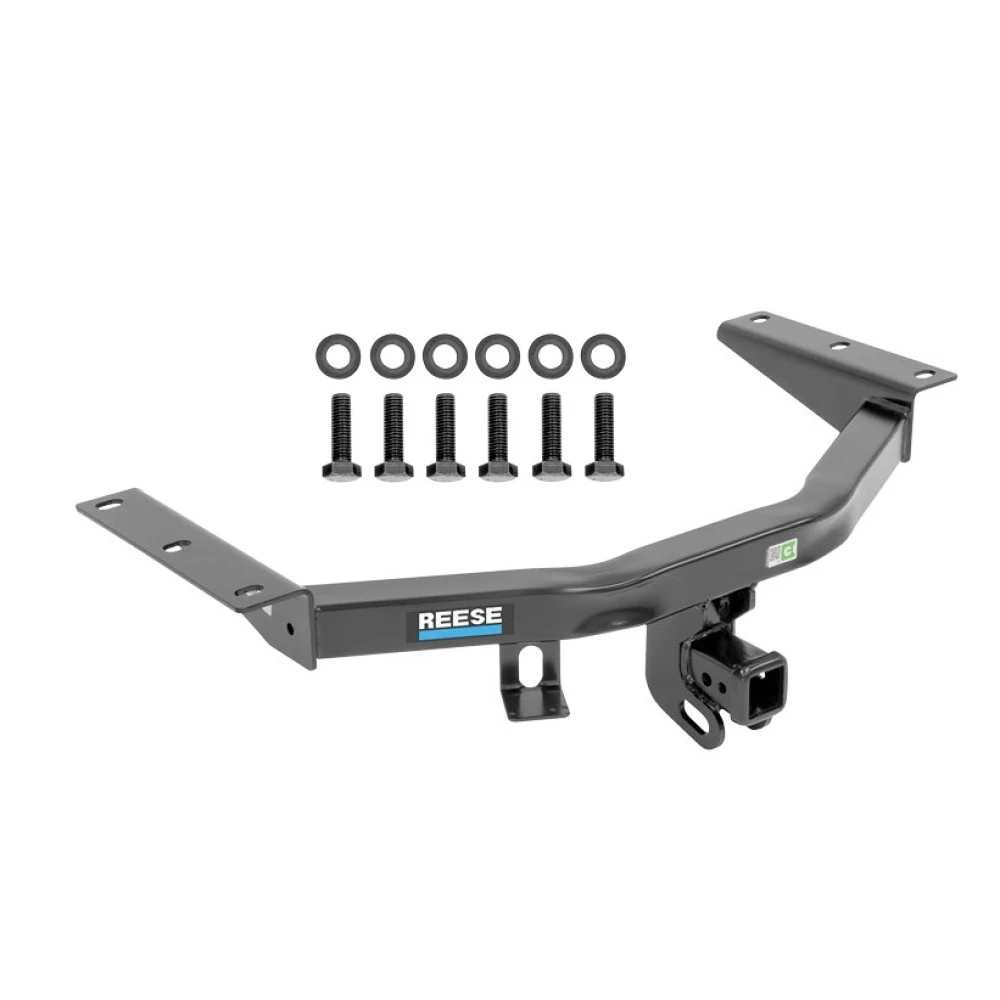

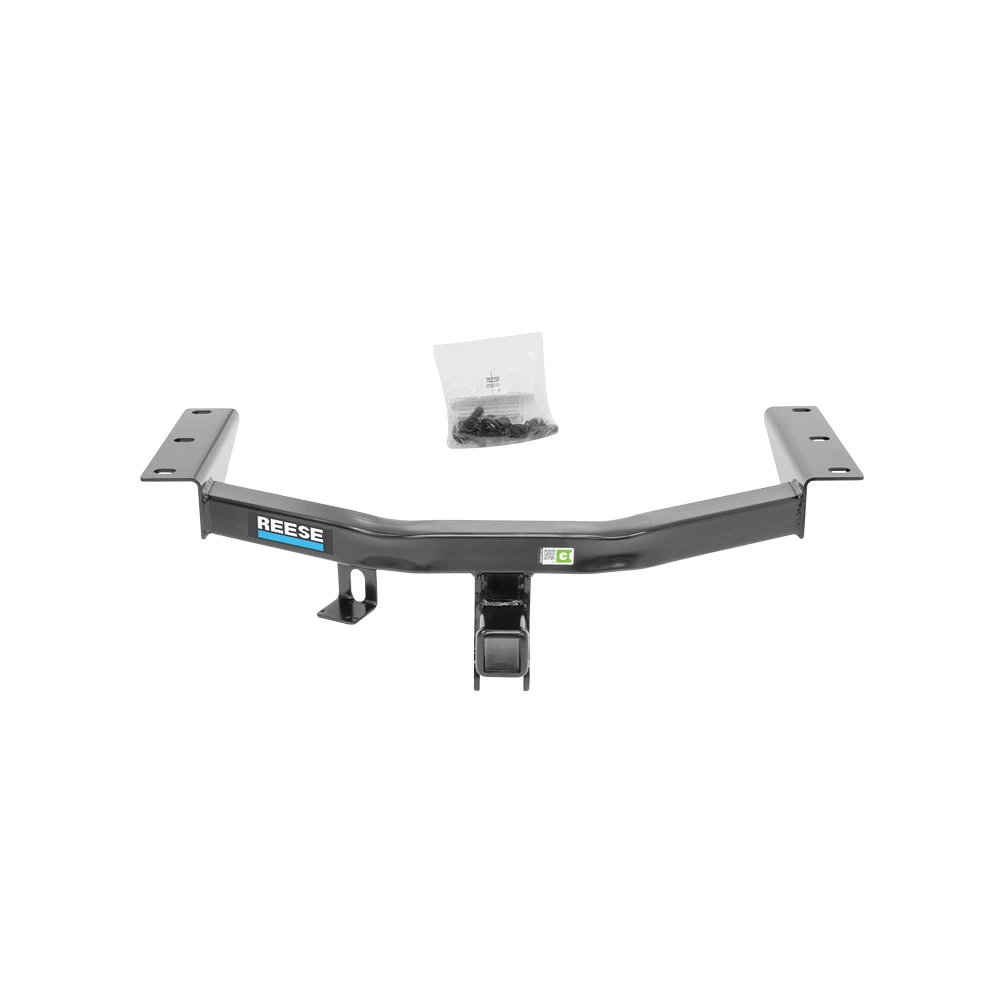

Reese Trailer Tow Hitch For 16‑22 Honda Pilot 14‑20 Acura MDX Class 3 2" Towing Receiver
Model: 447782014 - 2020 Acura, MDX, Except w/Full Size Spare Tire
2016 - 2022 Honda, Pilot, All Styles
Trailer Hitch Specs:
| Part Number | 44778 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900 / 900 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 2014 2015 2016 2017 2018 2019 2020 2021 2022
$240 44 $320.73 25% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $240 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44778
- UPC: 016118134629
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
2014 - 2020 Acura, MDX, Except w/Full Size Spare Tire
2016 - 2022 Honda, Pilot, All Styles
Trailer Hitch Specs:
| Part Number | 44778 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900 / 900 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 2014 2015 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Reese Trailer Tow Hitch For 16-22 Honda Pilot 14-20 Acura MDX Class 3 2" Towing Receiver Install Notes
Installation Instructions for Honda Pilot and Acura MDX
Part Numbers:
- 75225
- 87691
- 44778
Applications:
- 2014-Current Honda Pilot
- 2014-Current Acura MDX (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22mm
- Flat Head Screwdriver
- 3" Socket Extension
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use the tools provided in the storage compartment to lower the spare tire (see Figure 2).
-
Install Hitch:
- Raise the hitch into position and loosely install M14 bolts (6 total) with conical washers into the weldnuts on the vehicle frame (see Figure 3).
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners with a torque wrench to 148 lb-ft (201 N·m).
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:

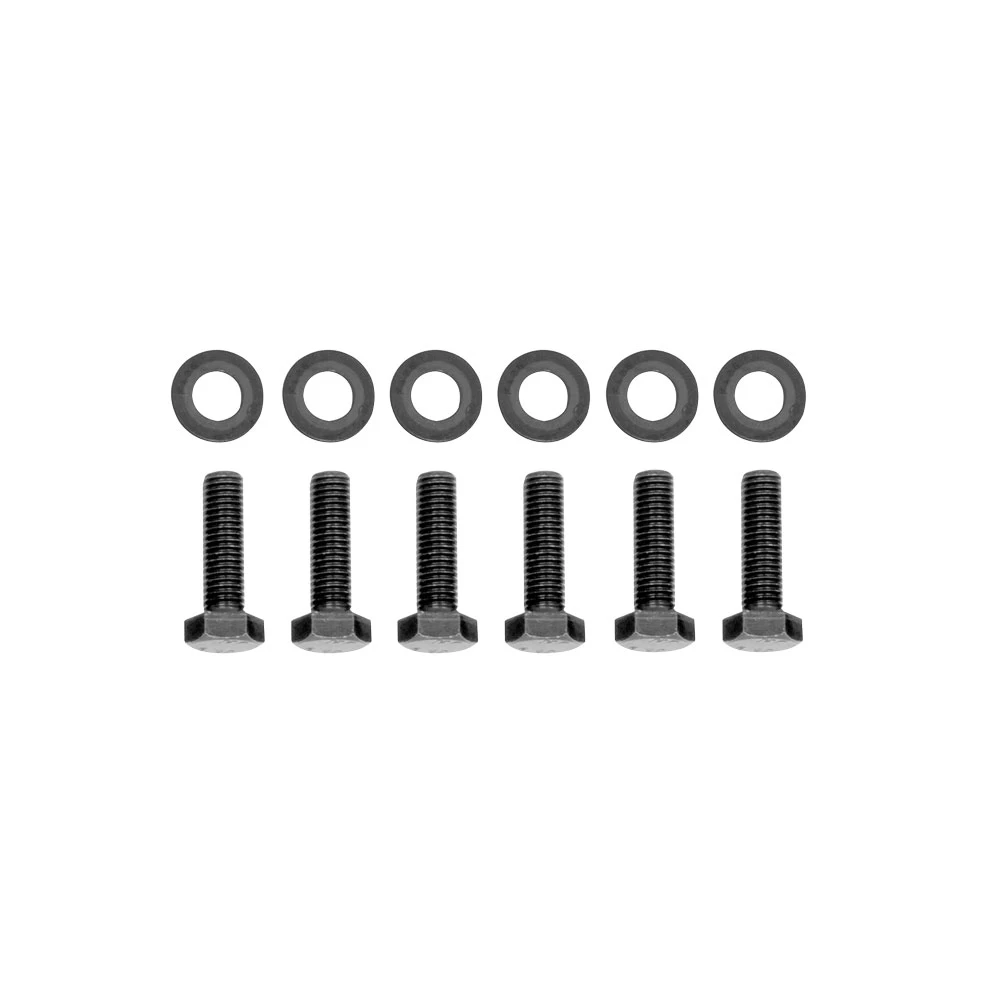

- (6) M14 x 1.50 x 45mm CL10.9 Bolts
- (6) 5/8” Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Honda Pilot and Acura MDX
Part Numbers:
- 75225
- 87691
- 44778
Applications:
- 2014-Current Honda Pilot
- 2014-Current Acura MDX
(*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22mm
- Flat Head Screwdriver
- 3" Socket Extension
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use the tools provided in the storage compartment to lower the spare tire (see Figure 2).
-
Install Hitch:
- Raise the hitch into position and loosely install M14 bolts (6 total) with conical washers into the weldnuts on the vehicle frame (see Figure 3).
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners with a torque wrench to 148 lb-ft (201 N·m).
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:
- (6) M14 x 1.50 x 45mm CL10.9 Bolts
- (6) 5/8” Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
