Product Details
- Brand: Reese
- Model: 84015 119191

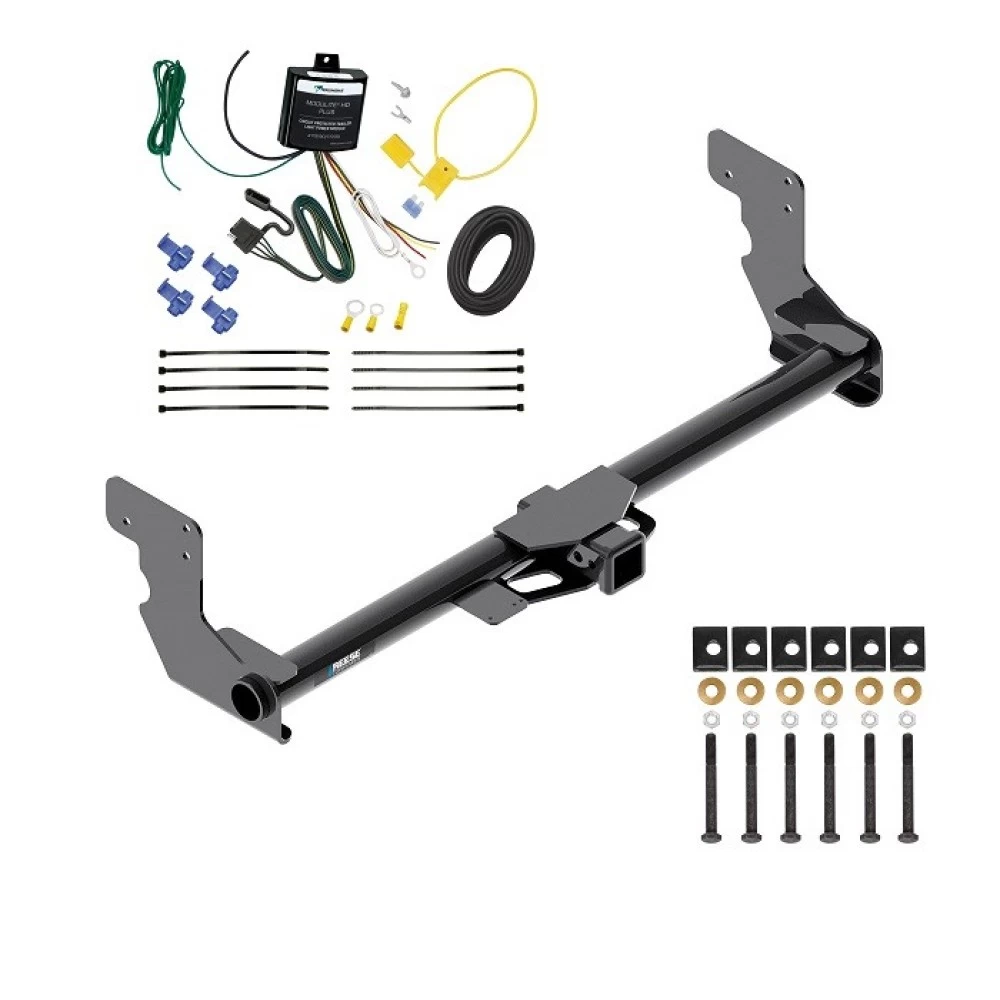

- Includes: Class 3 Trailer Tow Hitch, ModuLite HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit
Compatibility Chart
Description
Get Expert Help

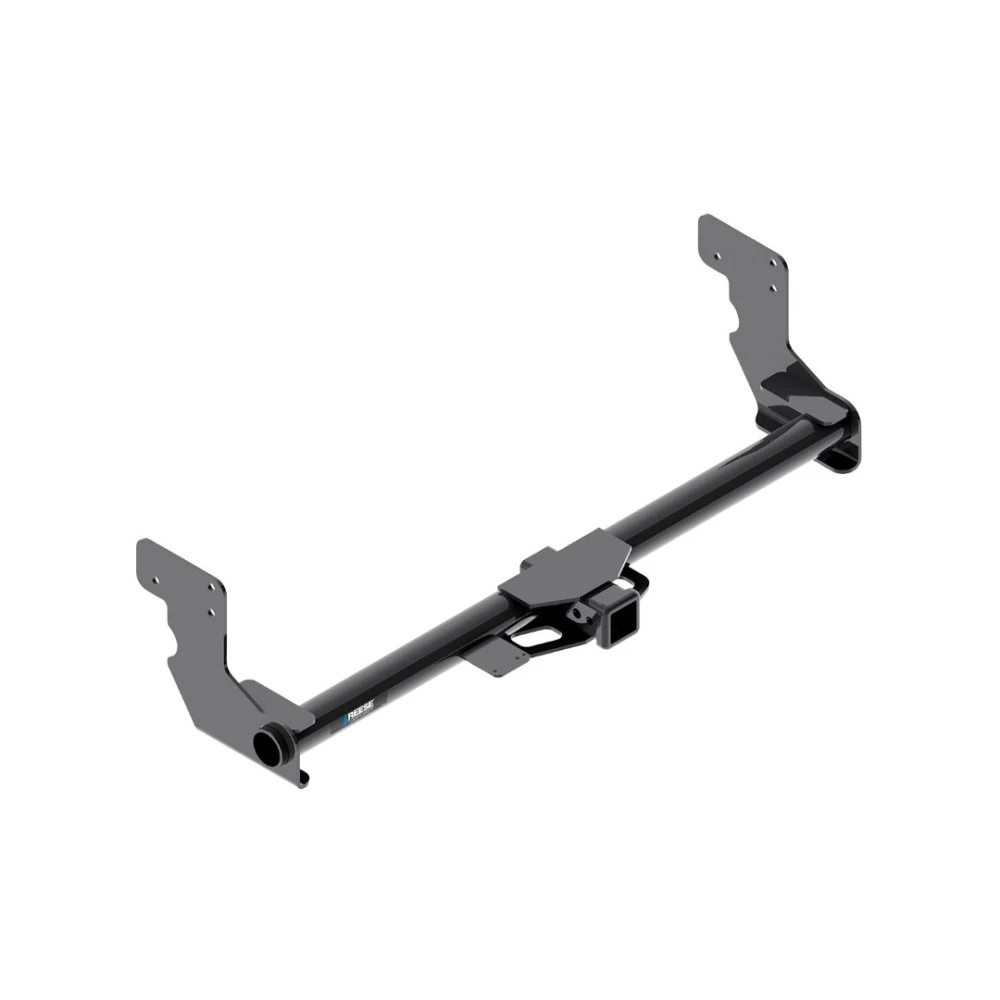

Trailer Hitch w/ Wiring For 16-23 Mercedes-Benz Metris Class 3 2" Tow Receiver Reese Tekonsha Install Notes
Installation Instructions for Mercedes Metris (2016-Current)
(Cargo/Passenger Models)
Part Numbers:
- 76015
- 84015
- CQT76015
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 16mm, 18mm
- 6" Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Remove Tow Hook:
- Use a 16mm and 18mm socket to remove:
- (2) Short bolts
- (2) Long bolts
- (2) Flange nuts
- Remove the tow hook from the passenger side. Return all fasteners and the tow hook to the vehicle owner.
- Use a 16mm and 18mm socket to remove:
-
Position the Hitch:
- Raise the hitch into position.
- Align the bracket holes with the outside frame rail holes.
- Insert the bolt (M12 x 1.75 x 110mm) and block (.375 x 1.50 x 2.00) through the frame rail holes.
- Secure loosely using the conical washers (1/2") and hex nuts (M12 x 1.75).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 Nm).
-
Verify Installation:
- Ensure all fasteners are tightened to the correct torque specifications.
- Periodically check the hitch and ball mount for secure attachment.
Hardware List:
- (6) M12 x 1.75 x 110mm CL10.9 Bolts
- (6) .375 x 1.50 x 2.00 Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (340 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 750 lbs (340 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 20 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Installation Instructions for Vehicle (2016-Current)
(Cargo/Passenger Models)
Part Numbers:
- 76015
- 84015
- CQT76015
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 16mm, 18mm
- 6" Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Remove Tow Hook:
- Use a 16mm and 18mm socket to remove:
- (2) Short bolts
- (2) Long bolts
- (2) Flange nuts
- Remove the tow hook from the passenger side. Return all fasteners and the tow hook to the vehicle owner.
- Use a 16mm and 18mm socket to remove:
-
Position the Hitch:
- Raise the hitch into position.
- Align the bracket holes with the outside frame rail holes.
- Insert the bolt (M12 x 1.75 x 110mm) and block (.375 x 1.50 x 2.00) through the frame rail holes.
- Secure loosely using the conical washers (1/2") and hex nuts (M12 x 1.75).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 Nm).
-
Verify Installation:
- Ensure all fasteners are tightened to the correct torque specifications.
- Periodically check the hitch and ball mount for secure attachment.
Hardware List:
- (6) M12 x 1.75 x 110mm CL10.9 Bolts
- (6) .375 x 1.50 x 2.00 Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) M12 x 1.75 Hex Nuts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (340 kg).
- Weight Distributing: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 750 lbs (340 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 20 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 119191
Wiring Access Location:
- Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.
Tools Required:
- Drill with a 3/32" drill bit.
- Phillips head #2 screwdriver.
- Wire cutters, wire strippers/crimpers.
- Tester or volt meter.
- Socket and ratchet set.
- Double-sided tape (provided).
Step-by-Step Instructions:
Installation of the Module:
-
Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
-
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
-
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Routing Power to the Battery:
-
Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.
Finalizing Installation:
-
Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
-
Reconnect the vehicle’s negative (-) battery cable.
-
Insert the 15-amp fuse into the fuse holder and close the cap.
-
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- 15-amp fuse.
- Fuse holder.
- Eyelet and self-tapping screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Handle all components with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Read and follow all vehicle warnings and installation instructions.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional details.
