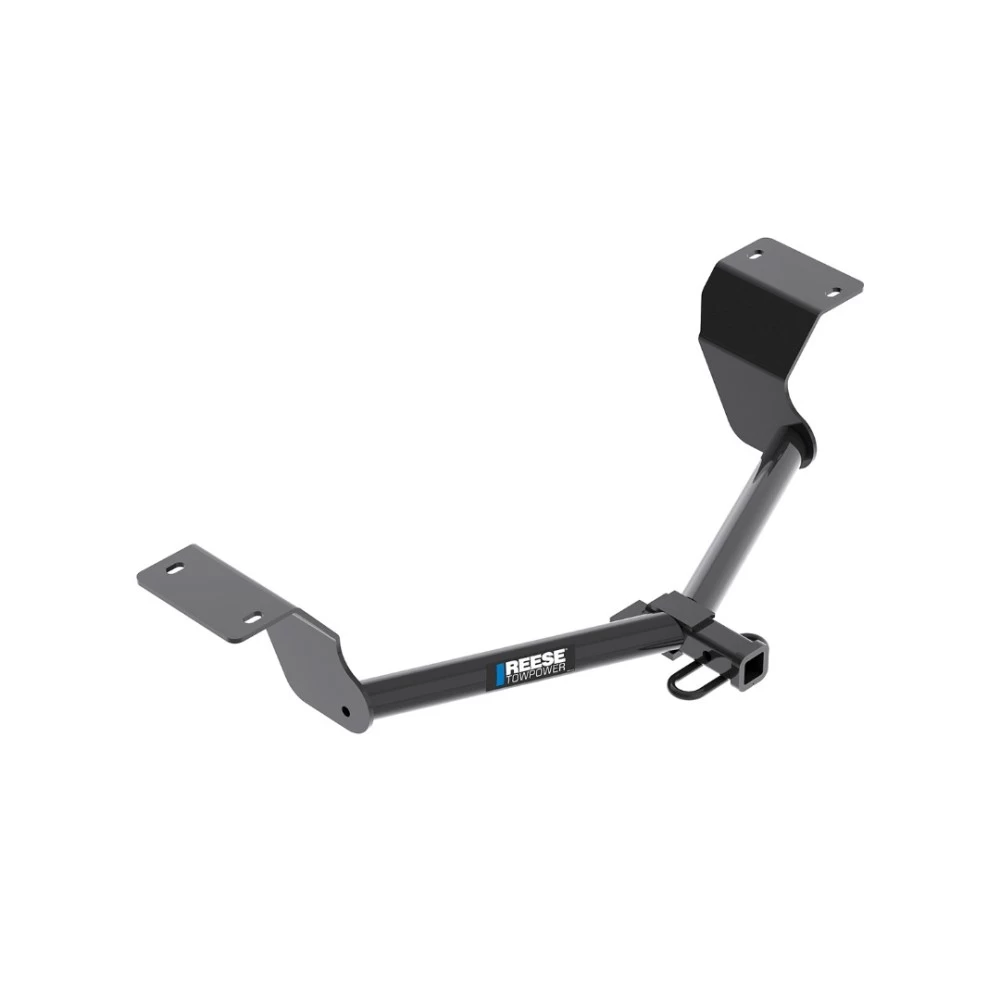

Reese Trailer Tow Hitch For 17‑24 Honda CR‑V Except Hybrid 1‑1/4" Towing Receiver Class 2
Model: 061832017 - 2024 Honda, CR-V, Except Hybrid
Trailer Hitch Specs:
| Part Number | 06183 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
$199 62 $286.36 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $199 62
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 06183
- UPC: 016118068627
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
2017 - 2024 Honda, CR-V, Except Hybrid
Trailer Hitch Specs:
| Part Number | 06183 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 21 22 23 24 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Reese Trailer Tow Hitch For 17-24 Honda CR-V Except Hybrid 1-1/4" Towing Receiver Class 2 Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 36597
- 06183
- CQT36597
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Pliers
- Sockets: 11/16"
- Lubricant or Soapy Water
Installation Time:
- Estimated: 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
- If necessary, remove the isolator forward of the rear axle to provide additional clearance.
- Spray lubricant or soapy water on the hanger rods and rubber isolators to ease removal.
-
Install Hardware:
- Using the fish wire, feed the carriage bolts and spacers through the large access holes at the end of the vehicle frame.
- Repeat this process for both sides of the frame, ensuring the fish wires remain attached to the hardware.
-
Position and Install the Hitch:
- Carefully raise the hitch into position, guiding it over the mufflers.
- Feed the ends of the fish wires through the mounting holes in the hitch to align the hardware.
- Loosely install the conical washers (teeth side facing the hitch) and hex nuts to hold the hitch in place.
- Over the towhook, install the U-bolt and attach the flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Use a torque wrench to tighten all fasteners to the specified torque:
- Tighten 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Tighten 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).
- Use a torque wrench to tighten all fasteners to the specified torque:
-
Raise the Exhaust:
- Reattach the exhaust system by reinstalling the rubber isolators removed in Step 1.
Torque Specifications:
- 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
- 3/8"-16 GR5 bolts: 30 ft-lb (41 N*m)

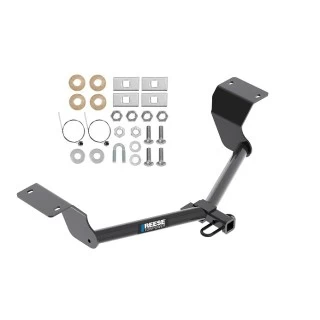

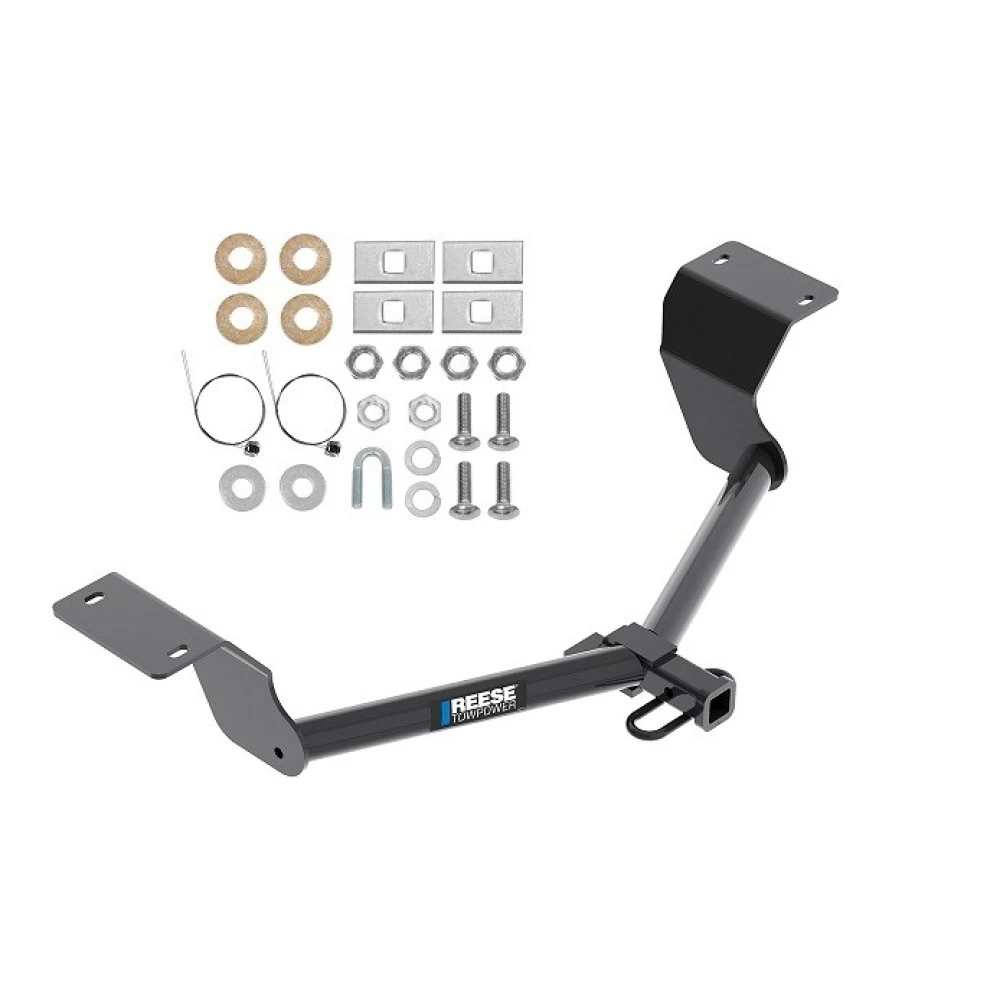

Hardware List:
- (4) Carriage Bolts, 7/16"-14 x 1.25" GR5
- (4) Spacer Blocks, 0.25" x 1.00" x 2.00"
- (4) Conical Washers, 7/16"
- (4) Hex Nuts, 7/16"-14 GR2
- (1) U-Bolt, 3/8"-16 GR5
- (2) Flat Washers, 3/8"
- (2) Lock Washers, 3/8"
- (2) Hex Nuts, 3/8"-16 GR2
- (4) Fish Wires, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
- Fastener Kit: 36597F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Vehicles (Excluding Quad Exhaust Models)
Part Numbers:
- 36597
- 06183
- CQT36597
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Pliers
- Sockets: 11/16"
- Lubricant or Soapy Water
Installation Time:
- Estimated: 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
- If necessary, remove the isolator forward of the rear axle to provide additional clearance.
- Spray lubricant or soapy water on the hanger rods and rubber isolators to ease removal.
-
Install Hardware:
- Using the fish wire, feed the carriage bolts and spacers through the large access holes at the end of the vehicle frame.
- Repeat this process for both sides of the frame, ensuring the fish wires remain attached to the hardware.
-
Position and Install the Hitch:
- Carefully raise the hitch into position, guiding it over the mufflers.
- Feed the ends of the fish wires through the mounting holes in the hitch to align the hardware.
- Loosely install the conical washers (teeth side facing the hitch) and hex nuts to hold the hitch in place.
- Over the towhook, install the U-bolt and attach the flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Use a torque wrench to tighten all fasteners to the specified torque:
- Tighten 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
- Tighten 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).
- Use a torque wrench to tighten all fasteners to the specified torque:
-
Raise the Exhaust:
- Reattach the exhaust system by reinstalling the rubber isolators removed in Step 1.
Torque Specifications:
- 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
- 3/8"-16 GR5 bolts: 30 ft-lb (41 N*m)
Hardware List:
- (4) Carriage Bolts, 7/16"-14 x 1.25" GR5
- (4) Spacer Blocks, 0.25" x 1.00" x 2.00"
- (4) Conical Washers, 7/16"
- (4) Hex Nuts, 7/16"-14 GR2
- (1) U-Bolt, 3/8"-16 GR5
- (2) Flat Washers, 3/8"
- (2) Lock Washers, 3/8"
- (2) Hex Nuts, 3/8"-16 GR2
- (4) Fish Wires, 7/16"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
Additional Notes:
- Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
- Fastener Kit: 36597F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
