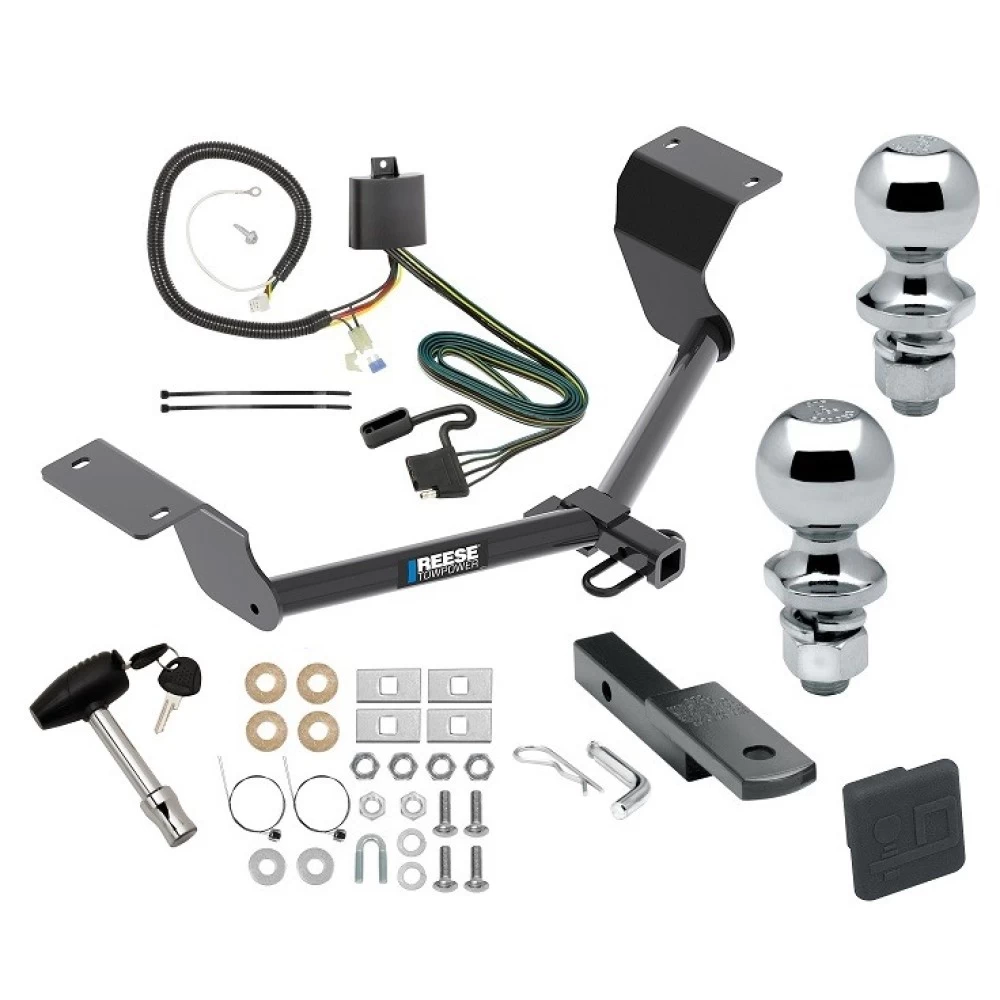

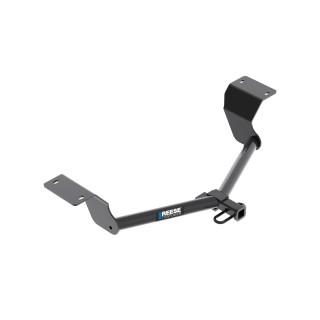

Installation Instructions for Honda CR-V

Part Numbers:

• 36597
• 06183
• CQT36597

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Pliers
• Sockets: 11/16"
• Lubricant or Soapy Water

Installation Time:

• Estimated: 20 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
   • If necessary, remove the isolator forward of the rear axle to provide additional clearance.
   • Spray lubricant or soapy water on the hanger rods and rubber isolators to ease removal.

2. Install Hardware:

   • Using the fish wire, feed the carriage bolts and spacers through the large access holes at the end of the vehicle frame.
   • Repeat this process for both sides of the frame, ensuring the fish wires remain attached to the hardware.

3. Position and Install the Hitch:

   • Carefully raise the hitch into position, guiding it over the mufflers.
   • Feed the ends of the fish wires through the mounting holes in the hitch to align the hardware.
   • Loosely install the conical washers (teeth side facing the hitch) and hex nuts to hold the hitch in place.
   • Over the towhook, install the U-bolt and attach the flat washers, lock washers, and hex nuts as shown in the diagram.

4. Tighten All Fasteners:

   • Use a torque wrench to tighten all fasteners to the specified torque:
     • Tighten 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
     • Tighten 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).

5. Raise the Exhaust:

   • Reattach the exhaust system by reinstalling the rubber isolators removed in Step 1.

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
• 3/8"-16 GR5 bolts: 30 ft-lb (41 N*m)

Hardware List:

• (4) Carriage Bolts, 7/16"-14 x 1.25" GR5
• (4) Spacer Blocks, 0.25" x 1.00" x 2.00"
• (4) Conical Washers, 7/16"
• (4) Hex Nuts, 7/16"-14 GR2
• (1) U-Bolt, 3/8"-16 GR5
• (2) Flat Washers, 3/8"
• (2) Lock Washers, 3/8"
• (2) Hex Nuts, 3/8"-16 GR2
• (4) Fish Wires, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

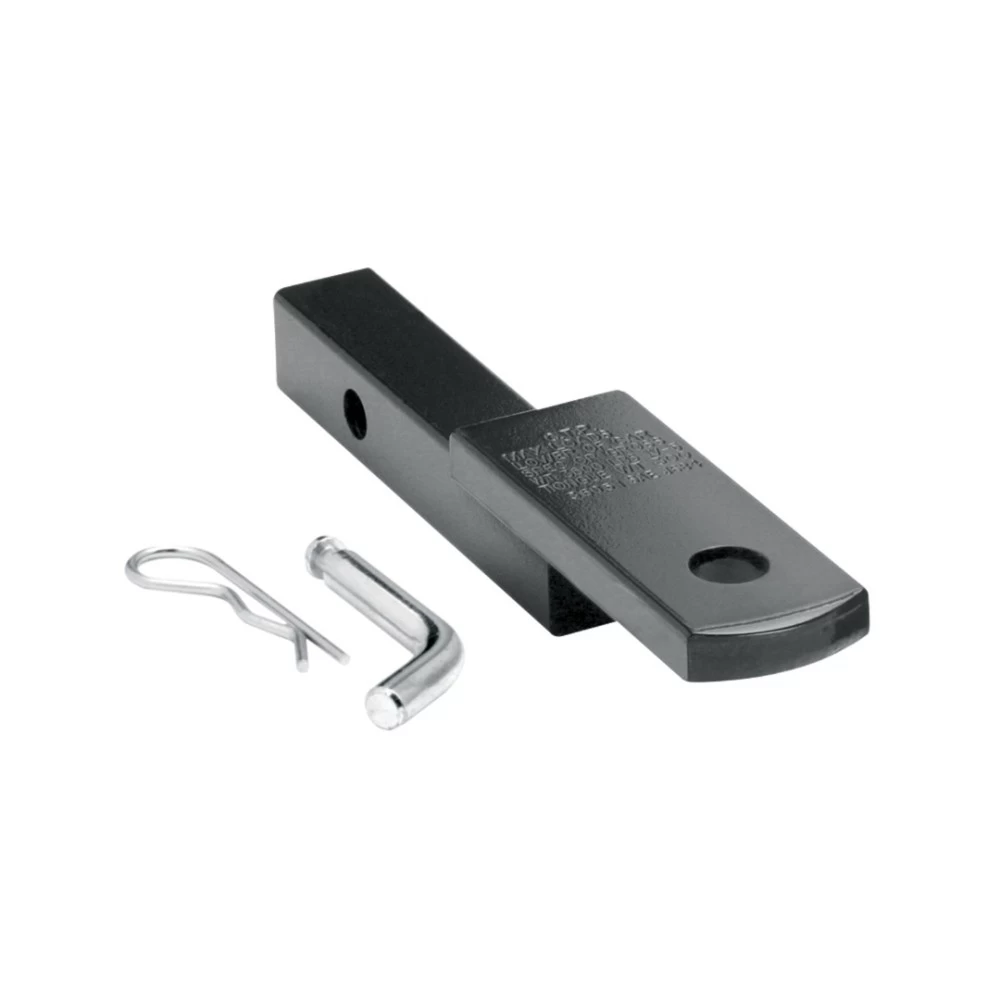

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36597F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36597
• 06183
• CQT36597

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Pliers
• Sockets: 11/16"
• Lubricant or Soapy Water

Installation Time:

• Estimated: 20 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower the Exhaust:

   • Remove the rubber isolators from the exhaust at the rear of the vehicle on both sides.
   • If necessary, remove the isolator forward of the rear axle to provide additional clearance.
   • Spray lubricant or soapy water on the hanger rods and rubber isolators to ease removal.

2. Install Hardware:

   • Using the fish wire, feed the carriage bolts and spacers through the large access holes at the end of the vehicle frame.
   • Repeat this process for both sides of the frame, ensuring the fish wires remain attached to the hardware.

3. Position and Install the Hitch:

   • Carefully raise the hitch into position, guiding it over the mufflers.
   • Feed the ends of the fish wires through the mounting holes in the hitch to align the hardware.
   • Loosely install the conical washers (teeth side facing the hitch) and hex nuts to hold the hitch in place.
   • Over the towhook, install the U-bolt and attach the flat washers, lock washers, and hex nuts as shown in the diagram.

4. Tighten All Fasteners:

   • Use a torque wrench to tighten all fasteners to the specified torque:
     • Tighten 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).
     • Tighten 3/8"-16 GR5 fasteners to 30 ft-lb (41 N*m).

5. Raise the Exhaust:

   • Reattach the exhaust system by reinstalling the rubber isolators removed in Step 1.

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)
• 3/8"-16 GR5 bolts: 30 ft-lb (41 N*m)

Hardware List:

• (4) Carriage Bolts, 7/16"-14 x 1.25" GR5
• (4) Spacer Blocks, 0.25" x 1.00" x 2.00"
• (4) Conical Washers, 7/16"
• (4) Hex Nuts, 7/16"-14 GR2
• (1) U-Bolt, 3/8"-16 GR5
• (2) Flat Washers, 3/8"
• (2) Lock Washers, 3/8"
• (2) Hex Nuts, 3/8"-16 GR2
• (4) Fish Wires, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36597F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

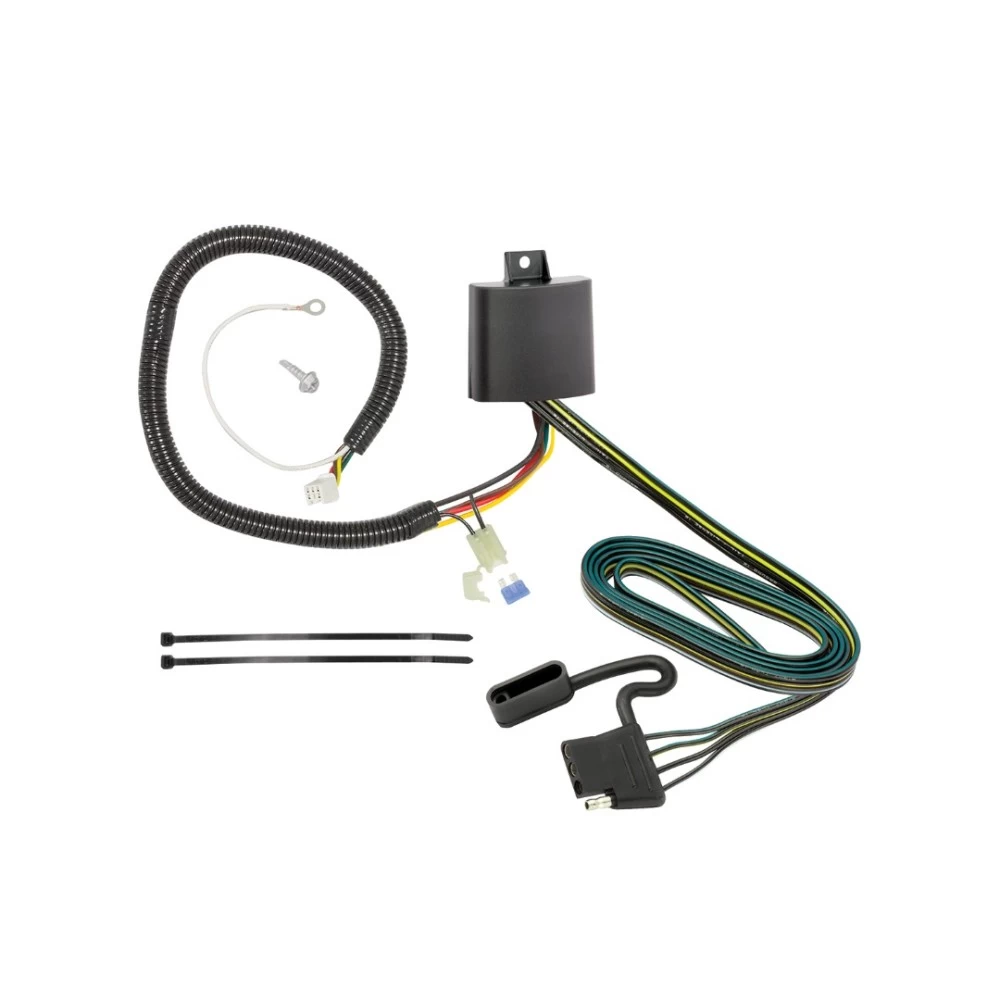

Installation Instructions for T-One® T-Connector for Honda CR-V

Part Numbers:

• 118741

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the hatch of the vehicle and temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • It may be helpful to fold the rear seat forward for easier access.

2. Remove Interior Trim Panels:

   • Carefully remove the lower cargo hook by pushing in on the white plastic clip.
   • Using a trim panel remover tool, carefully pull back the upper and lower trim panels on the driver’s side.

3. Connect the Driver-Side T-Connector:

   • Gently pull back the upper trim panel to reveal the vehicle’s white 6-pin connector.
   • Connect the T-One® T-Connector harness into the vehicle’s white 6-pin housing and lock it into place.

4. Ground the White Wire:

   • Locate the existing ground stud on the driver’s side.
   • Loosen the bolt, place the screw eyelet on the stud, and re-tighten the bolt.
   • Ensure all existing ground connections are still attached and torqued to the manufacturer's specifications.

5. Mount the Black Box Module:

   • Apply the supplied double-sided tape to the flat side of the black box.
   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
   • Clean the mounting surface with a 50/50 mixture of rubbing alcohol and water before securing the black box.

6. Connect the Fuse:

   • For models from 2017-2022, locate the interior fuse compartment under the steering column and identify fuse location 37.
   • For 2023-current models, identify fuse location 17. If a fuse is not installed, insert the 15-amp fuse included in the hardware kit.
   • Note: Fuse installation may not be required for all models.

7. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

8. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure no wires are pinched or damaged during reassembly.

9. Store the 4-Flat Connector:

   • When not in use, store the 4-flat harness in an out-of-the-way area in the rear cargo compartment.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Honda CR-V

Part Numbers:

• 118741

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the hatch of the vehicle and temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • It may be helpful to fold the rear seat forward for easier access.

2. Remove Interior Trim Panels:

   • Carefully remove the lower cargo hook by pushing in on the white plastic clip.
   • Using a trim panel remover tool, carefully pull back the upper and lower trim panels on the driver’s side.

3. Connect the Driver-Side T-Connector:

   • Gently pull back the upper trim panel to reveal the vehicle’s white 6-pin connector.
   • Connect the T-One® T-Connector harness into the vehicle’s white 6-pin housing and lock it into place.

4. Ground the White Wire:

   • Locate the existing ground stud on the driver’s side.
   • Loosen the bolt, place the screw eyelet on the stud, and re-tighten the bolt.
   • Ensure all existing ground connections are still attached and torqued to the manufacturer's specifications.

5. Mount the Black Box Module:

   • Apply the supplied double-sided tape to the flat side of the black box.
   • Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box module to prevent damage or rattling.
   • Clean the mounting surface with a 50/50 mixture of rubbing alcohol and water before securing the black box.

6. Connect the Fuse:

   • For models from 2017-2022, locate the interior fuse compartment under the steering column and identify fuse location 37.
   • For 2023-current models, identify fuse location 17. If a fuse is not installed, insert the 15-amp fuse included in the hardware kit.
   • Note: Fuse installation may not be required for all models.

7. Secure the Wiring Harness:

   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness.
   • Avoid areas that may pinch, cut, or melt the wire.

8. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Ensure no wires are pinched or damaged during reassembly.

9. Store the 4-Flat Connector:

   • When not in use, store the 4-flat harness in an out-of-the-way area in the rear cargo compartment.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:
For complete warranty instructions, please download the full installation PDF.
