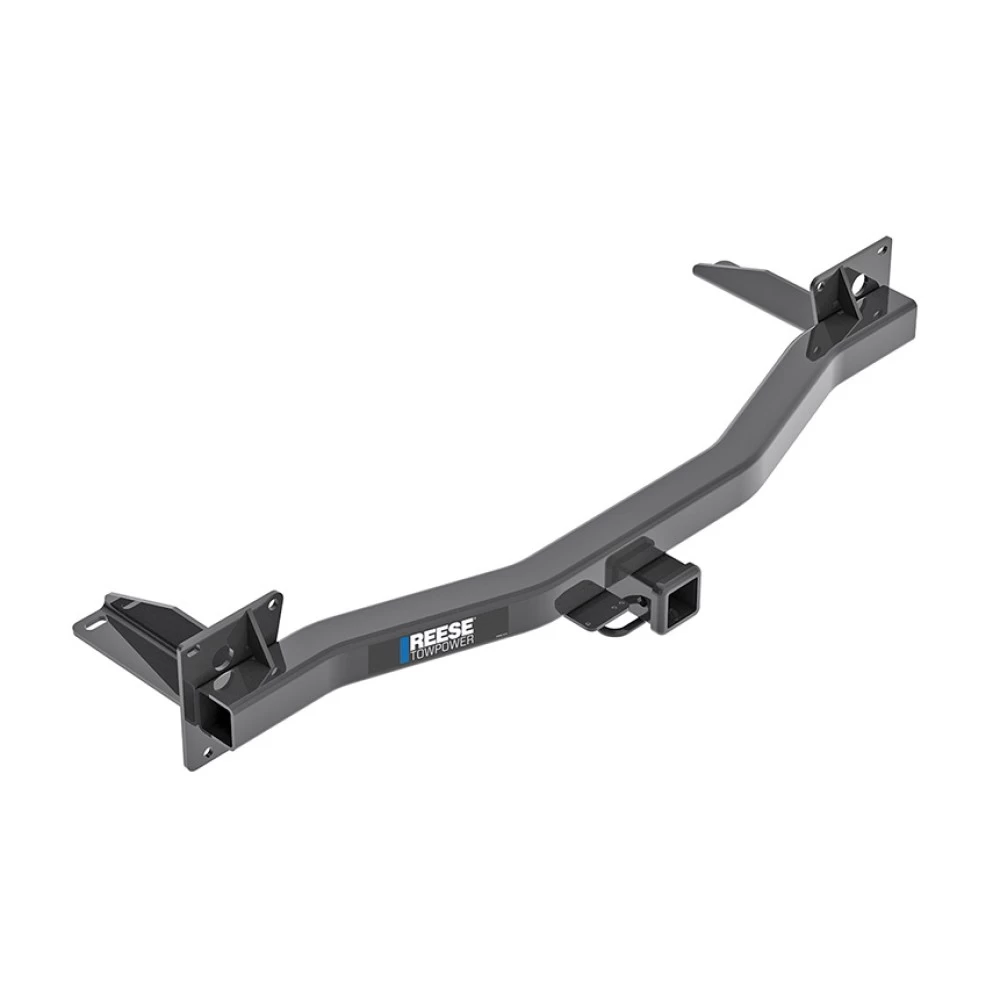

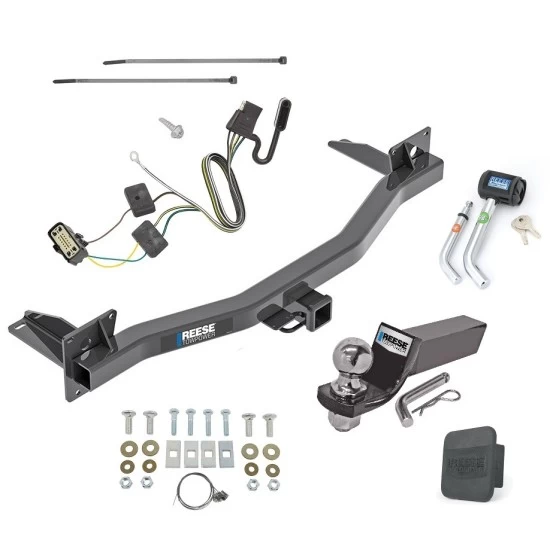

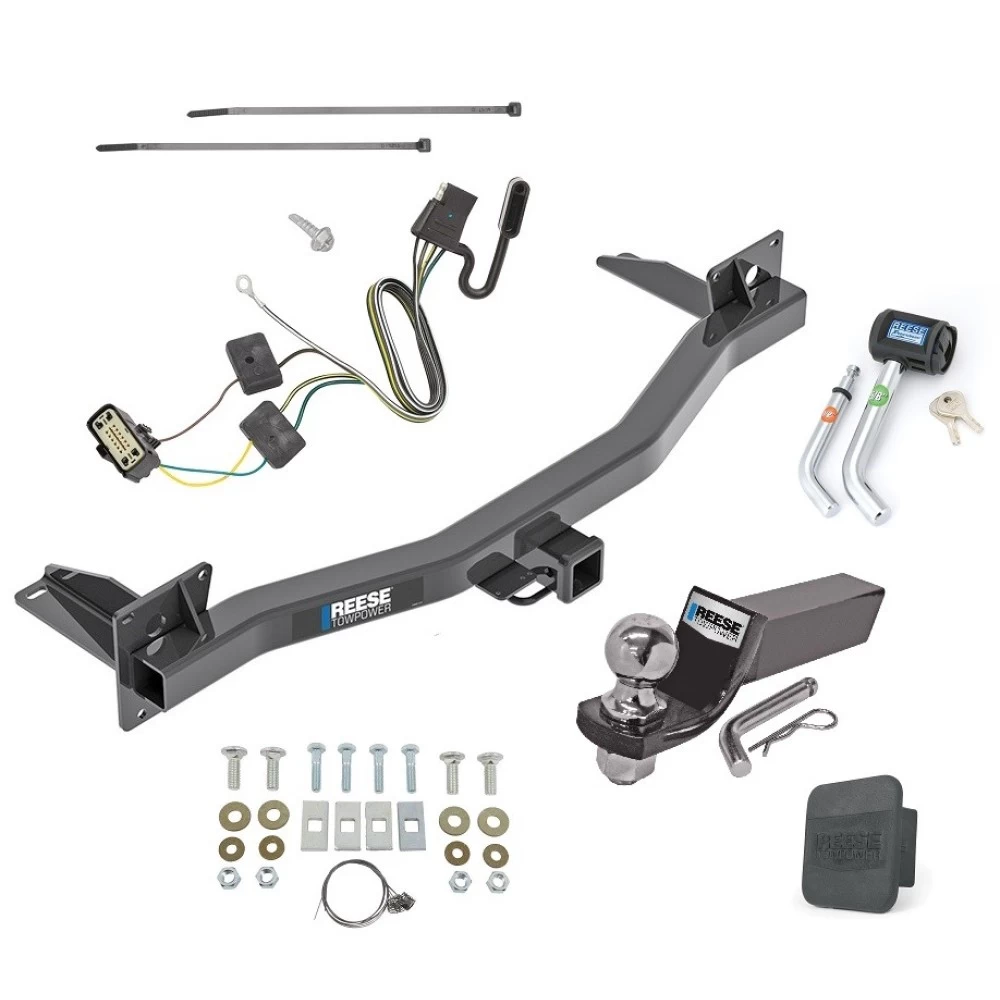

Installation Instructions for Trailer Hitch #76184, #84184, and #CQT76184

Part Numbers:

• 76184
• 84184
• CQT76184

Applications:

• Years: 2018–Current
• Make and Models:
  • Chevrolet Traverse
  • Buick Enclave

Visit the manufacturer’s website for the most up-to-date information regarding application years and trim levels.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 7 mm, 15 mm, 3/4"
• 6" Socket Extension
• Flat Head Screwdriver
• Plastic Trim Tools
• T15 and T20 Torx Bits

Step-by-Step Instructions:

1. Remove Fascia (Chevrolet Traverse):

1. Open the tailgate and remove (4) plastic covers below the taillights.
2. Remove the (4) screws behind the covers using a 7 mm socket, (2) per side.
3. Remove (2) screws connecting the bottom edge of the fascia to metal support tabs using a T20 socket.
4. Remove (8) screws connecting the wheel well liner to the fascia using a T15 socket, (4) per side.
5. Pull back the wheel well trim and remove (2) screws connecting the fascia to the vehicle body using a 7 mm socket, (1) per side.
6. Starting from the wheel well, gently pull off the fascia. Disconnect any attached wires.

2. Remove Fascia (Buick Enclave):

1. Using a T15 Torx bit, remove (2) screws from the bottom of the fascia.
2. Using a flat head screwdriver, remove (2) bolt covers, then remove the (2) bolts below the taillight with a 7 mm socket, per side.
3. Use a T20 Torx bit to remove (1) screw below the taillight, per side.
4. Remove (4) screws from the wheel well liner with a T15 Torx bit, per side.
5. Use a 7 mm socket to remove (1) vertically attached bolt under the wheel well liner, per side.
6. Starting from the wheel well, gently pull off the fascia and disconnect any attached wires.

3. Support Exhaust & Remove Bumper Beam:

1. Remove (4) M10 nuts from the top bumper attachments with a 15 mm socket, (2) per side.
2. Remove (4) M10 bolts from the bottom bumper attachments with a 15 mm socket, (2) per side.
3. Support the exhaust system, as the bolts also attach the exhaust hangers.
4. Return the bumper and bolts to the vehicle owner.

4. Install Hitch:

1. Raise the hitch into position over the bumper studs and reinstall the nuts removed earlier.
2. Raise the exhaust hangers into position and install M10 bolts with conical washers (teeth side toward the hitch).
3. Feed carriage bolts and spacers into the vehicle frame through the access hole in the hitch using fish wires.
4. Remove the fish wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the carriage bolts.

5. Torque Fasteners:

1. Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
2. Tighten all M10 fasteners to 38 lb-ft (52 N·m).

6. Reinstall Fascia:

1. Reinstall the exhaust muffler and fascia.
2. Connect the electrical harness while reinstalling the fascia.

Hardware List:

• 4 × Carriage Bolts (1/2"-13 × 1.5", GR5)
• 4 × Spacer Blocks (1/4" × 1" × 2")
• 4 × Conical Washers (1/2")
• 4 × Hex Nuts (1/2"-13, GR5)
• 4 × Bolts (M10 × 1.5 × 45 mm, CL10.9)
• 4 × Conical Washers (3/8")
• 4 × Fish Wires (1/2")

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
• Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or hitch ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 5,000 lbs (2,270 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 750 lbs (340 kg)
• Installation Time: Approximately 75 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For assistance, visit www.trailerjacks.com or call 877-869-6690.

Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.

Installation Instructions for T-One® T-Connector for Chevrolet Traverse

Part Numbers:

• 118761

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle’s Tow Plug:

   • Underneath the vehicle on the driver’s side, locate the vehicle’s tow plug.
   • Disconnect the mating protective cover and discard it.
   • Connect the tow plug harness into the mating harness.
   • Ensure the mating surfaces of the connectors match, and all connector surfaces are clean and free of dirt.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs in place.

2. Route the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the fascia of the bumper.

   Warning: Be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

3. Secure the 4-Flat Tow Harness:

   • Secure the 4-flat tow harness to the hitch. (Bracket not included.)
   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness under the bumper, ensuring the wires avoid any areas that could cut or pinch them.

4. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® T-Connector to function properly.
   • Test the installation using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

5. Safety Checks:

   • Overloading circuits can cause fires. Do not exceed the stated product ratings.
   • Refer to the vehicle owner’s manual and the instruction sheet for additional details.

Safety Notes:

• Always wear safety glasses and use all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase before beginning installation. Keep for future reference.
• Do not exceed the lower of the towing manufacturer’s rating or specific amperage ratings stated on the product.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Chevrolet Traverse

Part Numbers:

• 118761

Tools Required:

• Trim Panel Remover
• Test Probe

Step-by-Step Instructions:

1. Locate the Vehicle’s Tow Plug:

   • Underneath the vehicle on the driver’s side, locate the vehicle’s tow plug.
   • Disconnect the mating protective cover and discard it.
   • Connect the tow plug harness into the mating harness.
   • Ensure the mating surfaces of the connectors match, and all connector surfaces are clean and free of dirt.
   • Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs in place.

2. Route the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the fascia of the bumper.

   Warning: Be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

3. Secure the 4-Flat Tow Harness:

   • Secure the 4-flat tow harness to the hitch. (Bracket not included.)
   • Use the provided cable ties to secure the remainder of the T-One® T-Connector harness under the bumper, ensuring the wires avoid any areas that could cut or pinch them.

4. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® T-Connector to function properly.
   • Test the installation using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

5. Safety Checks:

   • Overloading circuits can cause fires. Do not exceed the stated product ratings.
   • Refer to the vehicle owner’s manual and the instruction sheet for additional details.

Safety Notes:

• Always wear safety glasses and use all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase before beginning installation. Keep for future reference.
• Do not exceed the lower of the towing manufacturer’s rating or specific amperage ratings stated on the product.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
