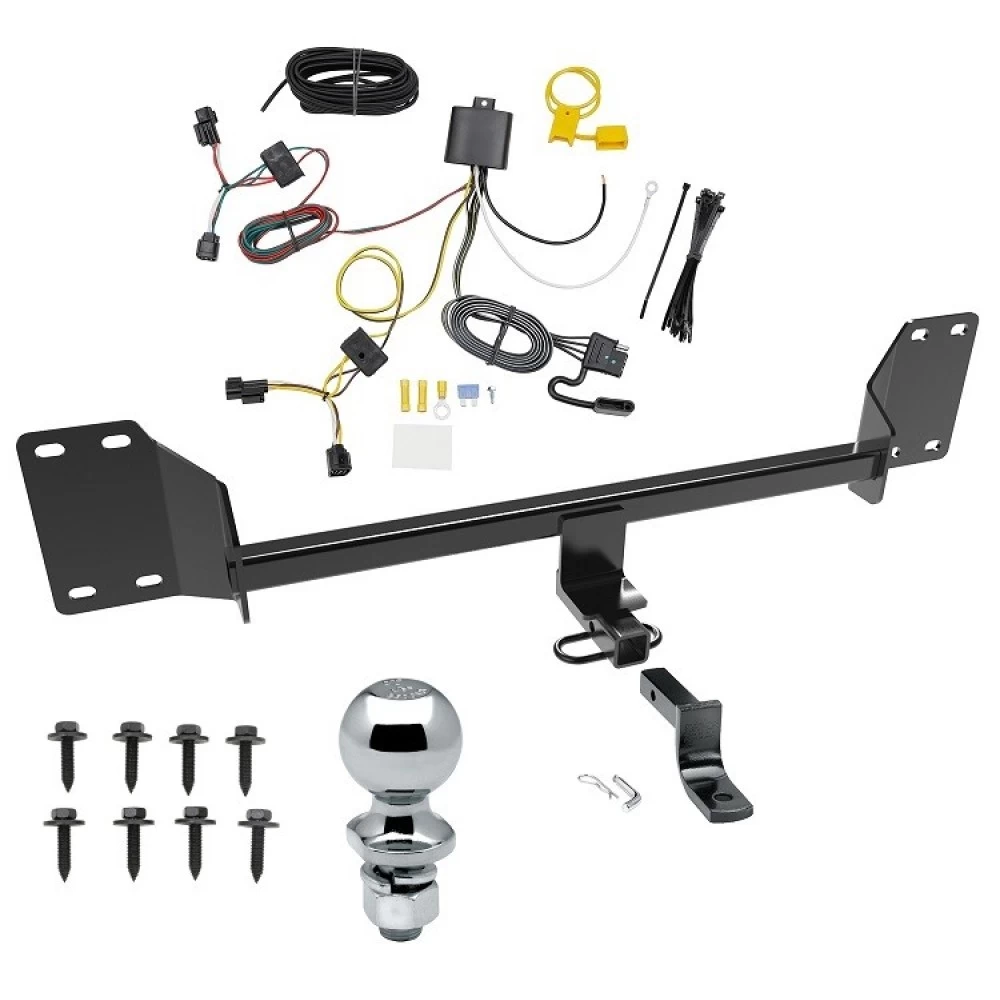

Installation Instructions for Honda Accord (2018-Current)

Part Numbers:

• 24972
• 77972
• CQT24972

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 12mm, 13mm
• 6" Socket Extension
• Panel Removal Tool
• Utility Knife
• Phillips Screwdriver
• Plastic Trim Tools
• Tape
• 5mm Hex Bit

Step-by-Step Instructions:

1. Remove Bumper Fascia:

   • Use a panel removal tool to remove 4 plastic rivets from the bottom fascia.
   • Using a Phillips screwdriver, remove 2 horizontal screws and 1 vertical screw from the wheel well liner on each side.
   • Open the rear hatch and use a 5mm hex bit to remove 2 screws near the taillight.
   • Use plastic trim tools to gently remove the fascia, starting at the outer edges near the wheel wells.

2. Remove Bumper Beam:

   • Using a 12mm socket, remove 4 factory M8 bolts from the bumper plate on each side.
   • Return the bolts to the vehicle owner and gently remove the bumper beam.

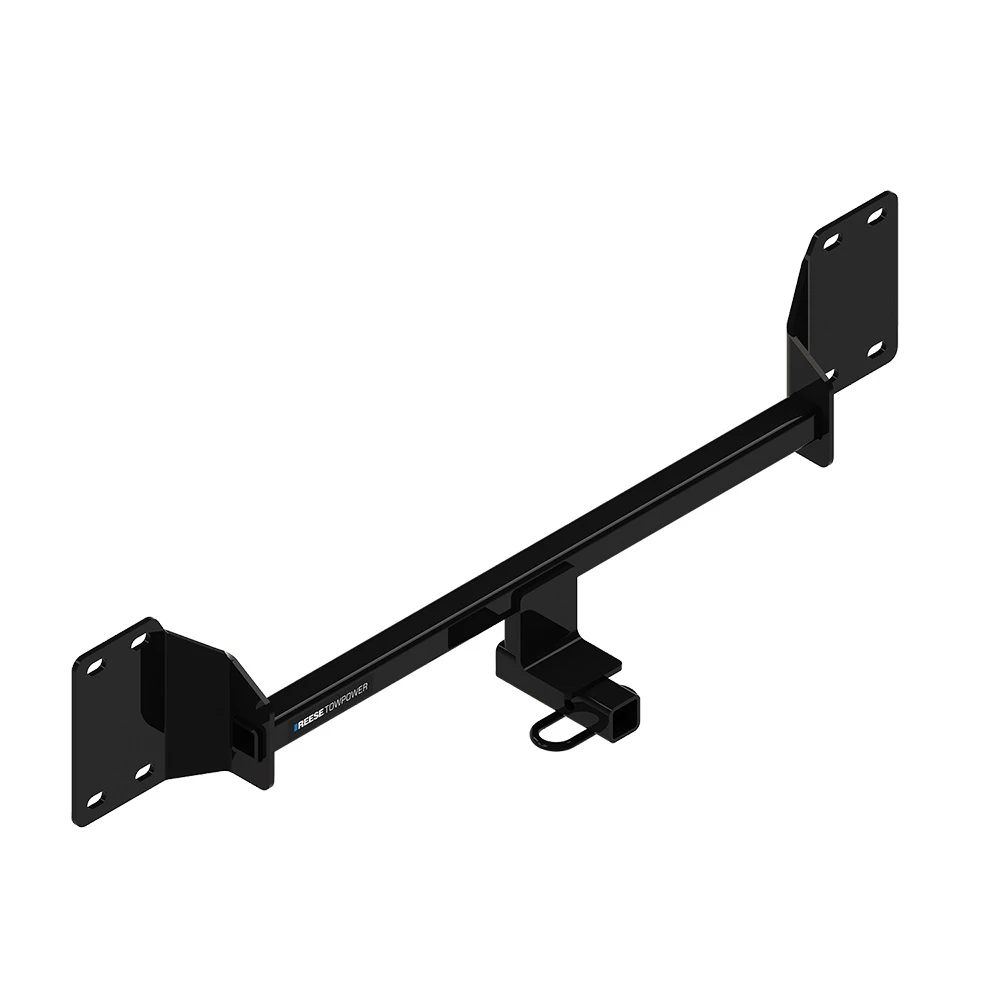

3. Install Hitch:

   • Push the thin metal piece inward and make it flush with the end panel on each side.
   • Align the bumper beam with the hitch on the floor, then raise them together to the end panel.
   • Loosely secure the M8 bolts to the bumper beam and hitch at 8 locations.

4. Torque Fasteners:

   • Tighten all M8 fasteners to 25 ft-lb (34 N*m) using a torque wrench.

5. Optional: Trim Bumper Fascia:

   • If the hitch pushes up on the bottom of the bumper fascia, trim it as shown in Figure 3.

6. Reinstall Components:

   • Reinstall all fasteners and the bumper fascia removed in Steps 1 and 2.

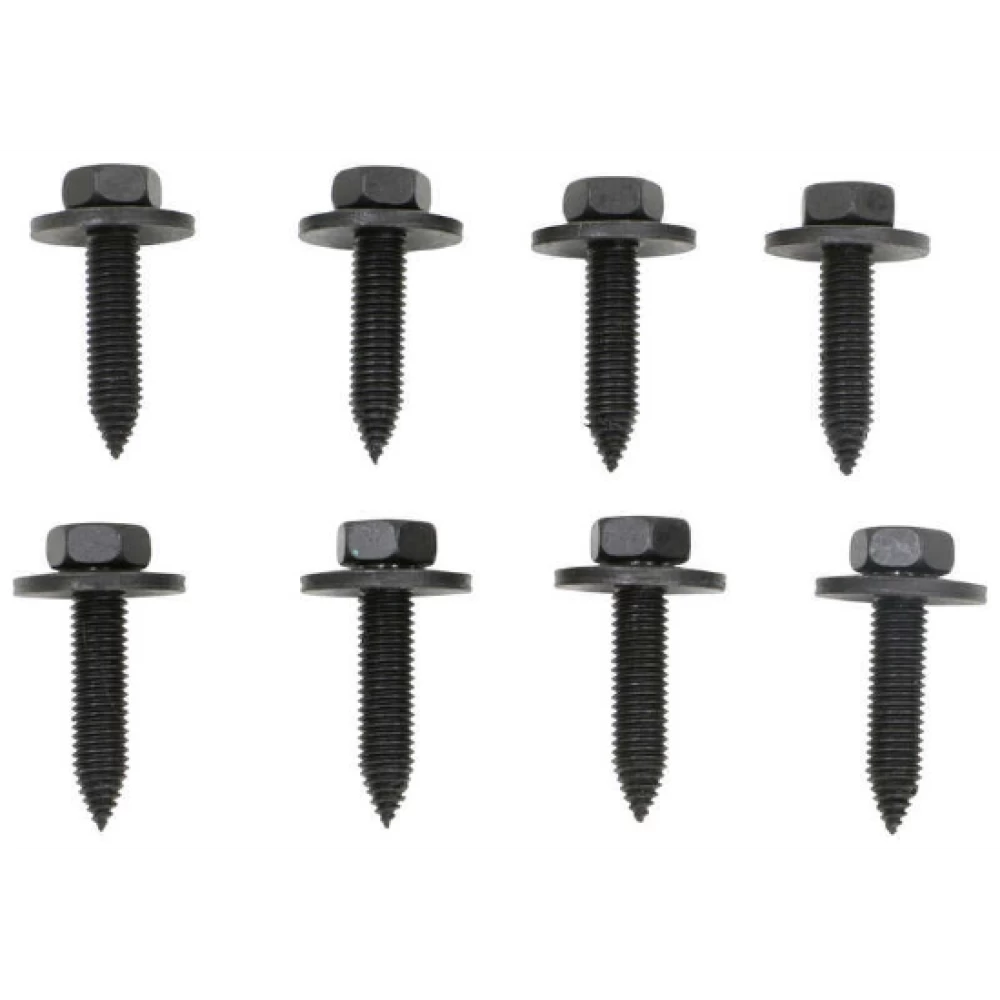

Hardware List:

• (8) Bolt, M8 x 1.25 x 35mm, CL 9.8

Safety Notes:

• Always wear safety glasses during installation.
• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.

Specifications:

• Installation Time: 60 minutes
• Max Gross Trailer Weight: 2,000 lb (908 kg)
• Max Tongue Weight: 200 lb (90.8 kg)
• Complies with SAE J684 and VESC Regulation V-5 standards.

Installation Instructions for Vehicle (2018-Current)

Part Numbers:

• 24972
• 77972
• CQT24972

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 12mm, 13mm
• 6" Socket Extension
• Panel Removal Tool
• Utility Knife
• Phillips Screwdriver
• Plastic Trim Tools
• Tape
• 5mm Hex Bit

Step-by-Step Instructions:

1. Remove Bumper Fascia:

   • Use a panel removal tool to remove 4 plastic rivets from the bottom fascia.
   • Using a Phillips screwdriver, remove 2 horizontal screws and 1 vertical screw from the wheel well liner on each side.
   • Open the rear hatch and use a 5mm hex bit to remove 2 screws near the taillight.
   • Use plastic trim tools to gently remove the fascia, starting at the outer edges near the wheel wells.

2. Remove Bumper Beam:

   • Using a 12mm socket, remove 4 factory M8 bolts from the bumper plate on each side.
   • Return the bolts to the vehicle owner and gently remove the bumper beam.

3. Install Hitch:

   • Push the thin metal piece inward and make it flush with the end panel on each side.
   • Align the bumper beam with the hitch on the floor, then raise them together to the end panel.
   • Loosely secure the M8 bolts to the bumper beam and hitch at 8 locations.

4. Torque Fasteners:

   • Tighten all M8 fasteners to 25 ft-lb (34 N*m) using a torque wrench.

5. Optional: Trim Bumper Fascia:

   • If the hitch pushes up on the bottom of the bumper fascia, trim it as shown in Figure 3.

6. Reinstall Components:

   • Reinstall all fasteners and the bumper fascia removed in Steps 1 and 2.

Hardware List:

• (8) Bolt, M8 x 1.25 x 35mm, CL 9.8

Safety Notes:

• Always wear safety glasses during installation.
• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• Plug all removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.

Specifications:

• Installation Time: 60 minutes
• Max Gross Trailer Weight: 2,000 lb (908 kg)
• Max Tongue Weight: 200 lb (90.8 kg)
• Complies with SAE J684 and VESC Regulation V-5 standards.

Additional Information:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

• For complete warranty instructions, please download the full installation PDF.

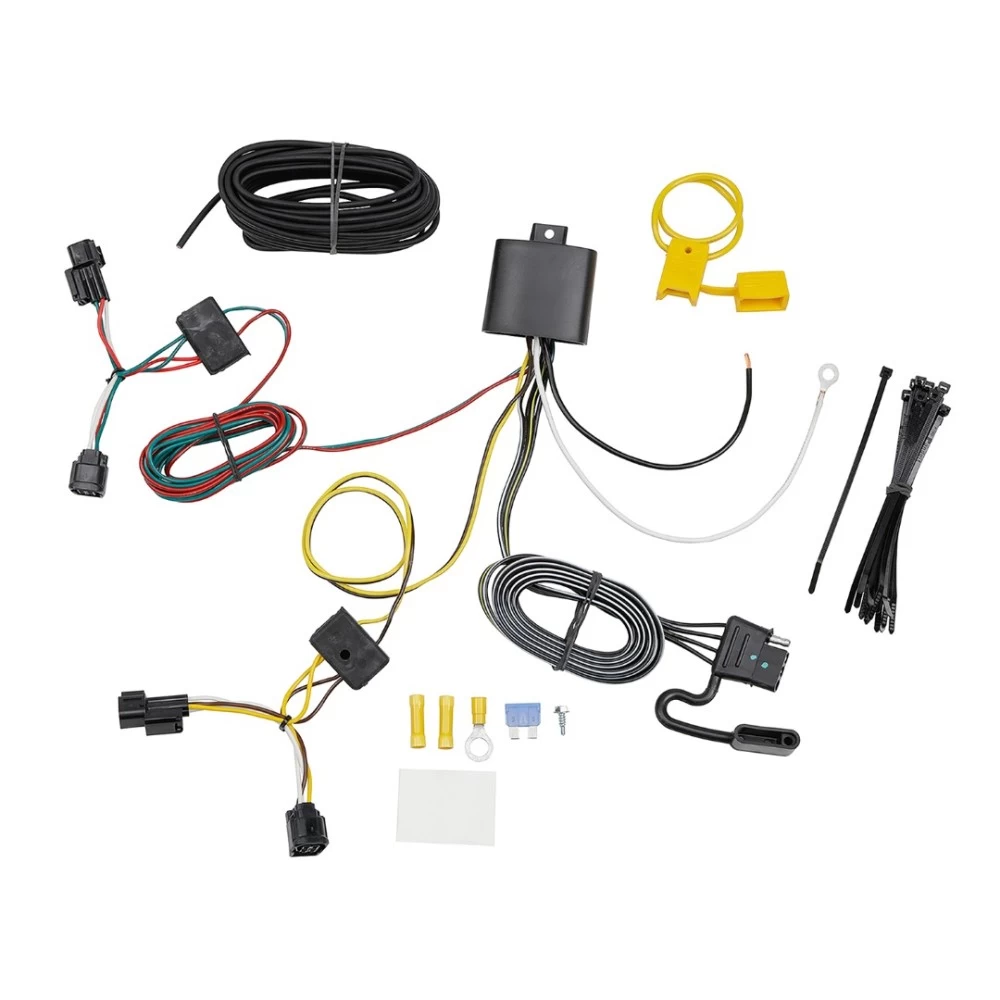

Installation Instructions for T-One® T-Connector for Honda Accord

Part Numbers:

• 118776

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

• On each side of the vehicle, locate the plastic cover between the taillights and trunk opening.
• Use a trim panel remover to carefully pull the cover, exposing the bolts holding the taillights.
• Remove the bolts (2 per side) using a Phillips head screwdriver or 10mm socket and gently pull the taillights away from the vehicle.

2. Access the Taillight Wiring Harness:

• From inside the trunk, temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.
• Locate the grommet between the taillight pocket and trunk.
• Pull the vehicle's taillight wiring harness and unseat the grommet. Disconnect the harness from both taillight sockets and set the taillight housings aside.

3. Install the T-Connector:

• Route the T-Connector ends through the hole and into the taillight pocket. Reseat the grommet around the wires, leaving the 4-flat connector and black converter box in the cargo area.

4. Connect the Driver-Side T-Connector:

• Insert the T-Connector end with the yellow wire between the driver-side taillight socket and vehicle wiring connectors.
• Ensure all connectors are fully inserted and locking tabs are secure.

5. Route the Passenger-Side T-Connector:

• Route the T-Connector end with the green wire through the panels and along the threshold to the passenger side.
• Insert the T-Connector end with the green wire between the passenger-side taillight socket and vehicle wiring connectors.

6. Ground the White Wire:

• Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
• Clean the area to remove dirt and rustproofing.
• Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

Caution:

• Verify what is behind the surface before drilling to avoid damage or injury.

7. Connect the Power Wire:

• On the driver’s side, locate the black 12-gauge power wire from the T-Connector box.
• Attach the provided black wire and route it along the frame or existing wiring to the engine compartment.

Warning:

• Avoid routing near hot pipes, heat shields, or the fuel tank.

8. Connect to the Vehicle Battery:

• Disconnect the Negative (-) battery cable.
• Remove the fuse from the yellow fuse holder.
• Attach the ring terminal to the Positive (+) battery cable and secure it.
• Connect the other end of the fuse holder to the black wire using the yellow butt connector.

9. Reconnect the Battery and Test:

• Reconnect the Negative (-) battery cable.
• Insert the 15-amp fuse into the fuse holder.
• Test the installation with a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

10. Mount the Black Box Module:

- Locate a flat, out-of-the-way surface to mount the black box module to prevent damage or rattling.

11. Secure the Wiring Harness:

- Use the provided cable ties to secure the harness, avoiding areas that may pinch, cut, or melt the wire.

12. Reassemble the Vehicle:

- Replace the threshold, felt trunk liner, and any other components removed during installation.

13. Store the 4-Flat Connector:

- Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow all safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.
