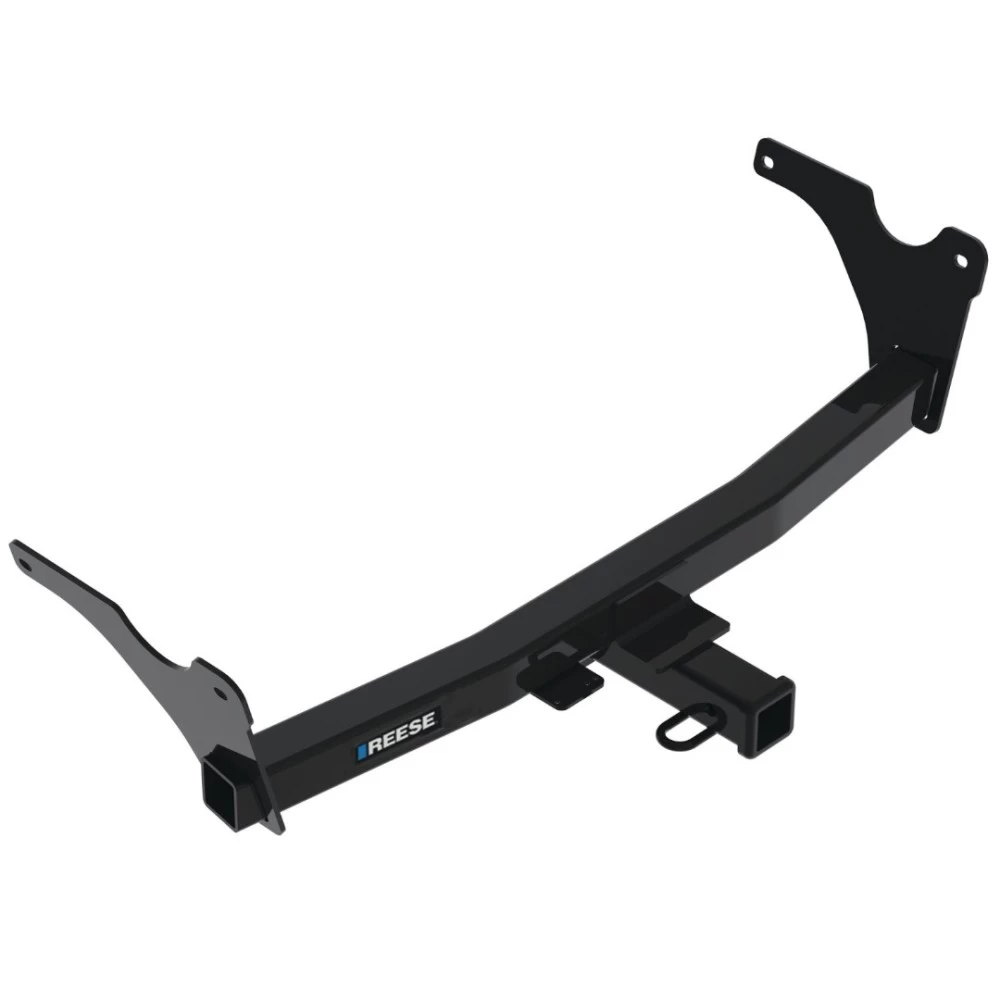

Product Details
- Brand: Reese
- Model: 84639
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help

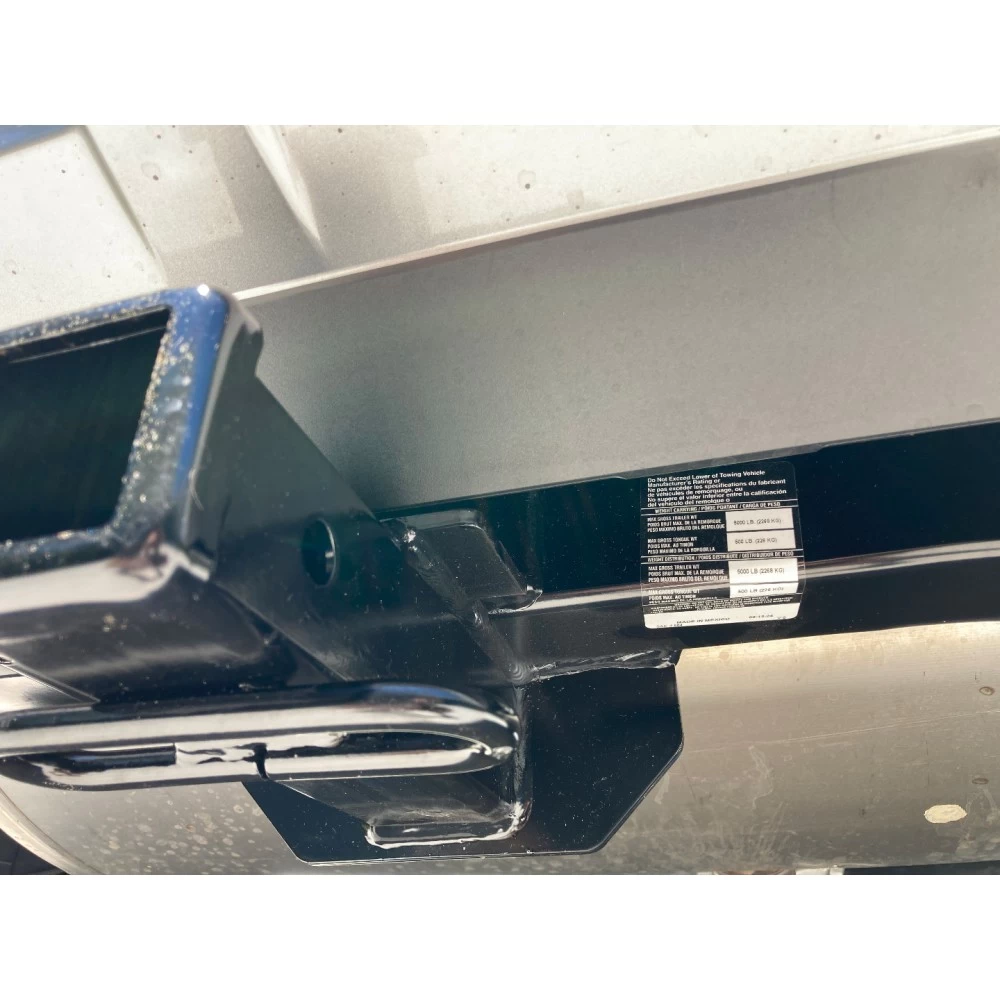

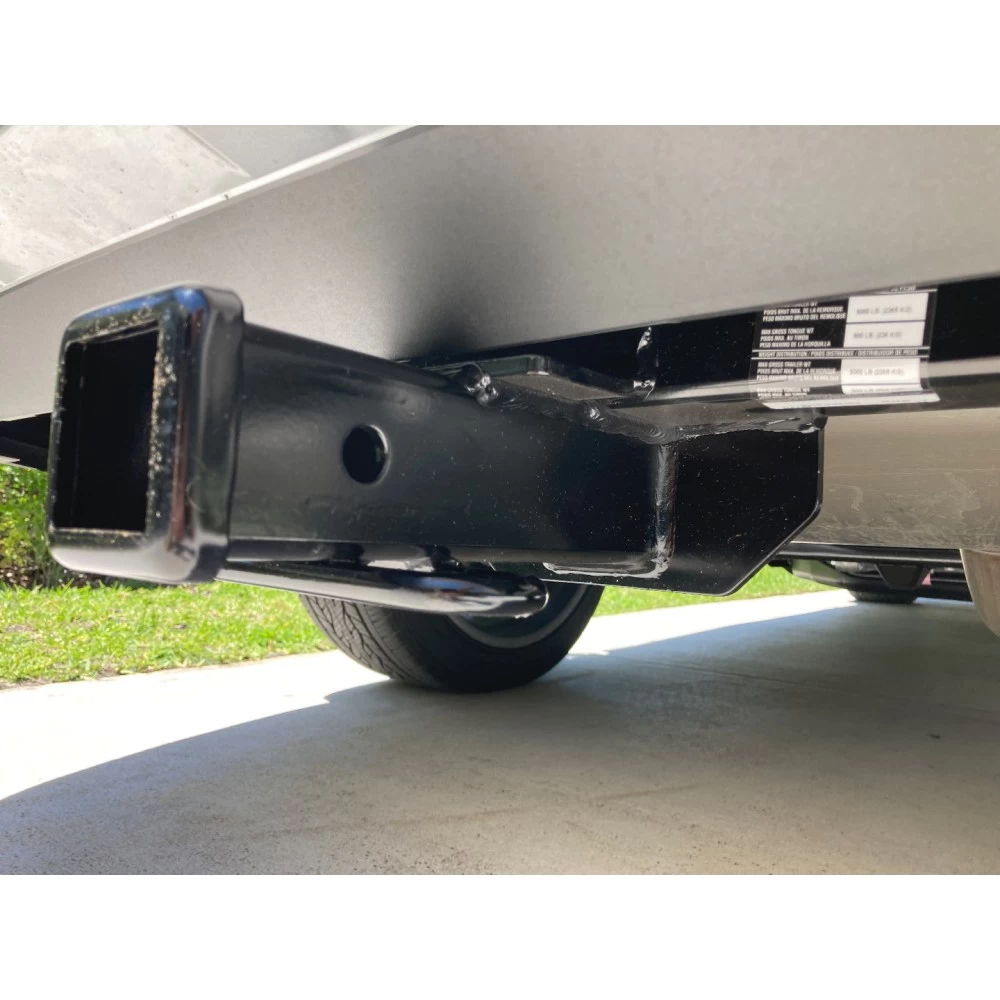

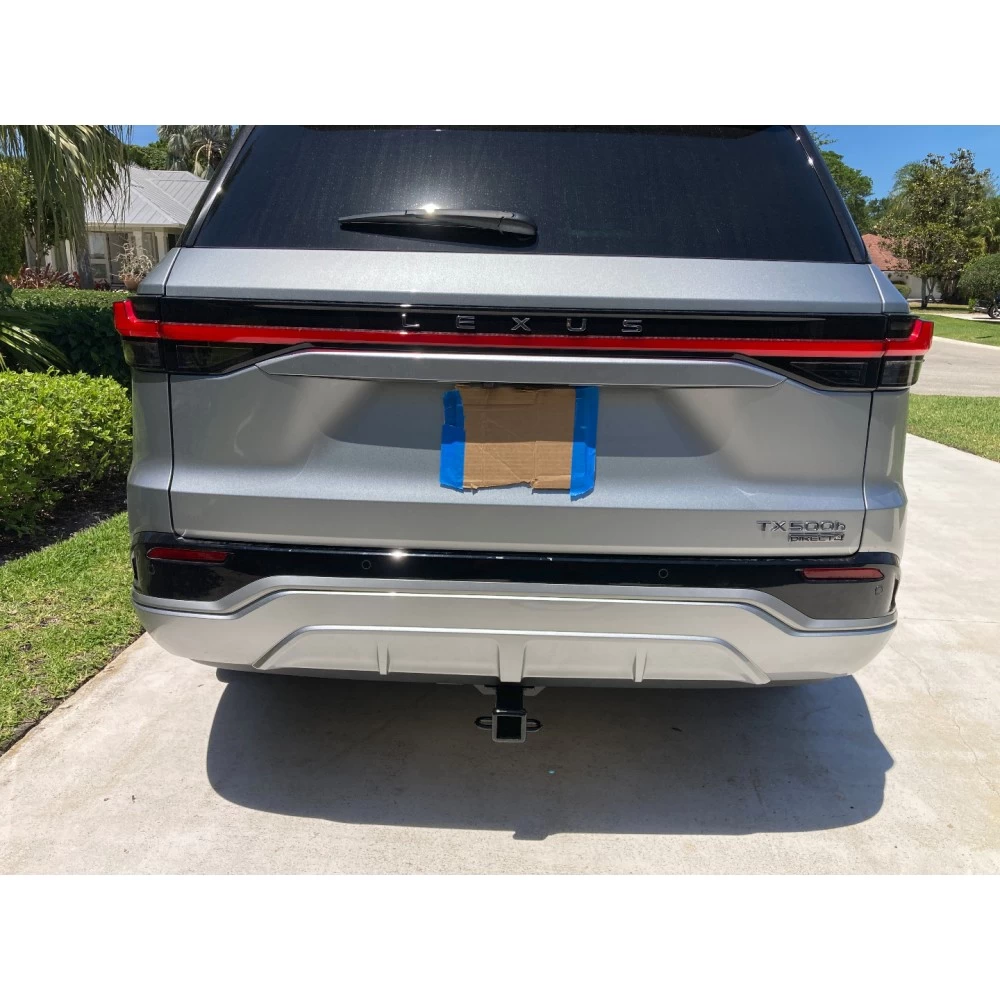

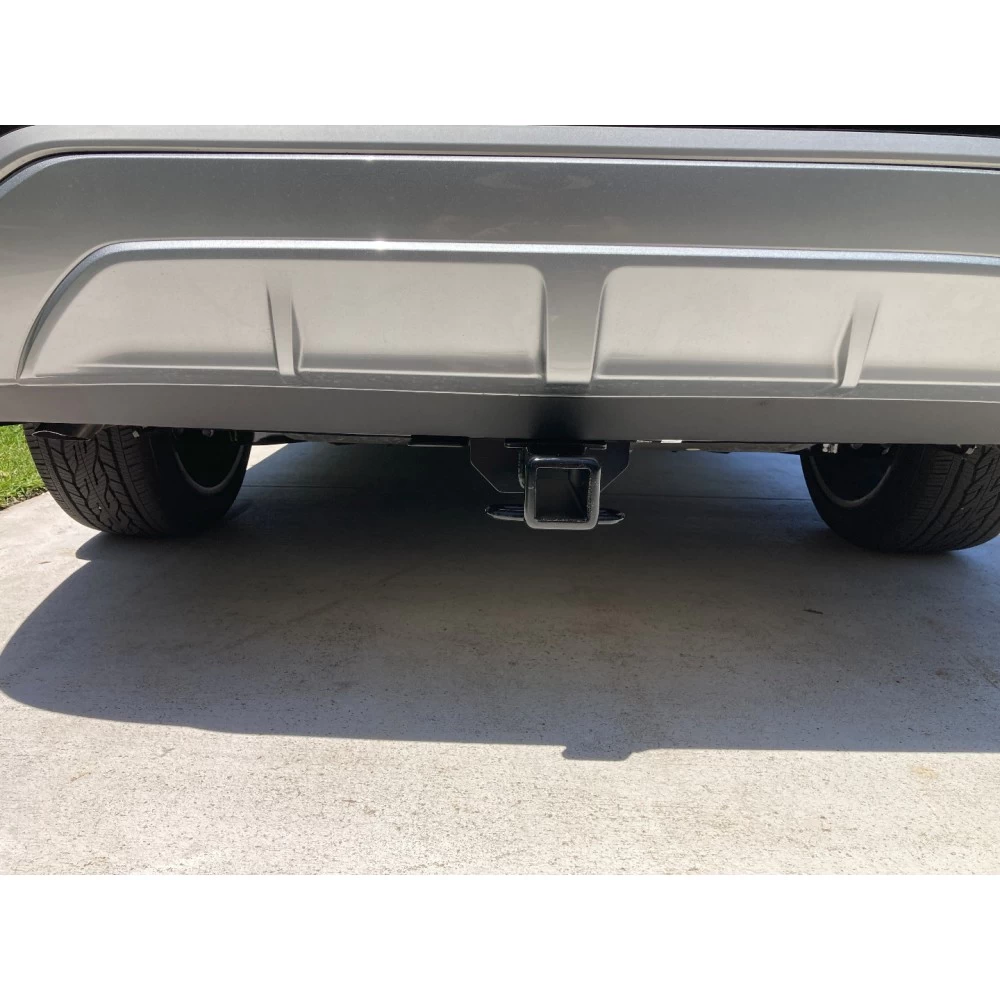

Reese Trailer Tow Hitch For 2024 Toyota Grand Highlander Lexus TX500h 2" Receiver Install Notes
Installation Instructions for Toyota Grand Highlander
Part Numbers:
- 76639
- 84639
- CQT76639
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 19mm
- Socket Extension
- Flat Head Screwdriver
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lbs (2,267 kg)
- Max Tongue Weight: 500 lbs (226 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lbs (2,267 kg)
- Max Tongue Weight: 500 lbs (226 kg)
Installation Time:
- Estimated: Beginner
Step-by-Step Instructions:
-
Remove Weldnut Plugs:
- Use a flat head screwdriver to remove the plastic expanding weldnut plugs from the outside of the frame rail. Repeat for the other side.
- Return plugs to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position and align the attachment holes in the hitch with the weldnuts in the vehicle frame.
-
Install Fasteners:
- Loosely install the supplied M12 x 1.25 x 30mm bolts and conical washers (teeth side toward the hitch).
-
Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 N·m).
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow all safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Toyota Grand Highlander
Part Numbers:
- 76639
- 84639
- CQT76639
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 19 mm
- Socket Extension
- Flat Head Screwdriver
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lbs (2,267 kg)
- Max Tongue Weight: 500 lbs (226 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lbs (2,267 kg)
- Max Tongue Weight: 500 lbs (226 kg)
Installation Time:
- Estimated: Beginner
Step-by-Step Instructions:
1. Remove Weldnut Plugs:
- Use a flat head screwdriver to remove the plastic expanding weldnut plugs from the outside of the frame rail. Repeat for the other side.
- Return plugs to the vehicle owner.
2. Install Hitch:
- Raise the hitch into position and align the attachment holes in the hitch with the weldnuts in the vehicle frame.
3. Install Fasteners:
- Loosely install the supplied M12 x 1.25 x 30 mm bolts and conical washers (teeth side toward the hitch).
4. Torque Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 68 lb-ft (92 N·m).
Safety Notes:
- Regularly inspect all fasteners to ensure the hitch and ball mount are securely attached.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow all safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered under a limited warranty. For complete warranty instructions, please download the full installation PDF.
