Product Details
- Brand: Draw-Tite
- Model: 246770 119148 63820

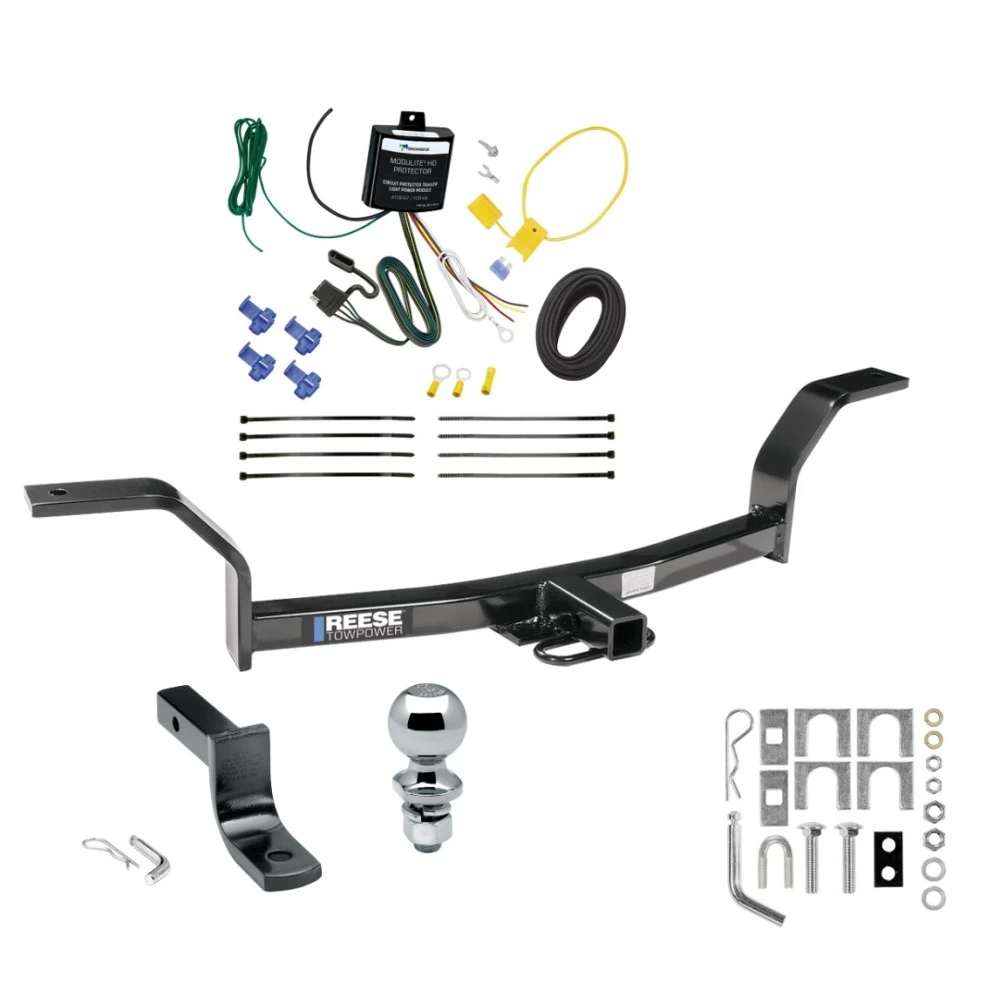

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, ModuLite HD Protector Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball
Compatibility Chart
Get Expert Help
Reese Trailer Tow Hitch For 92-00 Honda Civic Coupe and Sedan ONLY Complete Package w/ Wiring Draw Bar and 2" Ball Install Notes
Installation Instructions for Honda Civic and Acura 1.6 EL (Canada Only)
Part Numbers:
- 24677
- 77075
- 60034
Wiring Access Location:
- PC3
Tools Required:
- Wrenches: 9/16", 7/8"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Frame Rail:
- Fishwire the carriage bolt and block (5121) through the end of the frame rail as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position and loosely install the U-bolt, lock washers, and locknuts as shown.
-
Insert Spacer Blocks:
- Insert the 1/4” x 1-3/4” x 2” U-shaped block (3029) between each hitch side arm and the vehicle frame.
- Be cautious not to sandwich and crush the turned-down edge of the frame hole.
- Use the second U-shaped block (3029) if necessary to ensure that the receiver tube is level or slightly tilted upward.
-
Attach Tie Down Hook:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown. Use block (6484) if needed to level or tilt the receiver tube slightly upward.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.

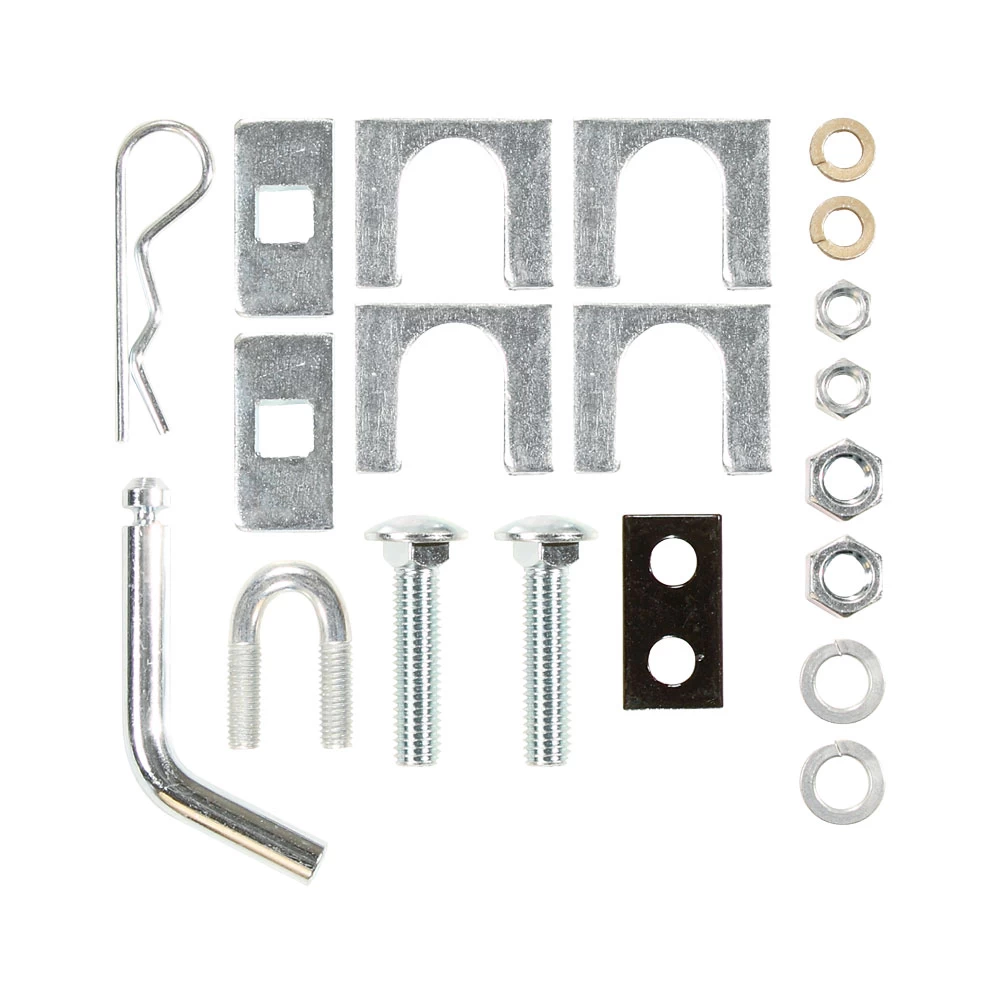

Hardware List:
- (1) 1/2”-13 x 2.25” GR5 Carriage Bolt
- (1) 1/4” x 1 x 2 Block (5121)
- (2) 1/4” x 1-3/4” x 2” U-shaped Blocks (3029)
- (1) 3/8”-16 U-bolt GR2
- (2) Lock Washers
- (2) Locknuts
- Optional Block: (6484) for adjustment if needed.
Drawbar:
- Drawbar: 3598
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Ensure the hitch meets the weight and clearance requirements of the vehicle and trailer.
Installation Instructions for Honda Civic and Acura 1.6 EL (Canada Only)
Part Numbers:
- 24677
- 77075
- 60034
Wiring Access Location:
- PC3
Tools Required:
- Wrenches: 9/16", 7/8"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Frame Rail:
- Fishwire the carriage bolt and block (5121) through the end of the frame rail as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position and loosely install the U-bolt, lock washers, and locknuts as shown.
-
Insert Spacer Blocks:
- Insert the 1/4” x 1-3/4” x 2” U-shaped block (3029) between each hitch side arm and the vehicle frame.
- Be cautious not to sandwich and crush the turned-down edge of the frame hole.
- Use the second U-shaped block (3029) if necessary to ensure that the receiver tube is level or slightly tilted upward.
-
Attach Tie Down Hook:
- Install the 3/8”-16 U-bolt through the tie-down hook and hitch bracket as shown. Use block (6484) if needed to level or tilt the receiver tube slightly upward.
-
Tighten Fasteners:
- Torque all 3/8”-16 GR2 fasteners to 20 Lb.-Ft.
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft.
Hardware List:
- (1) 1/2”-13 x 2.25” GR5 Carriage Bolt
- (1) 1/4” x 1 x 2 Block (5121)
- (2) 1/4” x 1-3/4” x 2” U-shaped Blocks (3029)
- (1) 3/8”-16 U-bolt GR2
- (2) Lock Washers
- (2) Locknuts
- Optional Block: (6484) for adjustment if needed.
Drawbar:
- Drawbar: 3598
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball.
- Always observe safety precautions and wear safety glasses during installation.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Ensure the hitch meets the weight and clearance requirements of the vehicle and trailer.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24677 Rev. A 6/25/2014
Installation Instructions for Modulite® HD Protector Vehicle Wiring
Part Number:
- 119148
Tools Required:
- Phillips Head #2 Screwdriver
- Wire Cutters
- Wire Strippers/Wire Crimpers
- Tester or Volt Meter
- Socket & Ratchet Set
- Drill with 3/32” Drill Bit
- Double-Sided Tape
Step-by-Step Instructions:
Tow Vehicle Inputs - Determination:
- Disconnect and isolate the vehicle's negative battery terminal.
- Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
- Splice the tow harness input wires to the vehicle as determined.
- Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.
Harness Installation:
- Determine the mounting location of the module and secure it using the double-sided tape provided.
- Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
- Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
- Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15 amp fuse yet.
- Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.
Completion:
- Secure the harness with cable ties provided to prevent damage or rattling.
- Reconnect the vehicle's negative battery cable.
- Insert the 15 amp fuse into the fuse holder and close the cap.
- Test the installation using a test light or trailer. Check each function independently and in combination.
Hardware List:
- 8 × Cable Ties, 8.5”
- 1 × 15 AMP Fuse
- 2 × Ring Terminals
- 1 × Fuse Holder
- 2 × Yellow Butt Connectors
- 1 × Self-Tapping Screw
- 4 × Blue Taps
- 1 × Spade Terminal
Wiring Outputs:
- White Wire: Ground
- Brown Wire: Tail
- Yellow Wire: Left Turn/Brake
- Green Wire: Right Turn/Brake
- Red Wire: Stop (for 3-wire systems only)
Safety Notes:
- Always read and follow all warnings and instructions included with the product and the vehicle's manual.
- Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
- Wear safety glasses and use all necessary safety precautions during installation.
Troubleshooting Guide:
- 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
- No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.
Specifications:
- Installation Time: Approximately 45 minutes
- Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For warranty information, please download the full installation PDF.
