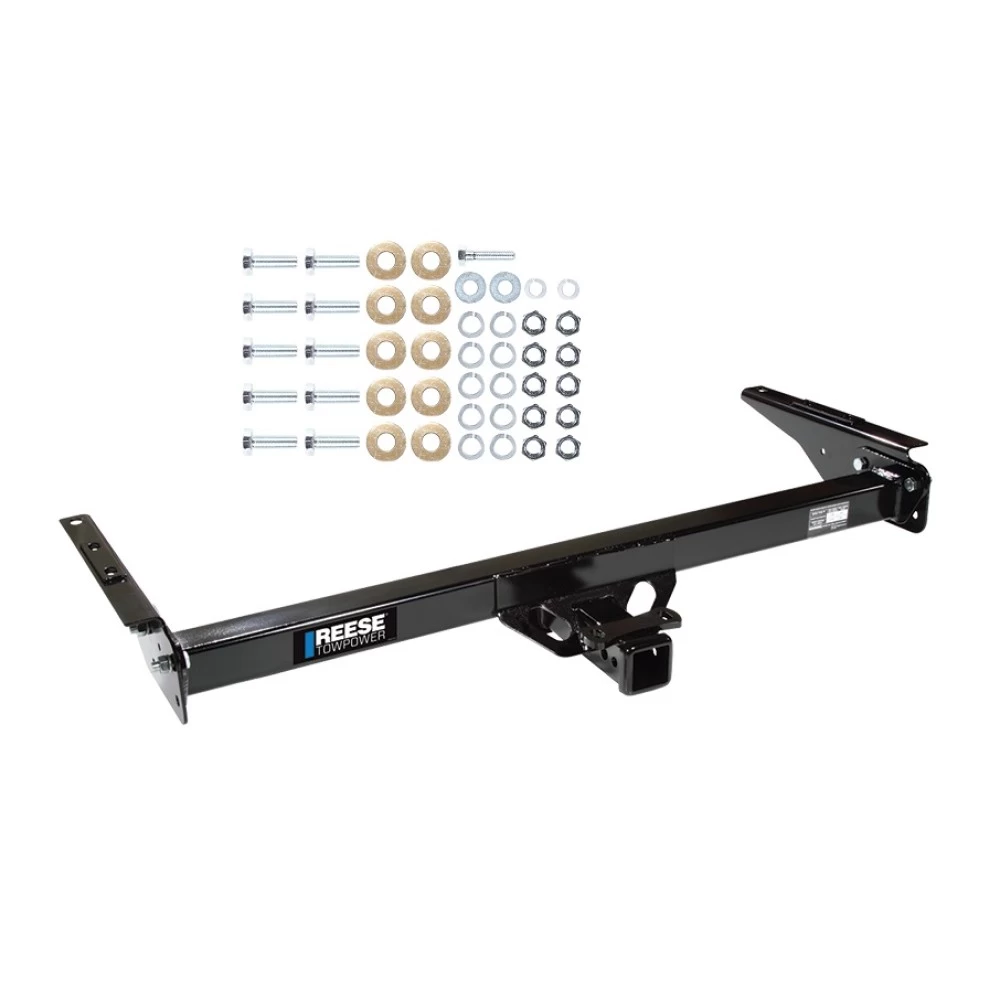

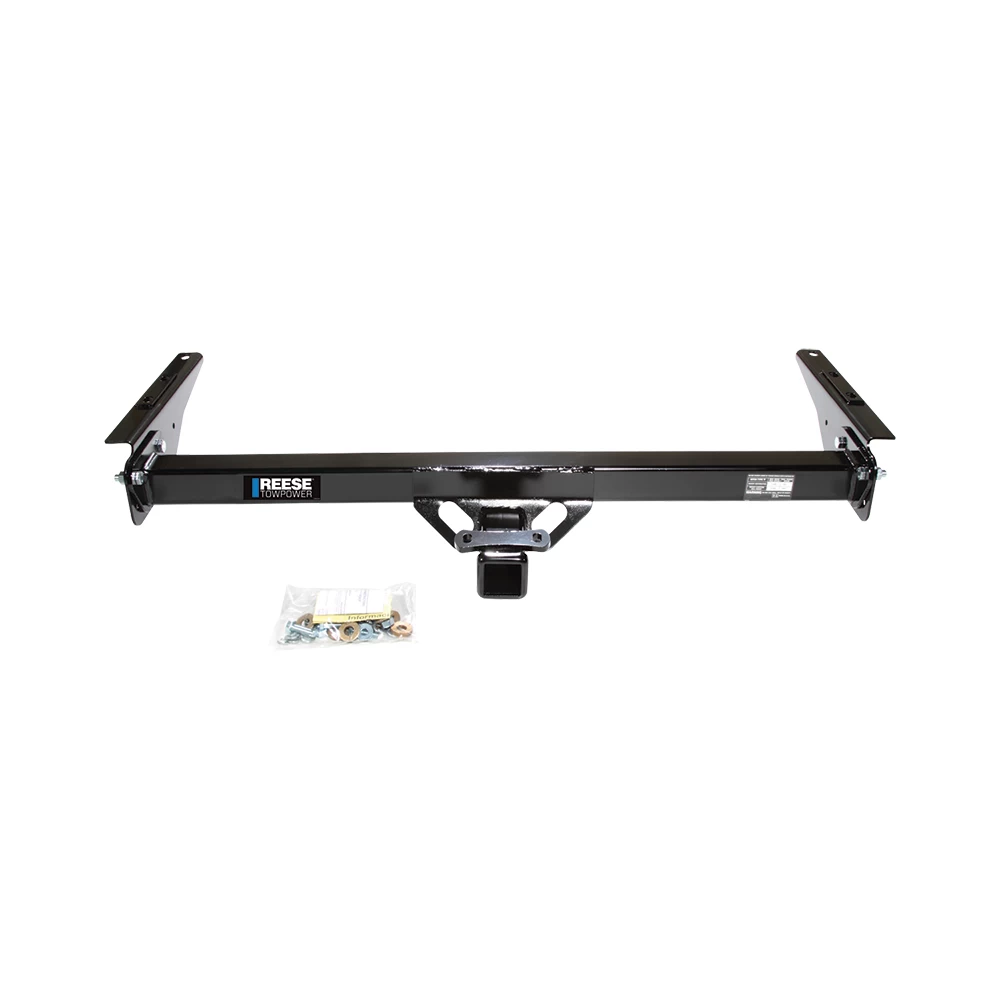

Reese Trailer Tow Hitch For 93‑98 Toyota T100 All Styles 2" Towing Receiver Class 3
Model: 330221993 - 1998 Toyota, T100, All Styles
Trailer Hitch Specs:
| Part Number | 33022 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,000 lbs |
| Max Tongue Weight | 500/700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 93 94 95 96 97 98 1993 1994 1995 1996 1997 1998
$338 48 $528.58 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$528.58 $338 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $84.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33022
- UPC: 016118040012
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
1993 - 1998 Toyota, T100, All Styles
Trailer Hitch Specs:
| Part Number | 33022 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,000 lbs |
| Max Tongue Weight | 500/700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 93 94 95 96 97 98 1993 1994 1995 1996 1997 1998
Get Expert Help
Reese Trailer Tow Hitch For 93-98 Toyota T100 All Styles 2" Towing Receiver Class 3 Install Notes
Installation Instructions for Toyota T100 Pickup (2WD & 4WD)
Part Numbers:
- 33022
- 75144
- 87490
Tools Required:
- 9/16" Socket
- 18mm Wrench
- 7/32" Allen Wrench
- Torque Wrench
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 7,000 lb. (3,175 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 700 lb. (317 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Consult the vehicle owner's manual for towing recommendations and limitations.
Step-by-Step Instructions:
-
Remove Existing Hardware:
- For all trucks, remove the two inner bolts along the bottom of the bumper using an Allen wrench.
- For 4x4 trucks, remove the four (2 each side) 12mm bolts securing the frame reinforcement to the frame above the leaf spring.
-
Install Frame Brackets:
- Position the left and right frame brackets (A and B) with the flanges pointing outward over the holes where the hardware was removed.
- Install bolts (D), lock washers (H), serrated washers (J), and nuts (I).
- For 4x4 trucks, use the existing nuts in the reinforcement brackets.
- For 2WD trucks, use the existing nut in the frame.
- Note: Extra nuts and washers may remain in the parts bag after installation for 4x4 trucks.
-
Install Center Section:
- Position the center section (C) between the frame brackets (A) and (B). Adjust the rear end of the hitch to sit just below the bumper.
- Install bolts (D) through the center section and frame brackets. Secure with lock washers (H) and nuts (I).
-
Attach Bumper Bar:
- Align the holes in bar (K) at the rear end of the hitch with the bolt holes in the bottom of the bumper.
- Install bolts (E) with lock washers (F) and serrated washers (L) into the bottom of the bumper.
-
Torque Fasteners:
- Torque 3/8" bolts (E) to 35 Lb.-Ft.
- Torque the 12mm nuts (I) securing the center section (C) to 75 Lb.-Ft.
- Torque the 12mm bolts (D) in the frame brackets (A) and (B) to 75 Lb.-Ft.
Hardware List:
- (6) Bolts: M12 x 1.25 x 35mm
- (6) Helical Lock Washers
- (6) Serrated Washers
- (4) Bolts: 3/8"-16 x 1-1/4"
- (4) Helical Lock Washers
- (4) Serrated Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug any holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions and wear eye protection when working beneath the vehicle.
- Do not lubricate threads or drill/weld on this hitch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements for the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- This warranty is limited to replacement of defective parts only and does not cover labor or incidental damages.
Installation Instructions for Toyota T100 Pickup (2WD & 4WD)
Part Numbers:
- 33022
- 75144
- 87490
Tools Required:
- 9/16" Socket
- 18mm Wrench
- 7/32" Allen Wrench
- Torque Wrench
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 7,000 lb. (3,175 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 700 lb. (317 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Consult the vehicle owner's manual for towing recommendations and limitations.
Step-by-Step Instructions:
-
Remove Existing Hardware:
- For all trucks, remove the two inner bolts along the bottom of the bumper using an Allen wrench.
- For 4x4 trucks, remove the four (2 each side) 12mm bolts securing the frame reinforcement to the frame above the leaf spring.
-
Install Frame Brackets:
- Position the left and right frame brackets (A and B) with the flanges pointing outward over the holes where the hardware was removed.
- Install bolts (D), lock washers (H), serrated washers (J), and nuts (I).
- For 4x4 trucks, use the existing nuts in the reinforcement brackets.
- For 2WD trucks, use the existing nut in the frame.
- Note: Extra nuts and washers may remain in the parts bag after installation for 4x4 trucks.
-
Install Center Section:
- Position the center section (C) between the frame brackets (A) and (B). Adjust the rear end of the hitch to sit just below the bumper.
- Install bolts (D) through the center section and frame brackets. Secure with lock washers (H) and nuts (I).
-
Attach Bumper Bar:
- Align the holes in bar (K) at the rear end of the hitch with the bolt holes in the bottom of the bumper.
- Install bolts (E) with lock washers (F) and serrated washers (L) into the bottom of the bumper.
-
Torque Fasteners:
- Torque 3/8" bolts (E) to 35 Lb.-Ft.
- Torque the 12mm nuts (I) securing the center section (C) to 75 Lb.-Ft.
- Torque the 12mm bolts (D) in the frame brackets (A) and (B) to 75 Lb.-Ft.
Hardware List:
- (6) Bolts: M12 x 1.25 x 35mm
- (6) Helical Lock Washers
- (6) Serrated Washers
- (4) Bolts: 3/8"-16 x 1-1/4"
- (4) Helical Lock Washers
- (4) Serrated Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug any holes in the vehicle frame to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe all safety precautions and wear eye protection when working beneath the vehicle.
- Do not lubricate threads or drill/weld on this hitch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements for the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- This warranty is limited to replacement of defective parts only and does not cover labor or incidental damages.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
