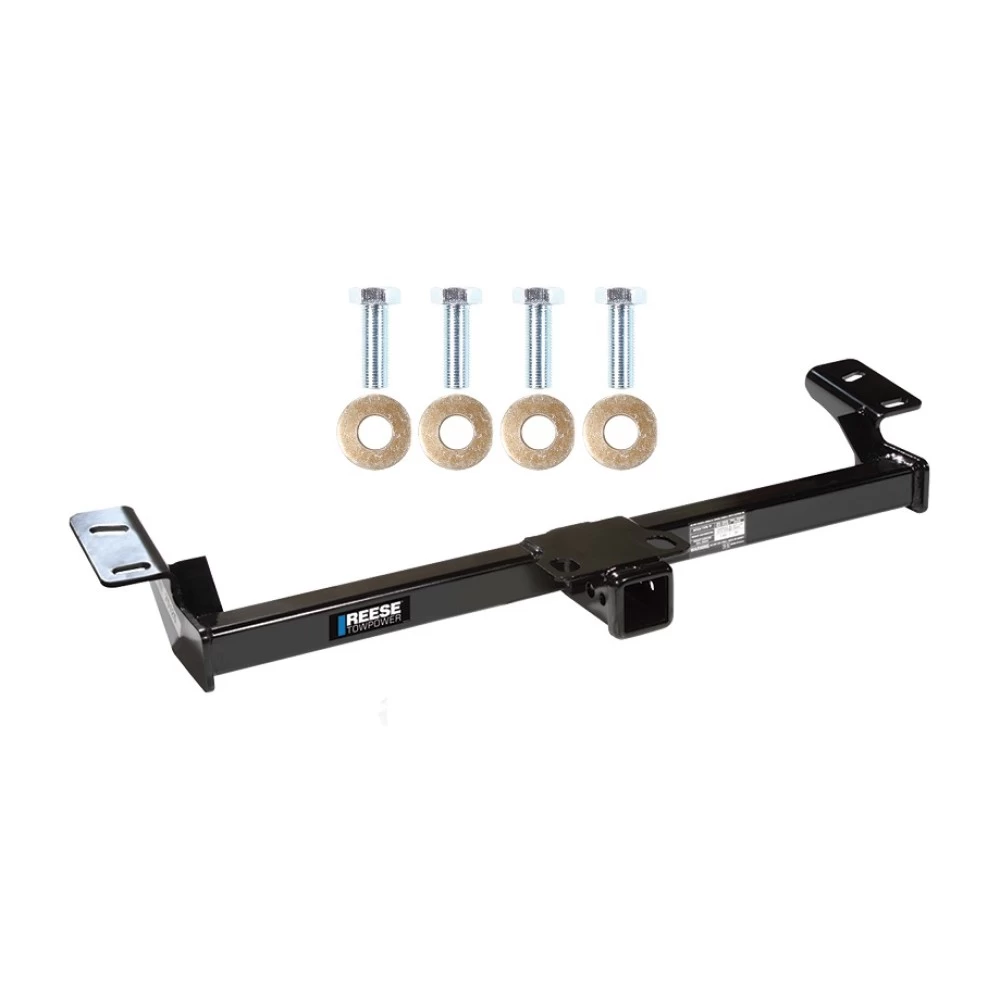

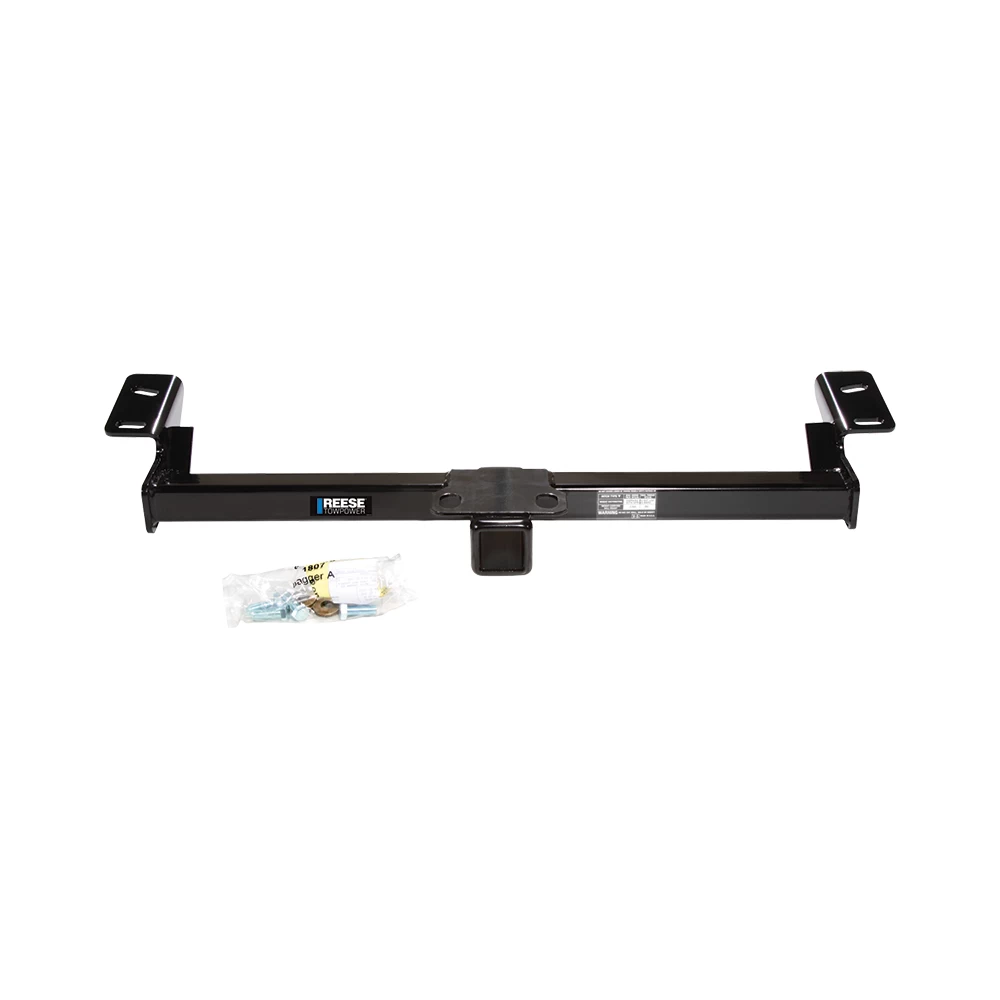

Reese Trailer Tow Hitch For 96‑05 Toyota RAV4 All Styles 2" Towing Receiver Class 3
Model: 330601996 - 2005 Toyota, RAV4, All Styles
Trailer Hitch Specs:
| Part Number | 33060 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
$214 28 $334.61 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$334.61 $214 28
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33060
- UPC: 016118040968
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
1996 - 2005 Toyota, RAV4, All Styles
Trailer Hitch Specs:
| Part Number | 33060 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
Get Expert Help
Reese Trailer Tow Hitch For 96-05 Toyota RAV4 All Styles 2" Towing Receiver Class 3 Install Notes
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Toyota RAV4
Part Numbers:
- 75125
- 44734
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 17mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Bolts and Tie-Down Brackets:
- Remove the two bolts and tie-down brackets from the vehicle frame on each side.
- Return the tie-down brackets to the vehicle owner for reinstallation if the hitch is removed.
-
Raise Hitch into Position:
- Raise the hitch into position and install two (2) M12 x 1.25 x 35mm bolts and conical toothed washers into the existing weld nuts on each side.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Warning:
- Early 1996 Models: If the vehicle is equipped with M10 fasteners, do not install the hitch.
- Failure to heed this warning could result in serious injury or death.
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (4) M12 x 1.25 x 35mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Do not use with weight-distributing hitches (spring bar type).
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
