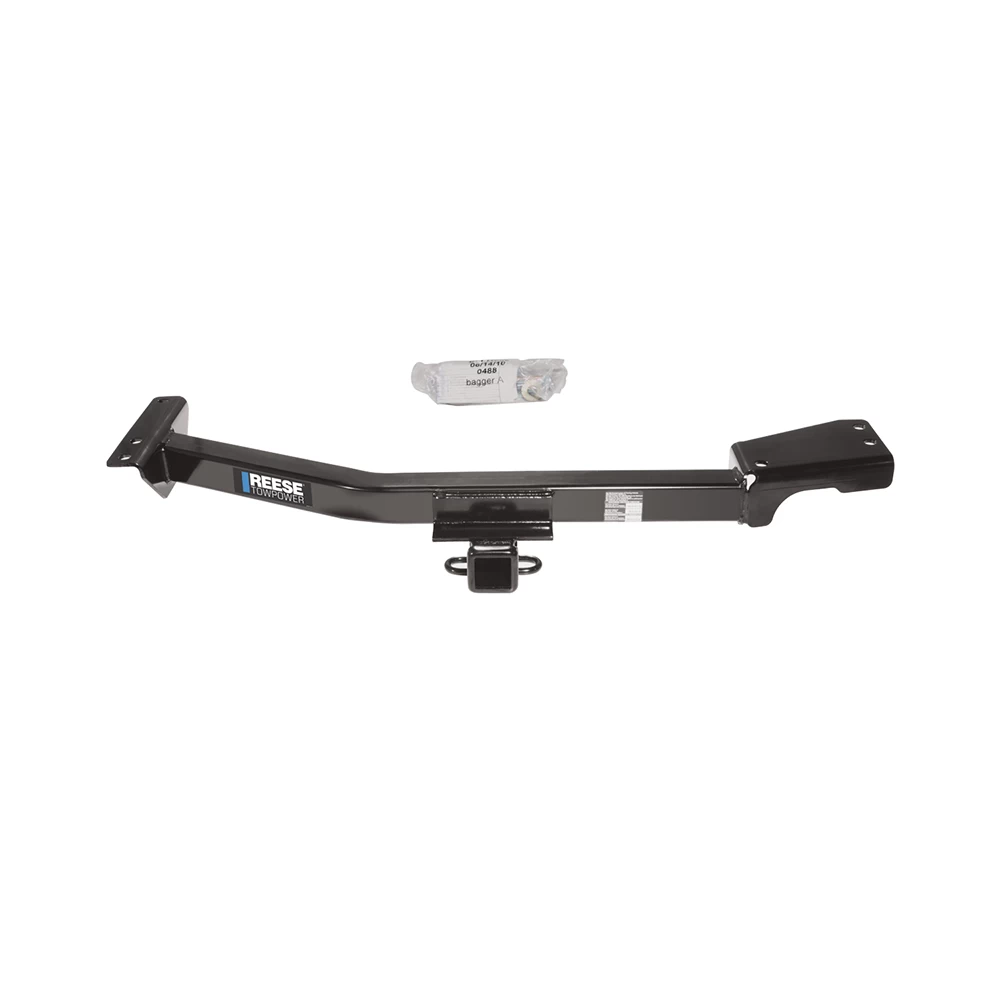

Reese Trailer Tow Hitch For 98‑07 Lexus LX470 Toyota Land Cruiser 2" Receiver
Model: 445461998 - 2007 Lexus, LX470, All Styles
1998 - 2007 Toyota, Land Cruiser, All Styles
Trailer Hitch Specs:
| Part Number | 44546 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
$268 20 $418.84 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$418.84 $268 20
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44546
- UPC: 016118057072
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
1998 - 2007 Lexus, LX470, All Styles
1998 - 2007 Toyota, Land Cruiser, All Styles
Trailer Hitch Specs:
| Part Number | 44546 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 04 05 06 07 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Reese Trailer Tow Hitch For 98-07 Lexus LX470 Toyota Land Cruiser 2" Receiver Install Notes
Installation Instructions for Lexus LX470 and Toyota Land Cruiser
Part Numbers:
- 75095
- 87409
- 44546
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 12mm, 19mm, 7/8"
- Screwdriver: Phillips
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets and Tow Hook:
- Remove the tie-down brackets on both sides of the vehicle.
- Remove the tow hook from the driver’s side.
-
Lower Exhaust:
- Detach the two rearmost rubber exhaust hangers to slightly lower the muffler.
-
Remove Fascia Support Bracket:
- Remove the two Phillips head screws and six metric bolts securing the fascia support bracket.
- Return the bracket to the vehicle owner for potential reinstallation if the hitch is removed in the future.
-
Reattach Fascia:
- Secure the fascia using the screws and bolts removed in Step 3.
-
Position Hitch:
- Align the hitch with the existing weld nuts in the vehicle frame.
- Reinstall the tie-down brackets on the opposite sides of the vehicle.
- Reinstall the tow hook on the driver’s side using the longer M14 bolts provided.
-
Install Carriage Bolt and Block:
- Use a pull wire to fish the carriage bolt and block through the access hole located on the forward side of the crossmember.
- Attach the conical washer and nut to secure the bolt.
-
Reattach Exhaust:
- Reconnect the two rubber exhaust hangers removed in Step 2.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque values:
- M14 CL10.9 bolts: 148 lb-ft (201 N*m)
- M12 CL10.9 bolts: 130 lb-ft (176 N*m)
- 1/2"-13 GR8 fasteners: 110 lb-ft (149 N*m)
- OEM M14 fasteners: 80 lb-ft (108 N*m)
- Tighten all fasteners to the specified torque values:
Torque Specifications:
- M14 CL10.9: 148 lb-ft (201 N*m)
- M12 CL10.9: 130 lb-ft (176 N*m)
- 1/2"-13 GR8: 110 lb-ft (149 N*m)
- OEM M14: 80 lb-ft (108 N*m)

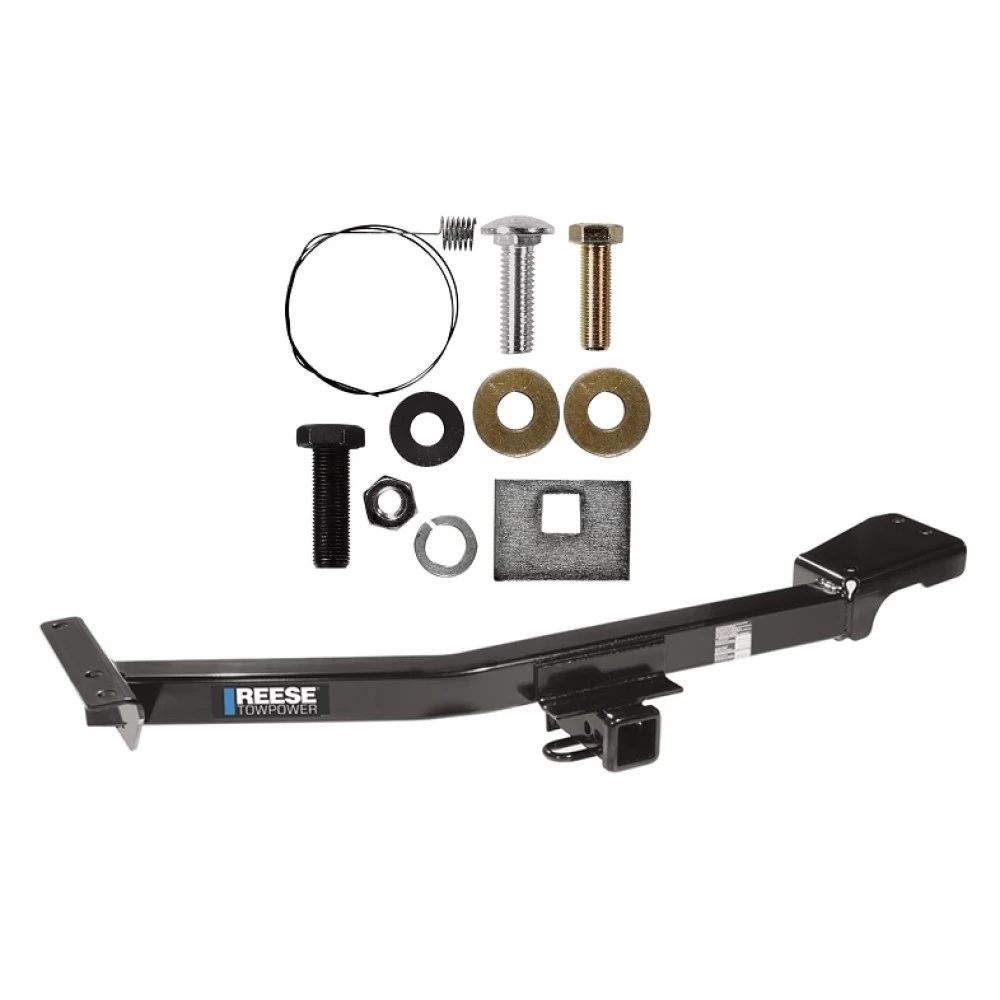

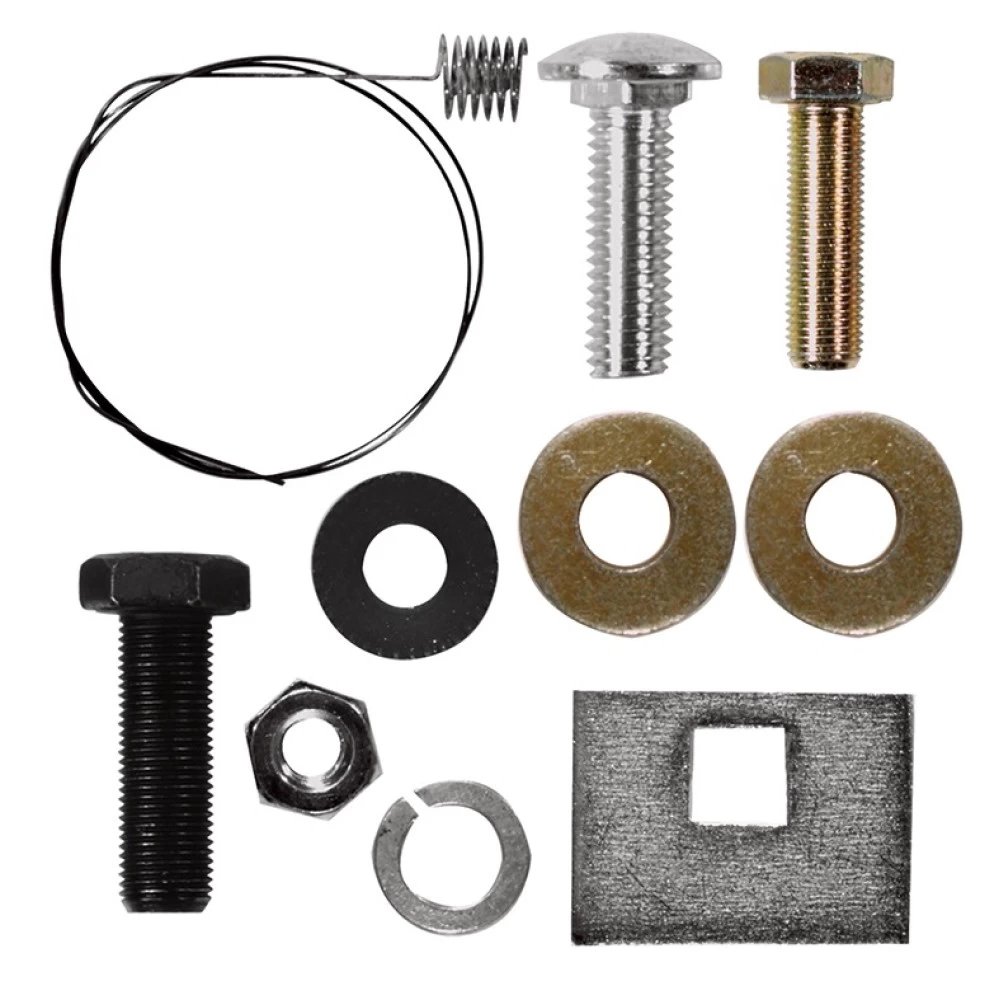

Hardware List:
- (2) 9/16" Lock Washers
- (2) 9/16" Hardened Flat Washers
- (2) M14 x 1.50 x 45mm CL10.9 Hex Bolts
- (2) 1/2"-13 Hex Nuts
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) 1/2"-13 x 1-3/4" GR8 Carriage Bolts
- (2) 1/2" Conical Washers
- (2) M12 x 1.25 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (341 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Lexus LX470 and Toyota Land Cruiser
Part Numbers:
- 75095
- 87409
- 44546
Wiring Access Location:
- SUV6
Tools Required:
- Wrenches: 12mm, 19mm, 7/8"
- Screwdriver: Phillips
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets and Tow Hook:
- Remove the tie-down brackets on both sides of the vehicle.
- Remove the tow hook from the driver’s side.
-
Lower Exhaust:
- Detach the two rearmost rubber exhaust hangers to slightly lower the muffler.
-
Remove Fascia Support Bracket:
- Remove the two Phillips head screws and six metric bolts securing the fascia support bracket.
- Return the bracket to the vehicle owner for potential reinstallation if the hitch is removed in the future.
-
Reattach Fascia:
- Secure the fascia using the screws and bolts removed in Step 3.
-
Position Hitch:
- Align the hitch with the existing weld nuts in the vehicle frame.
- Reinstall the tie-down brackets on the opposite sides of the vehicle.
- Reinstall the tow hook on the driver’s side using the longer M14 bolts provided.
-
Install Carriage Bolt and Block:
- Use a pull wire to fish the carriage bolt and block through the access hole located on the forward side of the crossmember.
- Attach the conical washer and nut to secure the bolt.
-
Reattach Exhaust:
- Reconnect the two rubber exhaust hangers removed in Step 2.
-
Tighten Fasteners:
- Tighten all fasteners to the specified torque values:
- M14 CL10.9 bolts: 148 lb-ft (201 N*m)
- M12 CL10.9 bolts: 130 lb-ft (176 N*m)
- 1/2"-13 GR8 fasteners: 110 lb-ft (149 N*m)
- OEM M14 fasteners: 80 lb-ft (108 N*m)
- Tighten all fasteners to the specified torque values:
Torque Specifications:
- M14 CL10.9: 148 lb-ft (201 N*m)
- M12 CL10.9: 130 lb-ft (176 N*m)
- 1/2"-13 GR8: 110 lb-ft (149 N*m)
- OEM M14: 80 lb-ft (108 N*m)
Hardware List:
- (2) 9/16" Lock Washers
- (2) 9/16" Hardened Flat Washers
- (2) M14 x 1.50 x 45mm CL10.9 Hex Bolts
- (2) 1/2"-13 Hex Nuts
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) 1/2"-13 x 1-3/4" GR8 Carriage Bolts
- (2) 1/2" Conical Washers
- (2) M12 x 1.25 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (341 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
