Reese Trailer Tow Hitch Receiver For 04-06 Lexus RX 330 07-09 RX 350 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"

Reese Trailer Tow Hitch Receiver For 04‑06 Lexus RX 330 07‑09 RX 350 w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

Name: Reese Trailer Tow Hitch Receiver For 04-06 Lexus RX 330 07-09 RX 350 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"
Brand: Reese
Price: 279.8 USD
Availability: InStock

Model: 33075 7031400 63240

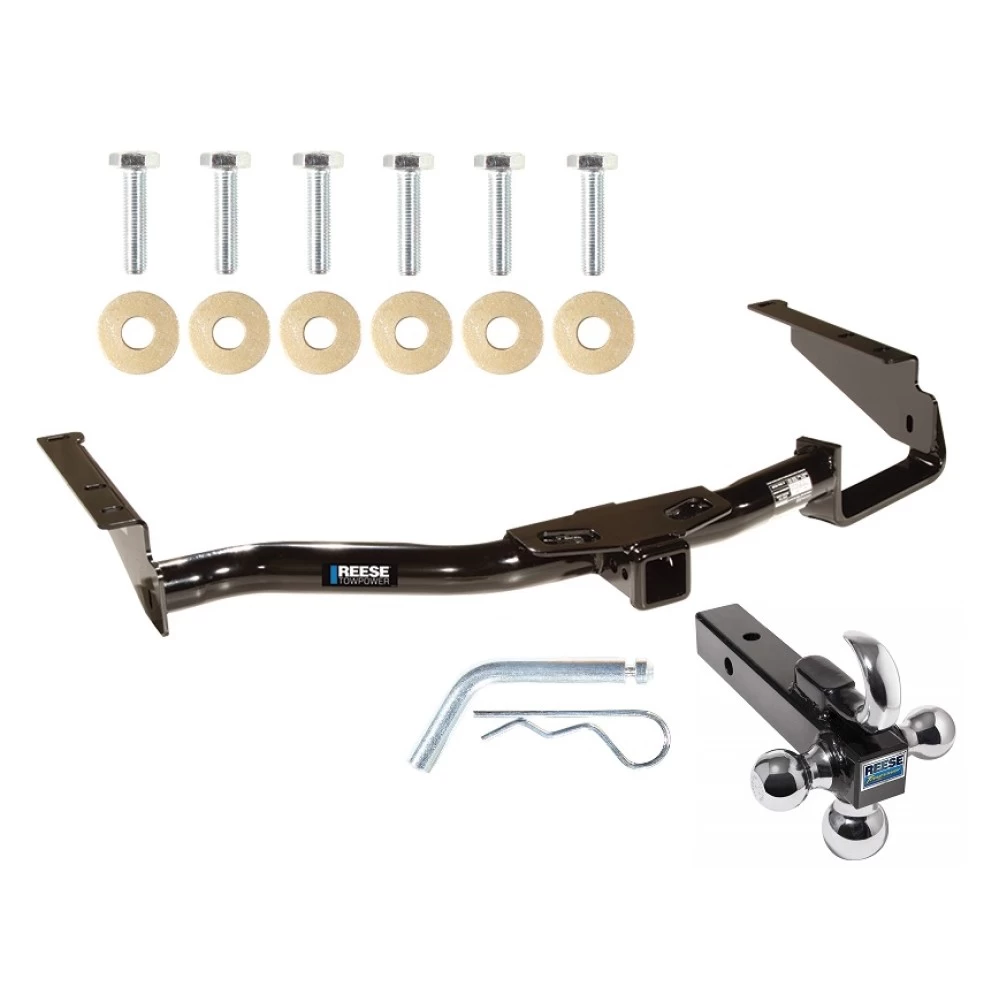

Includes Everything Pictured:

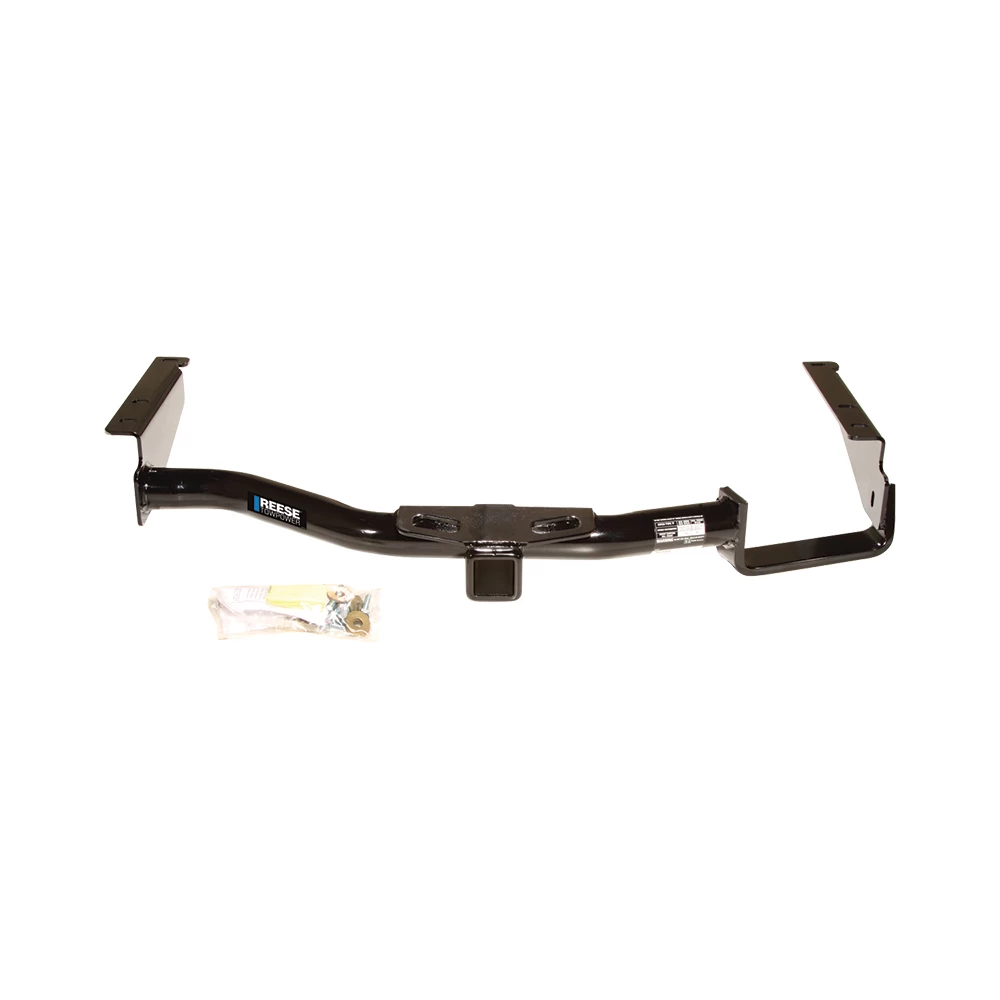

Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:
2004 - 2006   Lexus, RX330, All Styles
2004 - 2007   Toyota, Highlander, All Styles
2006 - 2008   Lexus, RX400h, Hybrid
2007 - 2009   Lexus, RX350, All Styles

Trailer Hitch Specs:

Part Number	33075
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 04 05 06 07 08 09 2004 2005 2006 2007 2008 2009

See Full Description

$279 ⁸⁰ $448.54 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$448.54 $279 ⁸⁰

Pay in 4 interest-free installments of $69.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $69.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 33075 7031400 63240
Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Year Range	Make	Model	Style

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	350 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Trailer Hitch Specs:

Part Number	33075
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	350 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 33075 , 7031400 , 63240 , Reese , Trailer , Tow , Hitch , Receiver , 04-06 , Lexus , RX , 330 , 07-09 , RX , 350 , w/Tri-Ball , Triple , Ball , 1-7/8" , 2" , 2-5/16" , 04 , 05 , 06 , 07 , 08 , 09 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Reese Trailer Tow Hitch Receiver For 04-06 Lexus RX 330 07-09 RX 350 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes

Installation Instructions for Lexus RX330, Lexus RX400h, and Toyota Highlander & Highlander Hybrid

Part Numbers:

N70778
44740N
N75153
N87778

Wiring Access Location:

SUV1, SUV2

Tools Required:

Hitch Requires: 5/8" Pin and Clip (if stabilizing pin is not installed)
Wrenches: 14mm, 17mm (tighten all fasteners with torque wrench)
Phillips Head Screwdriver

Drill Bits:

None

Step-by-Step Instructions:

Remove shrouds on both sides on Lexus RX400h:
- (4) Phillips Head Screws & (2) Plastic Push Rivets on the driver’s side.
- (2) Phillips Head Screws, (1) Plastic Push Rivet & (1) 10mm Bolt on the passenger’s side.
Remove tie downs and fasteners from frame rails.
Remove rubber plugs (2) located in each rail.
Raise hitch into position and install fasteners as shown in the diagram.
Return the tie downs, fasteners, rubber plugs, and shrouds to the vehicle owner.
Tighten all M10 CL8.8 fasteners to 38 lb-ft.

Hardware List:

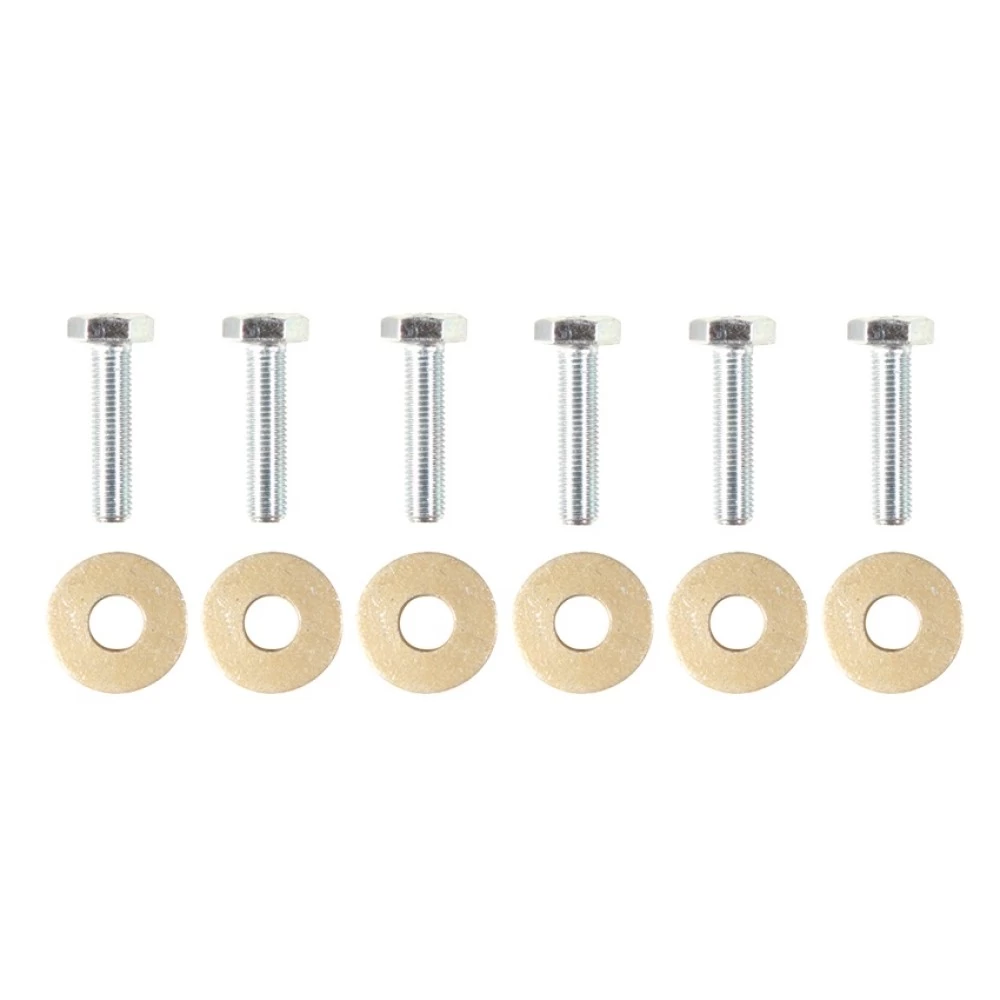

M10 x 1.25 x 40mm CL8.8 Bolts
Conical Toothed Washer (Typical 3 Places per Side of Vehicle)

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs, Max Tongue Weight 350 lbs.
- Not for use with weight distributing spring bar type hitch.
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Lexus RX330, Lexus RX400h, and Toyota Highlander & Highlander Hybrid

Part Numbers:

70778
44740
75153
87778

Wiring Access Location:

SUV1, SUV2

Tools Required:

Hitch Requires: 5/8" Pin and Clip (if stabilizing pin is not installed)
Wrenches: 14mm, 17mm (tighten all fasteners with torque wrench)
Phillips Head Screwdriver

Drill Bits:

None

Step-by-Step Instructions:

Remove shrouds on both sides on Lexus RX400h:
- (4) Phillips Head Screws & (2) Plastic Push Rivets on the driver’s side.
- (2) Phillips Head Screws, (1) Plastic Push Rivet & (1) 10mm Bolt on the passenger’s side.
Remove tie downs and fasteners from frame rails.
Remove rubber plugs (2) located in each rail.
Raise hitch into position and install fasteners as shown in the diagram.
Return the tie downs, fasteners, rubber plugs, and shrouds to the vehicle owner.
Tighten all M10 CL8.8 fasteners to 38 lb-ft.

Hardware List:

M10 x 1.25 x 40mm CL8.8 Bolts
Conical Toothed Washer (Typical 3 Places per Side of Vehicle)

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
