Reese Trailer Tow Hitch Receiver For 07‑12 Mazda CX‑7 w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

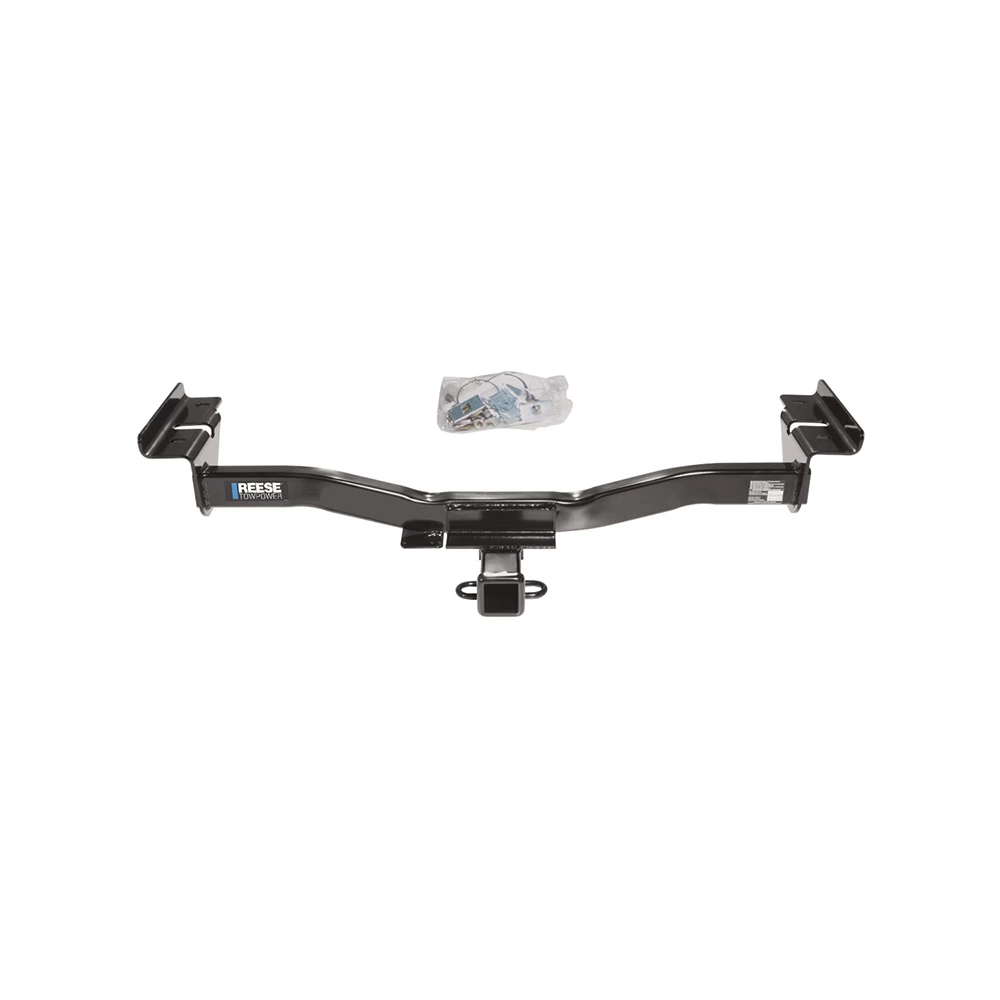

Model: 44554 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2007 - 2012 Mazda, CX-7, All Styles
Trailer Hitch Specs:
| Part Number | 44554 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
$263 67 $423.36 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$423.36 $263 67
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44554 7031400 63240

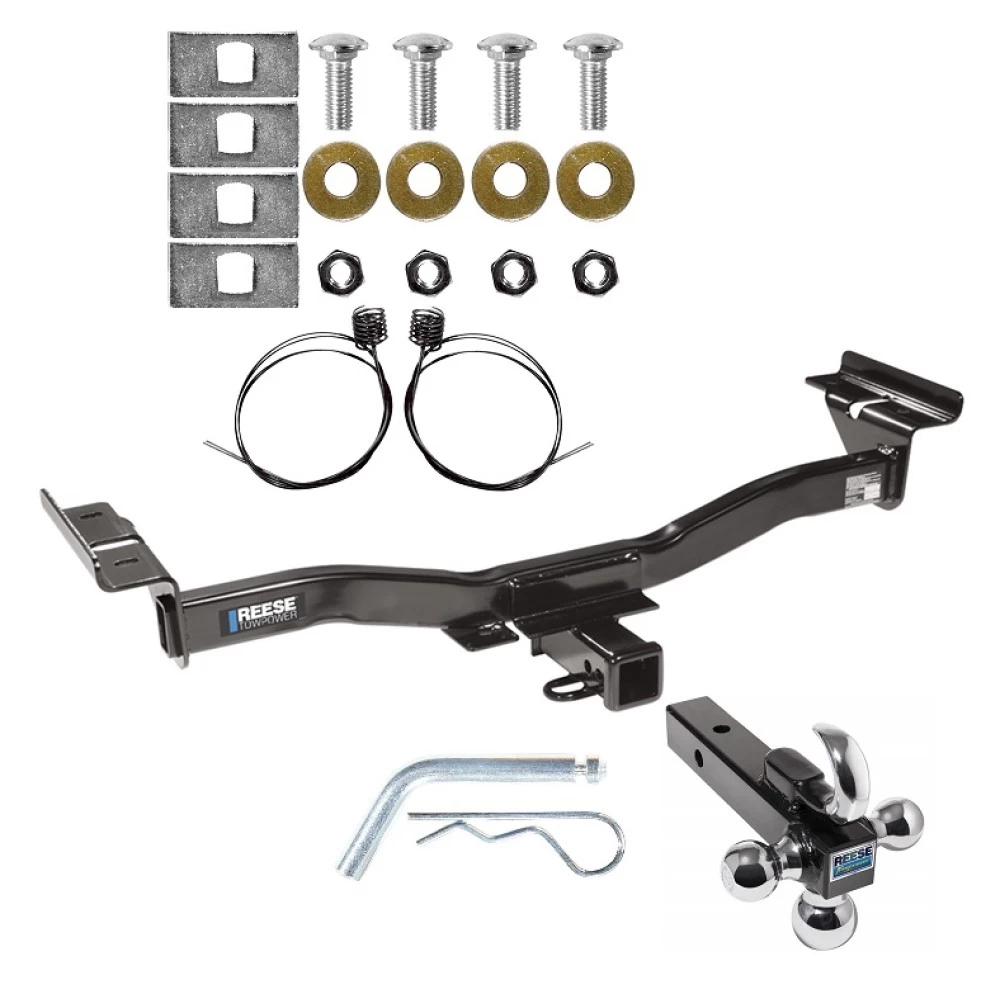

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2007 - 2012 Mazda, CX-7, All Styles
Trailer Hitch Specs:
| Part Number | 44554 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
Get Expert Help
Reese Trailer Tow Hitch Receiver For 07-12 Mazda CX-7 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Mazda CX-7
Part Numbers:
- 87421
- 75512
- 44554
Tools Required:
- Wrenches: 11/16"
- Pull Wire (provided)
- Metal File
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Lower the Exhaust:
- Detach both rear rubber muffler hangers to lower the exhaust.
-
Enlarge Frame Rail Holes:
- Enlarge either hole on the bottom of both frame rails with a metal file. Ensure the opening is large enough to fit the spacer.
-
Install Fasteners Using Pull Wire:
- Feed the pull wire through the newly enlarged hole.
- Attach the spacer and bolt, then feed them one at a time into the frame rail. Leave the pull wire attached.
- Repeat on both frame rails.
-
Install Additional Fasteners:
- Feed the second spacer and bolt through the enlarged hole and back out. Leave the pull wire attached.
- Repeat on both frame rails.
-
Position the Hitch:
- Feed the pull wires through the slot on the hitch brackets.
- Carefully raise the hitch into position without pushing the fasteners back into the frame rails.
-
Attach Remaining Fasteners:
- Hand-tighten all fasteners as shown in Figure 1.
-
Align Hitch:
- Ensure the hitch is centered on the vehicle. The bracket may not fit snugly against the side of the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
-
Reattach Exhaust:
- Reattach the rubber muffler hangers.

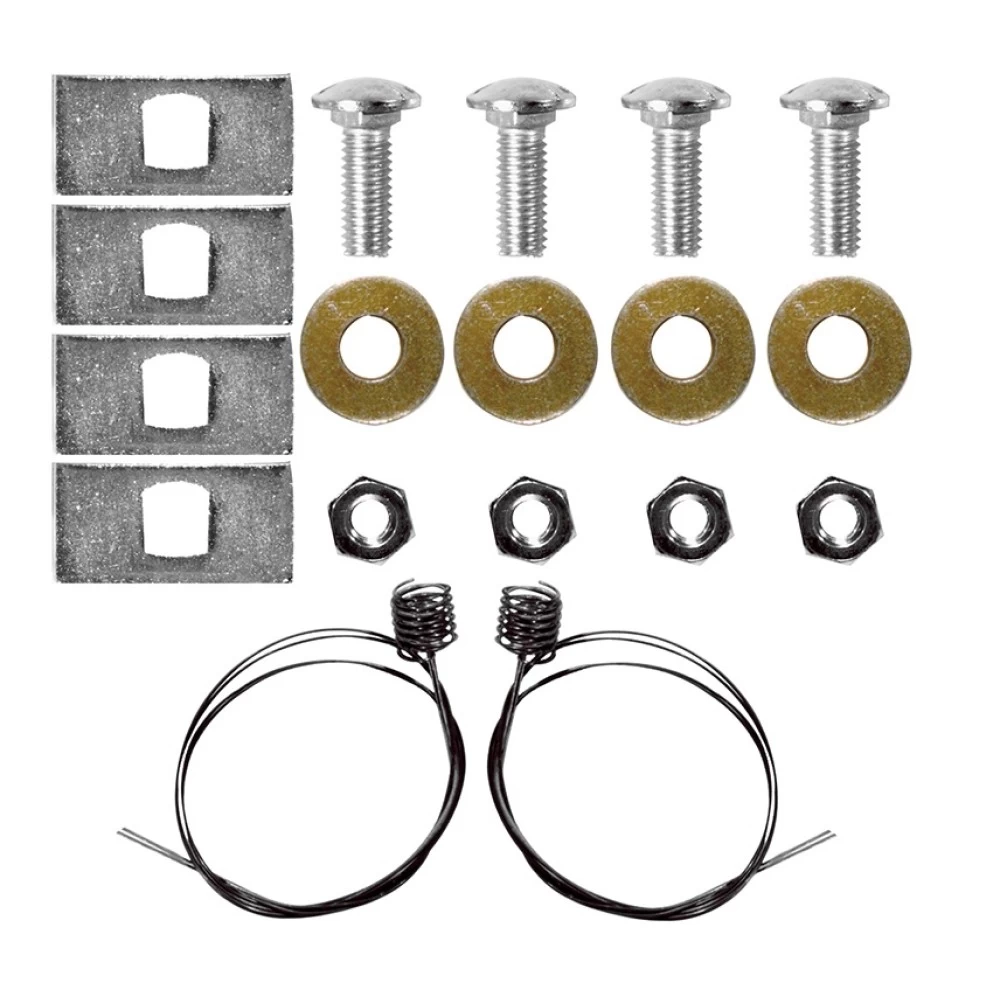

Hardware List:
- (4) 7/16"-14 x 1.25" GR5 Carriage Bolts
- (4) 7/16"-14 Hex Nuts
- (4) 7/16" Conical Washers
- (4) Spacers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 87421
- 75512
- 44554
Tools Required:
- Wrenches: 11/16"
- Pull Wire (provided)
- Metal File
- Drill Bits: None
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Lower the Exhaust:
- Detach both rear rubber muffler hangers to lower the exhaust.
-
Enlarge Frame Rail Holes:
- Enlarge either hole on the bottom of both frame rails with a metal file. Ensure the opening is large enough to fit the spacer.
-
Install Fasteners Using Pull Wire:
- Feed the pull wire through the newly enlarged hole.
- Attach the spacer and bolt, then feed them one at a time into the frame rail. Leave the pull wire attached.
- Repeat on both frame rails.
-
Install Additional Fasteners:
- Feed the second spacer and bolt through the enlarged hole and back out. Leave the pull wire attached.
- Repeat on both frame rails.
-
Position the Hitch:
- Feed the pull wires through the slot on the hitch brackets.
- Carefully raise the hitch into position without pushing the fasteners back into the frame rails.
-
Attach Remaining Fasteners:
- Hand-tighten all fasteners as shown in the diagram.
-
Align Hitch:
- Ensure the hitch is centered on the vehicle. The bracket may not fit snugly against the side of the frame rails.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
-
Reattach Exhaust:
- Reattach the rubber muffler hangers.
Hardware List:
- (4) 7/16"-14 x 1.25" GR5 Carriage Bolts
- (4) 7/16"-14 Hex Nuts
- (4) 7/16" Conical Washers
- (4) Spacers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
