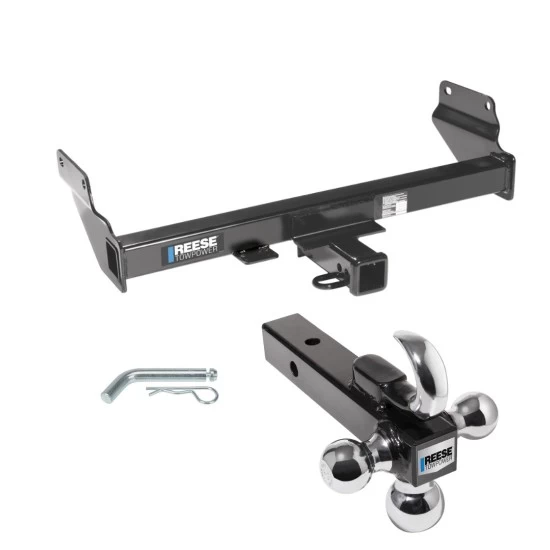

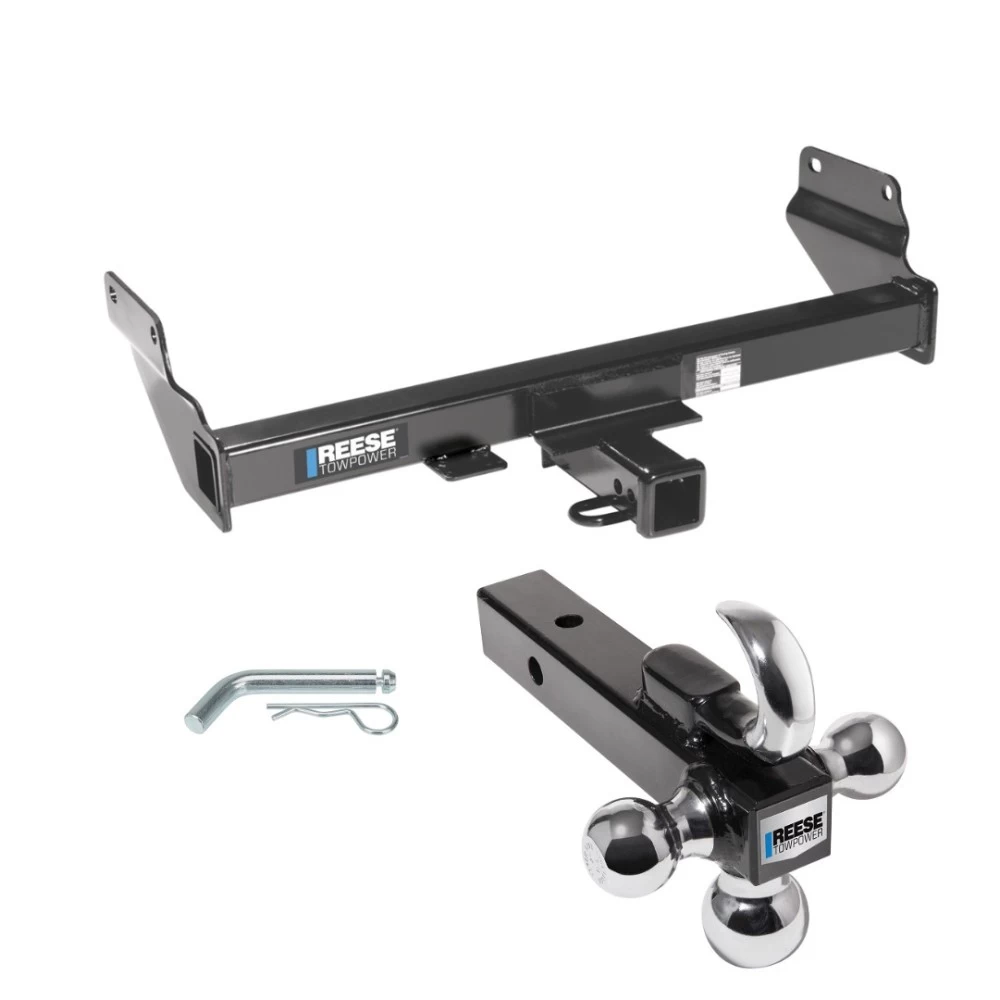

Installation Instructions for Jeep Grand Cherokee (Excluding EcoDiesel Models)

Part Numbers:

• 75699
• 87595
• 44650

Tools Required:

• Wrench: 21mm

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 7,500 lbs (3,405 kg)
  • Max Tongue Weight: 750 lbs (341 kg)

Wiring Access Location:

• 2011-2013: SUV 1, 2
• 2014-Present: SUV 3, 4

Step-by-Step Instructions:

1. Remove Tow Hook (if equipped):

• If the vehicle has an OEM tow hook, it must be permanently removed before installing the hitch.

2. Remove Factory Bolts:

• Remove (4) existing M14 bolts from the frame rail weld nuts.
• Important: Do not clean the threads. Retain the bolts for reinstallation.

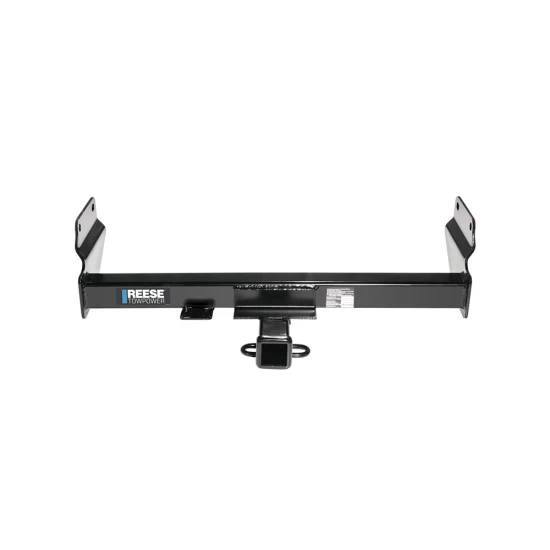

3. Install Hitch:

• Raise the hitch into position under the vehicle’s frame rails.
• Align the hitch holes with the existing weld nuts on the frame.
• If excess caulking interferes with hitch installation, lower the hitch and scrape off the excess caulking from the frame rails.

4. Secure Fasteners:

• Reinstall the retained M14 bolts to secure the hitch to the frame.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions

Part Numbers:

• 75699
• 87595
• 44650

Tools Required:

• Wrench: 21mm

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 7,500 lbs (3,405 kg)
  • Max Tongue Weight: 750 lbs (341 kg)

Wiring Access Location:

• 2011-2013: SUV 1, 2
• 2014-Present: SUV 3, 4

Step-by-Step Instructions:

1. Remove Tow Hook (if equipped):

• If the vehicle has an OEM tow hook, it must be permanently removed before installing the hitch.

2. Remove Factory Bolts:

• Remove (4) existing M14 bolts from the frame rail weld nuts.
• Important: Do not clean the threads. Retain the bolts for reinstallation.

3. Install Hitch:

• Raise the hitch into position under the vehicle’s frame rails.
• Align the hitch holes with the existing weld nuts on the frame.
• If excess caulking interferes with hitch installation, lower the hitch and scrape off the excess caulking from the frame rails.

4. Secure Fasteners:

• Reinstall the retained M14 bolts to secure the hitch to the frame.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
