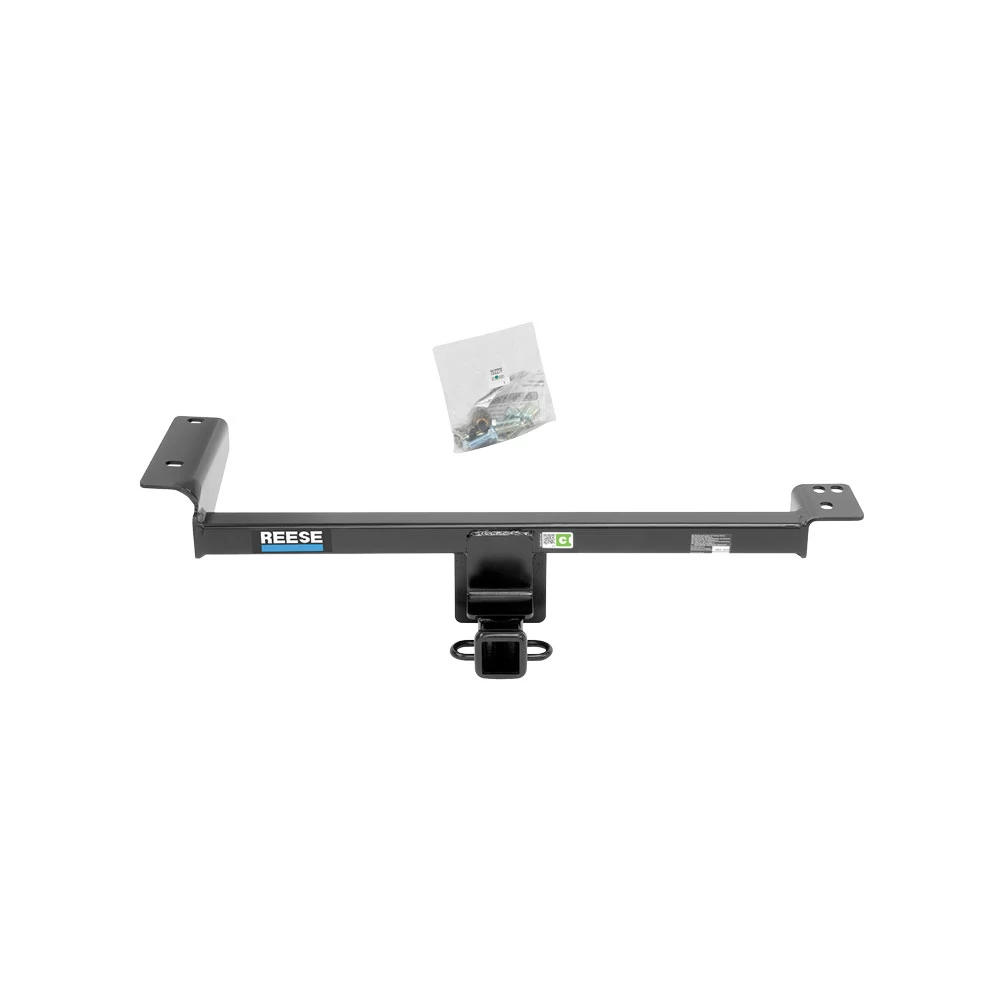

Installation Instructions for Range Rover Evoque

Part Numbers:

• 75227
• 87009
• 44779

Applications:

• 2012-Current Range Rover Evoque (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 19mm, 22mm, 3/4"
• Flat Head Screwdriver
• Tin Snips
• Utility Knife
• Marker
• Tape Measure

Installation Time:

• Approximately 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach 3 rubber isolators from the exhaust: 1 on the driver side and 2 on the passenger side.
   • Use a spray lubricant to assist. Lower the exhaust slowly and support it to prevent damage.

2. Remove Rear Heat Shield:

   • Trace the heat shield with a permanent marker where it touches the inside fascia near both exhaust pipes (see Figure 1).
   • Remove the rear heat shield by unscrewing (4) 10mm hex bolts and (8) screws.
   • Set the heat shield aside for trimming later.

3. Prepare Frame for Hitch Installation:

   • Use the reverse fishwire technique to insert the 1/2" carriage bolt (Item 7) and block (Item 6) through the rearward access hole on the driver side frame rail.
   • Leave the fishwire temporarily attached for easier hitch installation.

4. Trim Fascia and Heat Shield:

   • Use a utility knife and tin snips to trim the fascia and heat shield.
   • Trim approximately 3 7/8" wide by 1" high from the bottom of the fascia (see Figure 2).
   • Reinstall the trimmed heat shield.

5. Install Hitch:

   • Raise the hitch into position.
   • Thread the fishwire through the appropriate slot to prevent the bolt and block from being pushed into the frame.
   • Install the fasteners as shown.
   • Torque the fasteners as follows:
     • 1/2” fastener: 75 lb-ft (102 N·m)
     • M14 fastener: 100 lb-ft (136 N·m)
     • M12 fasteners: 68 lb-ft (92 N·m)

6. Raise Exhaust:

   • Lift the exhaust back into position and reattach the 3 rubber isolators.

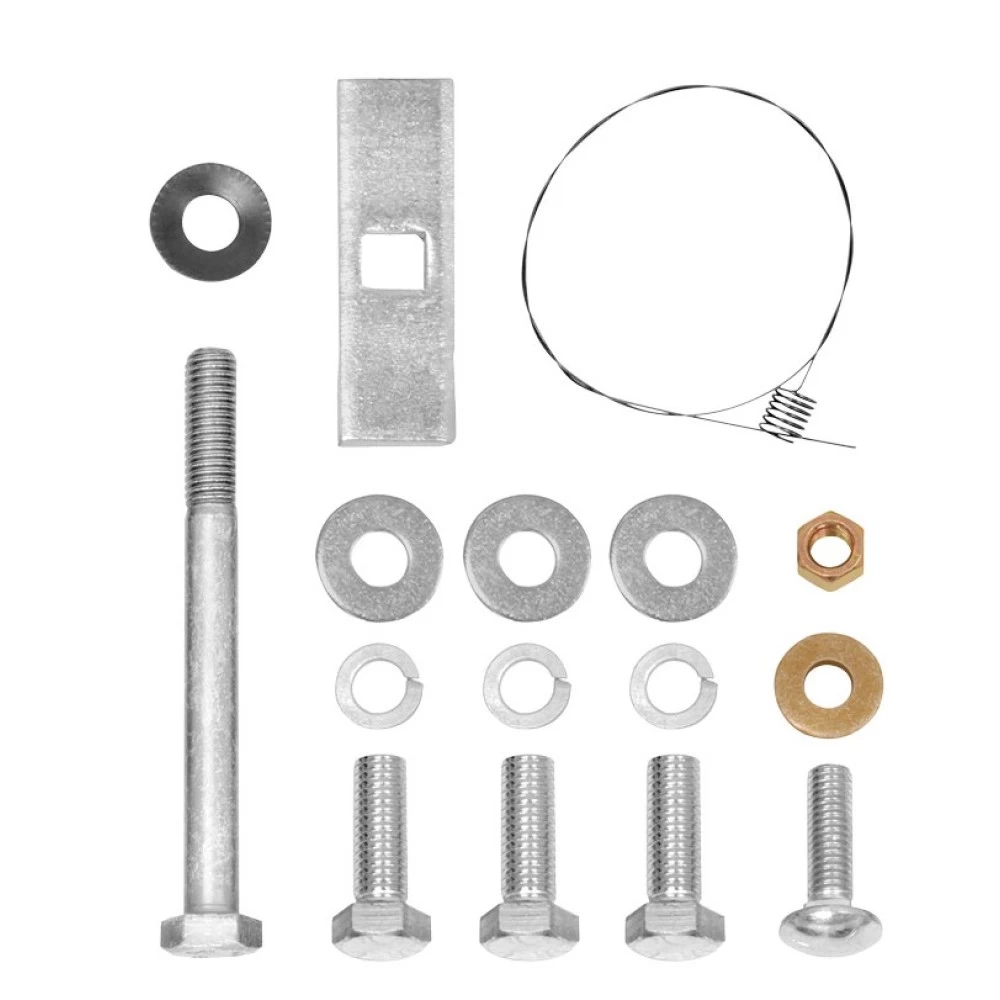

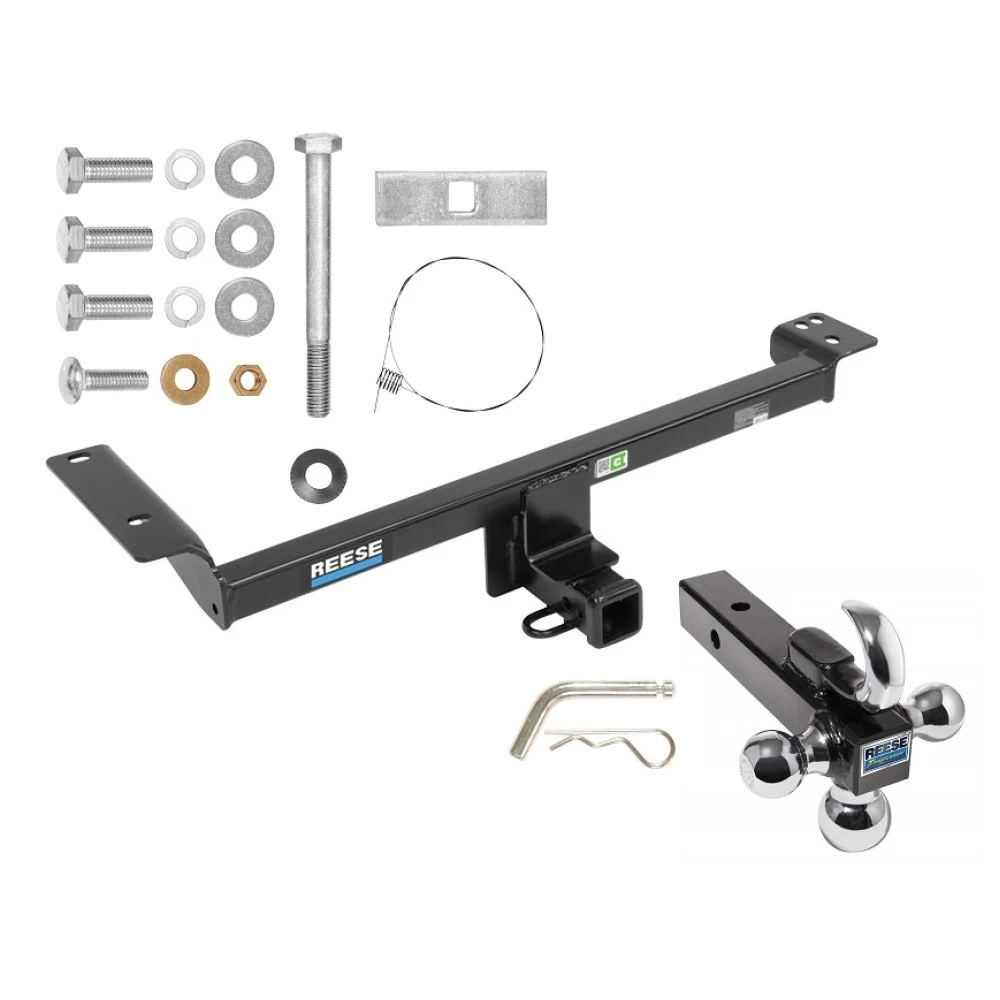

Hardware List:

• (3) M12 x 1.75 x 40 CL8.8 Bolts
• (3) 12mm Flat Washers
• (3) 1/2” Lock Washers
• (1) M14 x 2.00 x 100 CL8.8 Bolt
• (1) 5/8” Conical Washer
• (1) 1/4” x 1” x 3” Block
• (1) 1/2”-13 x 1.75” GR5 Carriage Bolt
• (1) 1/2” Conical Washer
• (1) 1/2”-13 GR5 Hex Nut
• (1) 1/2”-13 Fishwire

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,500 lbs (2,041 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Range Rover Evoque

Part Numbers:

• 75227
• 87009
• 44779

Applications:

• 2012-Current Range Rover Evoque
  (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 19mm, 22mm, 3/4"
• Flat Head Screwdriver
• Tin Snips
• Utility Knife
• Marker
• Tape Measure

Installation Time:

• Approximately 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach 3 rubber isolators from the exhaust: 1 on the driver side and 2 on the passenger side.
   • Use a spray lubricant to assist. Lower the exhaust slowly and support it to prevent damage.

2. Remove Rear Heat Shield:

   • Trace the heat shield with a permanent marker where it touches the inside fascia near both exhaust pipes (see Figure 1).
   • Remove the rear heat shield by unscrewing (4) 10mm hex bolts and (8) screws.
   • Set the heat shield aside for trimming later.

3. Prepare Frame for Hitch Installation:

   • Use the reverse fishwire technique to insert the 1/2" carriage bolt (Item 7) and block (Item 6) through the rearward access hole on the driver side frame rail.
   • Leave the fishwire temporarily attached for easier hitch installation.

4. Trim Fascia and Heat Shield:

   • Use a utility knife and tin snips to trim the fascia and heat shield.
   • Trim approximately 3 7/8" wide by 1" high from the bottom of the fascia (see Figure 2).
   • Reinstall the trimmed heat shield.

5. Install Hitch:

   • Raise the hitch into position.
   • Thread the fishwire through the appropriate slot to prevent the bolt and block from being pushed into the frame.
   • Install the fasteners as shown.
   • Torque the fasteners as follows:
     • 1/2” fastener: 75 lb-ft (102 N·m)
     • M14 fastener: 100 lb-ft (136 N·m)
     • M12 fasteners: 68 lb-ft (92 N·m)

6. Raise Exhaust:

   • Lift the exhaust back into position and reattach the 3 rubber isolators.

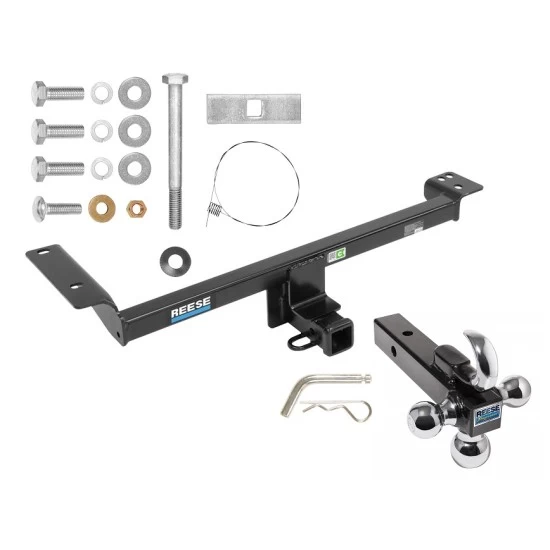

Hardware List:

• (3) M12 x 1.75 x 40 CL8.8 Bolts
• (3) 12mm Flat Washers
• (3) 1/2” Lock Washers
• (1) M14 x 2.00 x 100 CL8.8 Bolt
• (1) 5/8” Conical Washer
• (1) 1/4” x 1” x 3” Block
• (1) 1/2”-13 x 1.75” GR5 Carriage Bolt
• (1) 1/2” Conical Washer
• (1) 1/2”-13 GR5 Hex Nut
• (1) 1/2”-13 Fishwire

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,500 lbs (2,041 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
