Product Details
- Brand: Reese
- Model: 84134 7031400 63240

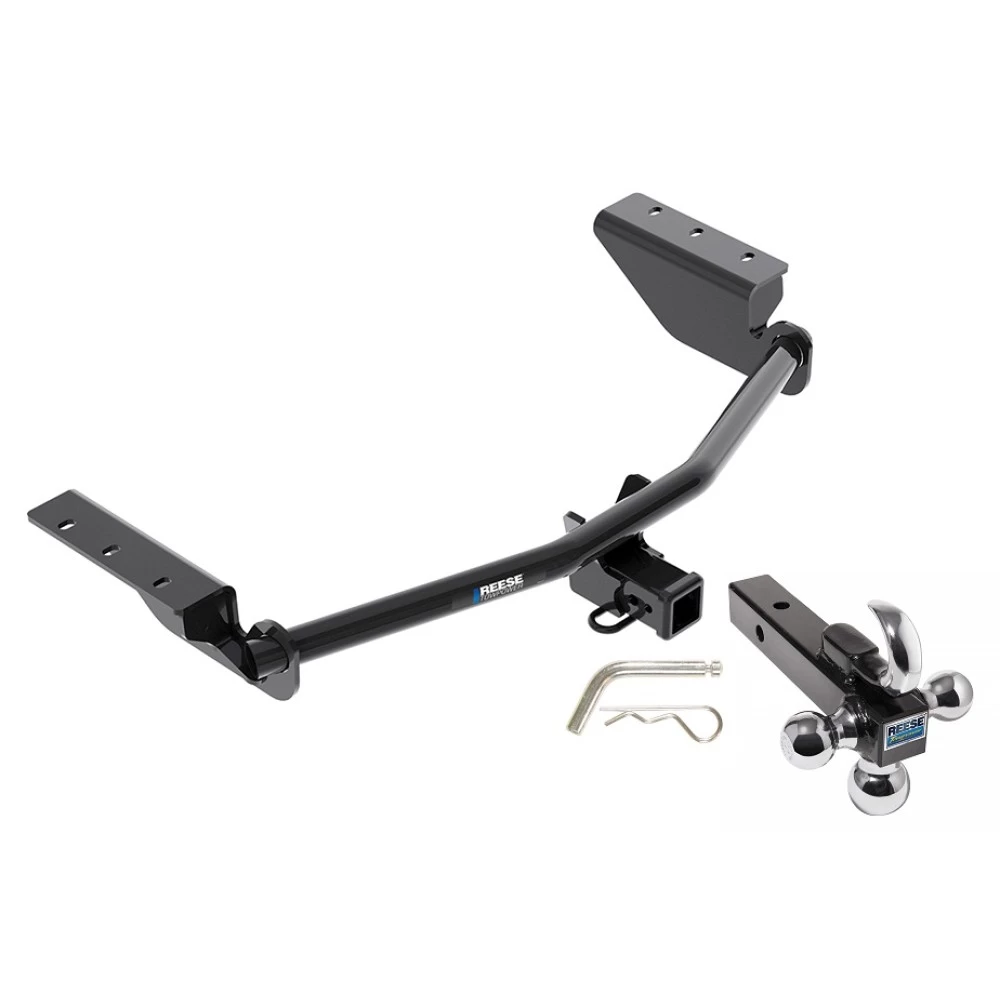

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch Receiver For 13-18 Toyota RAV4 w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76134
- 84134
- CQT76134
Applications:
- Years: 2013-Current
- Make and Models: Toyota RAV4
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 12 mm, 17 mm, 19 mm
- 6" Socket Extension
- Flat Head Screwdriver
- Pry Bar
- Tin Snips
- Lubricant or Soapy Water
- Exhaust Removal Pliers (Optional)
- Utility Knife
- Small Phillips Screwdriver
Step-by-Step Instructions:
1. Preparation:
- Mark the centerline of the appearance panel with a marker or tape.
- Remove the driver-side plastic appearance panel using a flat head screwdriver and 10 mm socket to remove (2) plastic rivets and (1) flange nut.
- If present, remove additional plastic appearance panels located between the fascia and the end panel on both sides.
2. Remove Tie Down Bracket:
- Using a 17 mm socket, remove (2) bolts from the tie-down bracket and return it to the vehicle owner.
3. Lower Exhaust:
- Remove (1) rubber isolator from the exhaust rod on the passenger side. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
- For additional clearance, remove the next rubber isolator. Support the exhaust system to prevent damage.
4. Remove Exhaust Rod (If Necessary):
- Using a 12 mm socket, remove (2) bolts that secure the exhaust rod near the trunk pan. Return the rod to the vehicle owner.
5. Remove Rear Fascia:
- Remove (1) bolt from the bottom of the wheel well with a 10 mm socket, and (2) Phillips screws with a small Phillips screwdriver on each side.
- Open the liftgate and remove (2) bolts using a 10 mm socket.
- Gently pull up from the rear wheel well panels, unclipping tabs inside, and continue along the inside hatch cover. Carefully pull the fascia away from the vehicle. Disconnect any wiring harnesses or sensors from the fascia, if present.
6. Install the Hitch:
- Raise the hitch over the exhaust on the passenger side and position it over the existing weldnuts.
- Loosely install M12 bolts and conical washers into the weldnuts.
- Torque all fasteners to 76 lb-ft (103 N·m).
7. Reinstall Rear Fascia:
- Starting at the center, gently reinstall the rear fascia and all fasteners in reverse order. Reattach any wiring harnesses if removed.
8. Trim or Return Appearance Panels:
- If necessary, trim the appearance panels to accommodate the hitch and return them to the vehicle owner.
9. Reattach Exhaust:
- Raise the exhaust back into position and reattach all rubber isolators. Remove any supports used.
Hardware List:
- 5 × M12 × 1.25 × 40 mm Bolts (CL10.9)
- 5 × Conical Washers (1/2")
- 2 × Cable Ties
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 350 lbs (159 kg)
- Weight Distribution: Do not use with spring bars
- Installation Time: Approximately 20-45 minutes depending on vehicle year
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
