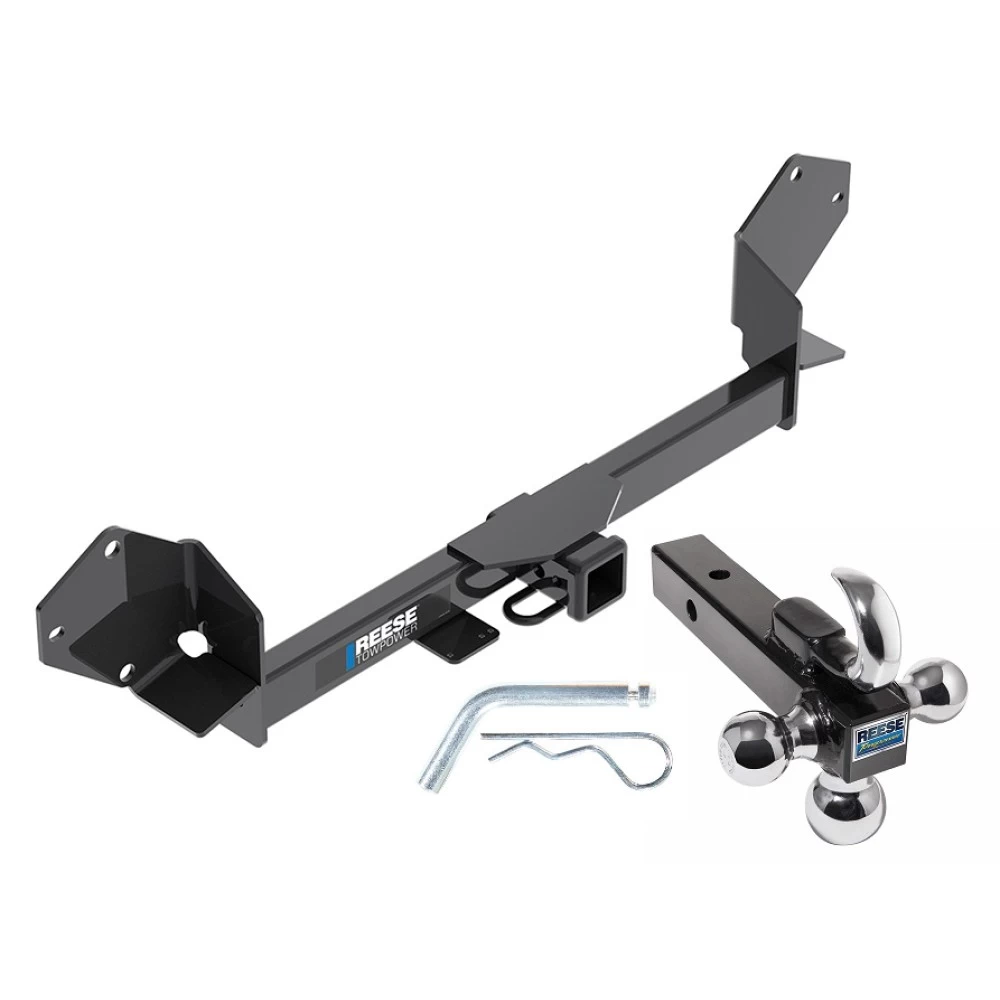

Reese Trailer Tow Hitch Receiver For 16‑18 Buick Envision w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 84080 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2016 - 2018 Buick, Envision, All Styles

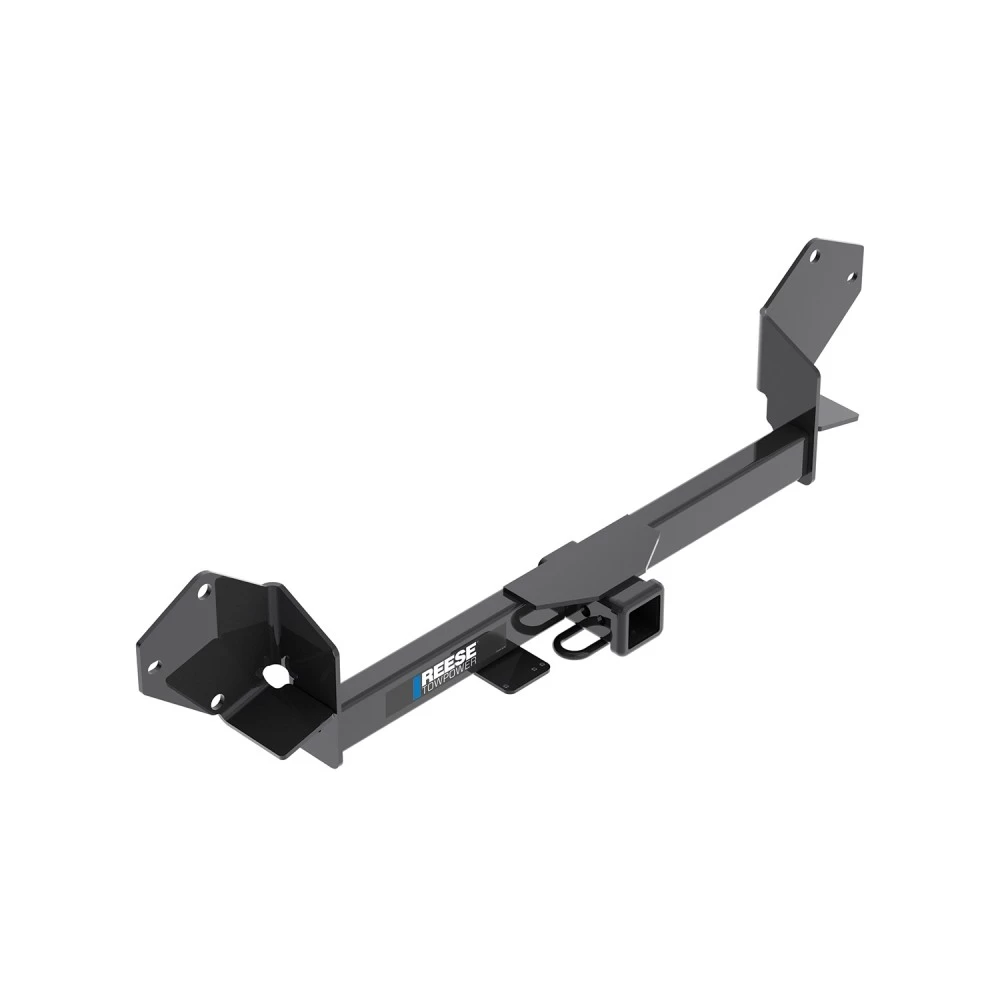

Trailer Hitch Specs:
| Part Number | 84080 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Partial list of fitment years: 16 17 18 2016 2017 2018
$246 07 $395.87 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$395.87 $246 07
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84080 7031400 63240
- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
2016 - 2018 Buick, Envision, All Styles
Trailer Hitch Specs:
| Part Number | 84080 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Partial list of fitment years: 16 17 18 2016 2017 2018
Get Expert Help
Reese Trailer Tow Hitch Receiver For 16-18 Buick Envision w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76080
- 84080
- CQT76080
Applications:
- Years: 2016-Current
- Make and Models: Buick Envision
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: T15 Torx, 7 mm, 15 mm
- Flat Head Screwdriver
- Plastic Trim Tools
- Tin Snips
Step-by-Step Instructions:
1. Remove Bumper Fascia, Taillights, and Bumper Beam:
- Remove screws using a T15 Torx bit:
- (3) screws in the wheel well liner.
- (2) screws in the middle underside area of the fascia.
- Pry/pull off the body trim piece at the upper wheel well to expose (1) screw. Remove using a 7 mm socket.
- Open the liftgate and remove (2) Phillips screws from the fascia, one on each side.
- Remove taillights:
- Pry off screw covers to expose (2) T15 screws on each side.
- Pull taillights gently rearward to release, unplug, and set aside.
- Gently pull off the bumper fascia and disconnect the electrical connector on the passenger side. Set the fascia aside.
- Remove the bumper beam by unscrewing (4) nuts on each side with a 15 mm socket.
2. Install Hitch:
- Raise the hitch and bumper beam into position, aligning holes with studs in the vehicle's end panel.
- Sandwich the hitch between the bumper beam and the end panel.
- Reuse the existing nuts to secure the hitch.
- Torque all hitch fasteners to 38 lb-ft (52 N·m).
3. Reinstall Vehicle Fascia and Taillights:
- Reinstall the fascia and taillights in reverse order of steps 1-4.

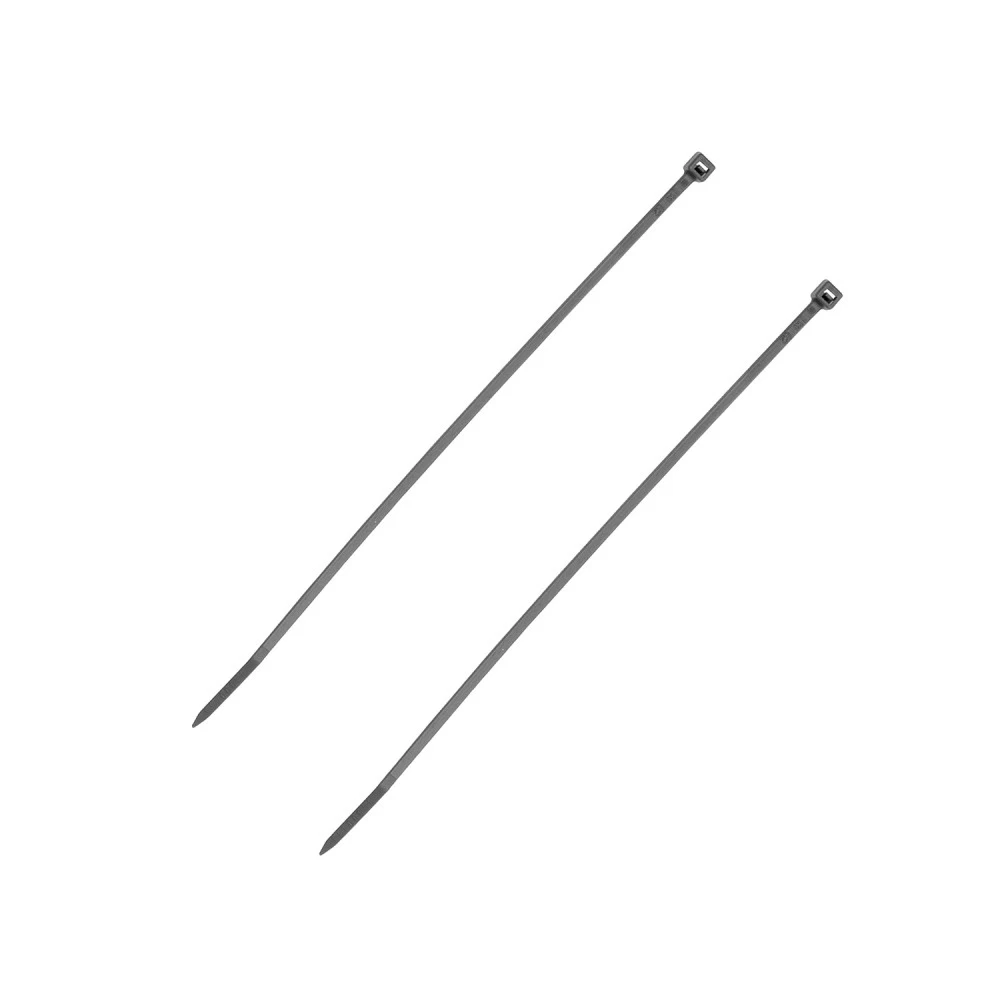

- Use provided cable ties to attach the fascia to (2) bottom attachments, if needed.
- Ensure the fascia’s removable panel for hitch usage is in place when the hitch is not in use.
Hardware List:
- Reuse existing nuts for installation.
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 45 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
