Reese Trailer Tow Hitch Receiver For 95‑05 Chevy Blazer GMC Jimmy Downsize 96‑01 Bravada w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 33015 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1996 - 2001 Oldsmobile, Bravada, All Styles
1995 - 2005 Chevrolet, Blazer, Downsize
1999 - 2001 Chevrolet, Blazer Trailblazer, All Styles
1995 - 2005 GMC, Jimmy, Downsize
Trailer Hitch Specs:
| Part Number | 33015 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 400/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 05 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
$259 27 $416.48 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$416.48 $259 27
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $64.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33015 7031400 63240

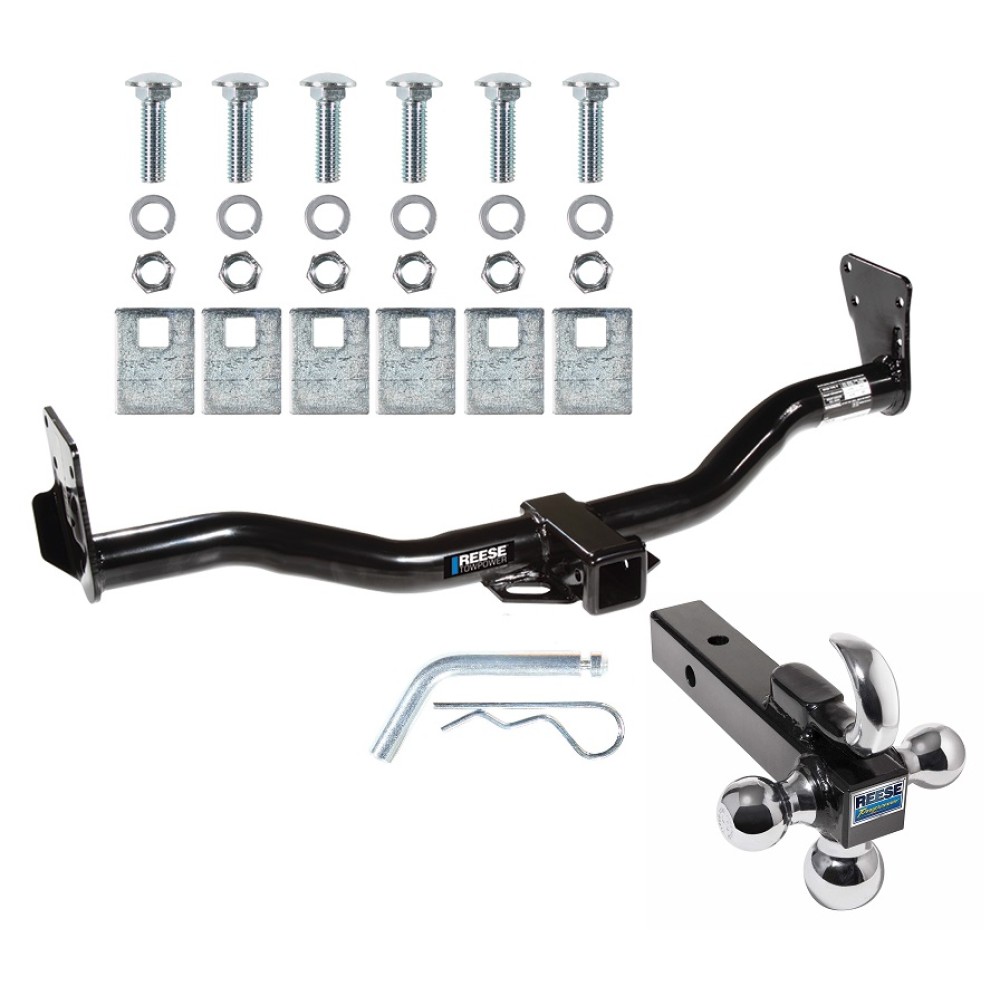

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1996 - 2001 Oldsmobile, Bravada, All Styles
1995 - 2005 Chevrolet, Blazer, Downsize
1999 - 2001 Chevrolet, Blazer Trailblazer, All Styles
1995 - 2005 GMC, Jimmy, Downsize
Trailer Hitch Specs:
| Part Number | 33015 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 6,000 lbs |
| Max Tongue Weight | 400/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 95 96 97 98 99 00 01 02 03 04 05 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005
Get Expert Help
Reese Trailer Tow Hitch Receiver For 95-05 Chevy Blazer GMC Jimmy Downsize 96-01 Bravada w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Chevrolet Blazer, GMC Jimmy, Oldsmobile Bravada, and GMC Envoy
Part Numbers:
- 75079
- 44715
- 87478
- 78167 (U-Haul)
Wiring Access Location:
- SUV5
Tools Required:
- Wrenches: 7/8", 18mm
Step-by-Step Instructions:
For 1998 and Newer Models with Original Equipment Trailer Hitch:
- Purchase left and right bumper brackets from a General Motors dealer (Part Numbers: 15719945 and 15719946).
- Remove the original trailer hitch.
- Install the purchased bumper brackets.
For 1998 and Newer Models Without Original Equipment Trailer Hitch:
- Remove the forward bumper bolts (4) and return them to the vehicle owner.
Hitch Installation (All Models):
-
Raise the hitch into position.
-
Install three (3) 1/2"-13 x 1-3/4" carriage bolts, blocks, lock washers, and nuts on each side, as shown in the diagram.
-
Position the blocks as shown in the instructions.
-
Tighten All Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 Grade 5 Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2"
- (6) Lock Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Accessory Rating: Class C
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Blazer, GMC Jimmy, Oldsmobile Bravada, and GMC Envoy
Part Numbers:
- 75079
- 44715
- 87478
- 78167 (U-Haul)
Wiring Access Location:
- SUV5
Tools Required:
- Wrenches: 7/8", 18mm
Step-by-Step Instructions:
For 1998 and Newer Models with Original Equipment Trailer Hitch:
- Purchase left and right bumper brackets from a dealership (Part Numbers: 15719945 and 15719946).
- Remove the original trailer hitch.
- Install the purchased bumper brackets.
For 1998 and Newer Models Without Original Equipment Trailer Hitch:
- Remove the forward bumper bolts (4) and return them to the vehicle owner.
Hitch Installation (All Models):
-
Raise the hitch into position.
-
Install three (3) 1/2"-13 x 1-3/4" carriage bolts, blocks, lock washers, and nuts on each side, as shown in the diagram.
-
Position the blocks as shown in the instructions.
-
Tighten All Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 Grade 5 Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (6) 1/4" x 1-1/2" x 2" Blocks
- (6) 1/2" Lock Washers
- (6) 1/2"-13 Hex Nuts
Safety Notes:
- Frequently inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
Additional Notes:
- Accessory Rating: Class C
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
