Reese Trailer Tow Hitch Receiver For 96-19 Chevy Express GMC Savana Van w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16"

Reese Trailer Tow Hitch Receiver For 96‑19 Chevy Express GMC Savana Van w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

Model: 44028 7031400 63240

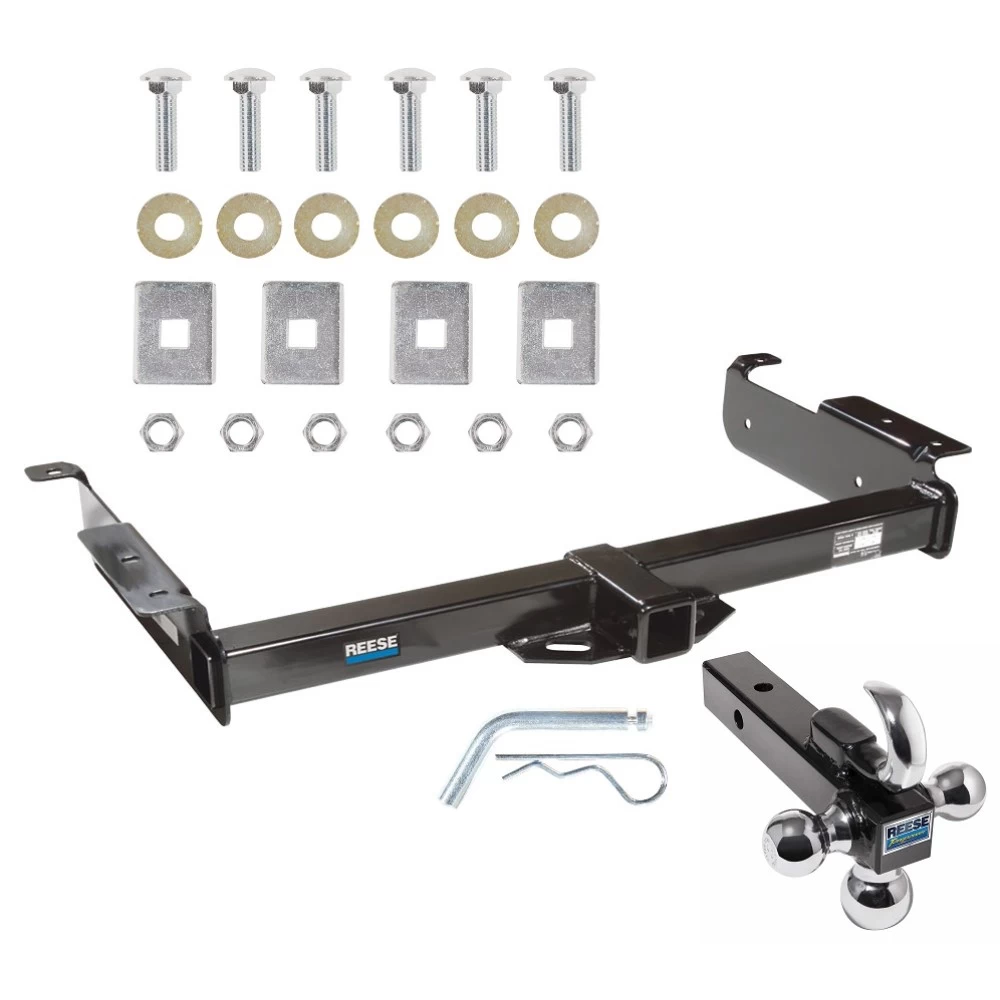

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip

This Hitch Fits The Following Vehicles:
1996 - 2014   Chevrolet, Express 1500, All Styles
1996 - 2019    Chevrolet, Express 2500, All Styles
1996 - 2019    Chevrolet, Express 3500, All Styles
1996 - 2014   GMC, Savana 1500, All Styles
1996 - 2019    GMC, Savana 2500, All Styles
1996 - 2019    GMC, Savana 3500, All Styles

Trailer Hitch Specs:

Part Number	44028
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	500/1000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019

See Full Description

$252 ⁶⁰ $406.09 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$406.09 $252 ⁶⁰

Pay in 4 interest-free installments of $63.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $63.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 44028 7031400 63240
Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip

Compatibility Chart

Year Range	Make	Model	Style

Description

Part Number	44028
Brand	Reese
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	500/1000 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	7031400
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	6,000 Lb. capacity
2 5/16 In. ball	10,000 Lb. capacity
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 44028 , 7031400 , 63240 , Reese , Trailer , Tow , Hitch , Receiver , 96-19 , Chevy , Express , GMC , Savana , Van , w/Tri-Ball , Triple , Ball , 1-7/8" , 2" , 2-5/16" , 96 , 97 , 98 , 99 , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 1996 , 1997 , 1998 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019

Get Expert Help

Reese Trailer Tow Hitch Receiver For 96-19 Chevy Express GMC Savana Van w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes

Installation Instructions for GM Full Size Van

Part Numbers:

75189
87189
44028

Wiring Access Location:

SUV3, SUV4

Tools Required:

Wrenches: 3/4", 7/8" (tighten all fasteners with torque wrench)

Drill Bits:

None

Notes:

Hitch requires 5/8" pin and clip if stabilizing pin is not installed.

Step-by-Step Instructions:

Insert carriage bolts and blocks through existing access slots and into attachment holes as shown in the diagram for each side.
Raise the hitch into position and fasten with conical toothed washers and nuts as shown in the diagram for each side.
Tighten all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).

Hardware List:

(4) 1/2-13 x 1-3/4 GR5 Carriage Bolts
(2) 1/4 x 1-1/2 x 3 Blocks (1711)
(2) 1/4 x 1-1/2 x 2 Blocks (1540)
(4) Conical Toothed Washers
(4) Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs, Max Tongue Weight 750 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
