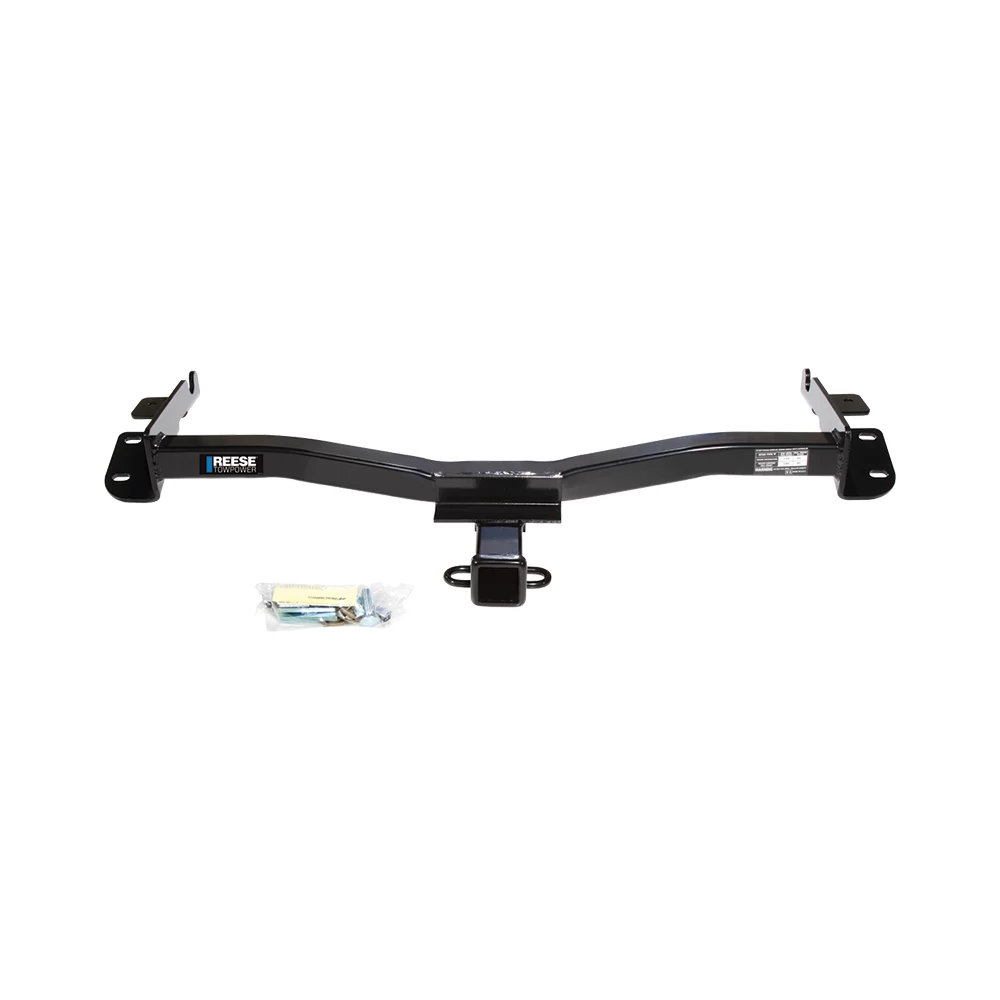

Reese Trailer Tow Hitch Receiver For 98‑03 Toyota Sienna w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"
Model: 33008 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1998 - 2003 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 33008 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
$284 21 $455.42 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$455.42 $284 21
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 33008 7031400 63240

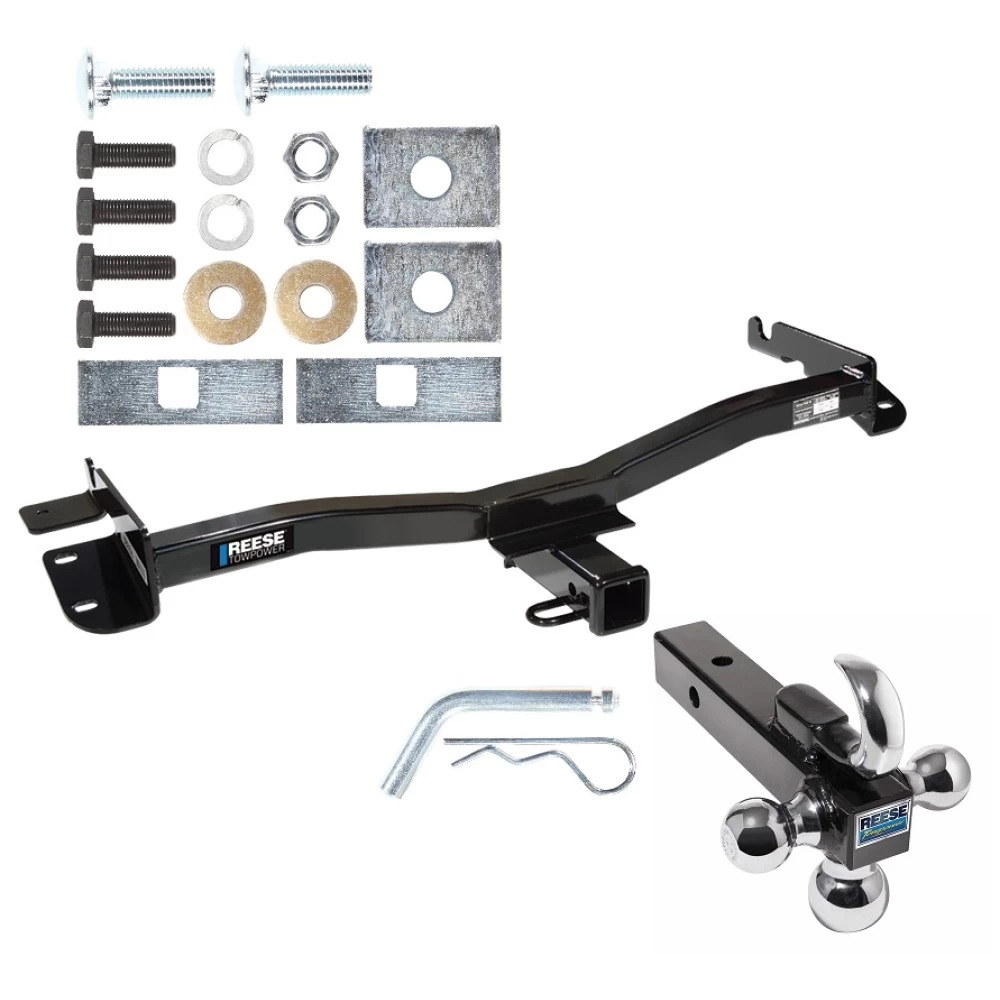

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1998 - 2003 Toyota, Sienna, All Styles
Trailer Hitch Specs:
| Part Number | 33008 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
Get Expert Help
Reese Trailer Tow Hitch Receiver For 98-03 Toyota Sienna w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Toyota Sienna
Part Numbers:
- 75120
- 44713
- 87638
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 7/8", 14mm, 17mm
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks and Bolts:
- Remove tow hooks and bolts from frame rails and return them to the customer.
-
Raise Hitch into Position:
- Install four (4) M10 fasteners into existing weldnuts as shown in the diagram.
-
Drill Forward Holes:
- Using the hitch as a template, drill a 1/2" hole in each frame rail for the forward attachment.
-
Enlarge Access Holes:
- Remove plastic plugs in frame rails and enlarge access holes for easier bolt placement.
- Caution: Vehicles with optional rear heaters should take care to avoid damaging rear heater hoses when enlarging the passenger side access hole.
-
Fishwire Bolts:
- Fishwire the block and carriage bolt through each enlarged hole and install the fasteners as shown in the diagram.
-
Tighten Fasteners:
- Torque M10 fasteners to 53 lb-ft (72 N·m).
- Torque 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- M10 Fasteners: 53 lb-ft (72 N·m)
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)

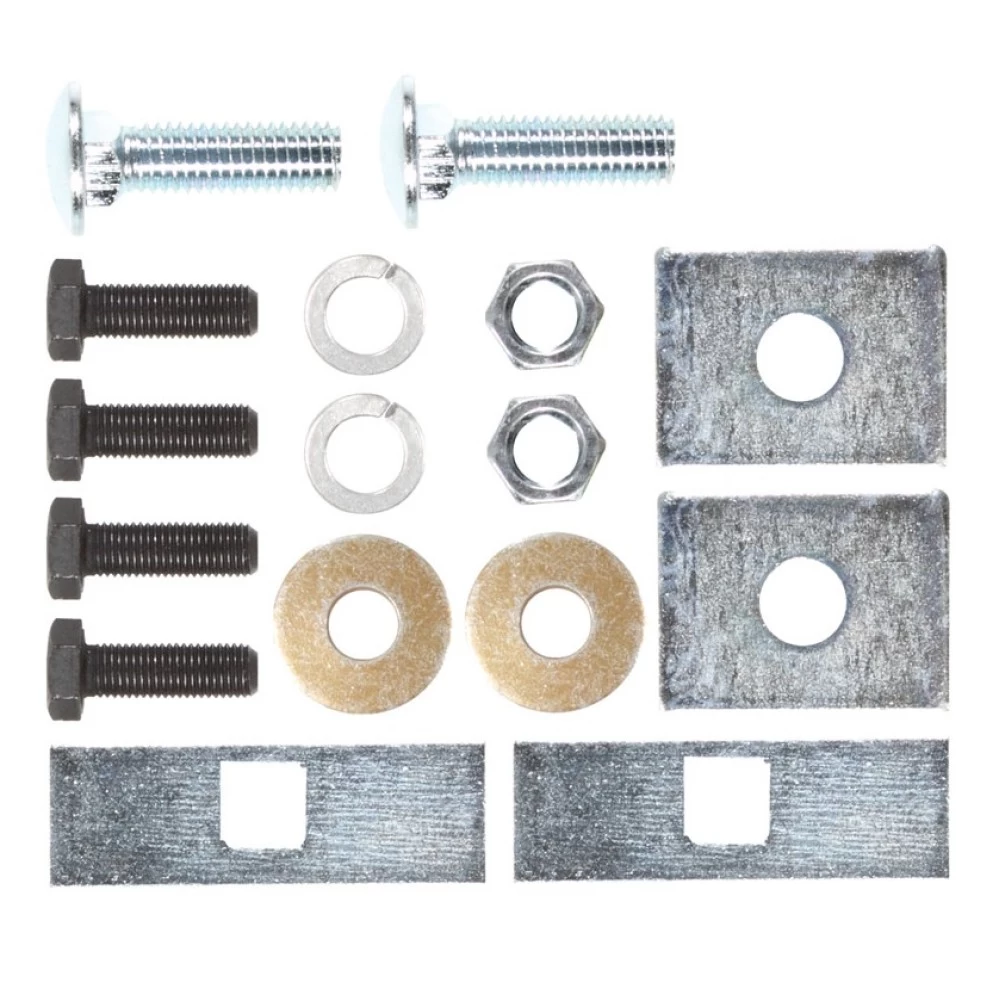

Hardware List:
- (2) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (2) 1/4" x 1 x 3" Blocks (3022)
- (2) 3/16" x 1-1/2" x 2" Blocks (4833-001)
- (2) Lock Washers
- (2) Hex Nuts
- (4) M10 x 1.25 x 30mm CL10.9 Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Toyota Sienna
Part Numbers:
- 75120
- 44713
- 87638
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 7/8", 14mm, 17mm
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Tow Hooks and Bolts:
- Remove tow hooks and bolts from frame rails and return them to the customer.
-
Raise Hitch into Position:
- Install four (4) M10 fasteners into existing weldnuts as shown in the diagram.
-
Drill Forward Holes:
- Using the hitch as a template, drill a 1/2" hole in each frame rail for the forward attachment.
-
Enlarge Access Holes:
- Remove plastic plugs in frame rails and enlarge access holes for easier bolt placement.
- Caution: Vehicles with optional rear heaters should take care to avoid damaging rear heater hoses when enlarging the passenger side access hole.
-
Fishwire Bolts:
- Fishwire the block and carriage bolt through each enlarged hole and install the fasteners as shown in the diagram.
-
Tighten Fasteners:
- Torque M10 fasteners to 53 lb-ft (72 N·m).
- Torque 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- M10 Fasteners: 53 lb-ft (72 N·m)
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (2) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (2) 1/4" x 1 x 3" Blocks (3022)
- (2) 3/16" x 1-1/2" x 2" Blocks (4833-001)
- (2) Lock Washers
- (2) Hex Nuts
- (4) M10 x 1.25 x 30mm CL10.9 Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
