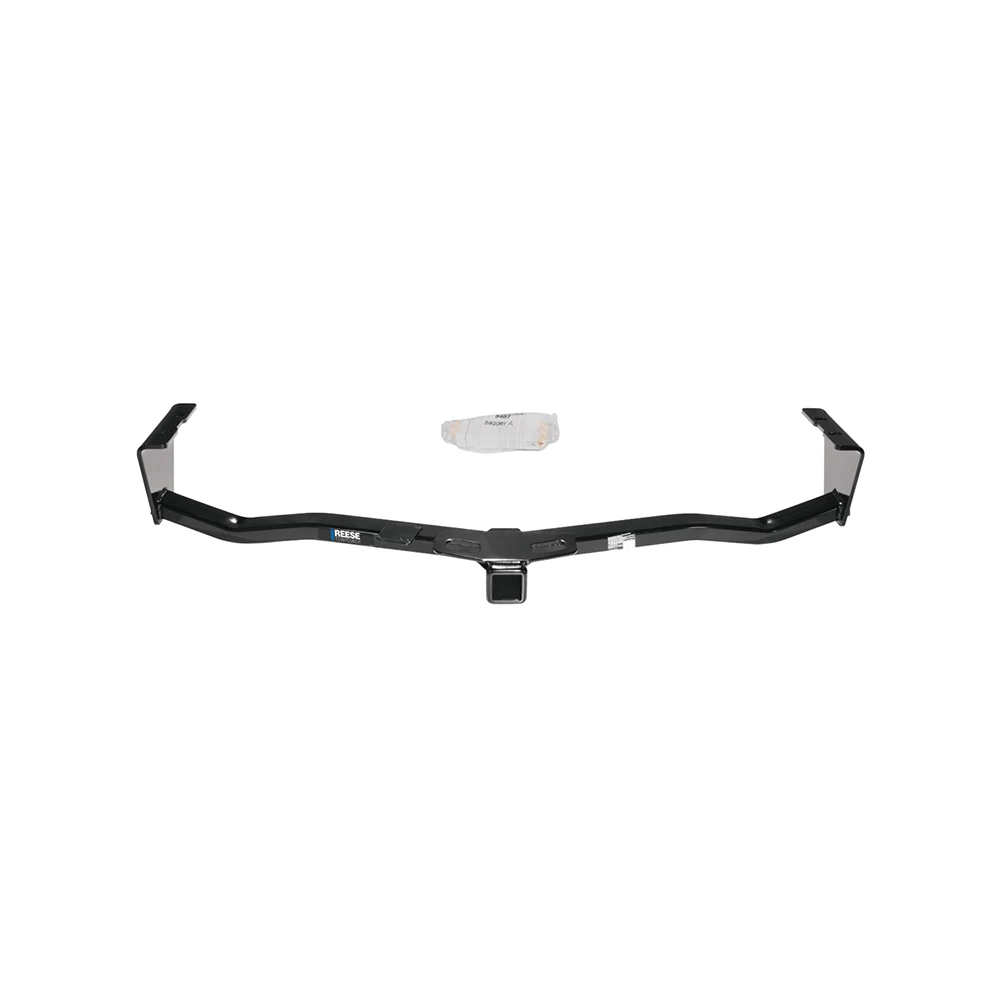

Reese Trailer Tow Hitch For 07‑12 Hyundai Veracruz All Styles 2" Receiver
Model: 445732007 - 2012 Hyundai, Veracruz, All Styles
Trailer Hitch Specs:
| Part Number | 44573 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
$299 99 $468.45 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$468.45 $299 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44573
- UPC: 016118062502
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2007 - 2012 Hyundai, Veracruz, All Styles
Trailer Hitch Specs:
| Part Number | 44573 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 11 12 2007 2008 2009 2010 2011 2012
Get Expert Help
Reese Trailer Tow Hitch For 07-12 Hyundai Veracruz All Styles 2" Receiver Install Notes
Installation Instructions for Hyundai Veracruz
Part Numbers:
- 87439
- 75532
- 44573
Tools Required:
- Wrenches: 10mm, 14mm, 16mm
- Drill Bits: None
Wiring Access Location:
- SUV7
Step-by-Step Instructions:
-
Remove Tow Hook (if present):
- Remove the two bolts securing the tow hook to the frame rail.
- Lower the exhaust by detaching the rubber isolators in two locations.
- Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.
-
Remove Heat Shield Nuts:
- Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.
-
Position Hitch:
- Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
- Ensure the hitch is placed between the heat shield and the frame rails.
-
Install Fasteners:
- Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.
-
Reinstall Heat Shield Nuts:
- Reattach the heat shield using the previously removed nuts.
-
Raise Exhaust:
- Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).

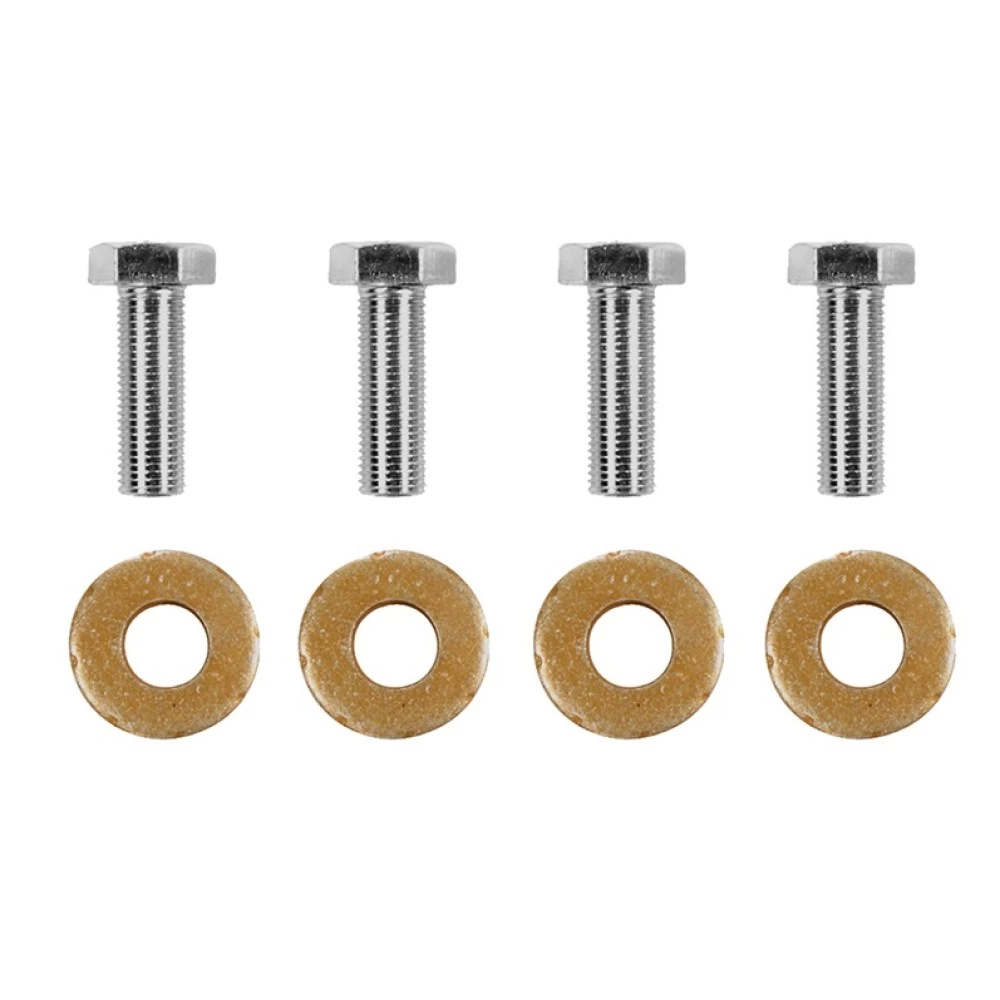

Hardware List:
- (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 87439
- 75532
- 44573
Tools Required:
- Wrenches: 10mm, 14mm, 16mm
- Drill Bits: None
Wiring Access Location:
- SUV7
Step-by-Step Instructions:
-
Remove Tow Hook (if present):
- Remove the two bolts securing the tow hook to the frame rail.
- Lower the exhaust by detaching the rubber isolators in two locations.
- Remove the nuts holding the heat shield in place. Keep the nut on the frame rail for reinstallation. Return the tow hook and fasteners to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hangers to lower the rear portion of the exhaust system.
-
Remove Heat Shield Nuts:
- Remove the outboard nuts holding the heat shield in place on both sides. Retain the nuts for reinstallation.
-
Position Hitch:
- Rotate the hitch into position over the exhaust and align the hitch slots with the existing weld nuts on the frame.
- Ensure the hitch is placed between the heat shield and the frame rails.
-
Install Fasteners:
- Secure the hitch using M10 x 1.25 x 40mm bolts and conical washers into the existing weld nuts.
-
Reinstall Heat Shield Nuts:
- Reattach the heat shield using the previously removed nuts.
-
Raise Exhaust:
- Reinstall the exhaust hangers and ensure the exhaust system is securely back in position.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 CL10.9 fasteners to 58 lb-ft (79 N·m).
Hardware List:
- (4) M10 x 1.25 x 40mm CL10.9 Hex Bolts
- (4) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
