Product Details
- Brand: Rola
- Model: AGCG 59970 RE53 59316

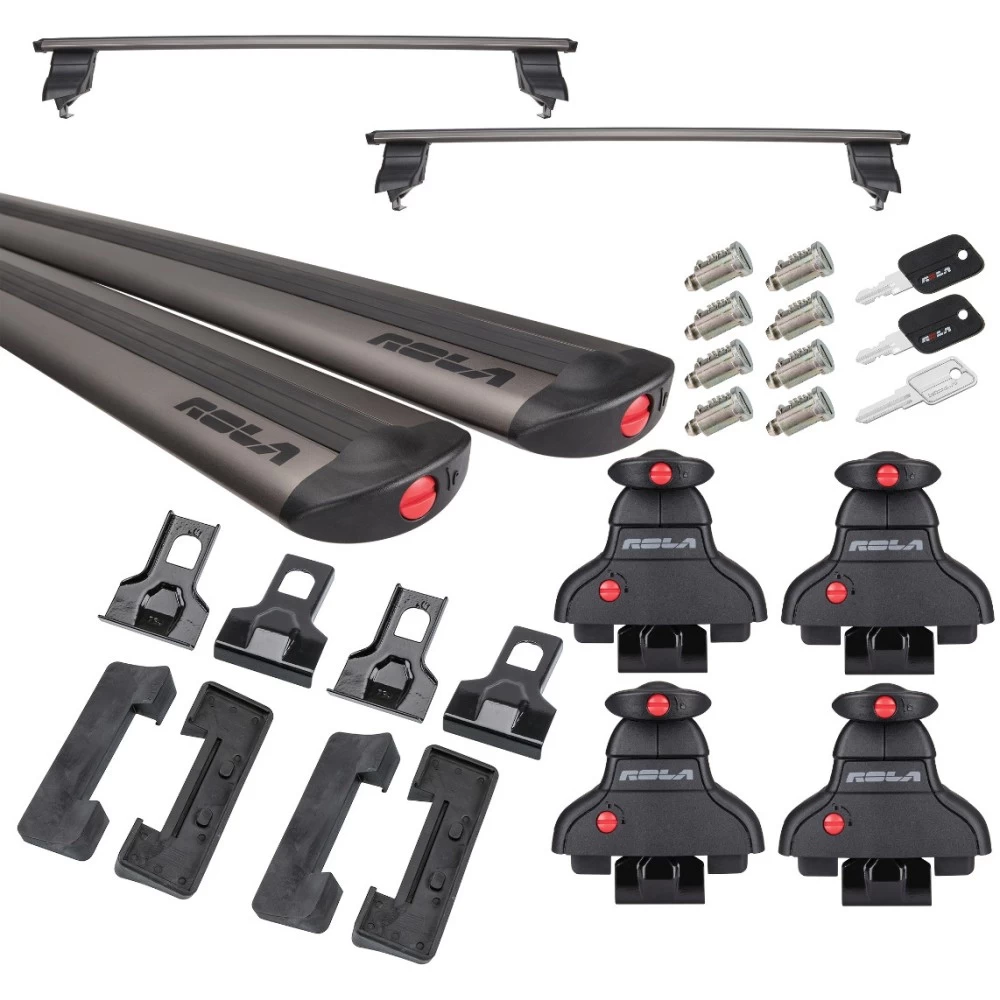

- Includes: Roof Rack, Roof Rack, Roof Rail, Lock Core Kit 8 pack)
Compatibility Chart
Description
Get Expert Help
Rola Roof Rack Cross Bars For 13-19 Ford Escape w/ 8 Lock Cores For Cargo Kayak Luggage Etc. Complete Kit Install Notes
Installation Instructions for Part #R5003
Roof Rail Kit System with Cross Bars, KIT AGCG Components, and RE1350-53 Rails
Supported Vehicles:
- Ford Escape, 5-door SUV, 2013–2017
Part Numbers:
- RE1350-53: Roof Rails
- 59970: Cross Bar System
- KIT AGCG: Door Frame Fit Kit
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth
Hardware List:
RE1350-53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders

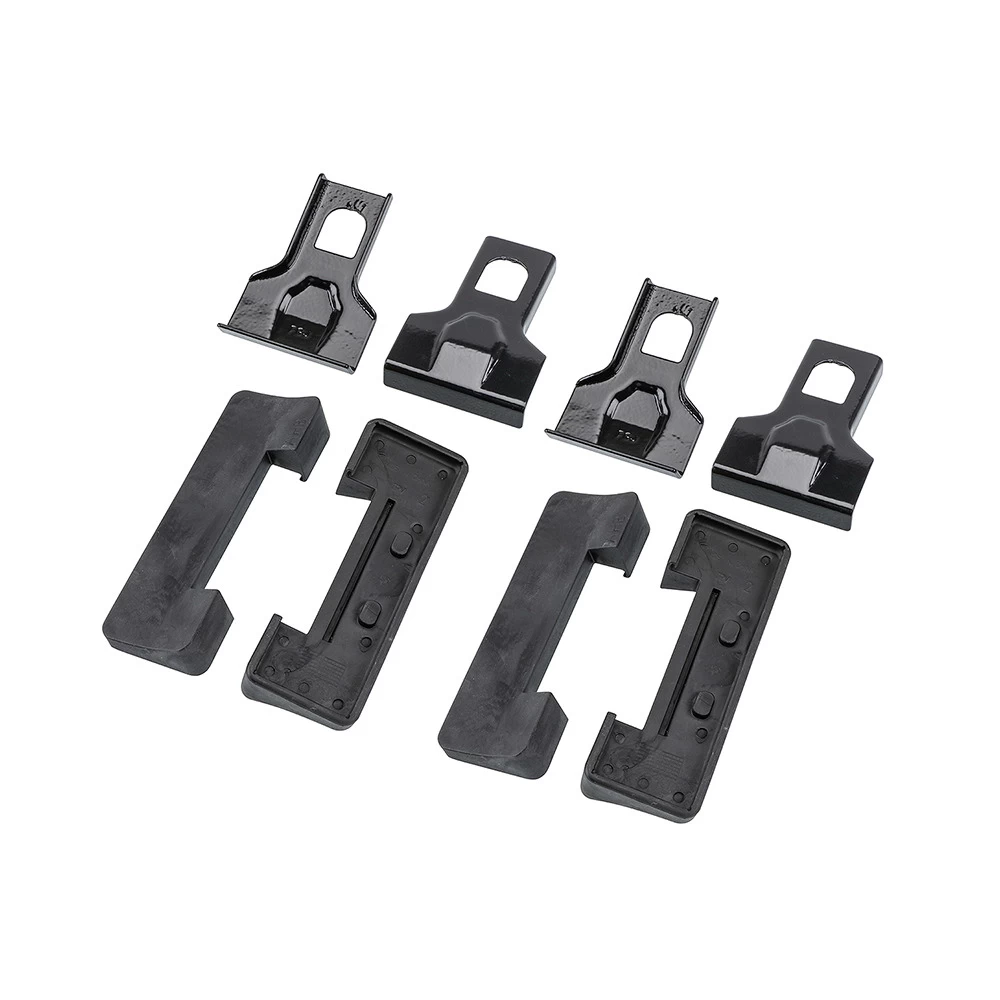

KIT AGCG Components
- (2) Door Frame Straps
- (4) Gasket Pads

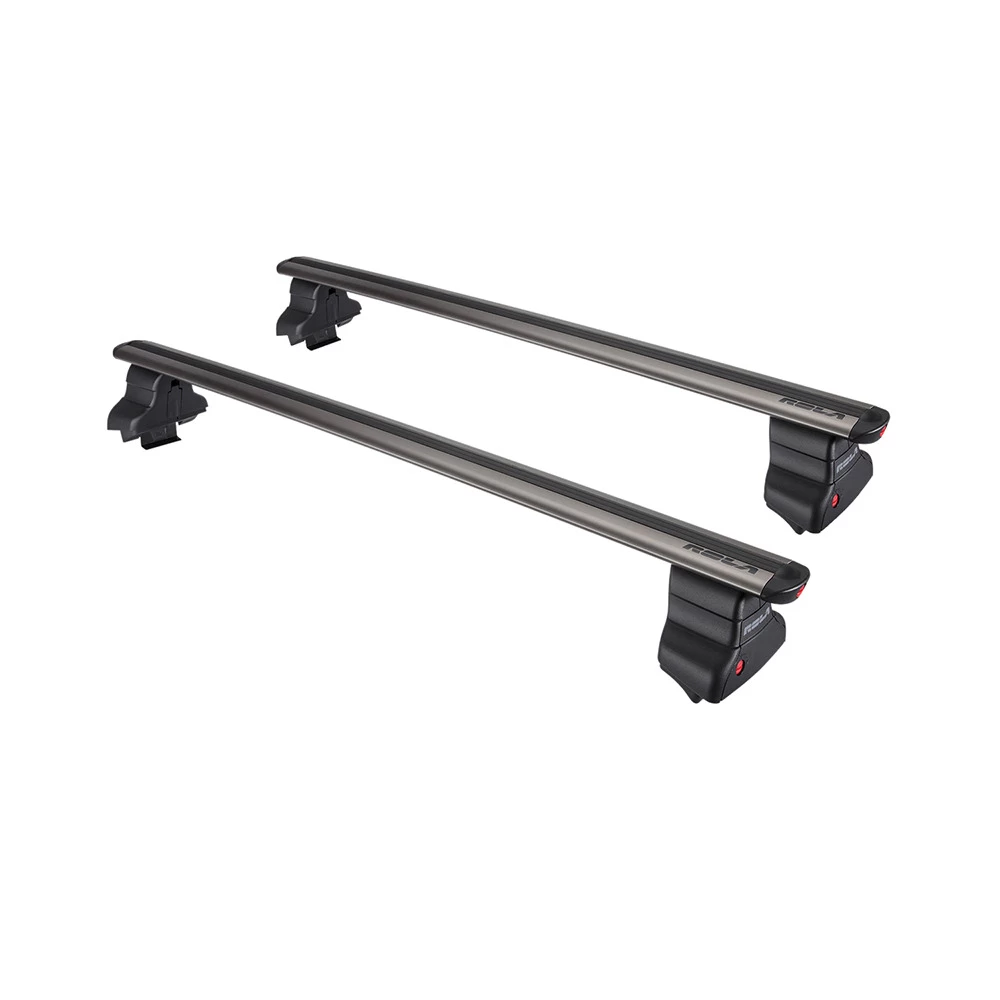

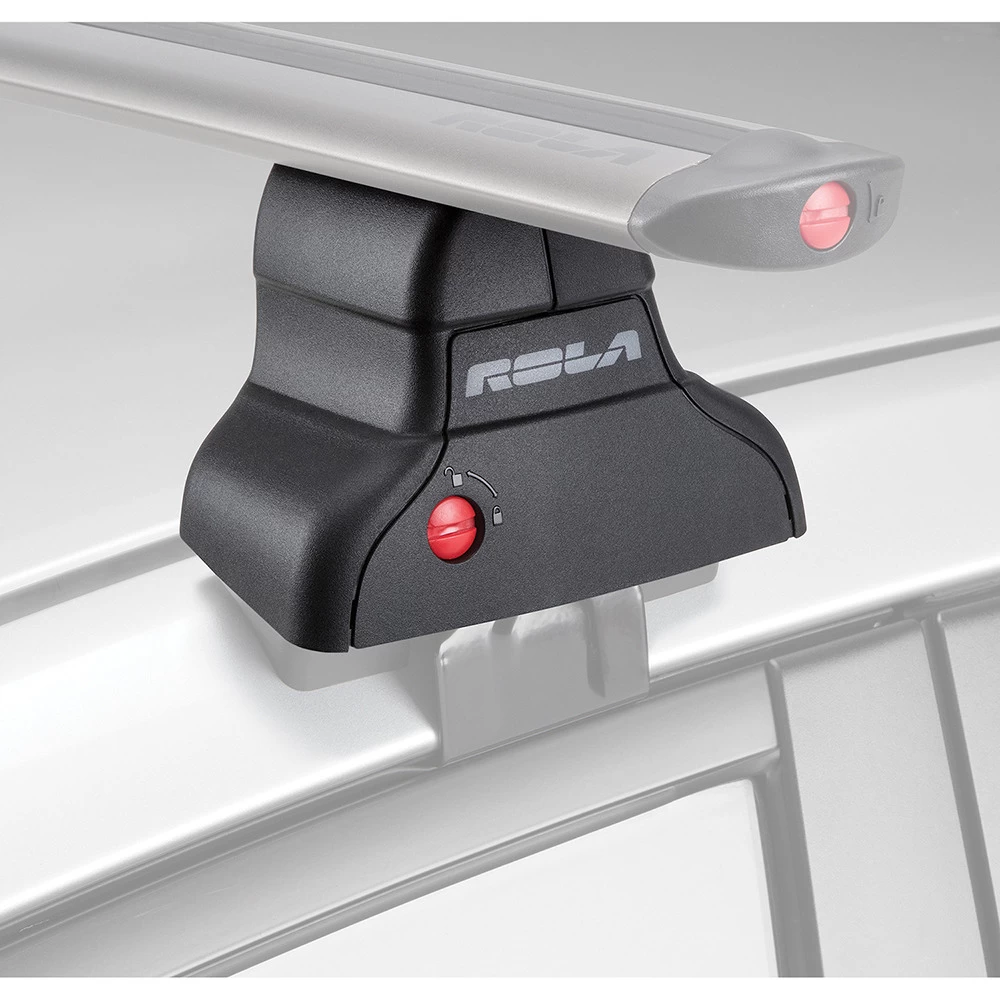

59970 Cross Bar System
- (2) Cross Bars

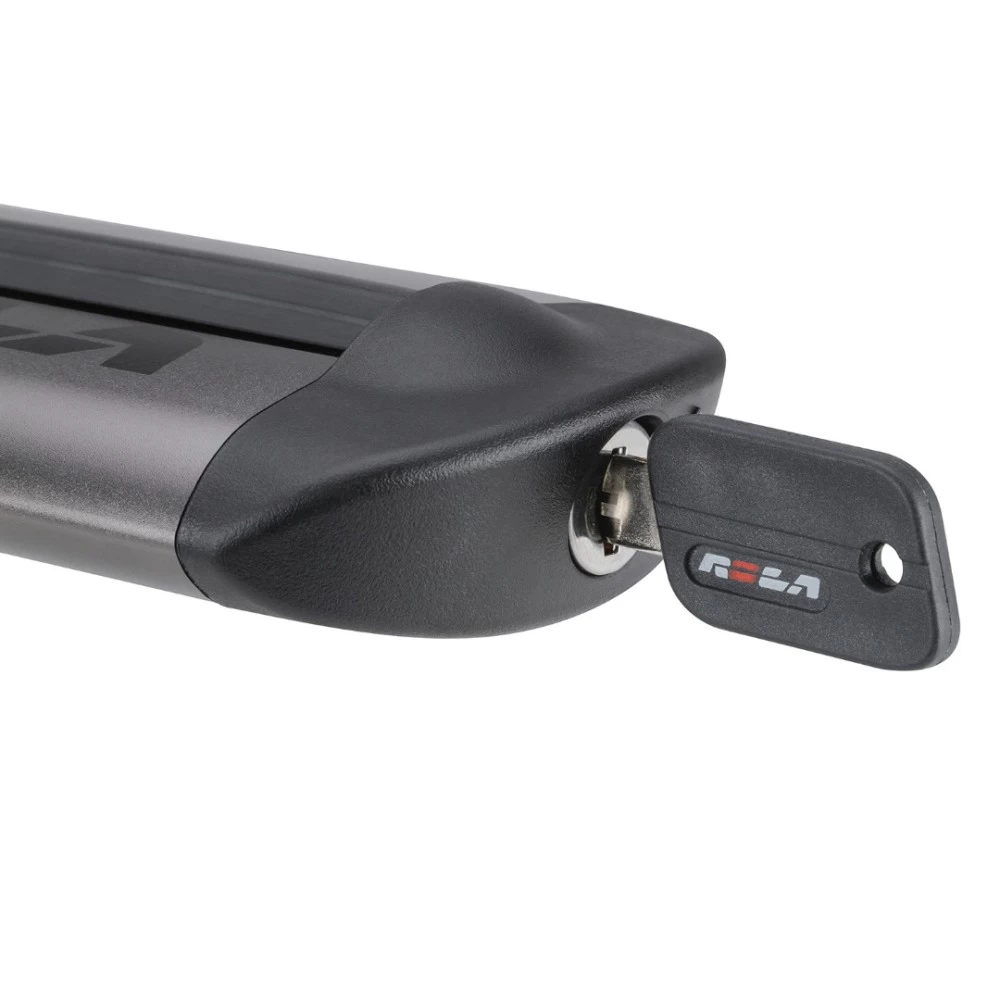

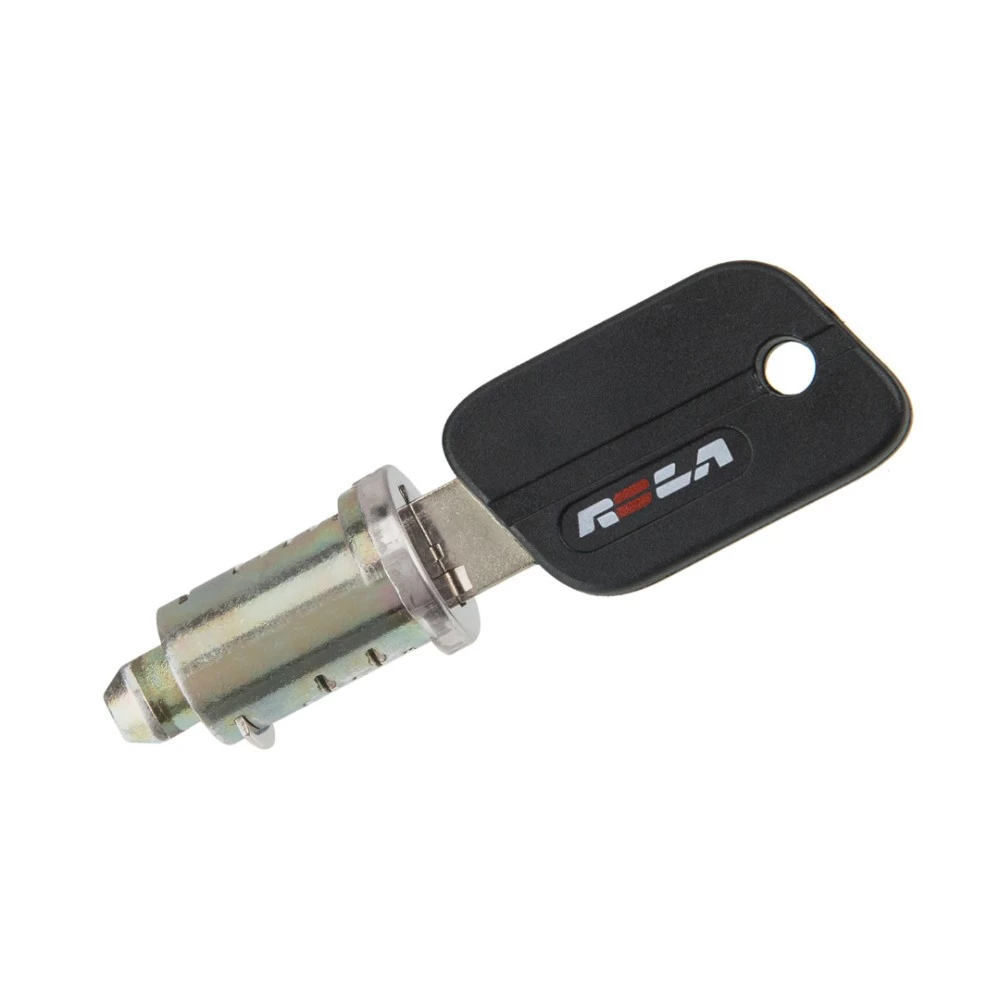

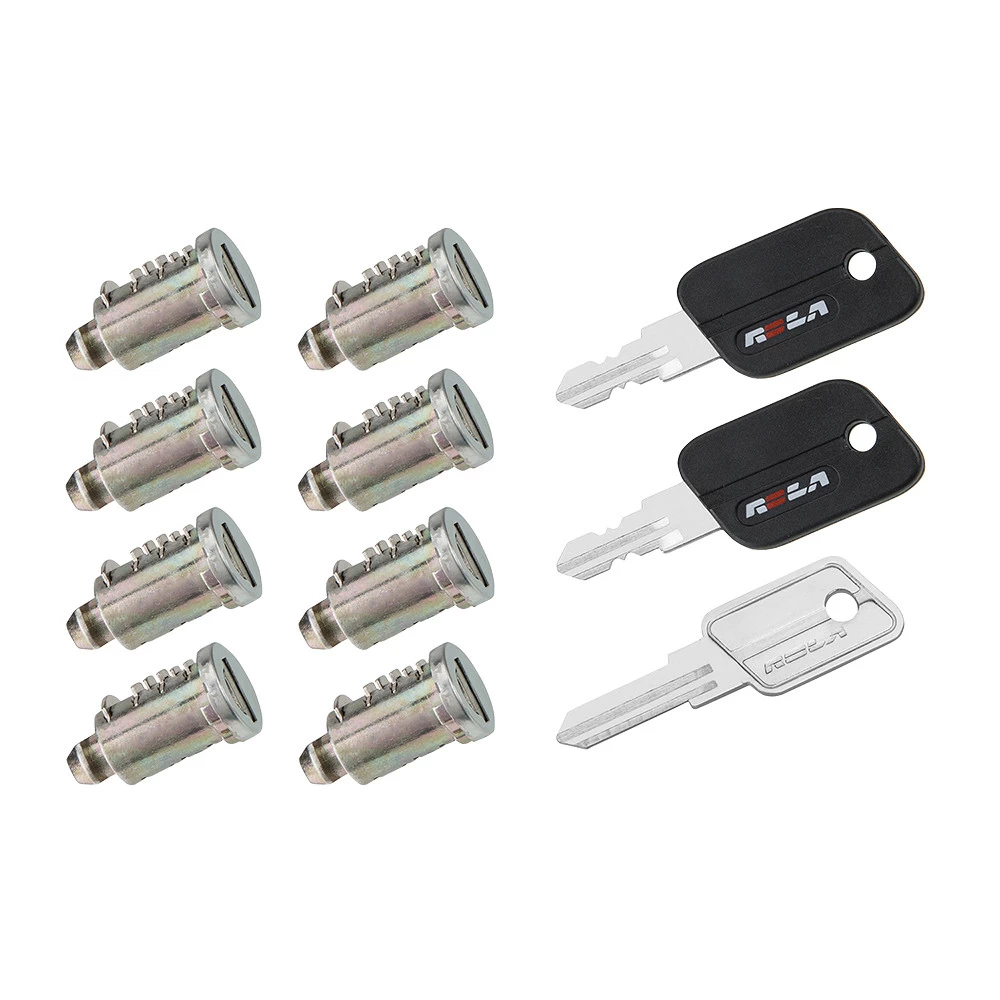

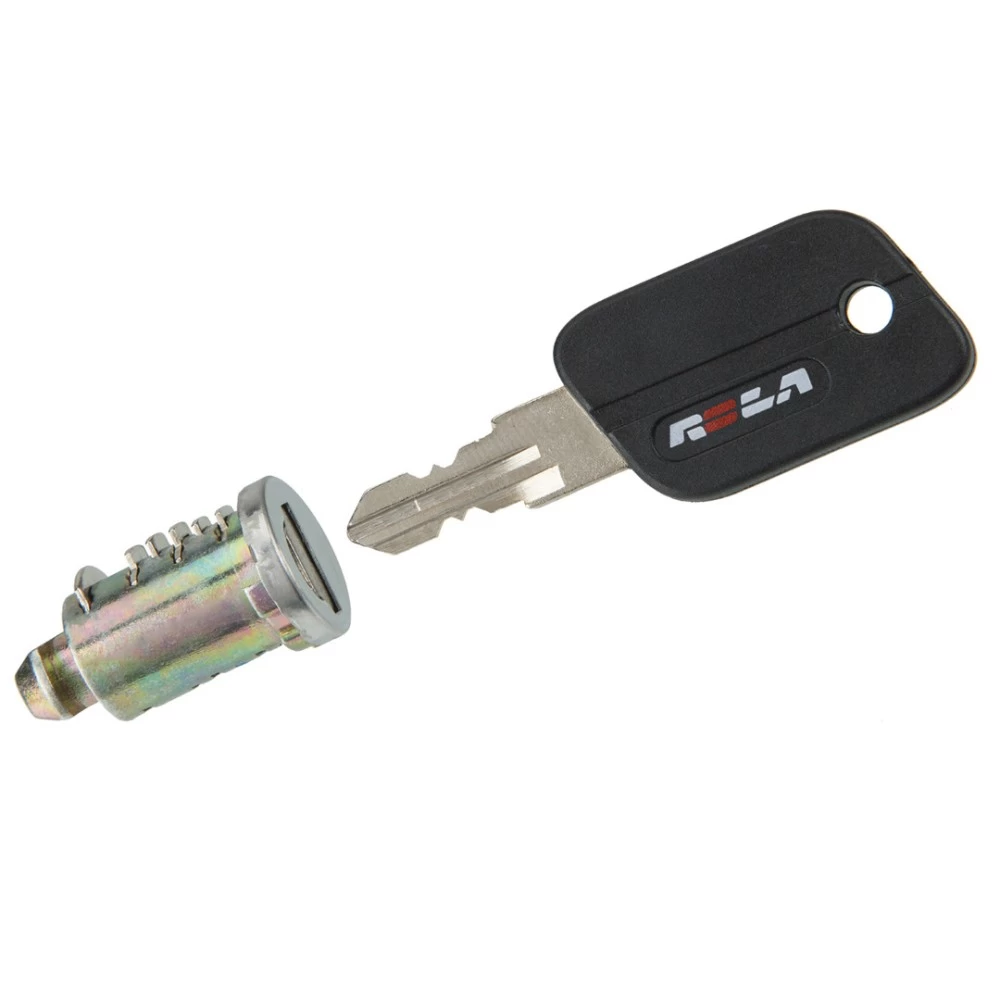

- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE1350-53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.
Step 3: Install the Rails on the Roof
- Place the rails at the designated positions:
- Front Rail Position (W): 12 in (305 mm) from the windshield edge.
- Rear Rail Position (Z): 28 in (711 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.
Step 4: Attach the Cross Bars
- Align the 59970 Cross Bars with the installed rails.
- Secure the cross bars using the KIT AGCG Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Installation Instructions for Part #R5003
Roof Rail Kit System with Cross Bars, KIT AGCG Components, and RE1350-53 Rails
Supported Vehicles:
- Ford Escape, 5-door SUV, 2013–2017
Part Numbers:
- RE1350-53: Roof Rails
- 59970: Cross Bar System
- KIT AGCG: Door Frame Fit Kit
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth
Hardware List:
RE1350-53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders
KIT AGCG Components
- (2) Door Frame Straps
- (4) Gasket Pads
59970 Cross Bar System
- (2) Cross Bars
- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE1350-53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.
Step 3: Install the Rails on the Roof
- Place the rails at the designated positions:
- Front Rail Position (W): 12 in (305 mm) from the windshield edge.
- Rear Rail Position (Z): 28 in (711 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.
Step 4: Attach the Cross Bars
- Align the 59970 Cross Bars with the installed rails.
- Secure the cross bars using the KIT AGCG Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
