Rola Roof Rack Cross Bars w/ Keys For 13‑19 Ford Escape Aluminum Extreme Cross Bar DFE Series
Model: R5003 59316Custom Fit Door Frame Kit
End Support
Aluminum Cross Bars
Fits The Following Vehicles
2013 - 2019 Ford, Escape, All Styles
Rola’s superior bar section and high strength aluminum alloy creates one of the strongest yet lightest cross bars in the market. Designed with a T channel slot for Extreme carrying use and covered with a buffer strip engineered and tested to be quiet in use. Our integrated under-cover slider and measuring system making set-up and installation quick and easy, no need for a tape measure.
Rola’s easy to assemble design make installing our gaskets and straps quick and simple. Just slide the supports onto the cross bars using the setting marks provided and lock the levers down- ready to install on your vehicle. Our provided ROLA tensioning tool takes all the guess work out of installation, simply tighten to the setting marks provided.
ROLA Roof Racks and Accessories are lockable with our Lock Core Kit (8 pack) Included
Features:
- Lightweight aluminum construction ensures strength, durability and rust resistance
- Stainless steel hardware ensure these crossbars will be our travel companion for years to come
- Aerodynamic, elliptical shape reduces drag and wind noise
- Custom-designed mounting brackets fit your specific vehicle
- Gasket pads are included to protect vehicle surface
- Quick and easy installation and removal
- Outback Tested and built for extremes, designed for everyday life
- Reinforced, molded plastic legs are impact resistant for durability
- End supports mount directly to your vehicle's roof at the door frame
- Rail Bars with built- in positioning sliders.
- Limited 5-year warranty
| Part Numbers | R5003 |
| Brand | Rola |
| Finish | Aluminum |
| Warranty | 5 Year |
The ROLA Lock Core kit provides you the luxury of using one key to safely secure all your ROLA locking roof racks and cargo carriers. Each lock core can be installed in minutes to provide you that extra peace of mind. Includes 8 lock cores, 2 keys and 1 installation key.
- One key combo system allows the same one key to be used on all Rola lockable accessories
- 8 pack system keyed alike
- Additional single cores available by key combo- add as many as you like all keyed the same
- Service keys available- see the combo number marked on the lock core to order
- Service Cores available- see the combo number marked on the lock key to order
ROLA Positioning Statement
ROLA offers quality products with innovative features delivering a superior user experience.
The ROLA family of products will have a unique, recognizable look, unlike that of our competitors in the market.
We encourage you to compare our products to Rhino, Yakima and Thule
Rola products include intuitive features making ROLA easy to use, while providing safe and secure transportation of your gear.
Priced as a premium line with a position that is 10-20% below our key competitors without sacrificing quality.
Partial list of fitment years: 13 14 15 16 17 18 19 2013 2014 2015 2016 2017 2018 2019
$547 98 $616.20 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$616.20 $547 98
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $136.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Rola
- Model: R5003 59316

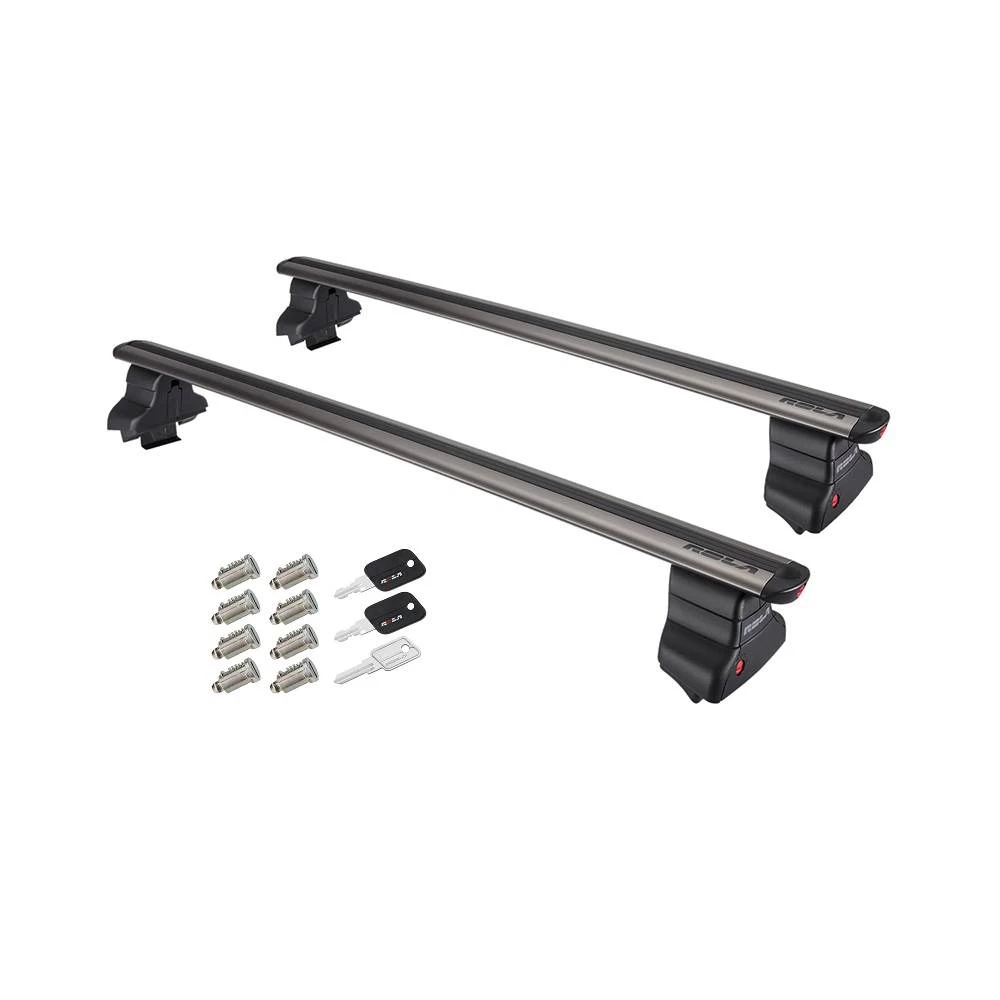

- Includes: Roof Rack, Lock Core Kit 8 pack)
Compatibility Chart
Description
Get Expert Help
Rola Roof Rack Cross Bars w/ Keys For 13-19 Ford Escape Aluminum Extreme Cross Bar DFE Series Install Notes

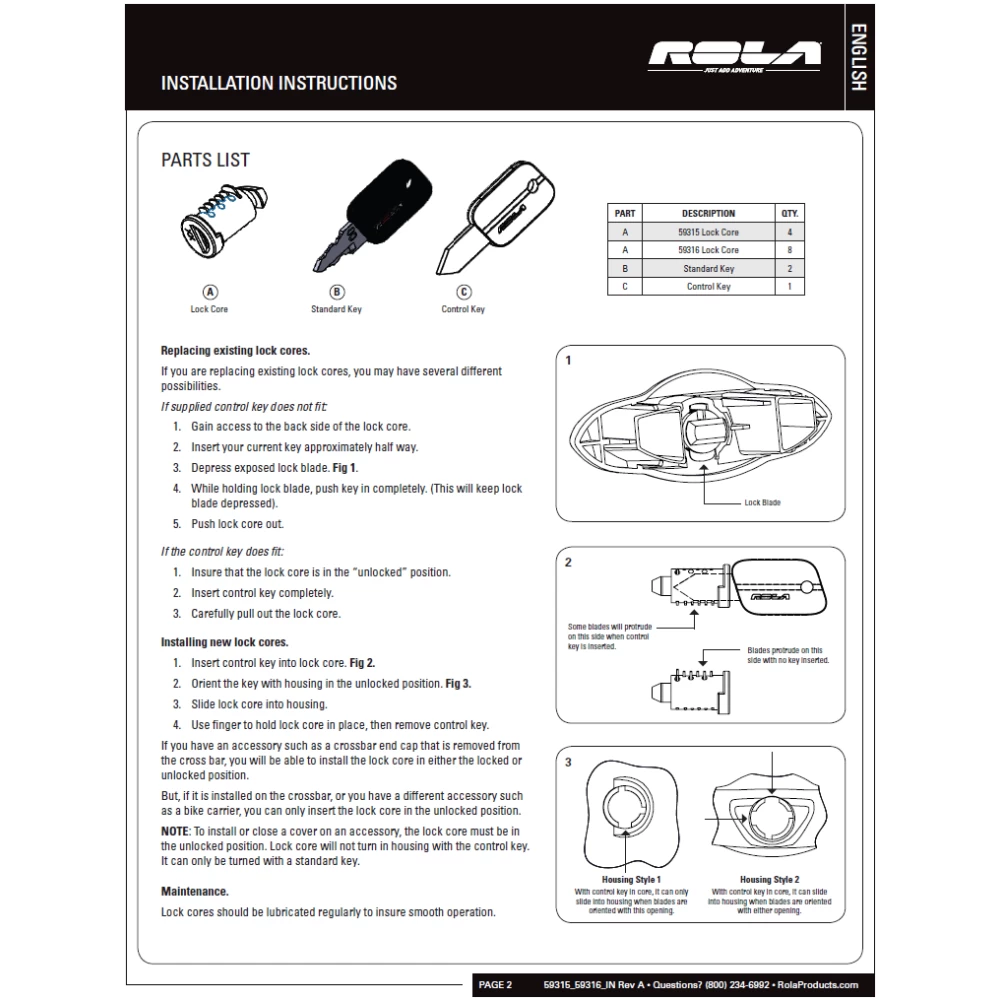

Installation Instructions for Lock Core and Key Set
Part Numbers:
- 59315 (4 Lock Cores)
- 59316 (8 Lock Cores)
Tools Required:
- Control Key (included)
- Standard Key (included)
Safety Notes:
- Warning:
- Proper installation is critical to the performance and safety of this product.
- Always read and understand the instructions and warranty information before installation.
- Damage to the vehicle, cargo, or personal property caused by improper installation is not covered under warranty.
- Installation is the end user's responsibility.
Step-by-Step Instructions:
Installing New Lock Cores
- Insert the control key into the lock core.
- Orient the key with the housing in the unlocked position.
- Slide the lock core into the housing until it is fully seated.
- Hold the lock core in place with your finger and remove the control key.
Note:
- If installing into an accessory like a crossbar end cap that is removed, the lock core can be installed in either the locked or unlocked position.
- If the accessory is already installed or if it is a different type (e.g., a bike carrier), the lock core must be inserted in the unlocked position.
Replacing Existing Lock Cores
-
If the supplied control key does not fit:
- Access the back side of the lock core.
- Insert the current key halfway into the lock.
- Depress the exposed lock blade using a small tool (see Fig. 1).
- Push the key in fully to keep the lock blade depressed.
- Slide the old lock core out of the housing.
-
If the supplied control key fits:
- Ensure the lock core is in the unlocked position.
- Fully insert the control key into the lock core.
- Carefully pull out the lock core.
Maintenance:
- Lubricate lock cores regularly to ensure smooth operation.
- Clean housing areas of any dirt or debris before inserting lock cores.
Hardware List:
- (4) or (8) Lock Cores (depending on part number)
- (2) Standard Keys
- (1) Control Key
Warranty:
- The warranty is limited to repair or replacement of defective parts.
- Damage caused by improper installation, misuse, or neglect is not covered.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

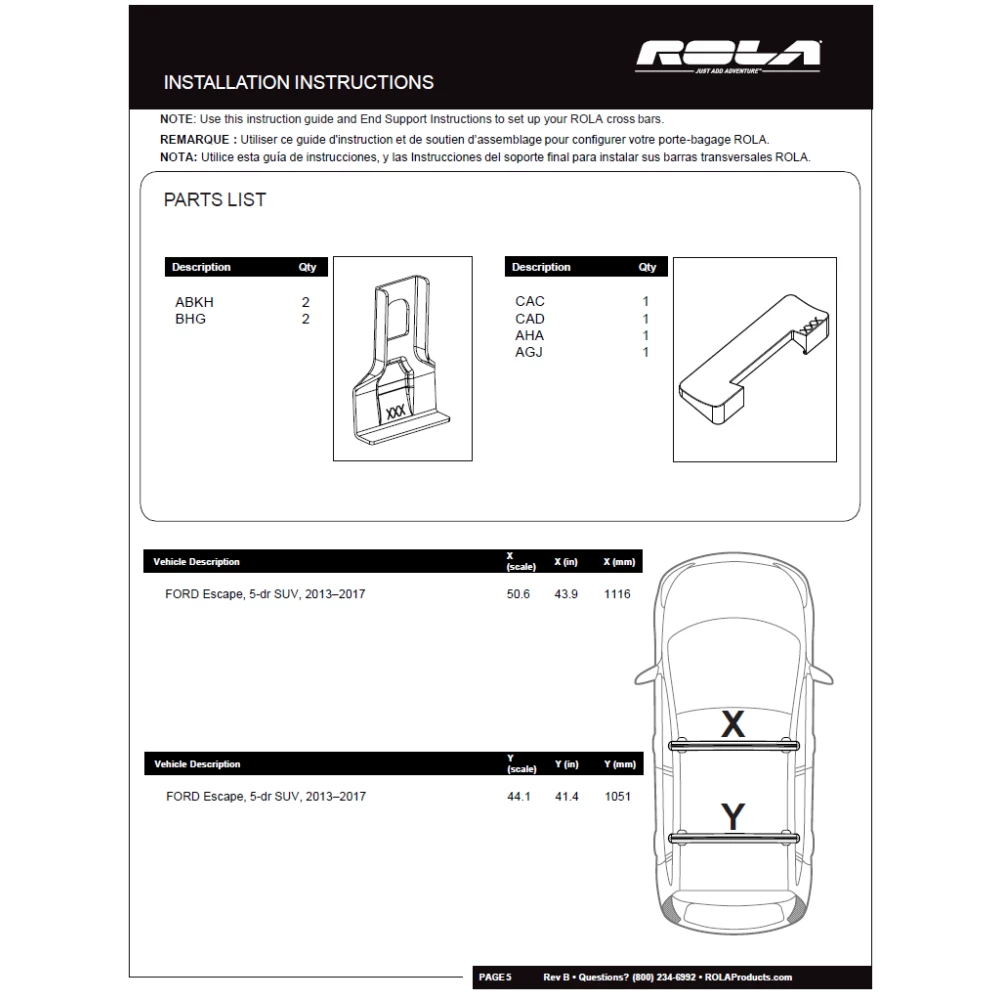

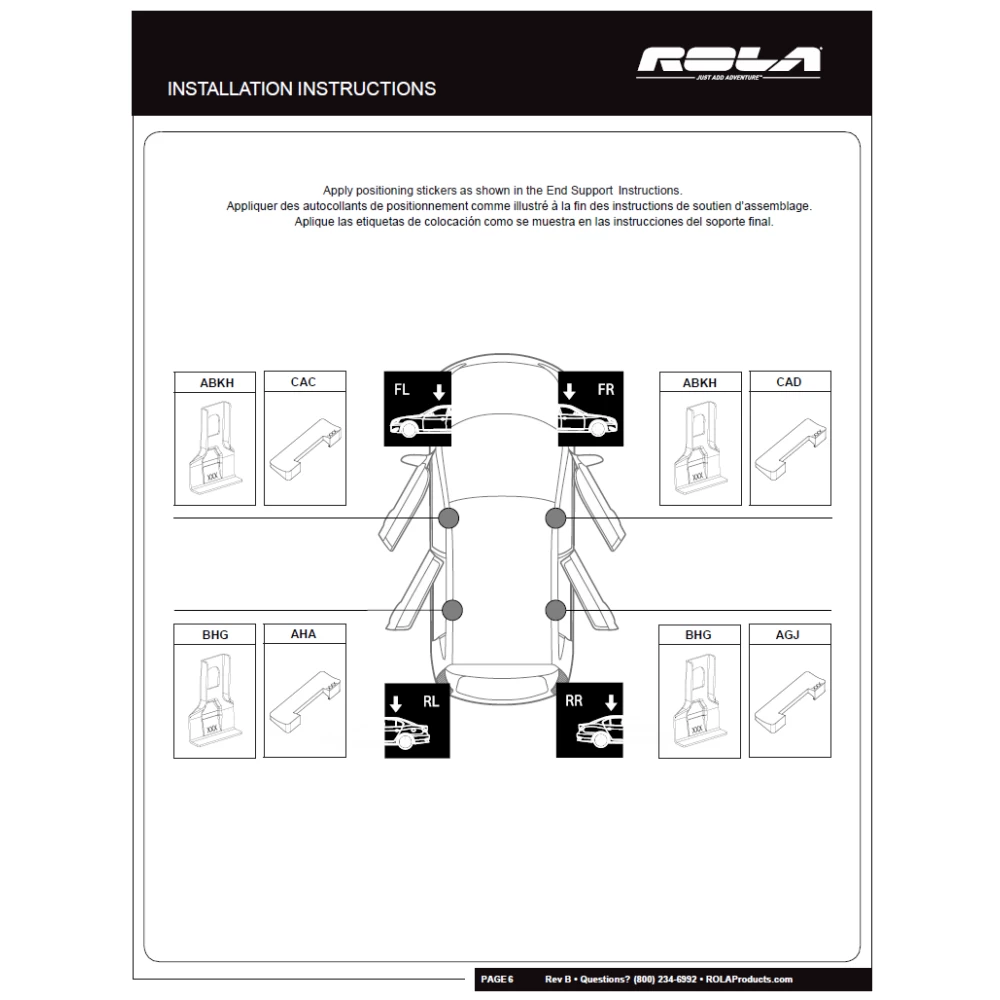

Installation Instructions for Part #R5003
Roof Rail Kit System with Cross Bars, KIT AGCG Components, and RE1350-53 Rails
Supported Vehicles:
- Ford Escape, 5-door SUV, 2013–2017
Part Numbers:
- RE1350-53: Roof Rails
- 59970: Cross Bar System
- KIT AGCG: Door Frame Fit Kit
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth
Hardware List:
RE1350-53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders
KIT AGCG Components
- (2) Door Frame Straps
- (4) Gasket Pads
59970 Cross Bar System
- (2) Cross Bars
- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE1350-53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.
Step 3: Install the Rails on the Roof

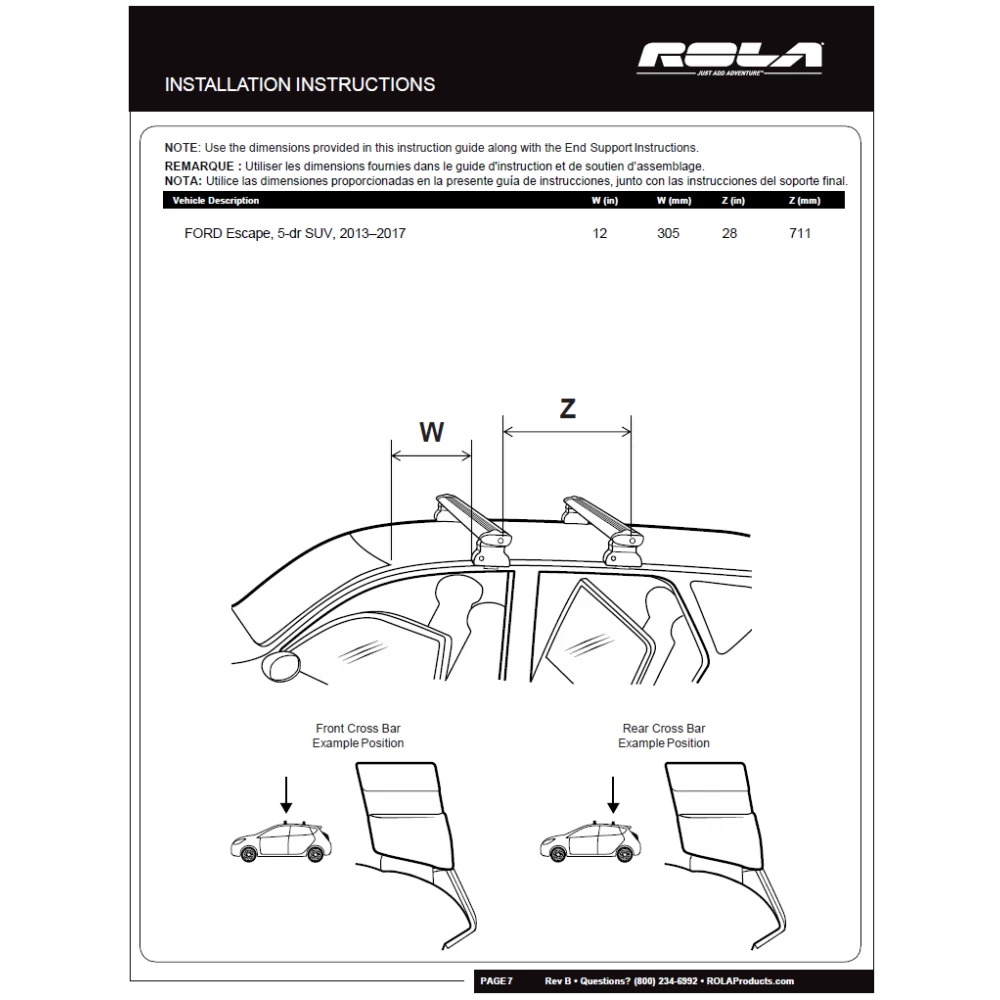

- Place the rails at the designated positions:
- Front Rail Position (W): 12 in (305 mm) from the windshield edge.
- Rear Rail Position (Z): 28 in (711 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.
Step 4: Attach the Cross Bars
- Align the 59970 Cross Bars with the installed rails.
- Secure the cross bars using the KIT AGCG Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Installation Instructions for Part #R5003
Roof Rail Kit System with Cross Bars, KIT AGCG Components, and RE1350-53 Rails
Supported Vehicles:
- Ford Escape, 5-door SUV, 2013–2017
Part Numbers:
- RE1350-53: Roof Rails
- 59970: Cross Bar System
- KIT AGCG: Door Frame Fit Kit
Tools Required:
- Torque Wrench (adjustable to 4 Nm and 18 ft-lbs)
- Measuring Tape
- Marker or Pencil
- Cleaning Cloth
Hardware List:
RE1350-53 Rails
- (2) Rails
- (4) Bar End Caps (Left and Right)
- (4) Quarter Turn Plugs
- (4) Position Sliders
KIT AGCG Components
- (2) Door Frame Straps
- (4) Gasket Pads
59970 Cross Bar System
- (2) Cross Bars
- (4) Lock Cores (optional, sold separately for additional security)
Step-by-Step Instructions:
Step 1: Prepare Your Work Area
- Park your vehicle on a level surface.
- Clean the roof and door frame areas thoroughly.
Step 2: Assemble the Rails
- Attach the Bar End Caps to the ends of the RE1350-53 Rails.
- Insert the Quarter Turn Plugs into the Position Sliders and adjust for your vehicle’s roof dimensions.
Step 3: Install the Rails on the Roof
- Place the rails at the designated positions:
- Front Rail Position (W): 12 in (305 mm) from the windshield edge.
- Rear Rail Position (Z): 28 in (711 mm) from the windshield edge.
- Tighten the quarter turn plugs to 4 Nm using the torque wrench.
Step 4: Attach the Cross Bars
- Align the 59970 Cross Bars with the installed rails.
- Secure the cross bars using the KIT AGCG Door Frame Straps and tighten all bolts to 18 ft-lbs.
Step 5: Secure the System
- Tighten all fasteners and straps.
- Push and pull on the installed system to ensure there is no movement.
Step 6: Load and Secure Cargo
- Ensure the combined weight of the rails, cross bars, and cargo does not exceed 110 lbs (50 kg).
- Use non-stretch straps to secure the cargo firmly.
- Tie down long items (e.g., kayaks, surfboards) to both front and rear bumpers.
Maintenance:
- Inspect all fasteners, straps, and supports before each use.
- Clean the system regularly to prevent dirt buildup.
- Lubricate locks and screws periodically to ensure smooth operation.
Safety Notes:
- Avoid speeds over 50 mph (80 km/h) with the system installed.
- Be mindful of height restrictions when driving with loads on the roof.
- Remove the system when not in use or before entering automatic car washes.
Warning: Failure to secure the system properly may result in damage or injury.
Specifications:
- Maximum Weight Capacity: 110 lbs (50 kg)
- Recommended Speed Limit: 50 mph (80 km/h)
Caution: Exceeding the weight or speed limits can lead to accidents or void the warranty.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
