Tekonsha Primus IQ Electric Trailer Brake Control for 09‑25 Honda Pilot 19‑22 Passport w/ Plug Play Wiring Adapter Proportional Eletric Trailer Brakes Module Box Controller 1‑3 Axle
Model: 90160 3070-1Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2009 - 2025 Honda Pilot w/Factory Tow Package
Utilizing the primary sensor technology from Prodigy®, the Primus®IQ now includes the Boost feature that gives users the ability to apply more initial trailer braking when towing heavier trailers. It works proportionally in reverse for backing into tough spots and includes a snap-in dash mounting clip and removable electrical connector that allows the unit to be quickly stored when not in use. You will appreciate the digital readout depicting a secure electrical connection, amount of voltage delivery to the trailer brakes and diagnostic features incorporated in the LED display.
Brake Control Specs:
| Part Number | 90160 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 3 axle trailers |
| Warranty | Lifetime |
| Features: | Utilizes Plug-N-Play port for 2-plug adapters. Self-diagnostics features will illuminate LED readout when issues occur. Includes a Boost feature. Works proportionally in reverse. Snap-in dash mounting clip and hardware included. Digital LED readout. Limited lifetime warranty. |
| Installation Instructions |  |
2-Plug Wiring Adapter Specs:
| Part Number | 3070 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Tekonsha the most powerful manufacturer of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. The included adapter will simply plug into the back of the brake control and the other end plugs into a matching plug on your vehicle. There is no splicing or worry involved, it is a very simple installation process. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025
$111 30 $167.25 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$167.25 $111 30
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $27.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 90160 3070-1

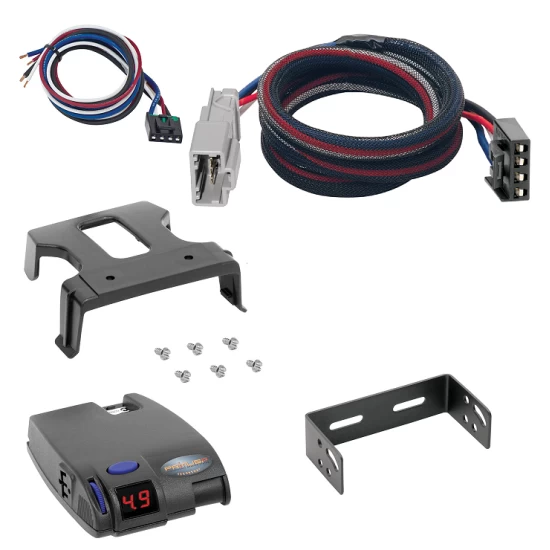

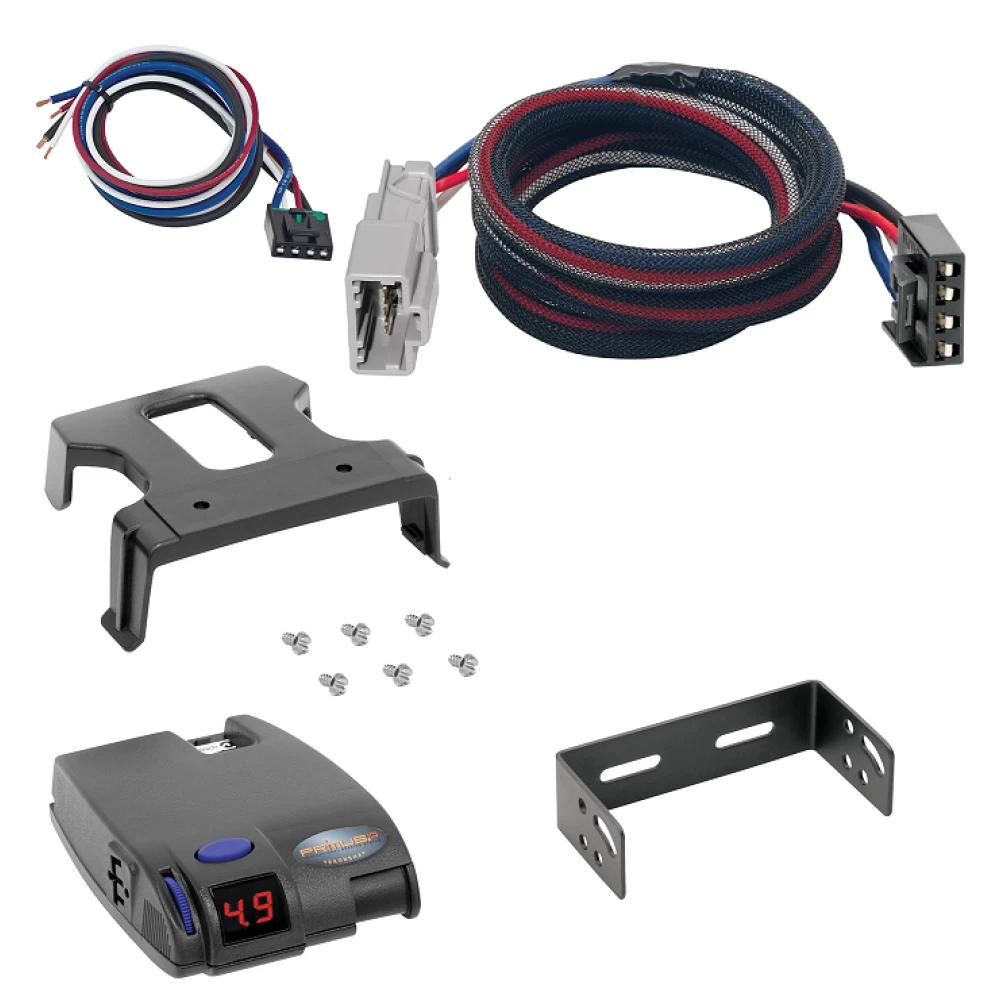

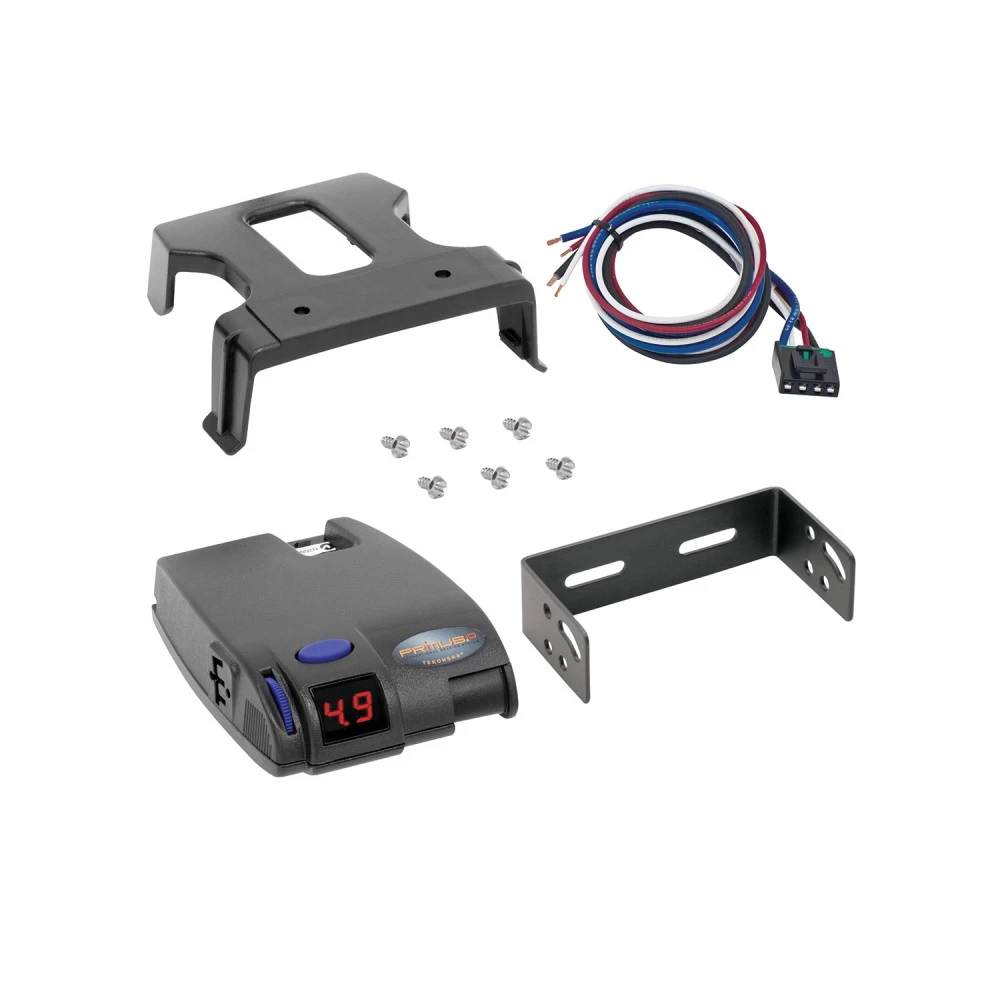

- Includes: Primus IQ Proportional Brake Controller for Trailers with 1-3 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2009 - 2025 Honda Pilot w/Factory Tow Package
Utilizing the primary sensor technology from Prodigy®, the Primus®IQ now includes the Boost feature that gives users the ability to apply more initial trailer braking when towing heavier trailers. It works proportionally in reverse for backing into tough spots and includes a snap-in dash mounting clip and removable electrical connector that allows the unit to be quickly stored when not in use. You will appreciate the digital readout depicting a secure electrical connection, amount of voltage delivery to the trailer brakes and diagnostic features incorporated in the LED display.
Brake Control Specs:
| Part Number | 90160 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 3 axle trailers |
| Warranty | Lifetime |
| Features: | Utilizes Plug-N-Play port for 2-plug adapters. Self-diagnostics features will illuminate LED readout when issues occur. Includes a Boost feature. Works proportionally in reverse. Snap-in dash mounting clip and hardware included. Digital LED readout. Limited lifetime warranty. |
| Installation Instructions | |
2-Plug Wiring Adapter Specs:
| Part Number | 3070 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Tekonsha the most powerful manufacturer of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. The included adapter will simply plug into the back of the brake control and the other end plugs into a matching plug on your vehicle. There is no splicing or worry involved, it is a very simple installation process. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025
Get Expert Help
Tekonsha Primus IQ Electric Trailer Brake Control for 09-25 Honda Pilot 19-22 Passport w/ Plug Play Wiring Adapter Proportional Eletric Trailer Brakes Module Box Controller 1-3 Axle Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Numbers:
- 307000
Wiring Access Location:
- Under dash, left of the steering column, near the brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Find the electric brake control harness under the dash, to the left of the steering column.
- The harness will be taped to another harness near the brake pedal and will have a 4-pin connector that mates with the adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Complete installation and mount the brake control unit
- Complete the installation as directed in the brake control manufacturer’s instructions.
- Mount the brake control unit and perform the test procedures to ensure functionality.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the vehicle owner’s manual for fuse and relay locations.
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 3 axles: 6 brakes (18 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Additional Information:
- Always ensure the adapter is securely connected to the mating receptacle on the brake control before attaching to the vehicle harness.
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Numbers:
- 307000
Wiring Access Location:
- Under dash, left of the steering column, near the brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Find the electric brake control harness under the dash, to the left of the steering column.
- The harness will be taped to another harness near the brake pedal and will have a 4-pin connector that mates with the adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Complete installation and mount the brake control unit
- Complete the installation as directed in the brake control manufacturer’s instructions.
- Mount the brake control unit and perform the test procedures to ensure functionality.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Consult the vehicle owner’s manual for fuse and relay locations.
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 3 axles: 6 brakes (18 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty Duration: 1 year from the date of purchase.
- Coverage: The product is warranted against defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
Installation and Operation Instructions for Electronic Brake Control
Specifications:
- Applicable for 2, 4, and 6 brake applications.
- Features proportional braking via an inertial sensor.
Tools Required:
-
6 x 3/8" screws.
- Drill with 1/8" bit.
- Screwdriver or wrench.
Safety Notes:
- Keep RF-generating devices (e.g., cell phones) at least 12 inches away from the brake control to avoid interference.
- Disconnect the trailer plug before testing a breakaway switch to prevent damage to the control unit.
- Do not exceed the vehicle’s Gross Combined Weight Rating (GCWR).
- This unit is not designed for electric-hydraulic trailer brake systems.
Hardware List:
- Brake control unit.
- Mounting bracket.
- Wiring harness.
Installation Instructions:
Mounting the Unit:
-
Traditional Bracket Mount:
- Secure the mounting bracket to a solid surface using the provided screws.
- Attach the brake control to the bracket and adjust to the desired position.
- Tighten screws securely.
-
Dash Mounting Clip:
- Secure the dash clip to a solid surface with screws.
- Slide the brake control into the clip, ensuring the rear slots engage with the clip's tabs.
- Adjust to the proper angle and tighten securely.
Wiring Options:
-
Generic Wiring Harness:
- Use the included pigtail wiring harness and follow the generic wiring guide.
-
OEM-Specific Harness:
- Use an OEM wiring harness compatible with your vehicle’s tow package.
Setting Power to Trailer Brakes:
- Connect the trailer to the tow vehicle.
- Adjust the power knob to indicate approximately 6.0 on the display.
- Test at 25 mph on a dry, level surface:
- If trailer brakes lock up, decrease power.
- If braking is insufficient, increase power.
- Repeat until braking is smooth and sufficient without wheel lock-up.
Boost Settings:
- Allows for increased trailer braking sensitivity.
- Three levels available:
- [b.1]: Starts at 13% of the power setting.
- [b.2]: Starts at 25%.
- [b.3]: Most aggressive setting.
- Adjust according to trailer weight and braking performance.
Automatic Leveling:
- The unit automatically levels the inertial sensor for optimal performance.
Troubleshooting Guide:
| Issue | Possible Cause | Solution |
|---|---|---|
| No brakes with manual or pedal activation | Poor power or ground connection. | Check power and ground connections. |
| Trailer brakes lock up | Excessive power setting. | Reduce power or inspect brake wiring. |
| "OL" error on display | Overload condition detected. | Inspect and correct wiring issues. |
| Flashing display | Connection or mounting angle issue. | Verify proper mounting and connections. |
Maintenance:
- Warm up trailer brakes before adjusting power.
- Inspect and adjust brakes after 200 miles and every 3,000 miles thereafter.
- Periodically check all connections and tighten if needed.
Warranty Information:
- Limited Warranty:
- Covers defects in materials and workmanship under normal use.
- Excludes damage caused by misuse, improper installation, or overloading.
- Attention: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
