Tow Package For 07‑13 Chevrolet Silverado GMC Sierra 1500 Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver Reese

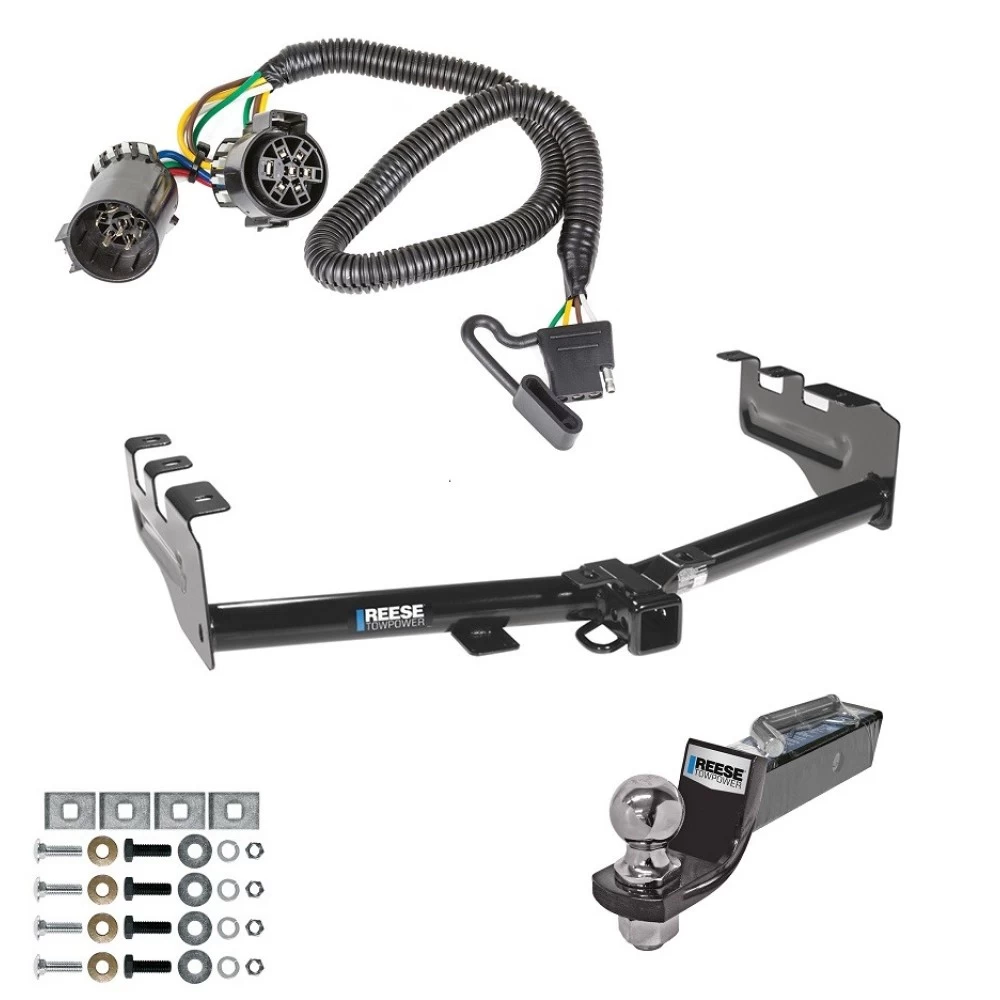

Model: 44563 118384 21536Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2007 - 2013 GMC, Sierra 1500, All Styles
Trailer Hitch Specs:
| Part Number | 44563 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,500 lbs |
| Max Tongue Weight | 900/1,050 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

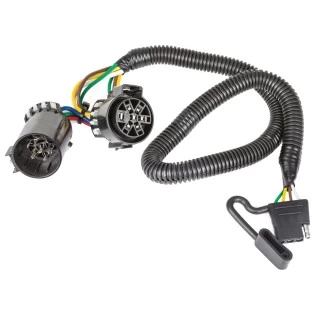

Wiring Kit Specs:
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 07 08 09 10 11 12 13 2007 2008 2009 2010 2011 2012 2013
$276 77 $418.55 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$418.55 $276 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44563 118384 21536
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2007 - 2013 GMC, Sierra 1500, All Styles
Trailer Hitch Specs:
| Part Number | 44563 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,500 lbs |
| Max Tongue Weight | 900/1,050 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Part Number | 21536 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Ball Size | 2" |
| Ball Shank Dia. | 1" |
| Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Ball-Mount Finish | Black Powdercoat |
| Ball Finish | Chrome (Cold forged for superior strength) |
| Warranty | Lifetime |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 07 08 09 10 11 12 13 2007 2008 2009 2010 2011 2012 2013
Get Expert Help
Tow Package For 07-13 Chevrolet Silverado GMC Sierra 1500 Trailer Hitch w/ Wiring 2" Drop Mount 2" Ball 2" Receiver Reese Install Notes
Installation Instructions for Chevrolet Silverado 1500 and GMC Sierra 1500
(Requires OEM Bumper)
Part Numbers:
- 87430
- 75521
- 44563
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, aligning the rearmost slots on the hitch with the existing weldnuts in the vehicle frame.
-
Install New M14 Bolts:
- Install new M14 bolts through the hitch into the weldnuts in the vehicle frame and step bumper.
-
Install Remaining Fasteners:
- Secure the hitch using the provided carriage bolts, flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- Tighten M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Use a torque wrench to tighten all fasteners to the following specifications:
Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 9/16" Flat Washers
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,500 lbs (4,767 kg), Max Tongue Weight 1,050 lbs (477 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
(Requires OEM Bumper)
Part Numbers:
- 87430
- 75521
- 44563
Tools Required:
- Wrenches: 3/4", 21mm, 22mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
-
Position the Hitch:
- Lift the hitch receiver into position, aligning the rearmost slots on the hitch with the existing weldnuts in the vehicle frame.
-
Install New M14 Bolts:
- Install new M14 bolts through the hitch into the weldnuts in the vehicle frame and step bumper.
-
Install Remaining Fasteners:
- Secure the hitch using the provided carriage bolts, flat washers, lock washers, and hex nuts as shown in the diagram.
-
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
- Tighten M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
- Use a torque wrench to tighten all fasteners to the following specifications:
Hardware List:
- (4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
- (4) 9/16" Lock Washers
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 9/16" Flat Washers
- (4) 1/2" Conical Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,500 lbs (4,767 kg), Max Tongue Weight 1,050 lbs (477 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the tow vehicle’s trailer harness connector (A).
- This is located under the vehicle, behind the bumper, on the driver’s side.
-
Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector adapter end (B) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way attached to the hitch on the driver’s side.
-
Separate the factory socket (A) and the 7-Way (C).
-
Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the Trailer Harness Connector:
- Find the vehicle’s trailer harness connector (A) under the vehicle, behind the bumper, on the driver’s side.
-
Remove Protective Cap:
- Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure all mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector:
- Attach the T-Connector adapter end (B) to the vehicle’s connector (A).
- Make sure the T-Connector is fully inserted with locking tabs secured.
-
Replace the Protective Cap:
- Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way:
- The Factory 7-Way is attached to the hitch on the driver’s side.
-
Separate the Factory Socket and 7-Way:
- Disconnect the factory socket (A) from the 7-Way (C).
-
Install the T-Connector:
- Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
- Test the Installation:
- Use a test light or trailer to verify the functionality of the installed T-Connector.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Related Products
