Installation Instructions for Toyota Highlander and Highlander Hybrid (2020-Present)

Part Numbers:

• 75992
• 44763
• CQT75992

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Installation Instructions for Vehicle (2020-Present)

Part Numbers:

• 75992
• 44763
• CQT75992

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 17mm, 19mm

Wiring Access Location:

• SUV3, SUV4

Step-by-Step Instructions:

1. Prepare Frame Rails:

   • Remove any rubber plugs from the bottom of the frame rails to expose the weldnuts.
   • Clean the threads of the weldnuts with a wire brush to remove any debris or corrosion.

2. Position the Hitch:

   • Raise the hitch into position under the vehicle, aligning the slots on the hitch with the weldnuts in the vehicle frame.

3. Install Fasteners:

   • Secure the hitch using six (6) M12 x 1.25 x 40mm CL10.9 hex bolts and six (6) 1/2" conical toothed washers.
   • Ensure the toothed side of the washers faces the hitch.

4. Tighten Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 79 lb-ft (107 Nm).

5. Verify Installation:

   • Double-check that all bolts are securely tightened, and the hitch is properly aligned.

Hardware List:

• (6) M12 x 1.25 x 40mm CL10.9 Bolts
• (6) 1/2" Conical Toothed Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,268 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Distributing: Max Trailer Weight 6,000 lbs (2,721 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 30 minutes for a professional installer.
• If you encounter difficulty installing, consult a professional or contact customer support.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

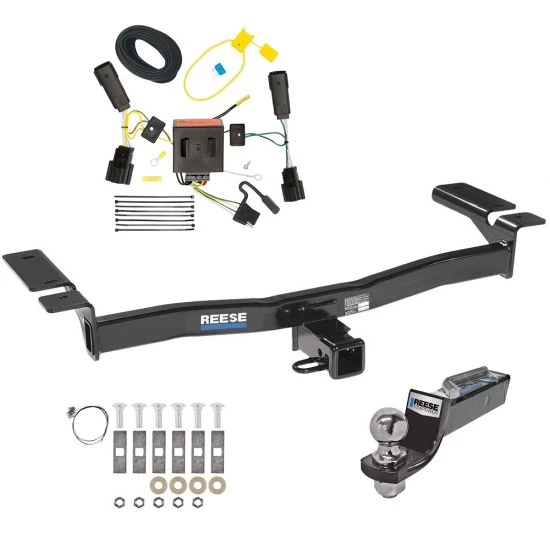

Installation Instructions for T-Connector Adapter for Lincoln MKX

Part Numbers:

• 118519

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Tailgate and Remove Panels:

   • Remove cargo nets and the cargo floor hatch to access the spare tire area.
   • Remove both taillight housing assemblies by unscrewing two bolts per side and carefully prying the taillight housing away from the vehicle. Be cautious not to break the alignment tabs.

2. Disconnect the Wiring Harness:

   • Locate the taillight wiring harness in the taillight pocket on both sides.
   • Disconnect the harness connectors carefully, ensuring not to damage the locking tabs.

3. Route the T-Connector Wiring:

   • On both sides, slit the grommet to allow the T-Connector wiring to pass through.
   • Route the wiring through the interior trim panels and along the threshold plate to the passenger side.

4. Connect the T-Connector:

   • For the driver’s side, insert the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.
   • For the passenger side, repeat the process using the T-Connector end with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean the area of dirt and rustproofing.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Avoid drilling into the vehicle floor or exposed surfaces.

6. Connect the Grey 12-Pin Connector:

   • Insert the T-Connector’s grey 12-pin connector into the black box module.
   • Ensure all connectors are clean, properly aligned, and securely locked in place.

7. Mount the Black Box:

   • Locate a flat surface inside the vehicle to mount the black box using the provided double-sided tape.
   • Ensure the box is mounted in a dry location away from direct water or liquid exposure.

   Warning:

   • The black box module must only be mounted inside the vehicle to avoid damage.

8. Connect the Power Wire:

   • Route the black 12-gauge wire from the black box to the vehicle’s positive (+) battery cable.
   • Connect the black 12-gauge wire and the two black wires from the T-Connector’s grey connector using the provided yellow butt connector.

9. Reconnect the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the ring terminal to the positive (+) battery cable and secure it.
   • Insert the 10-amp fuse into the fuse holder and reconnect the negative (-) battery cable.

   Warning:

   • Ensure all connections are complete before testing.

10. Secure and Reassemble:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that could pinch or cut the wiring.
    • Reinstall all removed panels and the taillight housing assemblies.

11. Test the Installation:

    • Test the T-Connector installation with a test light or trailer to ensure proper functionality.

    Specifications:

    • Max. stop/turn light: 2.1 amps
    • Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always wear safety glasses and follow all safety precautions.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Generic Vehicle

Part Numbers:

• 118519

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Open the Rear Tailgate and Remove Panels:

   • Remove cargo nets and the cargo floor hatch to access the spare tire area.
   • Remove both taillight housing assemblies by unscrewing two bolts per side and carefully prying the taillight housing away from the vehicle. Be cautious not to break the alignment tabs.

2. Disconnect the Wiring Harness:

   • Locate the taillight wiring harness in the taillight pocket on both sides.
   • Disconnect the harness connectors carefully, ensuring not to damage the locking tabs.

3. Route the T-Connector Wiring:

   • On both sides, slit the grommet to allow the T-Connector wiring to pass through.
   • Route the wiring through the interior trim panels and along the threshold plate to the passenger side.

4. Connect the T-Connector:

   • For the driver’s side, insert the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.
   • For the passenger side, repeat the process using the T-Connector end with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean the area of dirt and rustproofing.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Avoid drilling into the vehicle floor or exposed surfaces.

6. Connect the Grey 12-Pin Connector:

   • Insert the T-Connector’s grey 12-pin connector into the black box module.
   • Ensure all connectors are clean, properly aligned, and securely locked in place.

7. Mount the Black Box:

   • Locate a flat surface inside the vehicle to mount the black box using the provided double-sided tape.
   • Ensure the box is mounted in a dry location away from direct water or liquid exposure.

   Warning:

   • The black box module must only be mounted inside the vehicle to avoid damage.

8. Connect the Power Wire:

   • Route the black 12-gauge wire from the black box to the vehicle’s positive (+) battery cable.
   • Connect the black 12-gauge wire and the two black wires from the T-Connector’s grey connector using the provided yellow butt connector.

9. Reconnect the Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the ring terminal to the positive (+) battery cable and secure it.
   • Insert the 10-amp fuse into the fuse holder and reconnect the negative (-) battery cable.

   Warning:

   • Ensure all connections are complete before testing.

10. Secure and Reassemble:

    • Use the provided cable ties to secure the wiring harness, avoiding areas that could pinch or cut the wiring.
    • Reinstall all removed panels and the taillight housing assemblies.

11. Test the Installation:

    • Test the T-Connector installation with a test light or trailer to ensure proper functionality.

Specifications:

• Max. stop/turn light: 2.1 amps
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always wear safety glasses and follow all safety precautions.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Refer to the vehicle owner’s manual for additional guidance.
