Trailer Brake Control for 03‑05 Lincoln Aviator w/ Plug Play Wiring Adapter Reese Brakeman IV Eletric Trailer Brakes Module Box Controller
Model: 83504 3035-14Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2003 - 2005 Lincoln, Aviator, w/Factory Tow Package
Brake Control Specs:
| Part Number | 83504 |
| Brand | Reese |
| Type | Time Actuated |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Digital output indicator Small, compact design Up-front push buttons for Sync and Output Diagnostics for Overload, Open Ground Short Circuit Protected Mounts in any direction No leveling required |
| Installation Instructions |  |
2-Plug Wiring Asapter Specs:
| Part Number | 3035 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Reese made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Our brake controls easily install on your vehicle. The custom 2-Plug adapter wiring which included in this purchase will simply plug into the back of the brake control and the other end plugs into a matching connection point on your vehicle. There is no splicing or extra work involved, it is a very easy process. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 03 04 05 2003 2004 2005
$90 36 $185.07 51% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$185.07 $90 36
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $22.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 83504 3035-14

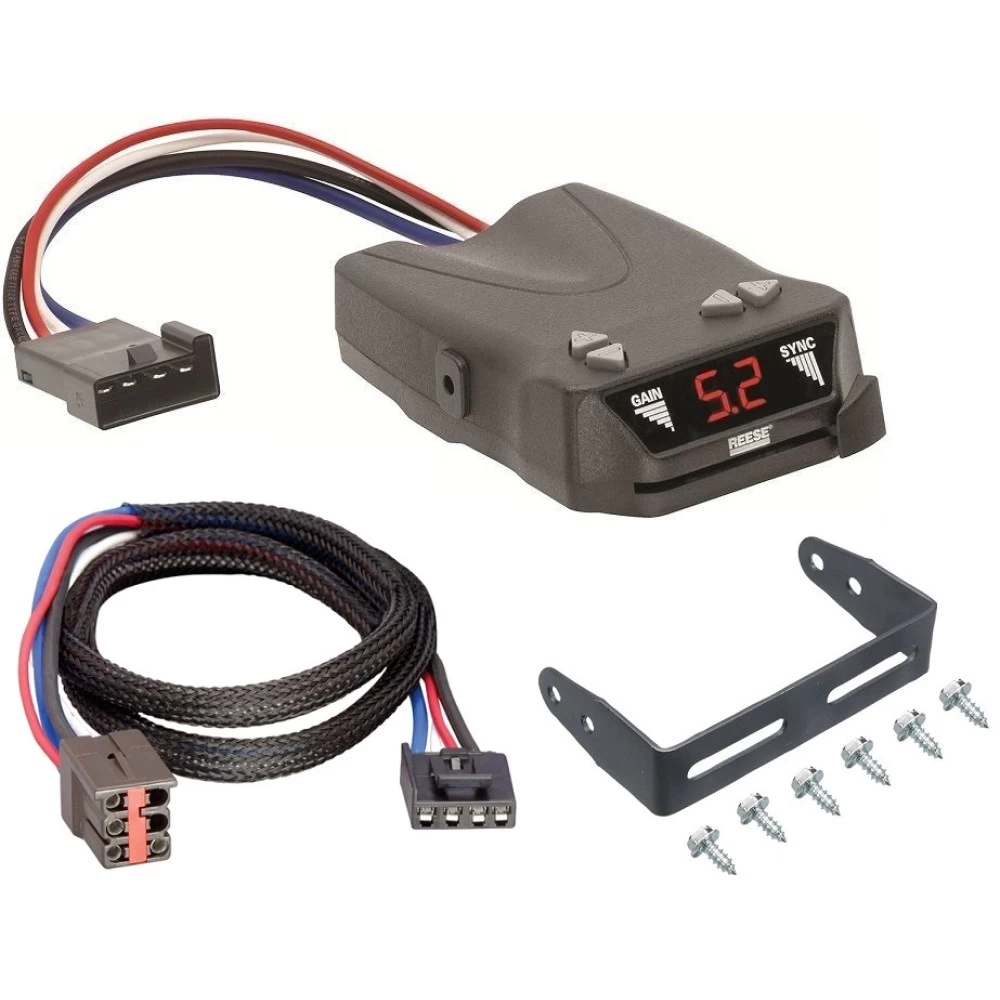

- Includes: Brakeman IV Trailer Times Brake Controller 1 to 4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2003 - 2005 Lincoln, Aviator, w/Factory Tow Package
Brake Control Specs:
| Part Number | 83504 |
| Brand | Reese |
| Type | Time Actuated |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Digital output indicator Small, compact design Up-front push buttons for Sync and Output Diagnostics for Overload, Open Ground Short Circuit Protected Mounts in any direction No leveling required |
| Installation Instructions | |
2-Plug Wiring Asapter Specs:
| Part Number | 3035 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Reese made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Our brake controls easily install on your vehicle. The custom 2-Plug adapter wiring which included in this purchase will simply plug into the back of the brake control and the other end plugs into a matching connection point on your vehicle. There is no splicing or extra work involved, it is a very easy process. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 03 04 05 2003 2004 2005
Get Expert Help
Trailer Brake Control for 03-05 Lincoln Aviator w/ Plug Play Wiring Adapter Reese Brakeman IV Eletric Trailer Brakes Module Box Controller Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303500
Tools Required:
- Test Light
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness under the dashboard:
- Near the center console on most vehicles.
- For Ford Full-Size Vans: Underneath and to the left of the steering column.
- For Ford Explorer/Mercury Mountaineer:
- Behind the glove box on the passenger side, or
- Underneath and to the left of the steering column, taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the adapter’s plug.
Step 2: Verify Battery Power
- Use a test light to probe the connector and verify that battery power is supplied.
- Alternatively, follow the wires from the connector to ensure they are not disconnected behind the instrument panel.
If battery power is present:
- Proceed to Step 4.
If no battery power is present:
- Follow Step 3 to add power.
Step 3: Add Power to the Connector
- Use an electric brake control wiring kit to route the required wires as follows:
- Cut the battery feed wire at the vehicle connector, leaving enough wire to splice.
- Use the supplied butt connector to connect the wiring kit’s battery feed wire to the vehicle harness.
- Cut the trailer brake wire at the vehicle connector, leaving enough wire to splice.
- Connect the wiring kit’s trailer brake wire using the supplied butt connector.
Step 4: Connect the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions to wire and mount the brake controller unit.
Step 5: Test the Installation
- Complete the installation as instructed by the brake control manufacturer.
- Perform all test procedures to verify proper operation of the trailer brake system.
Warnings:
- Overloading the Circuit May Cause Fires:
- DO NOT exceed the lower of the following:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- DO NOT exceed the lower of the following:
- Always read and follow the vehicle owner’s manual and the brake controller installation instructions.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding for the brake controller system.
- Stop Lamp Switch (Input): Provides a braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
Safety Notes:
- Verify all wiring connections are secure and routed away from:
- Sharp edges
- Hot surfaces
- Moving parts
- Inspect the adapter and wiring periodically for wear or damage.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303500
Tools Required:
- Test Light
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness under the dashboard:
- Near the center console on most vehicles.
- For Ford Full-Size Vans: Underneath and to the left of the steering column.
- For Ford Explorer/Mercury Mountaineer:
- Behind the glove box on the passenger side, or
- Underneath and to the left of the steering column, taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the adapter’s plug.
Step 2: Verify Battery Power
- Use a test light to probe the connector and verify that battery power is supplied.
- Alternatively, follow the wires from the connector to ensure they are not disconnected behind the instrument panel.
If battery power is present:
- Proceed to Step 4.
If no battery power is present:
- Follow Step 3 to add power.
Step 3: Add Power to the Connector
- Use an electric brake control wiring kit to route the required wires as follows:
- Cut the battery feed wire at the vehicle connector, leaving enough wire to splice.
- Use the supplied butt connector to connect the wiring kit’s battery feed wire to the vehicle harness.
- Cut the trailer brake wire at the vehicle connector, leaving enough wire to splice.
- Connect the wiring kit’s trailer brake wire using the supplied butt connector.
Step 4: Connect the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions to wire and mount the brake controller unit.
Step 5: Test the Installation
- Complete the installation as instructed by the brake control manufacturer.
- Perform all test procedures to verify proper operation of the trailer brake system.
Warnings:
- Overloading the Circuit May Cause Fires:
- DO NOT exceed the lower of the following:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- DO NOT exceed the lower of the following:
- Always read and follow the vehicle owner’s manual and the brake controller installation instructions.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding for the brake controller system.
- Stop Lamp Switch (Input): Provides a braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
Safety Notes:
- Verify all wiring connections are secure and routed away from:
- Sharp edges
- Hot surfaces
- Moving parts
- Inspect the adapter and wiring periodically for wear or damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control for 2, 4, 6 & 8 Brake Applications
Product Information:
- Part Number: N83504
Package Contents:
- Brake Control Unit
- Mounting Bracket
- Mounting Screws (#6 x 3/8") (Qty: 4)
Tools Required:
- Drill with 1/8" drill bit
- Screwdriver or 1/4" Nut Driver
- Wire Stripper/Cutter
- Wire Crimping Tool
- Circuit Tester
- Assorted Wrenches
Mounting Instructions:
-
Choose Mounting Location:
- Select a solid surface that is easy for the driver to access.
- Ensure the area behind the mounting location is clear.
-
Install the Bracket:
- Use the bracket as a template to mark the holes.
- Drill two (2) 1/8" holes at the marked locations.
- Secure the bracket with self-tapping screws.
-
Attach the Brake Control:
- Slide the Brake Control Unit into the bracket.
- Secure it with the remaining screws.
Wiring Instructions:
- Black Wire: Connect to the 12V positive terminal of the battery using a 30A auto-reset circuit breaker.
- White Wire: Connect to a clean, bare metal ground on the vehicle chassis.
- Red Wire: Connect to the cold side of the stoplight switch (voltage only when the brake pedal is pressed).
- Blue Wire: Connect to the trailer brake wire at the 7-way connector.
Control Functions:
-
Output (Gain) Control:
- Adjusts the maximum power sent to the trailer brakes.
- Range: 0 (minimum) to 10 (maximum).
-
Sync Control:
- Adjusts the aggressiveness of the trailer braking:
- Press + for more aggressive braking.
- Press – for less aggressive braking.
- Sync settings range from 0° to 9°.
- Adjusts the aggressiveness of the trailer braking:
-
Manual Slide Control:
- Applies the trailer brakes independently of the tow vehicle’s brakes.
- Slide the control to the left to activate the trailer brakes.
- The Output (Gain) setting determines braking force.
-
Digital Display:
- Displays Gain and Sync settings during setup and operation.
- Decimal Point indicates activation when the brake pedal is pressed.
Setup and Adjustment:
-
Preliminary Adjustment:
- Connect the trailer to the vehicle.
- Press and hold the brake pedal.
- Adjust the Output (Gain) to approximately 2.0 using the +/- buttons.
- Press either Sync + or Sync – to adjust the Sync setting to 4°.
-
Test Drive:
- Drive forward at 25 mph in an open area.
- Use the Manual Slide Control to apply the trailer brakes:
- If braking is weak, increase the Output (Gain) setting.
- If the trailer brakes lock up, reduce the Output (Gain) setting.
-
Fine-Tune Sync Setting:
- Press and hold the brake pedal and adjust Sync:
- + for more aggressive braking.
- – for smoother braking.
- Make multiple stops to ensure smooth and firm braking performance.
- Press and hold the brake pedal and adjust Sync:
Troubleshooting Guide:
| Condition | Possible Cause | Solution |
|---|---|---|
| No brakes with pedal or manual use | No power or ground connection | Verify Black and White wires. |
| Weak braking performance | Output set too low | Increase the Output (Gain). |
| Brakes lock up | Output set too high | Decrease the Output (Gain). |
| Flashing OL on Display | Short in Blue wire circuit | Inspect and repair Blue wire circuit. |
| No display or response | Faulty wiring or blown fuse | Verify all wiring and connections. |
Safety Notes:
- Ensure wiring connections are secure and properly insulated.
- Test the system before towing and regularly inspect the trailer brakes.
- Do not exceed the vehicle’s towing capacity as specified by the manufacturer.
Technical Support:
- For technical support and assistance, our team of experts is available to help.
- Visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
